Trunk Lamp Connector End View

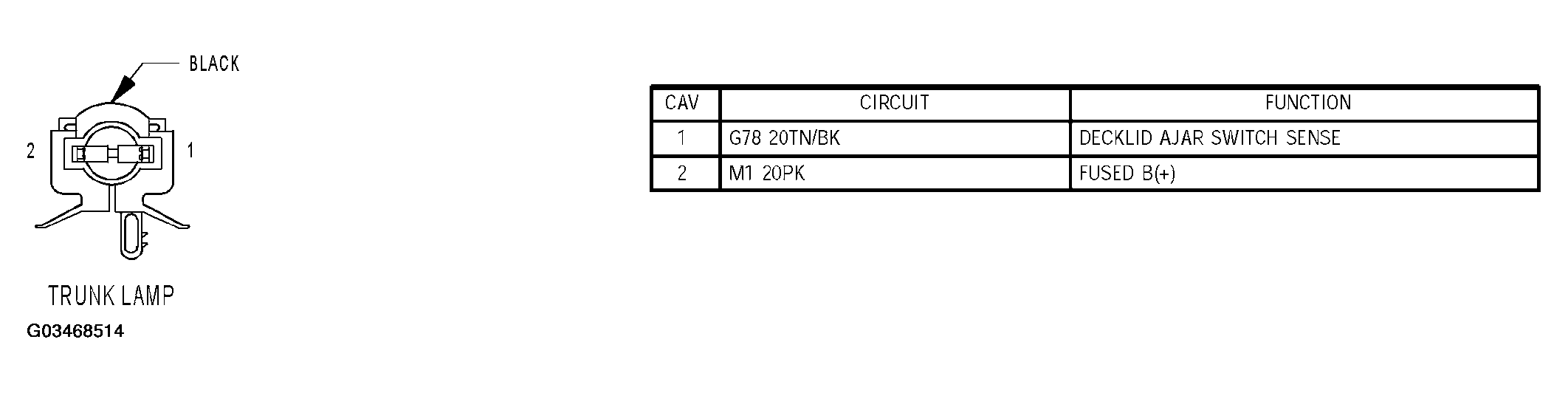

Fig 1: Trunk Lamp Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
