Fuel Injector Harness Connector End View

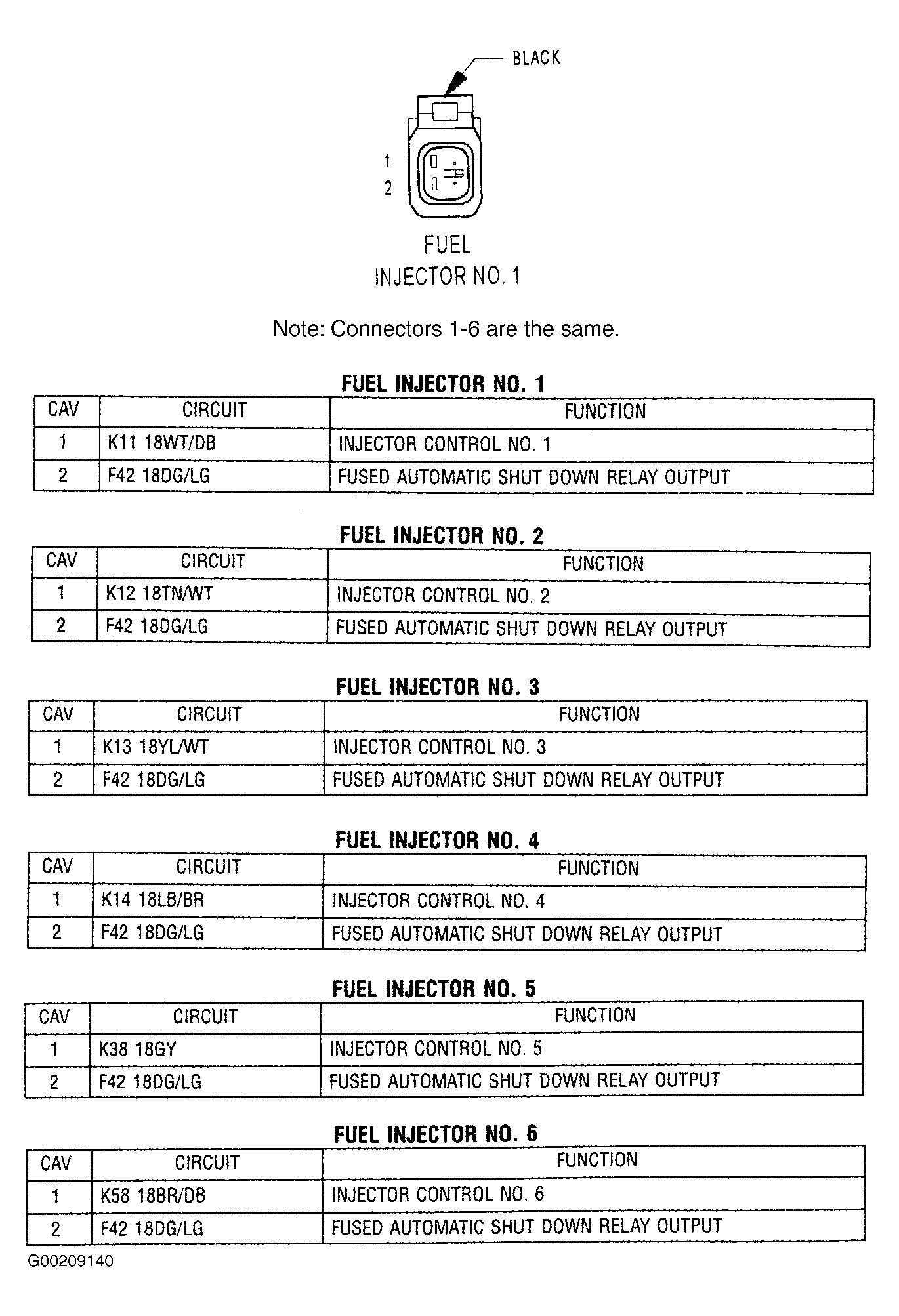

Fig 1: Identifying Fuel Injector No. 1-6 Harness Connectors
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
