Pcm Harness Connector End View

Fig 1: Identifying PCM C1 Black Harness Connector
G00114626Courtesy of DAIMLERCHRYSLER CORPORATION

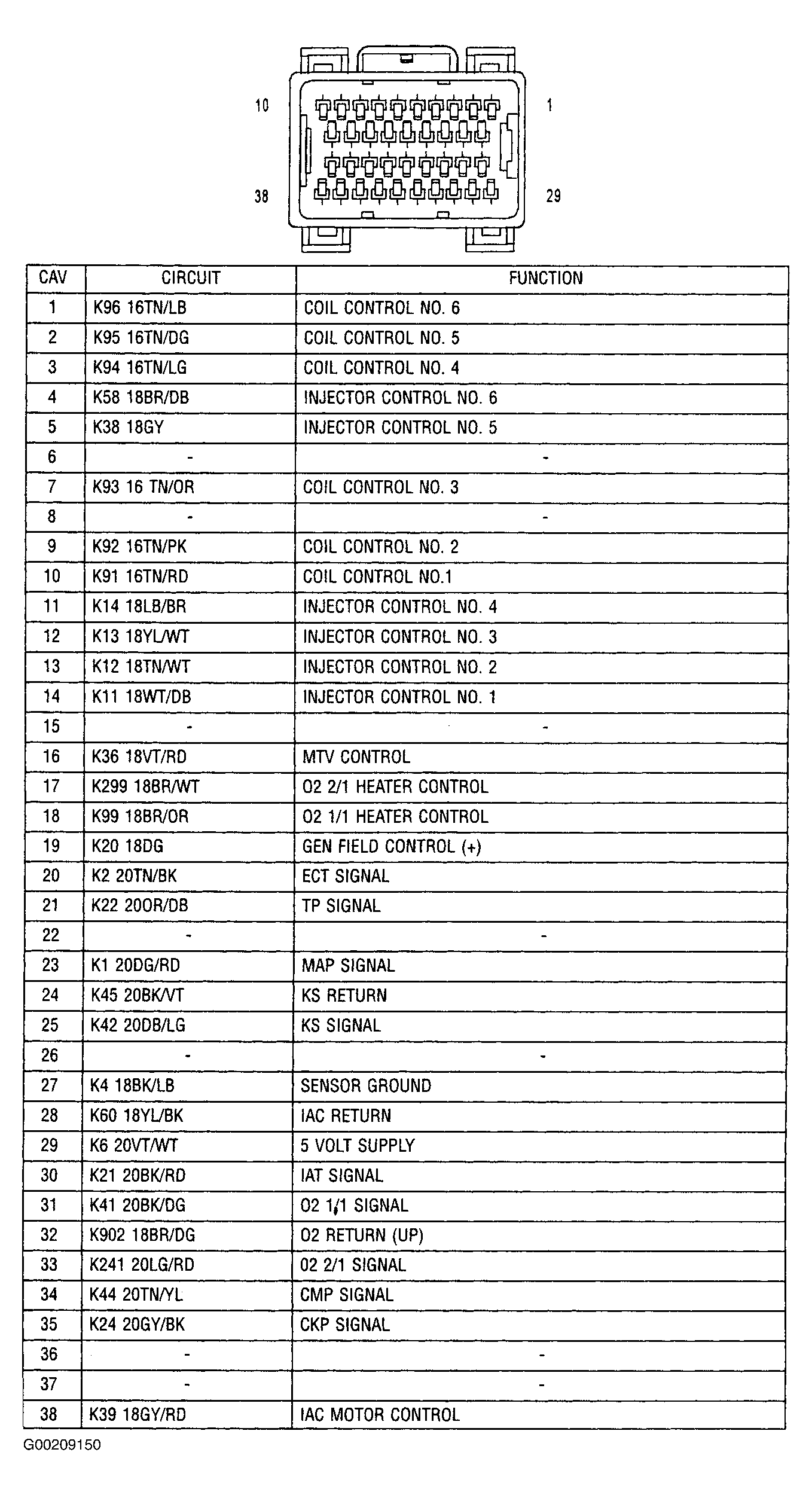

Fig 2: Identifying PCM C2 Harness Connector
G00209150Courtesy of CHRYSLER CORP.
Fig 3: Identifying PCM C3 White Harness Connector
G00114628Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Identifying PCM C4 Green Harness Connector
G00114629Courtesy of DAIMLERCHRYSLER CORPORATION
