Airbag System

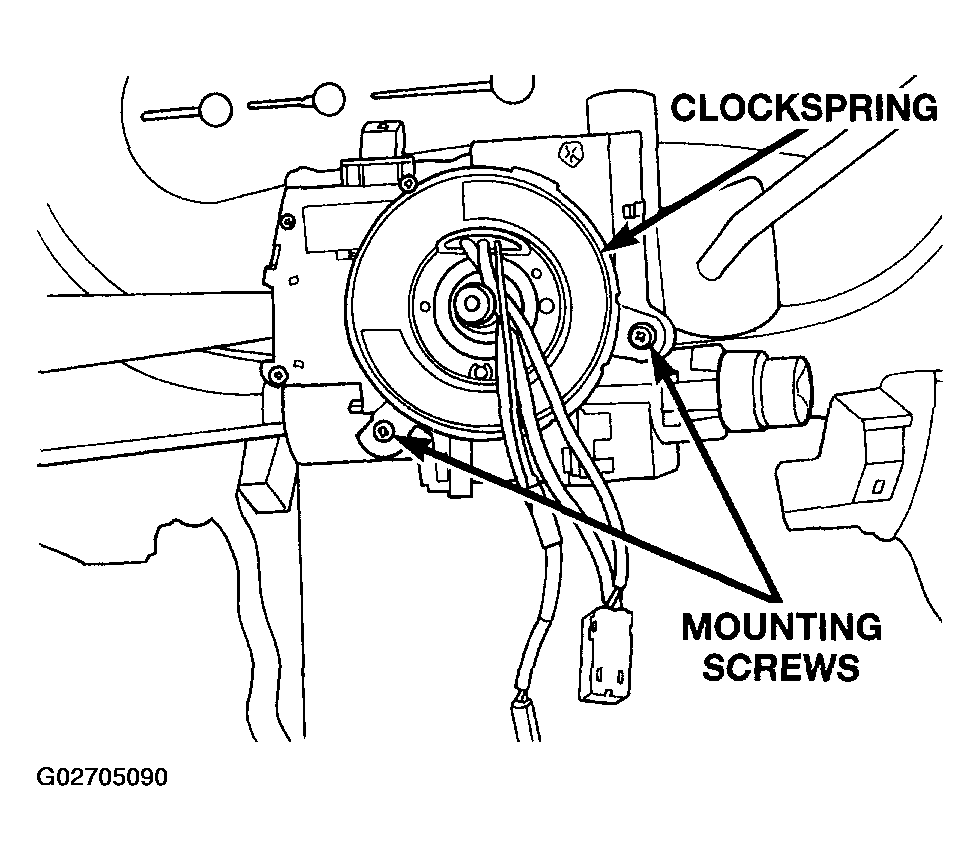

Fig 1: Identifying Airbag System Component Locations (1 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

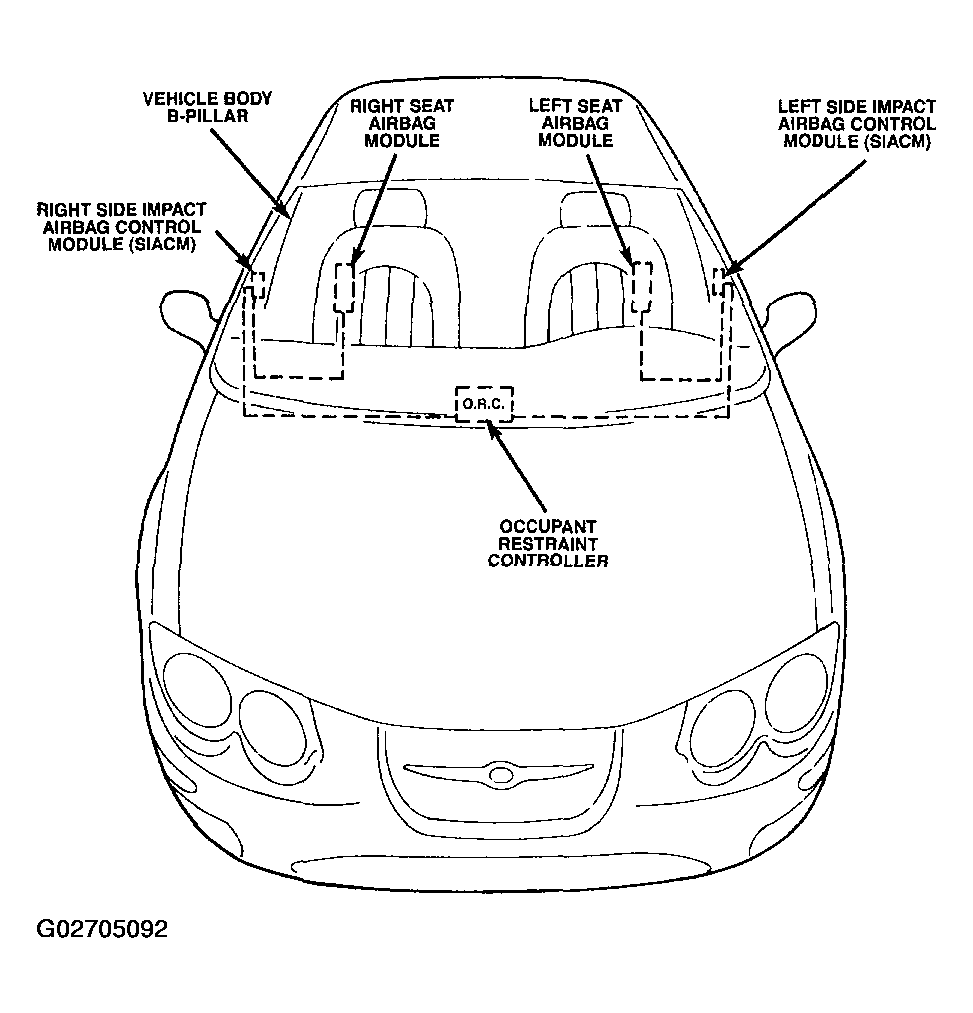

Fig 2: Identifying Airbag System Component Locations (2 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

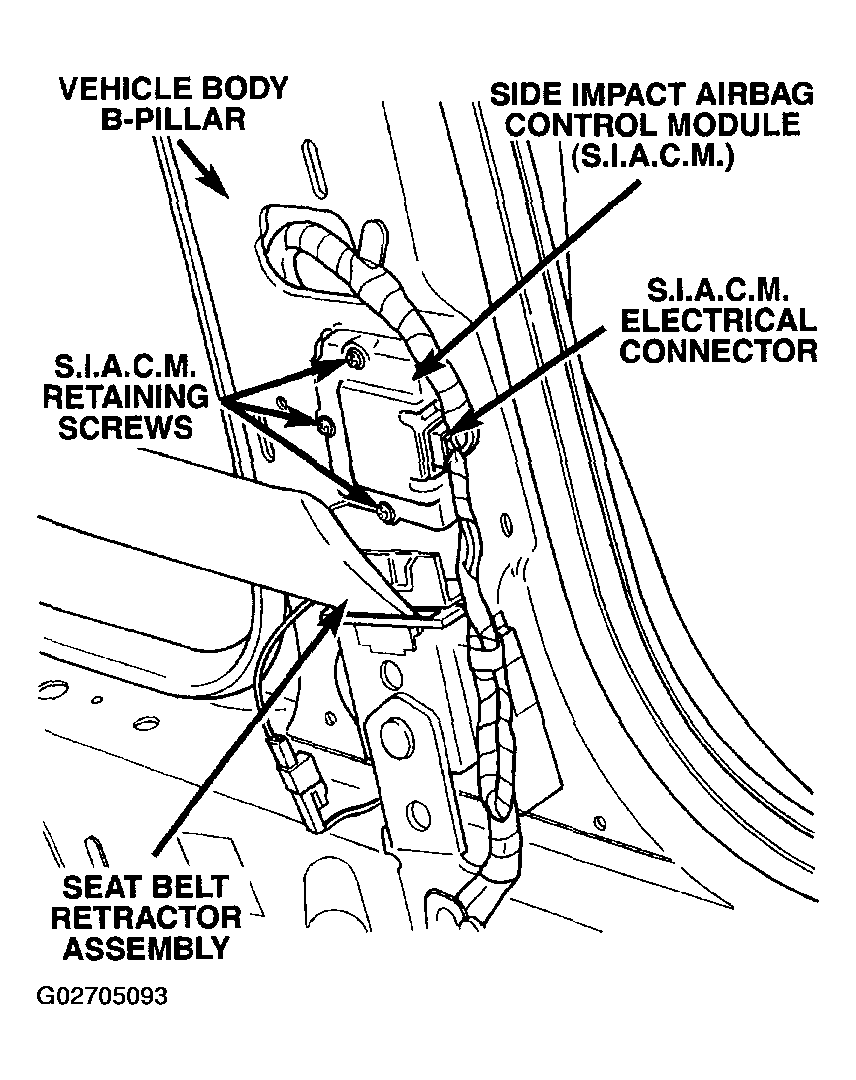

Fig 3: Identifying Airbag System Component Locations (3 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

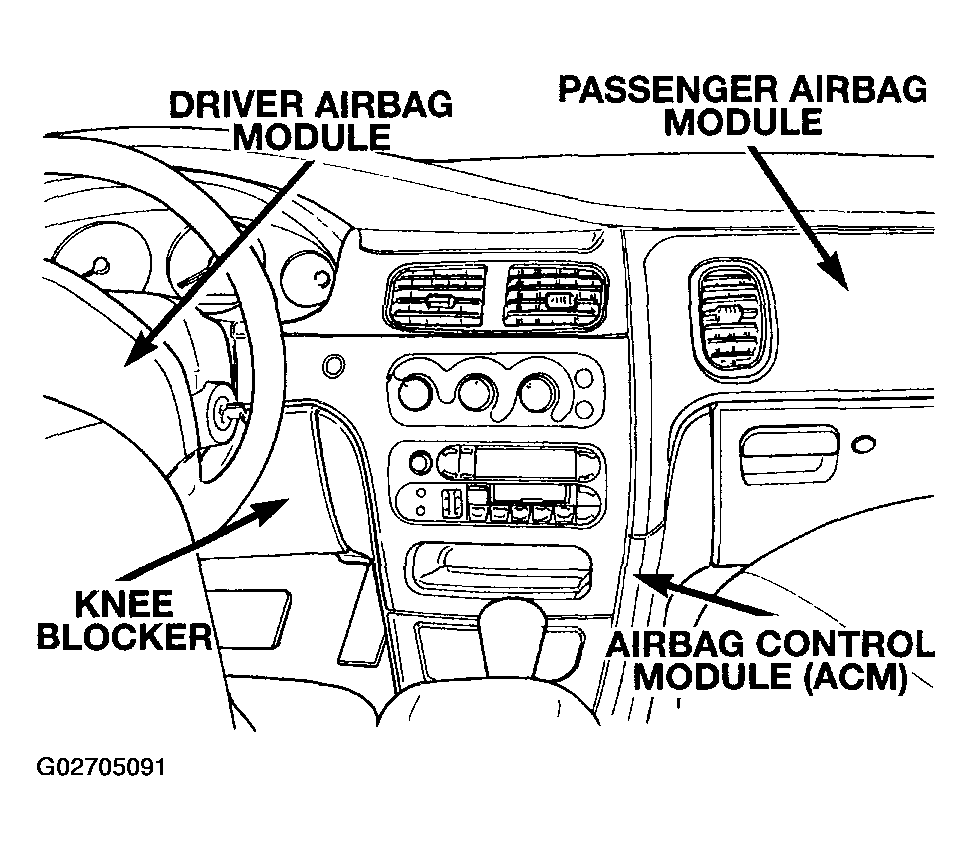

Fig 4: Identifying Airbag System Component Locations (4 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

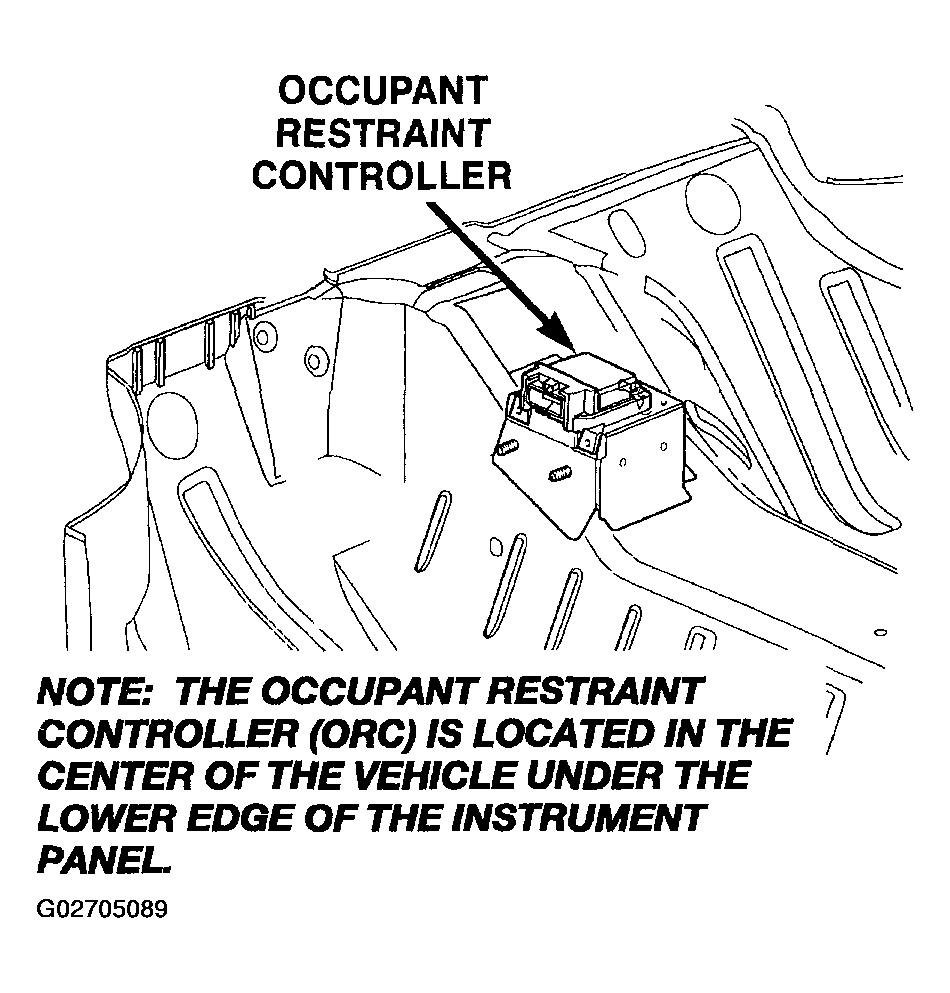

Fig 5: Identifying Airbag System Component Locations (5 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.
