Heated Seat Module

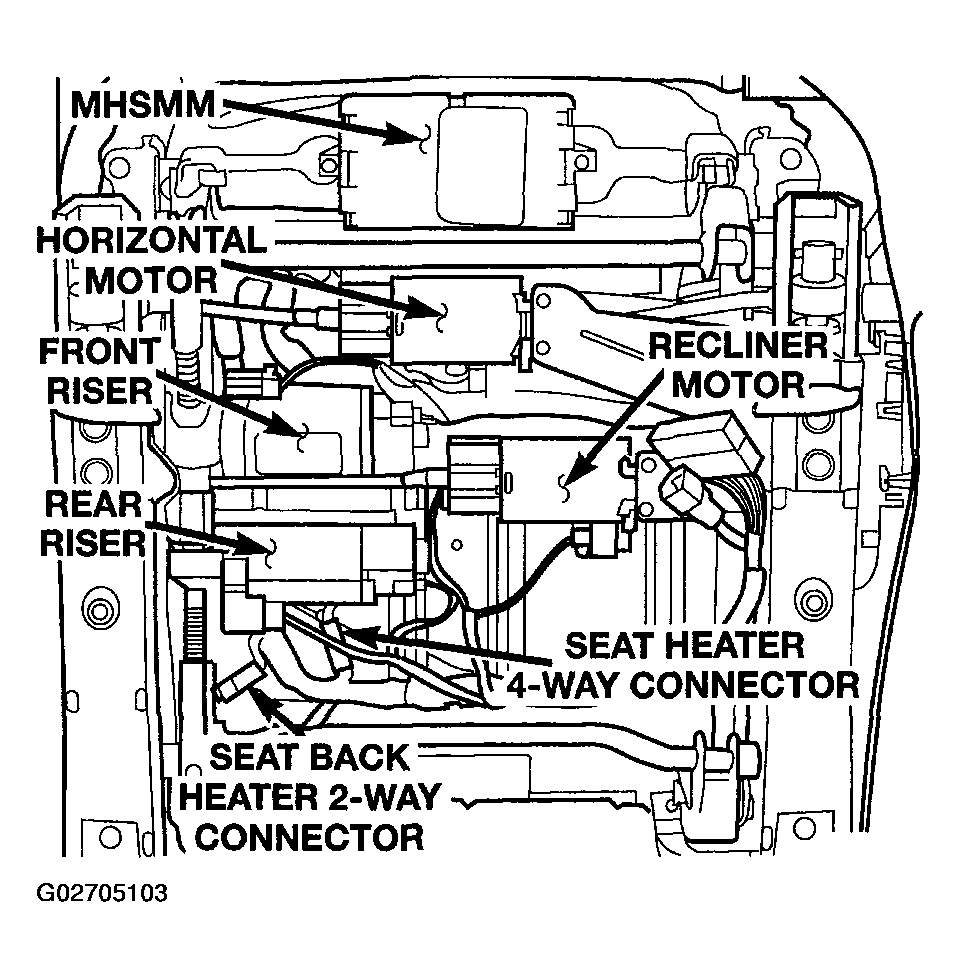

Fig 1: Identifying Electrically Heated Seat Module Component Locations
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
