Connector PINOUTS

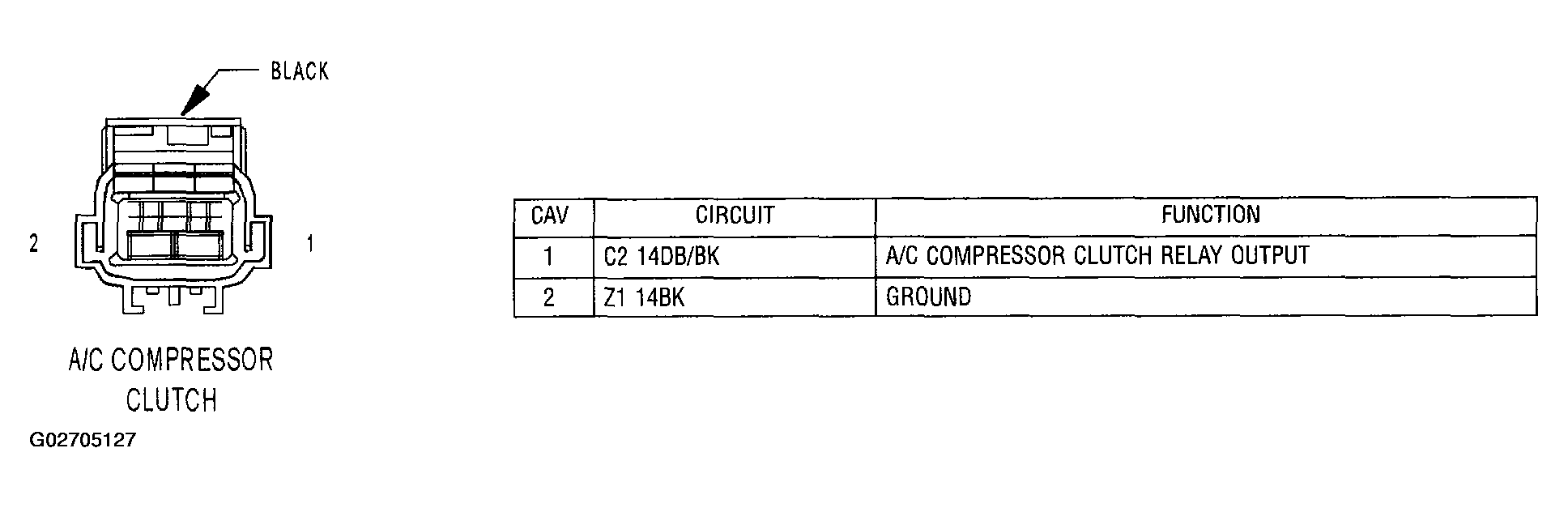

Fig 1: Identifying A/C Compressor Clutch Connector Pinouts

G02705127

Courtesy of DAIMLERCHRYSLER CORP.

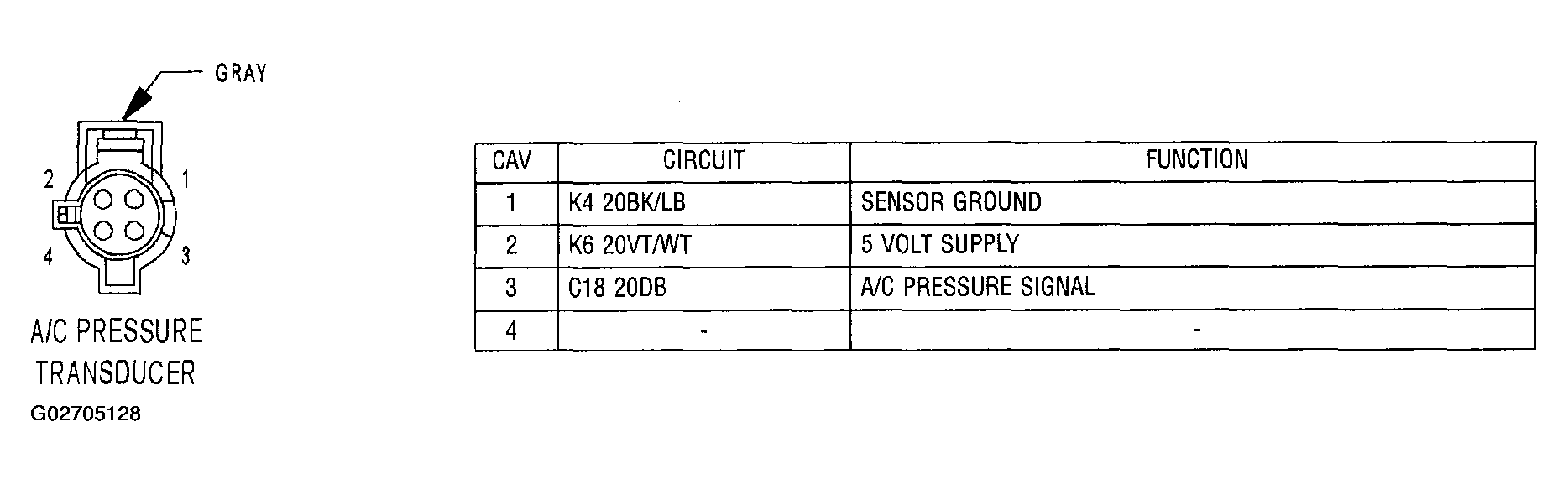

Fig 2: Identifying A/C Pressure Transducer Connector Pinouts

G02705128

Courtesy of DAIMLERCHRYSLER CORP.

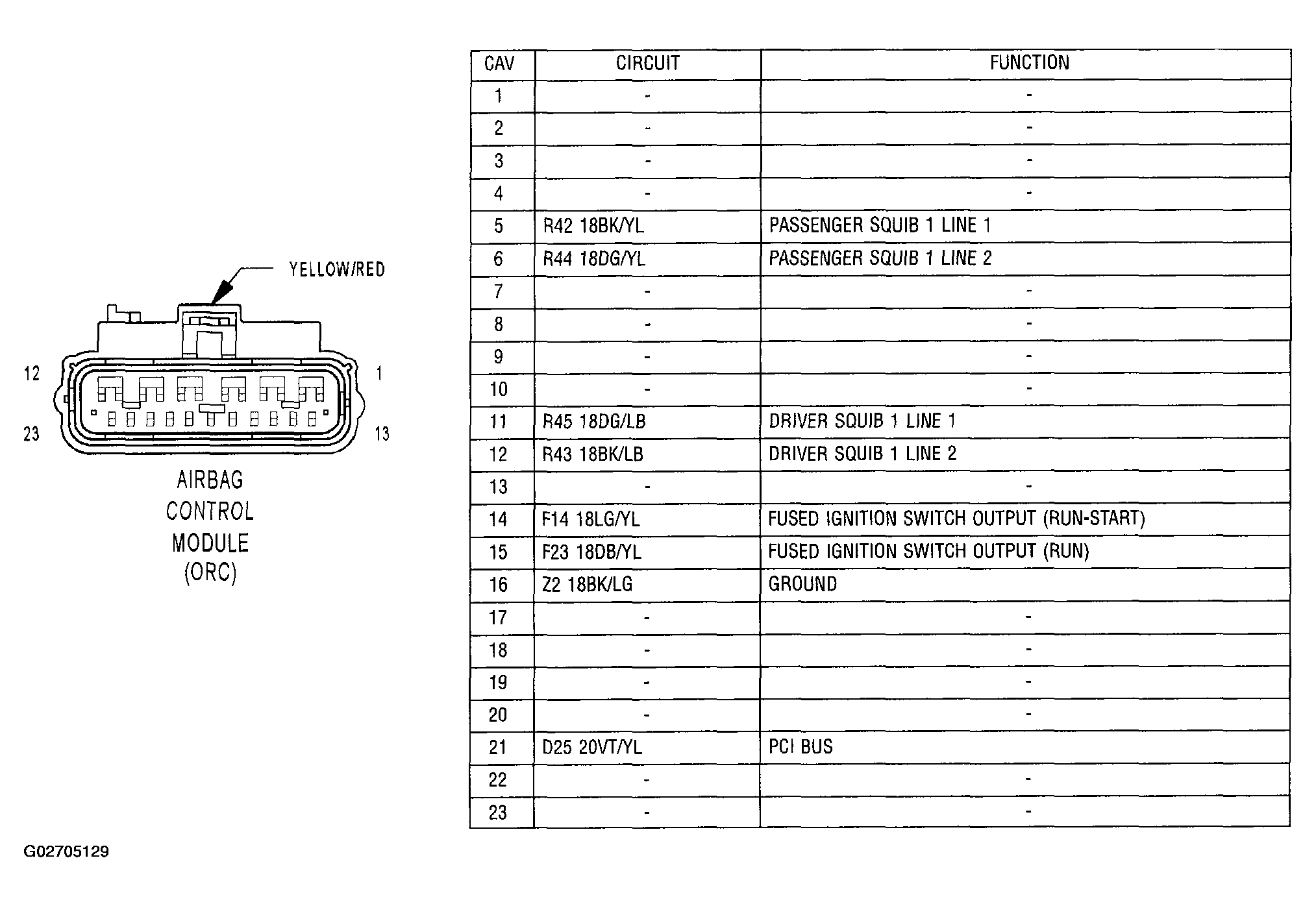

Fig 3: Identifying Airbag Control Module (ORC) Connector Pinouts

G02705129

Courtesy of DAIMLERCHRYSLER CORP.

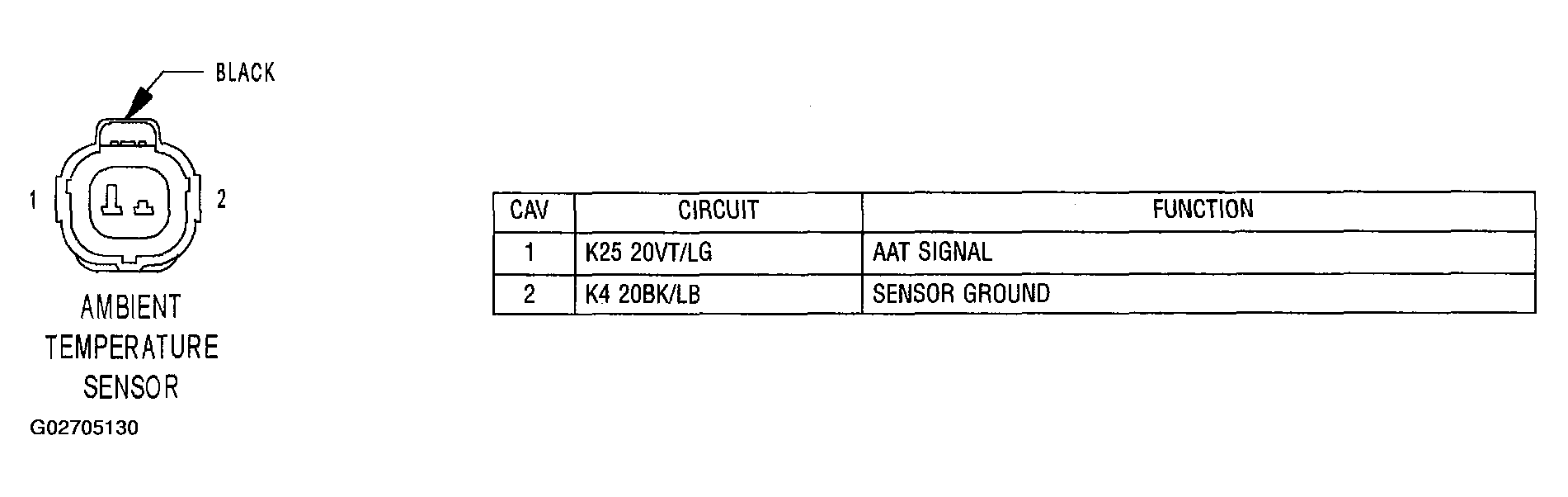

Fig 4: Identifying Ambient Temperature Sensor Connector Pinouts

G02705130

Courtesy of DAIMLERCHRYSLER CORP.

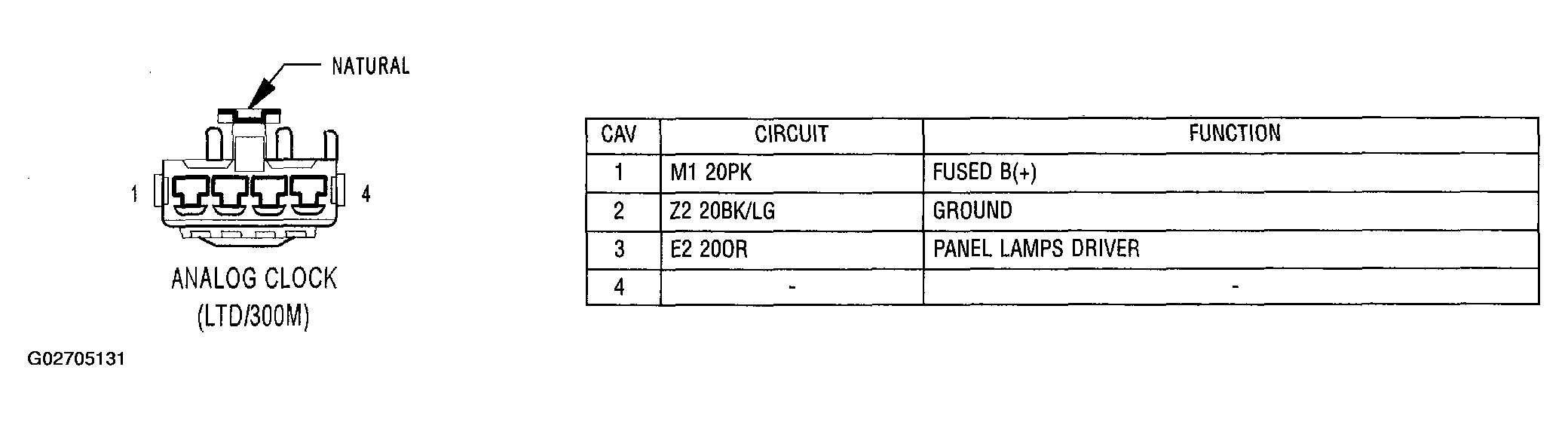

Fig 5: Identifying Analog Clock (LTD/300M) Connector Pinouts

G02705131

Courtesy of DAIMLERCHRYSLER CORP.

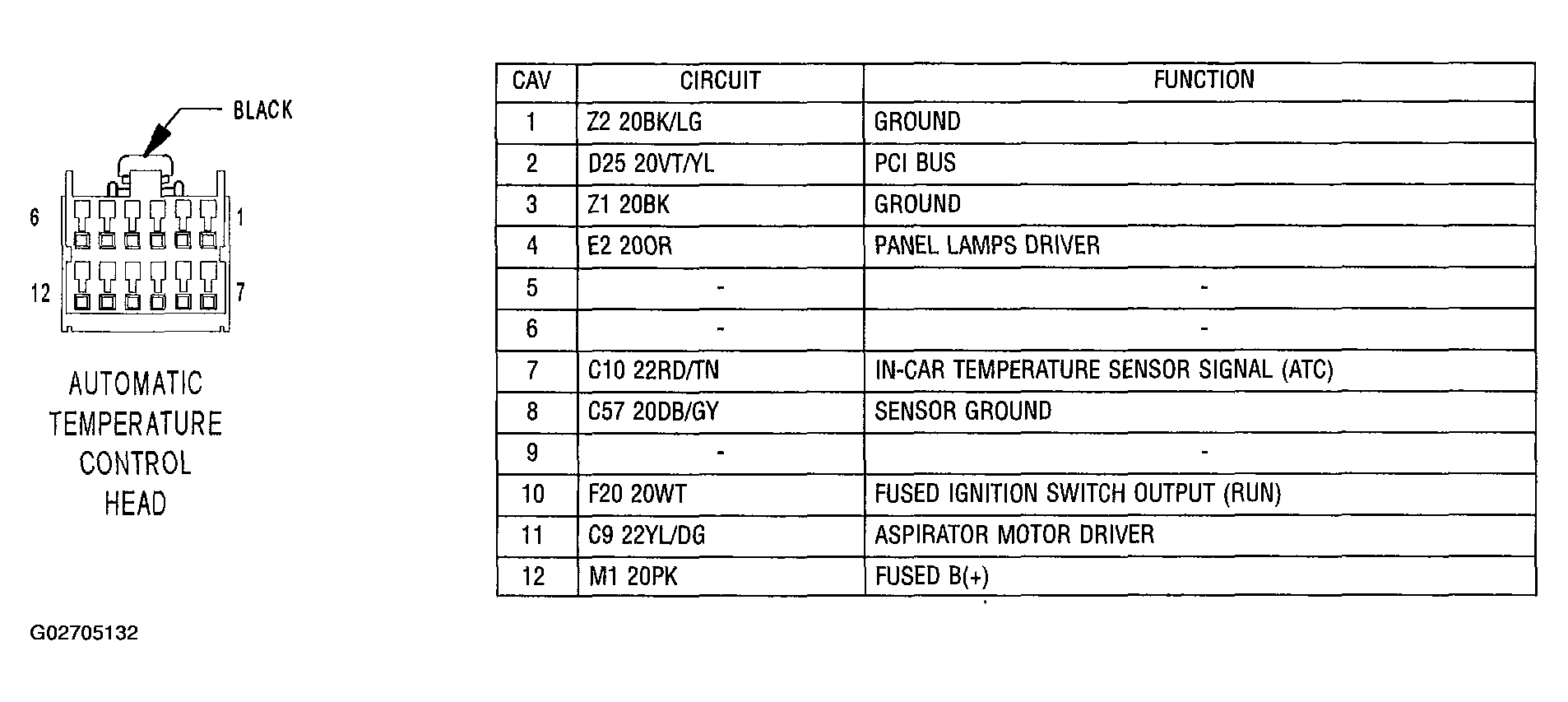

Fig 6: Identifying Automatic Temperature Control Head Connector Pinouts

G02705132

Courtesy of DAIMLERCHRYSLER CORP.

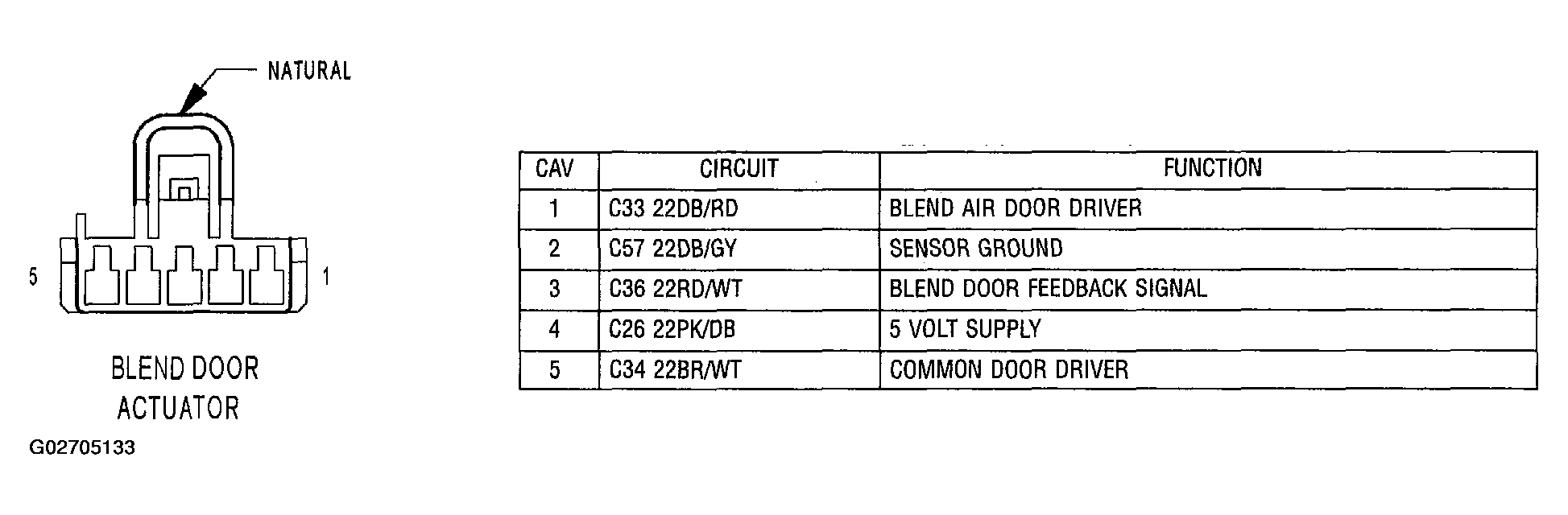

Fig 7: Identifying Blend Door Actuator Connector Pinouts

G02705133

Courtesy of DAIMLERCHRYSLER CORP.

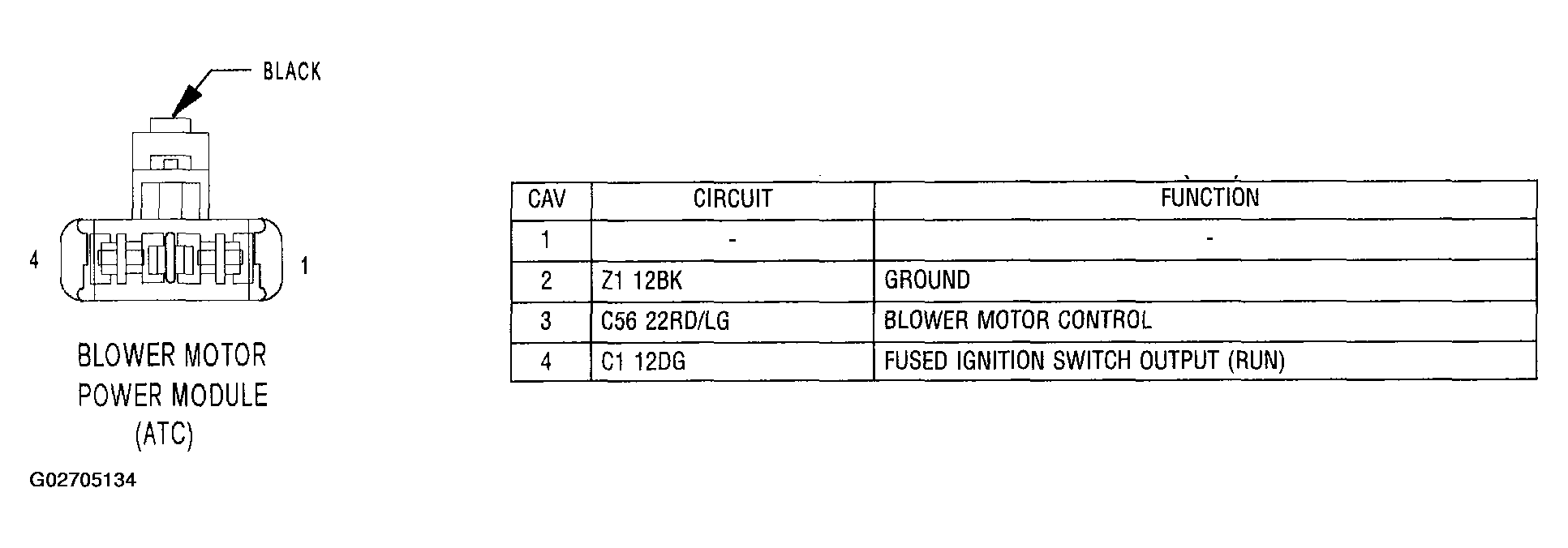

Fig 8: Identifying Blower Motor Power Module (ATC) Connector Pinouts

G02705134

Courtesy of DAIMLERCHRYSLER CORP.

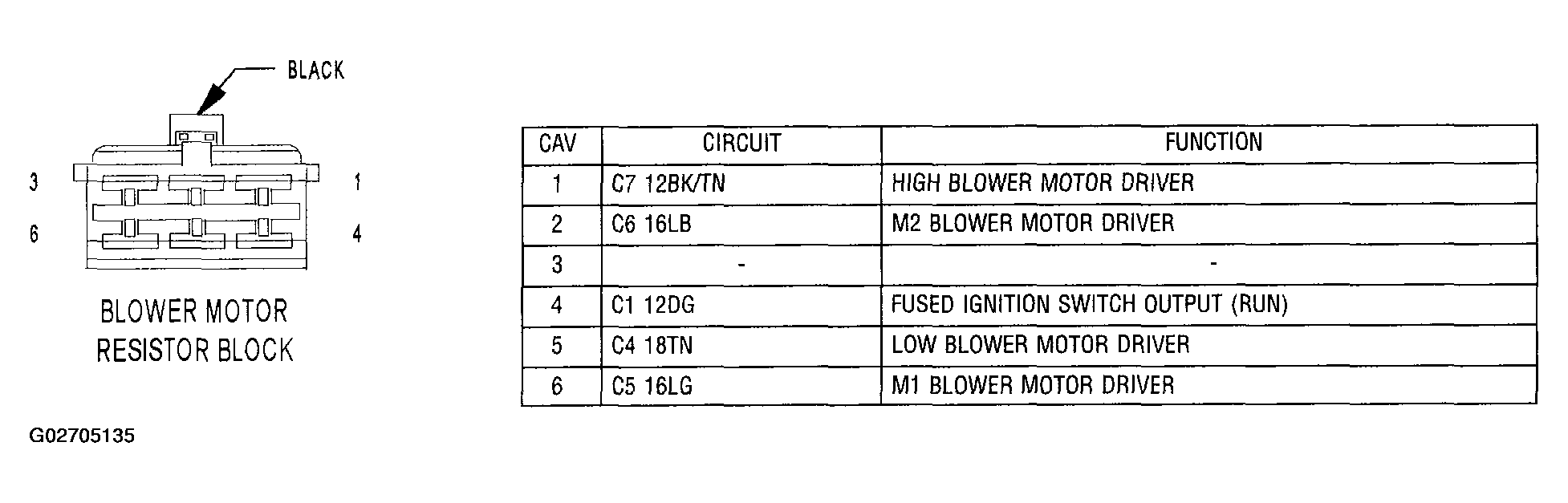

Fig 9: Identifying Blower Motor Resistor Block Connector Pinouts

G02705135

Courtesy of DAIMLERCHRYSLER CORP.

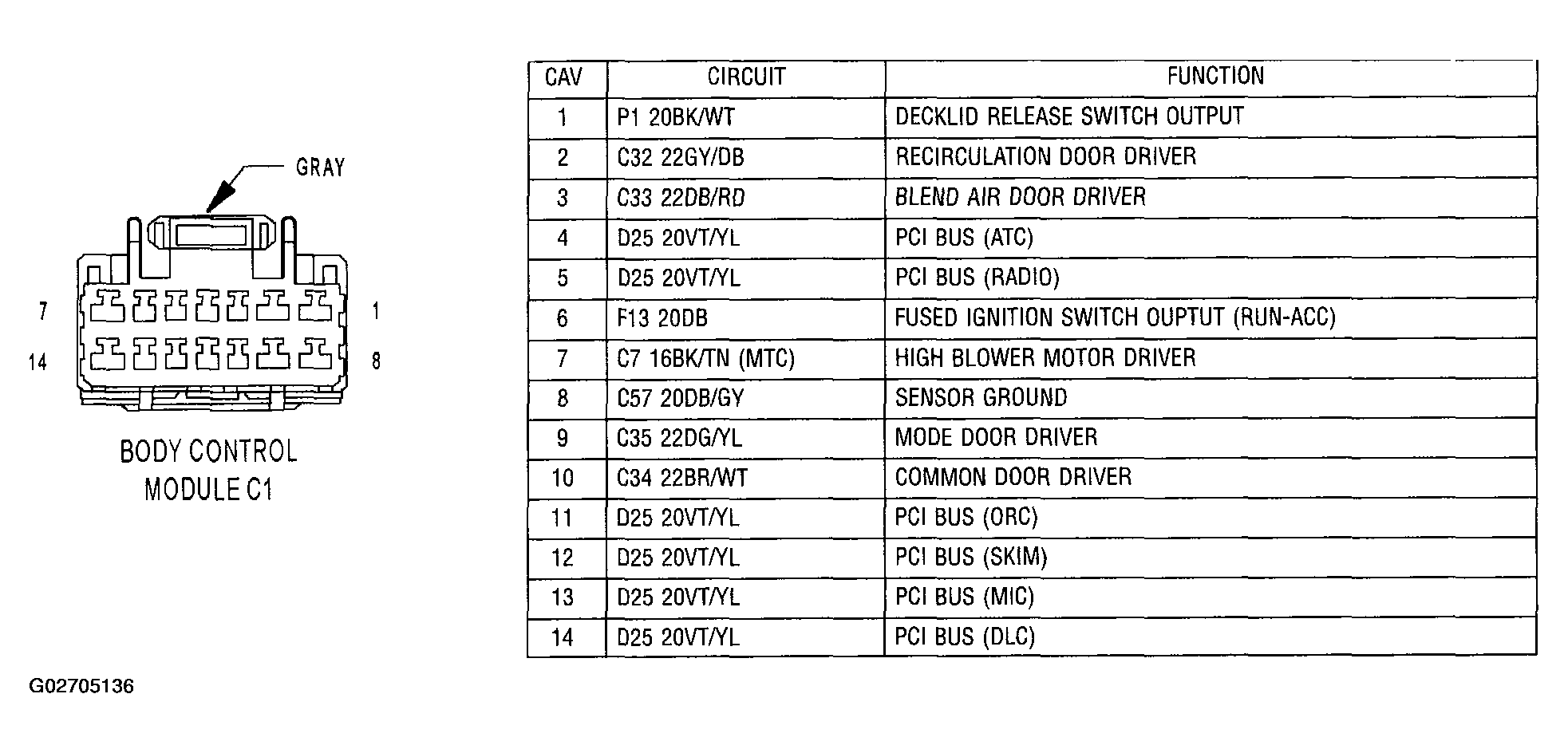

Fig 10: Identifying Body Control Module C1 Connector Pinouts

G02705136

Courtesy of DAIMLERCHRYSLER CORP.

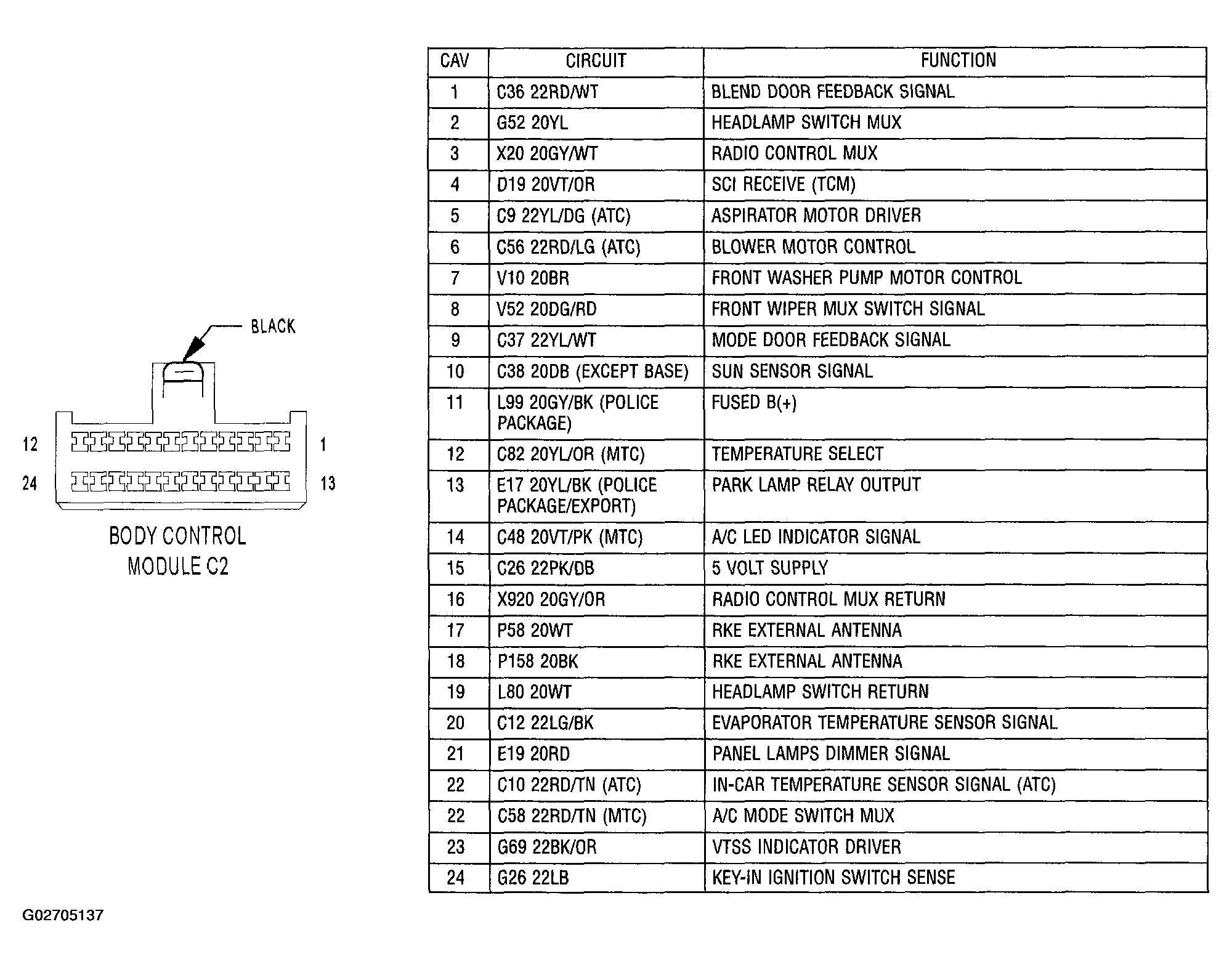

Fig 11: Identifying Body Control Module C2 Connector Pinouts

G02705137

Courtesy of DAIMLERCHRYSLER CORP.

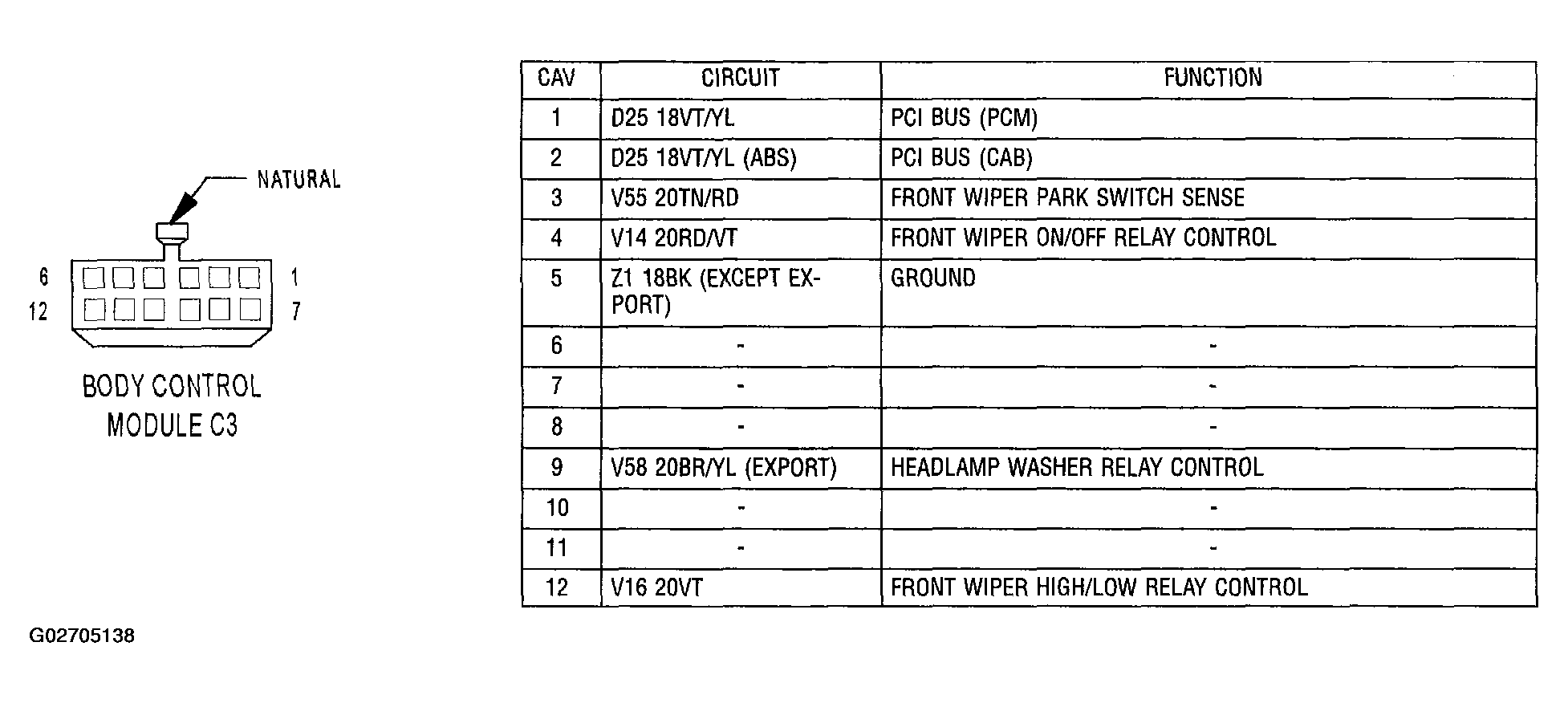

Fig 12: Identifying Body Control Module C3 Connector Pinouts

G02705138

Courtesy of DAIMLERCHRYSLER CORP.

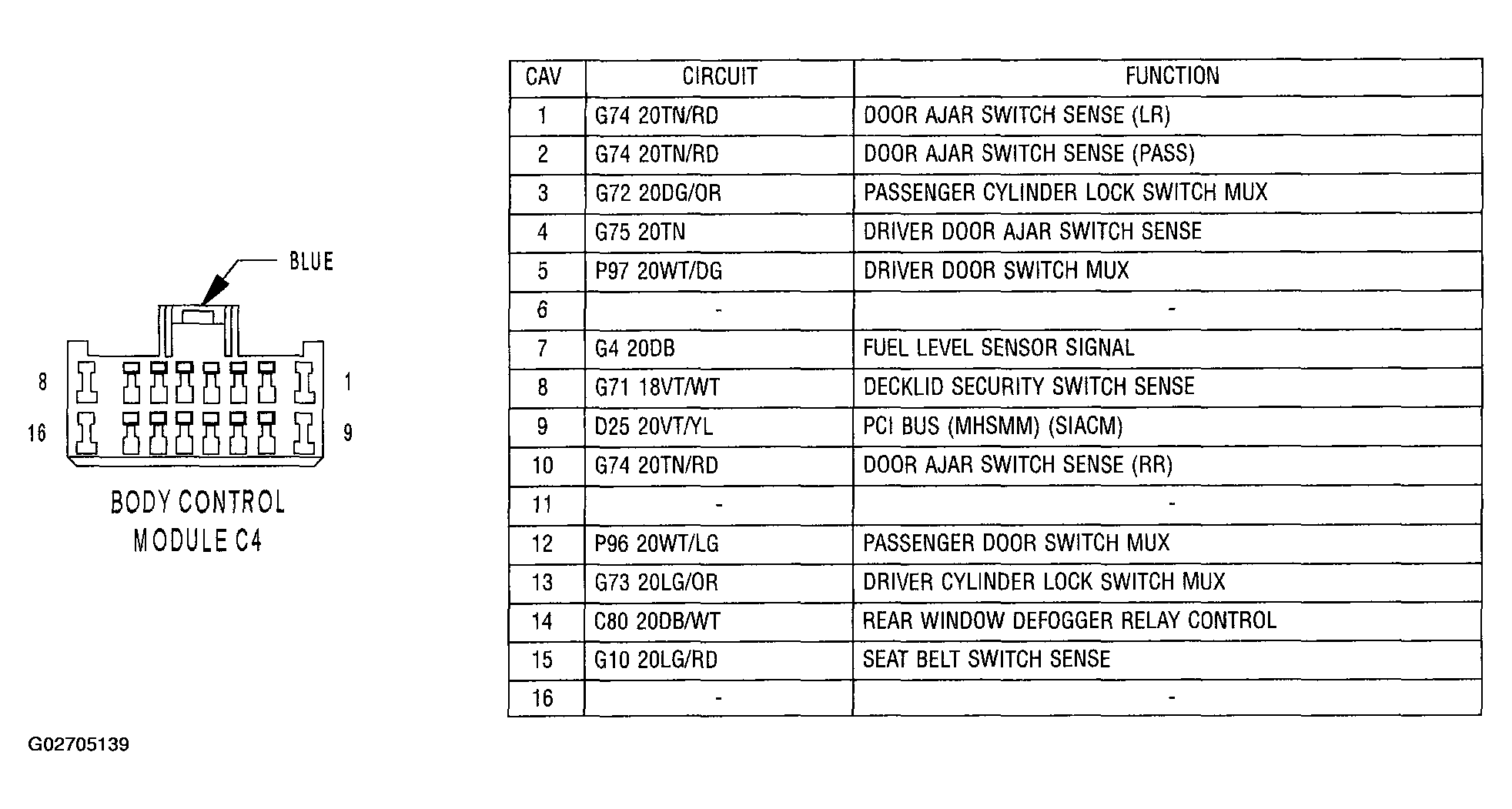

Fig 13: Identifying Body Control Module C4 Connector Pinouts

G02705139

Courtesy of DAIMLERCHRYSLER CORP.

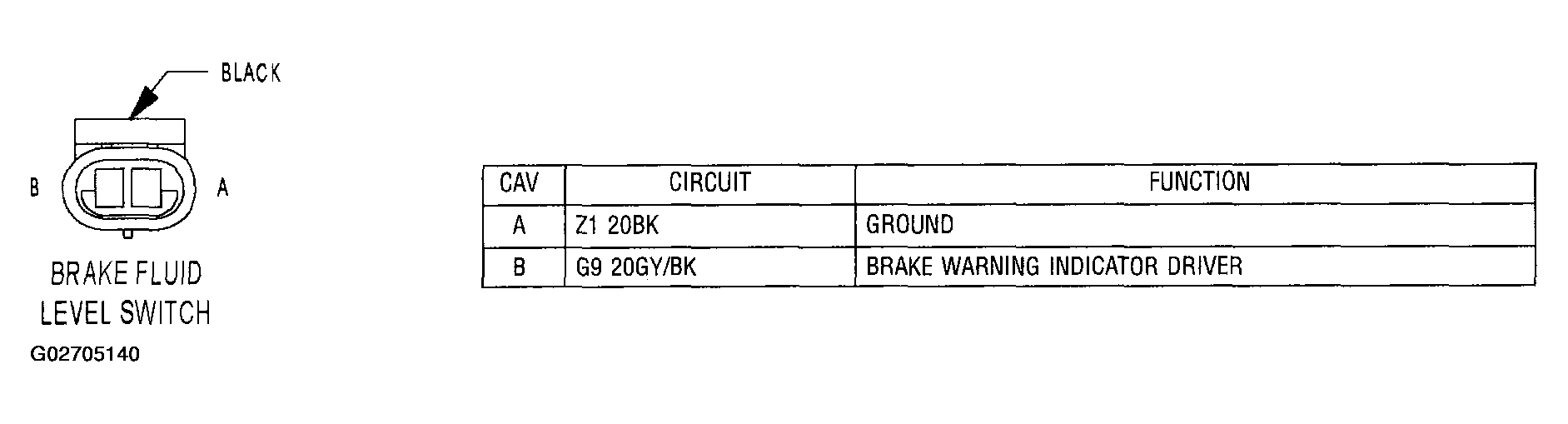

Fig 14: Identifying Brake Fluid Level Switch Connector Pinouts

G02705140

Courtesy of DAIMLERCHRYSLER CORP.

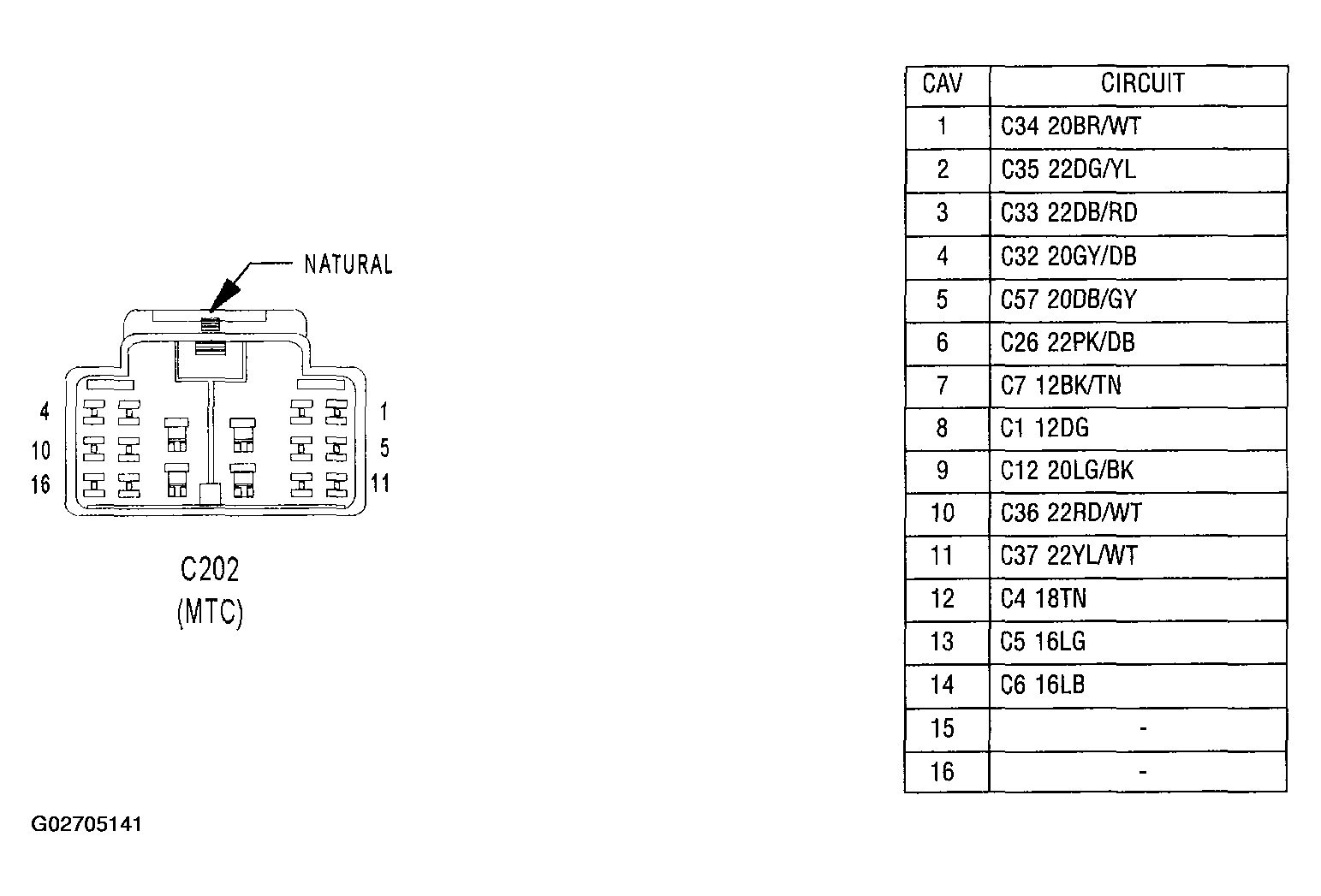

Fig 15: Identifying C202 MTC (Female) Connector Pinouts

G02705141

Courtesy of DAIMLERCHRYSLER CORP.

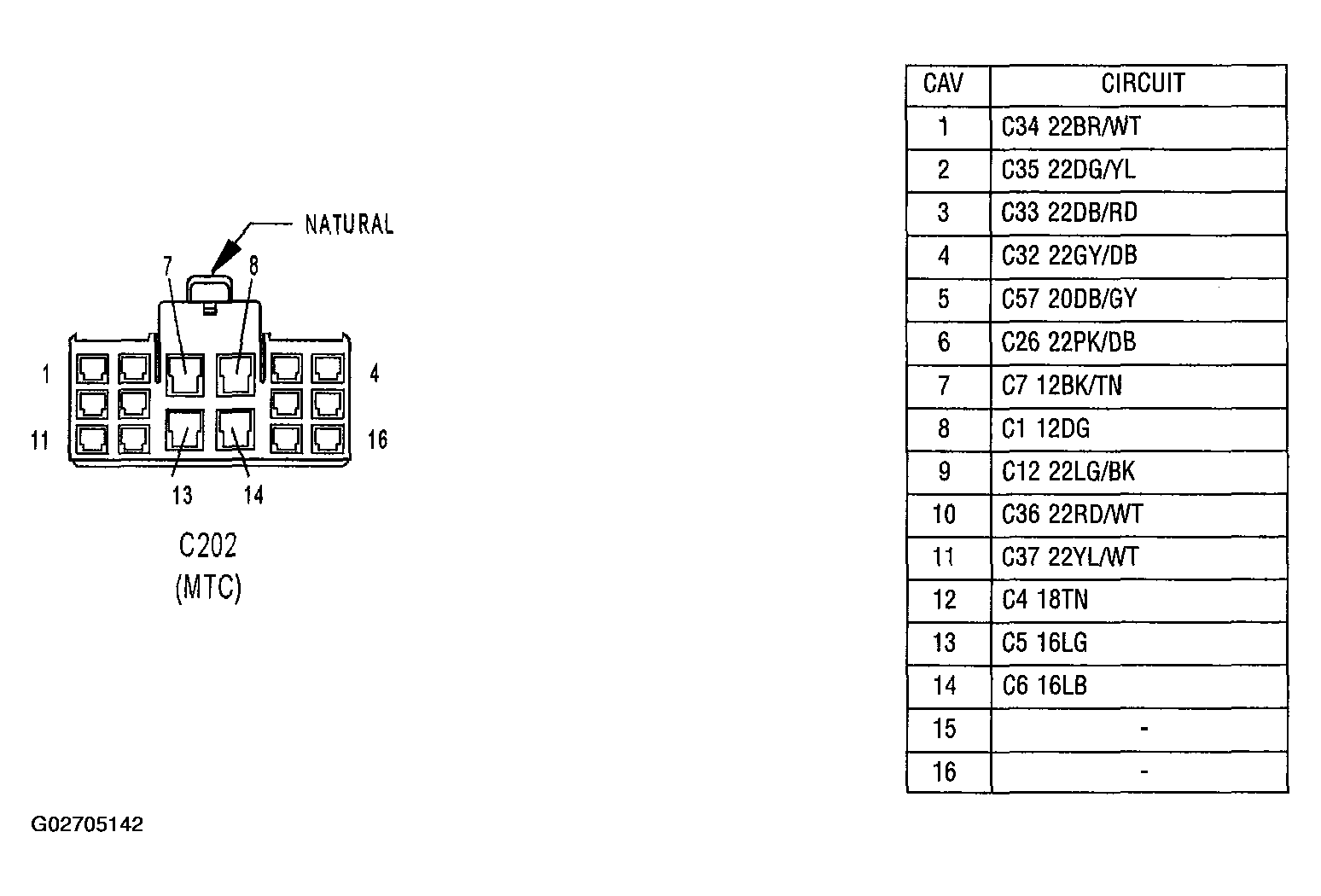

Fig 16: Identifying C202 MTC (Male) Connector Pinouts

G02705142

Courtesy of DAIMLERCHRYSLER CORP.

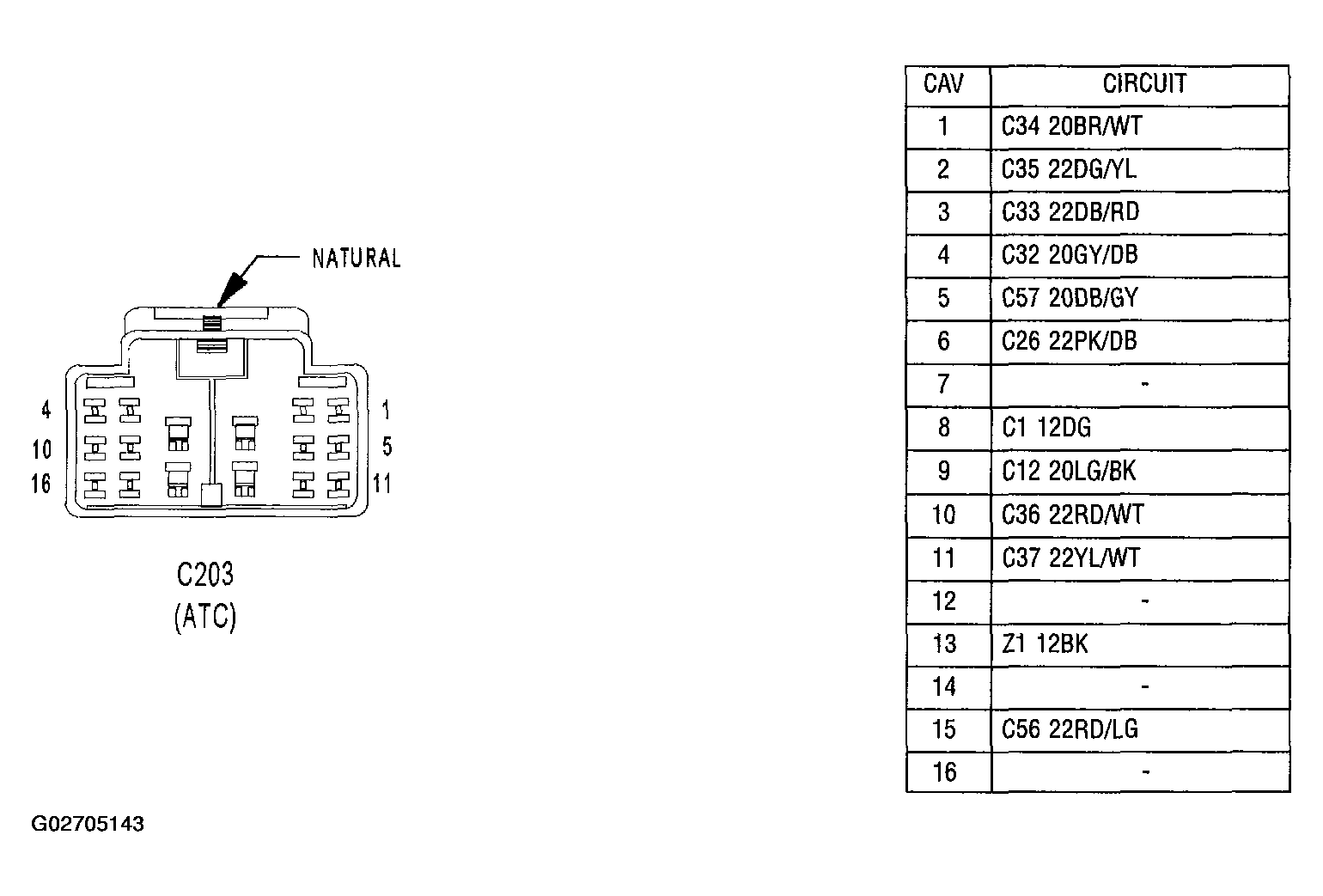

Fig 17: Identifying C203 ATC (Female) Connector Pinouts

G02705143

Courtesy of DAIMLERCHRYSLER CORP.

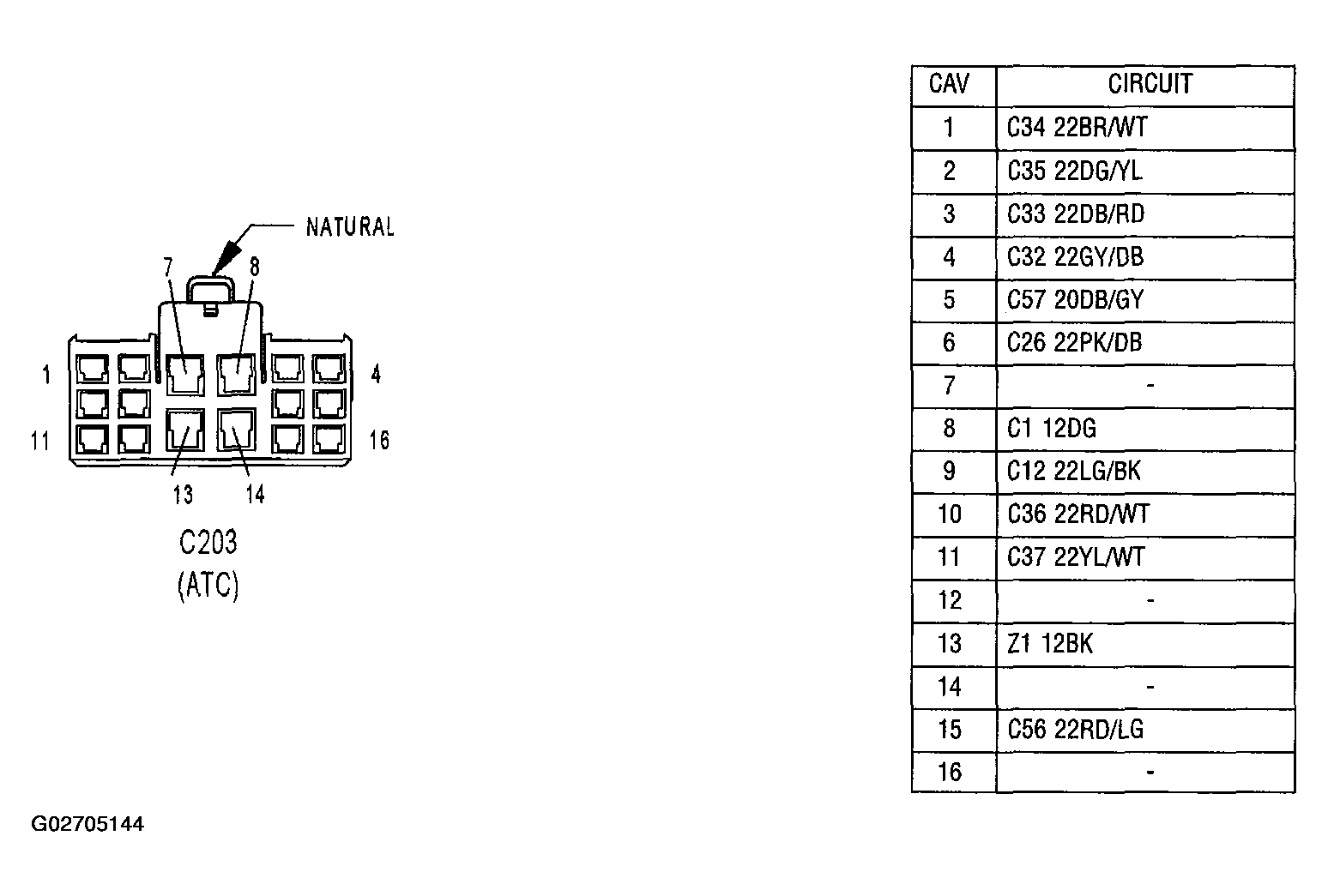

Fig 18: Identifying C203 ATC (Male) Connector Pinouts

G02705144

Courtesy of DAIMLERCHRYSLER CORP.

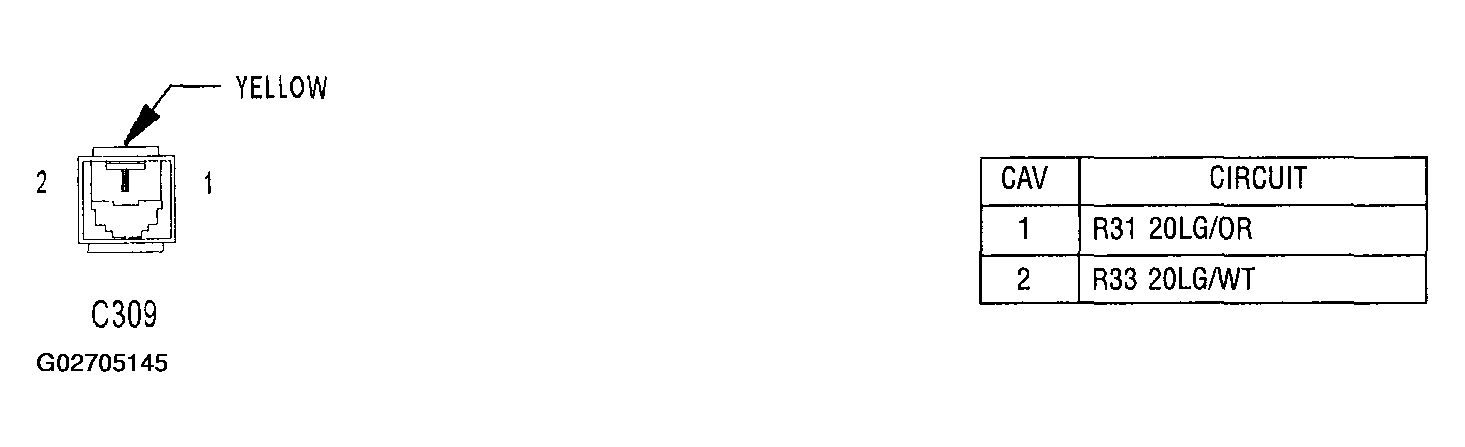

Fig 19: Identifying C309 (Female) Connector Pinouts

G02705145

Courtesy of DAIMLERCHRYSLER CORP.

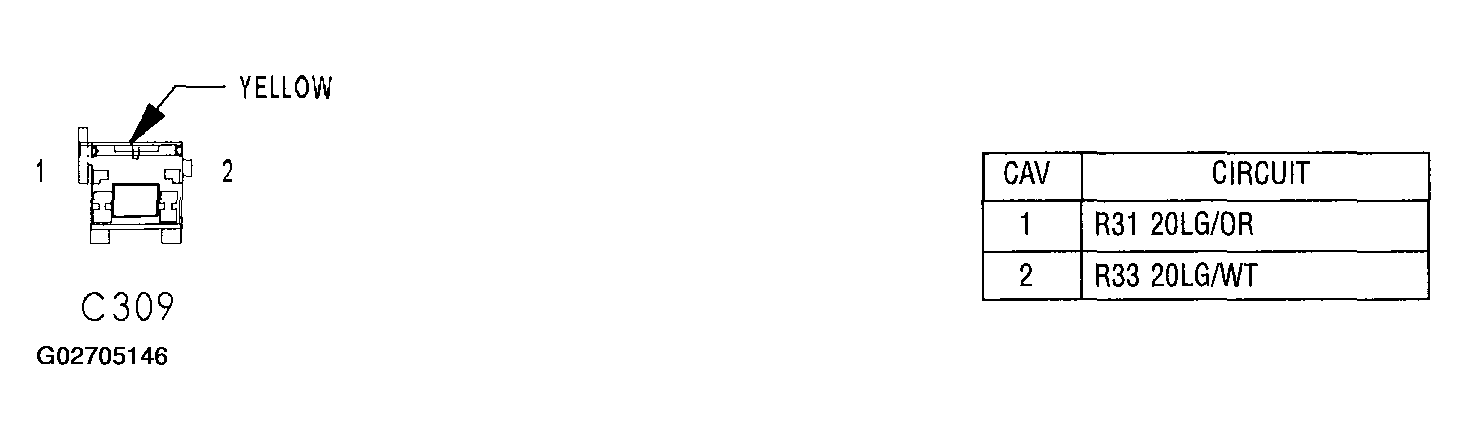

Fig 20: Identifying C309 (Male) Connector Pinouts

G02705146

Courtesy of DAIMLERCHRYSLER CORP.

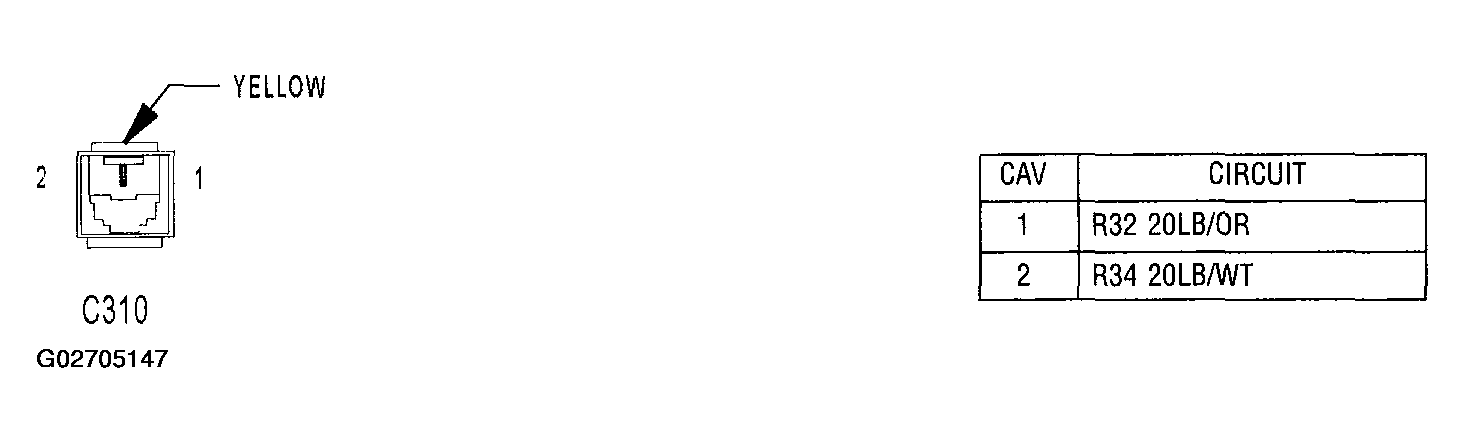

Fig 21: Identifying C310 (Female) Connector Pinouts

G02705147

Courtesy of DAIMLERCHRYSLER CORP.

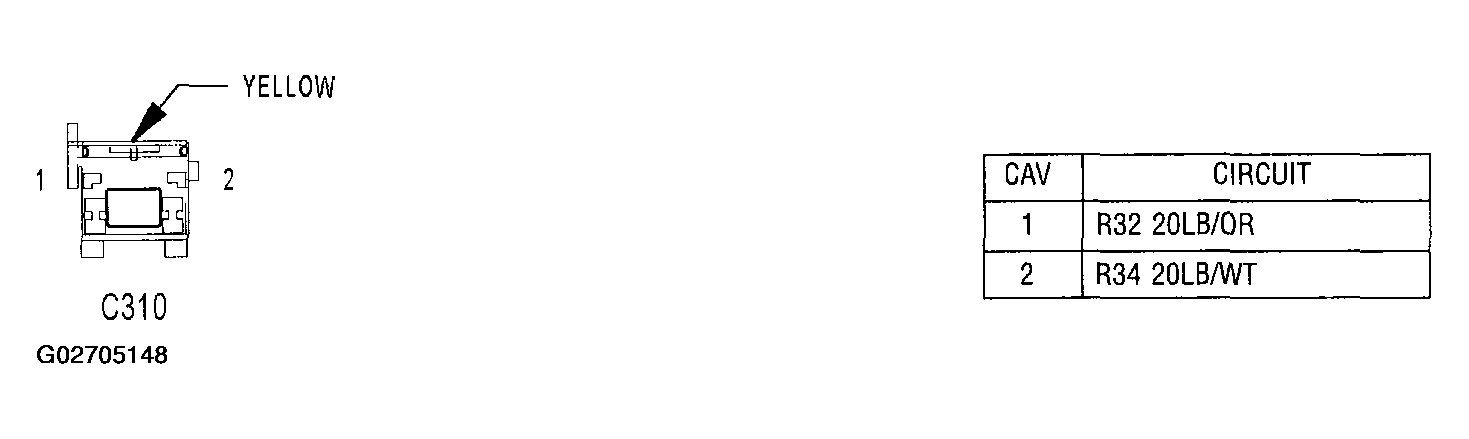

Fig 22: Identifying C310 (Male) Connector Pinouts

G02705148

Courtesy of DAIMLERCHRYSLER CORP.

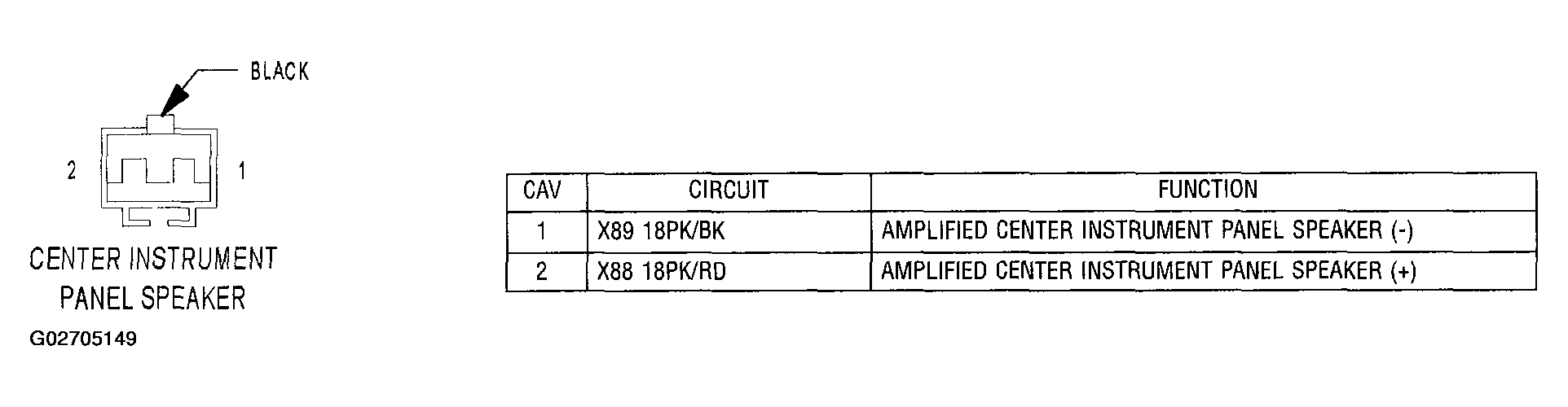

Fig 23: Identifying Center Instrument Panel Speaker Connector Pinouts

G02705149

Courtesy of DAIMLERCHRYSLER CORP.

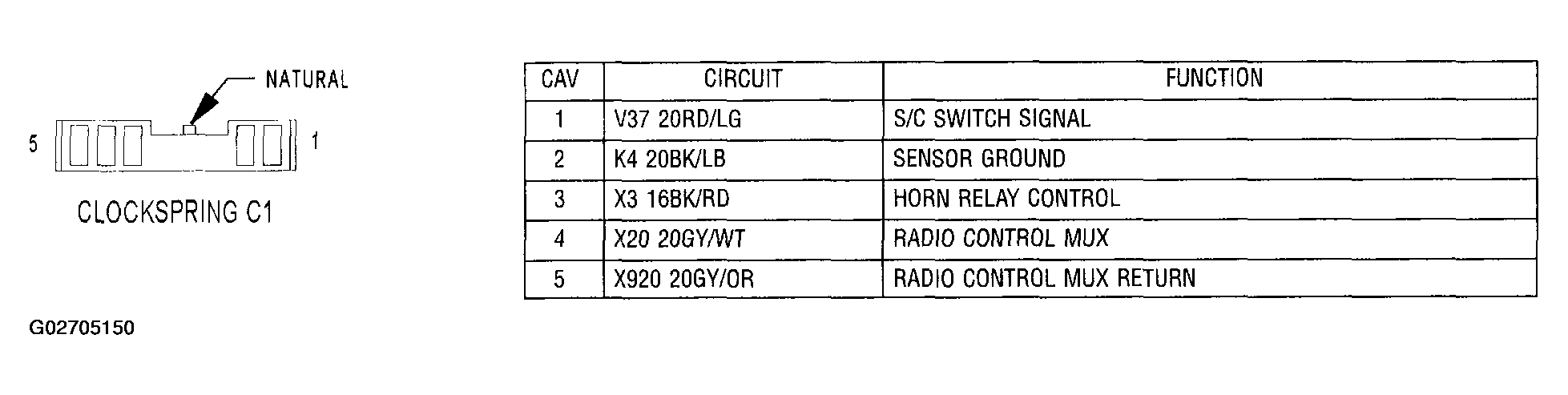

Fig 24: Identifying Clockspring C1 Connector Pinouts

G02705150

Courtesy of DAIMLERCHRYSLER CORP.

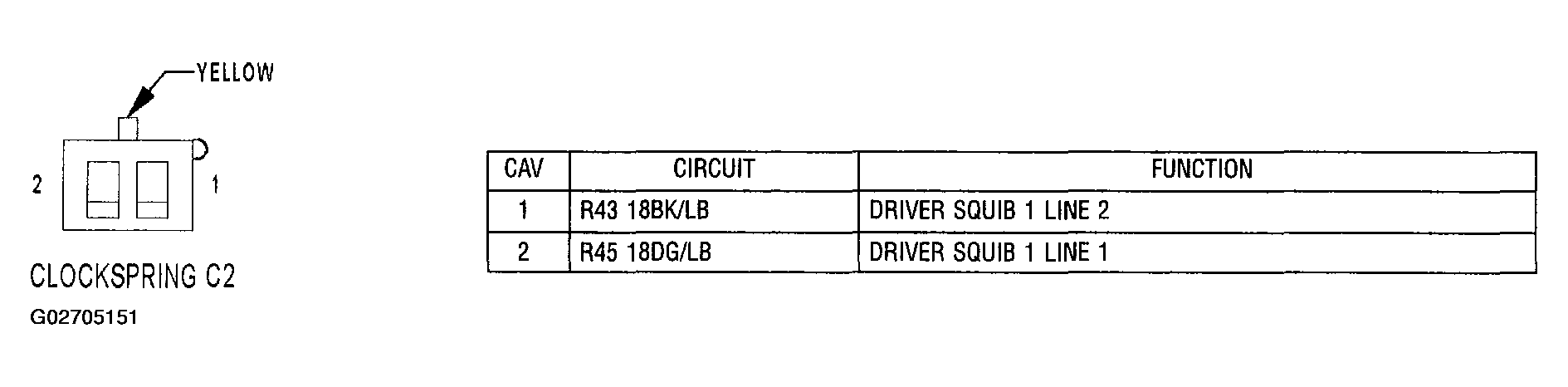

Fig 25: Identifying Clockspring C2 Connector Pinouts

G02705151

Courtesy of DAIMLERCHRYSLER CORP.

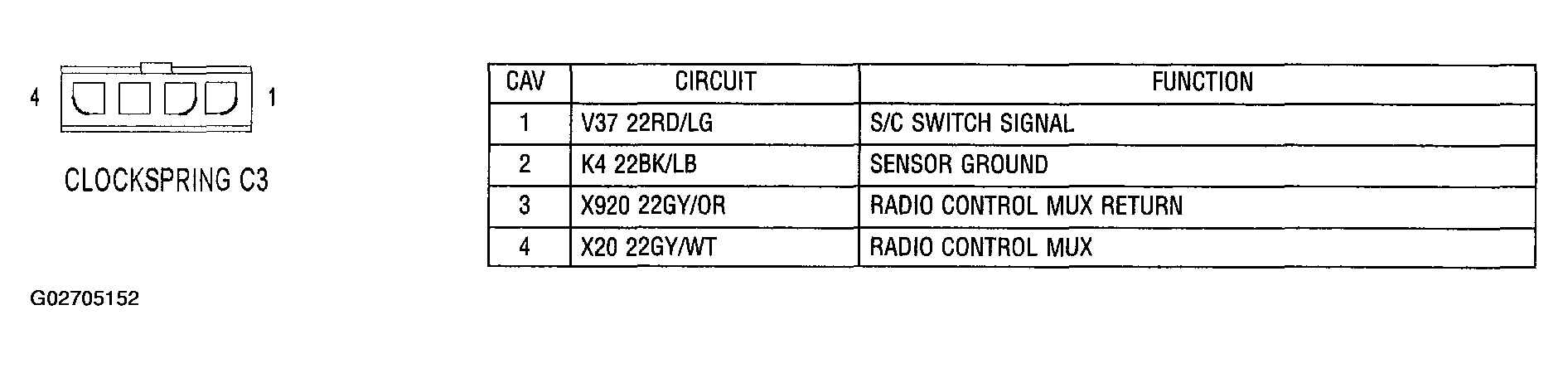

Fig 26: Identifying Clockspring C3 Connector Pinouts

G02705152

Courtesy of DAIMLERCHRYSLER CORP.

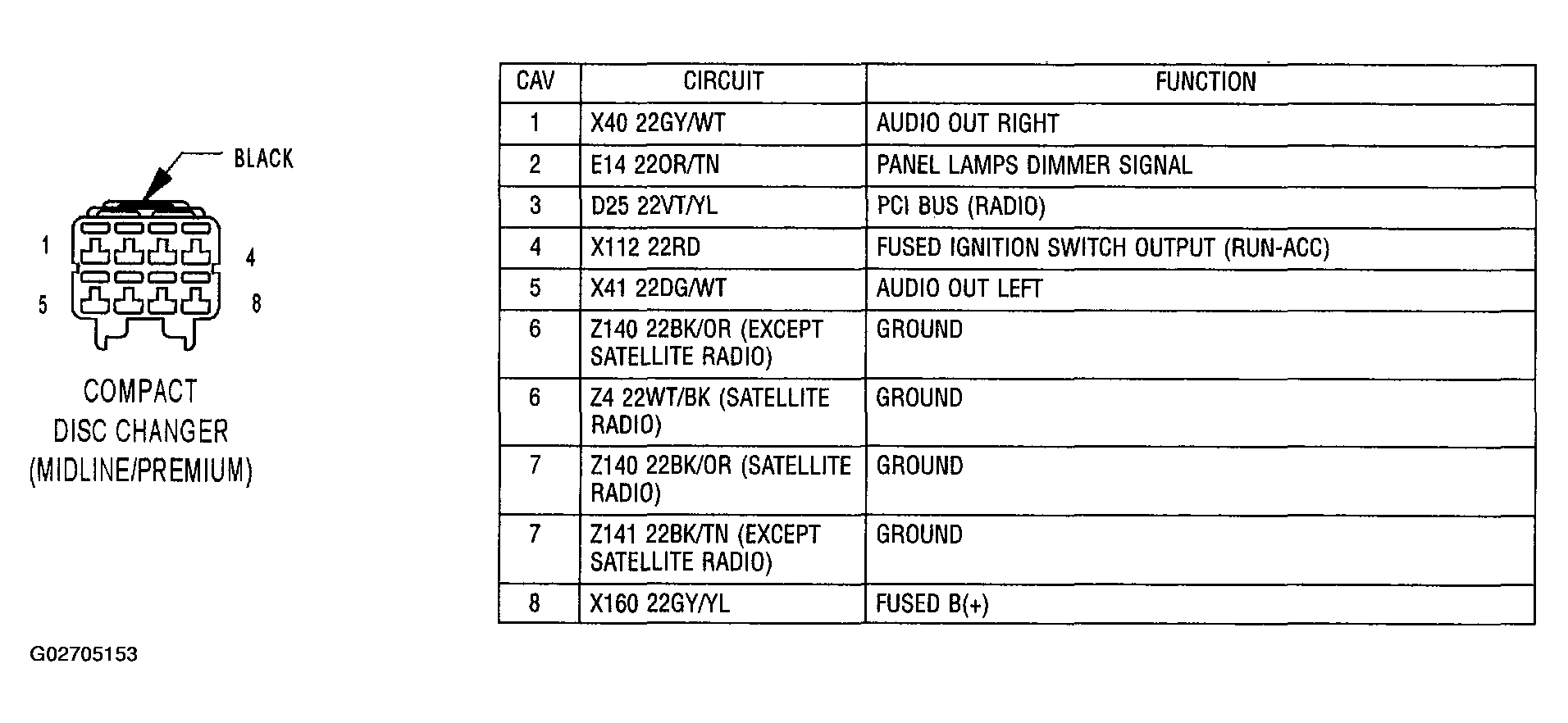

Fig 27: Identifying Compact Disc Changer (Midline/Premium) Connector Pinouts

G02705153

Courtesy of DAIMLERCHRYSLER CORP.

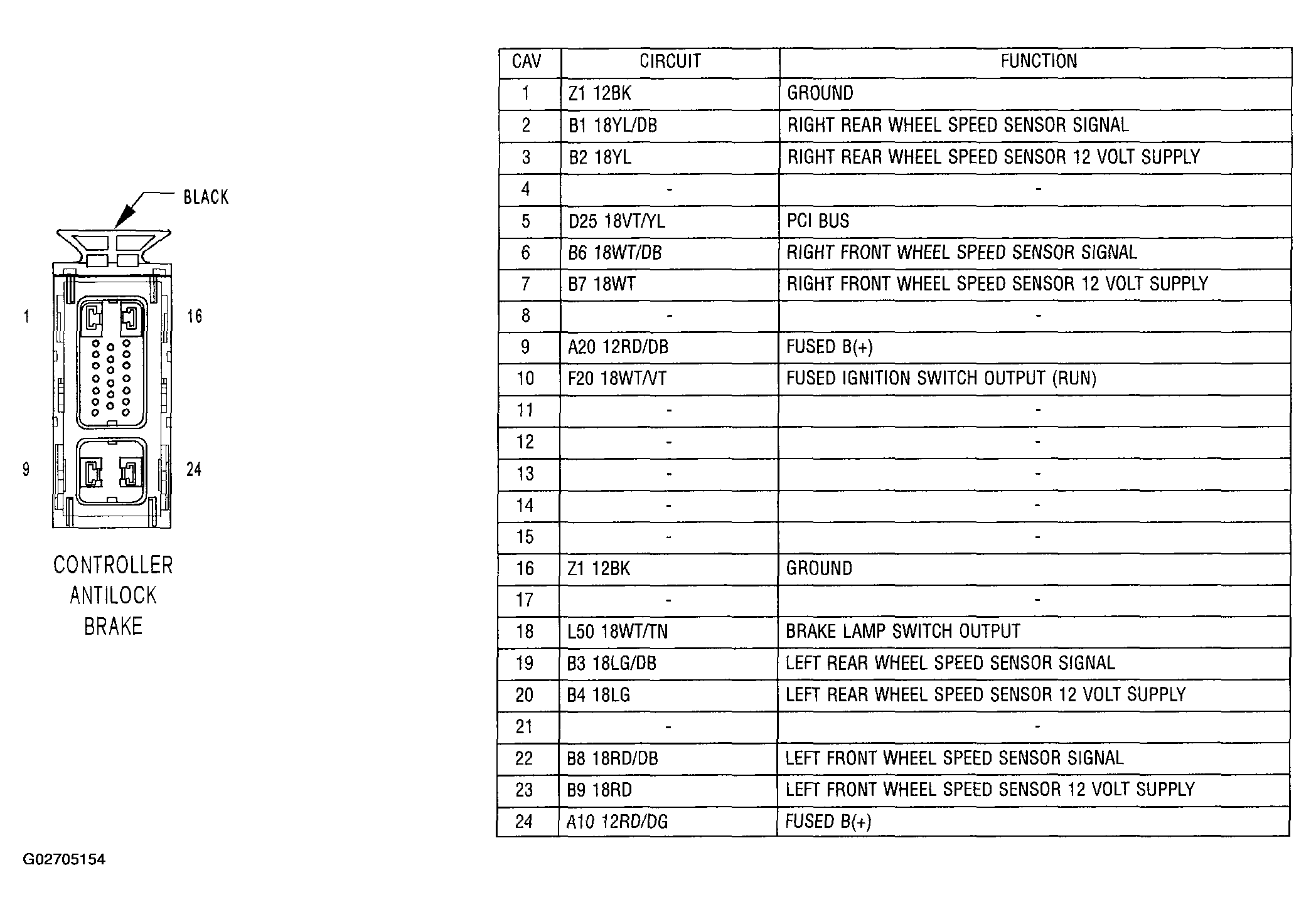

Fig 28: Identifying Controller Antilock Brake Connector Pinouts

G02705154

Courtesy of DAIMLERCHRYSLER CORP.

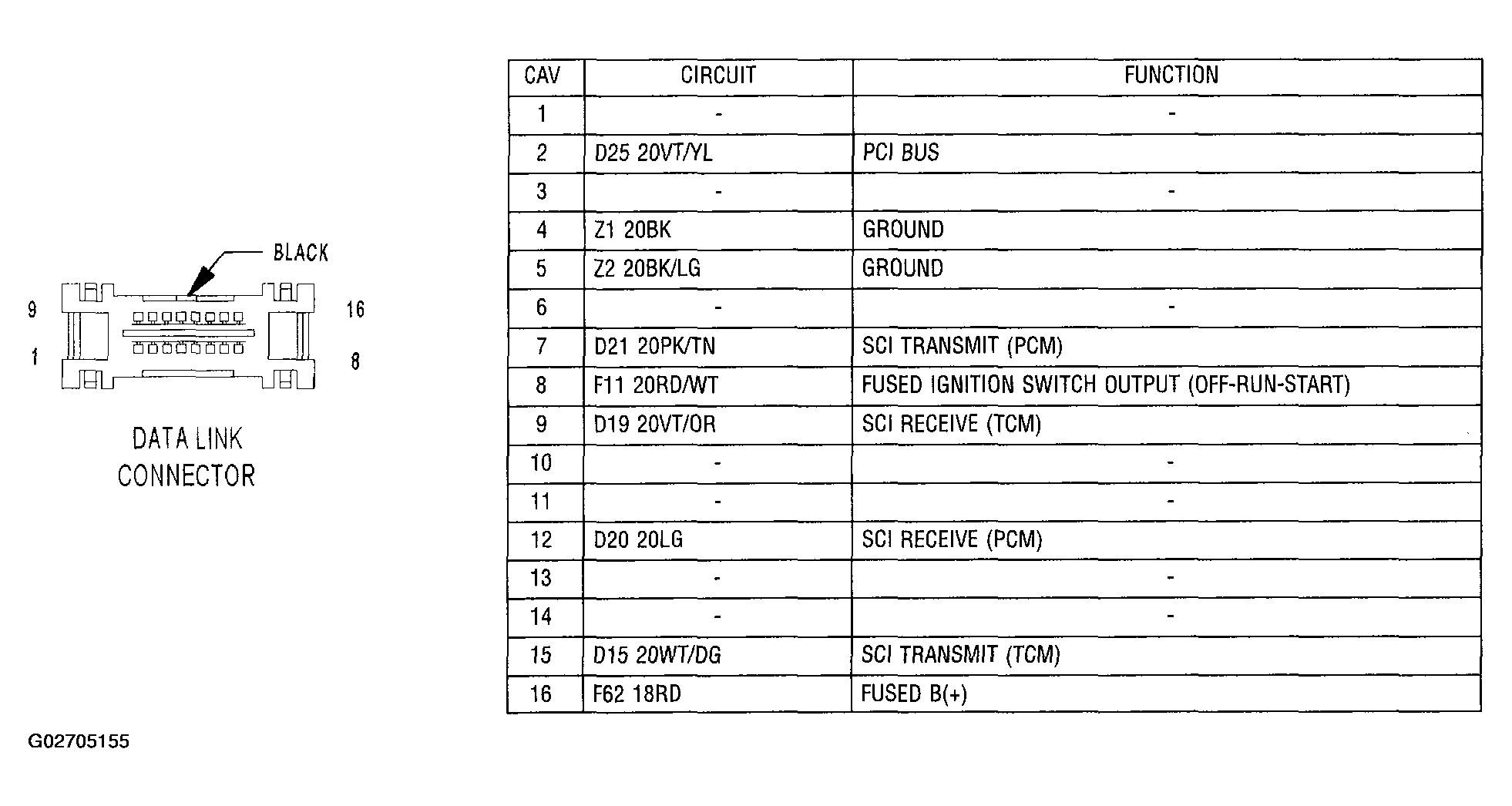

Fig 29: Identifying Data Link Connector Pinouts

G02705155

Courtesy of DAIMLERCHRYSLER CORP.

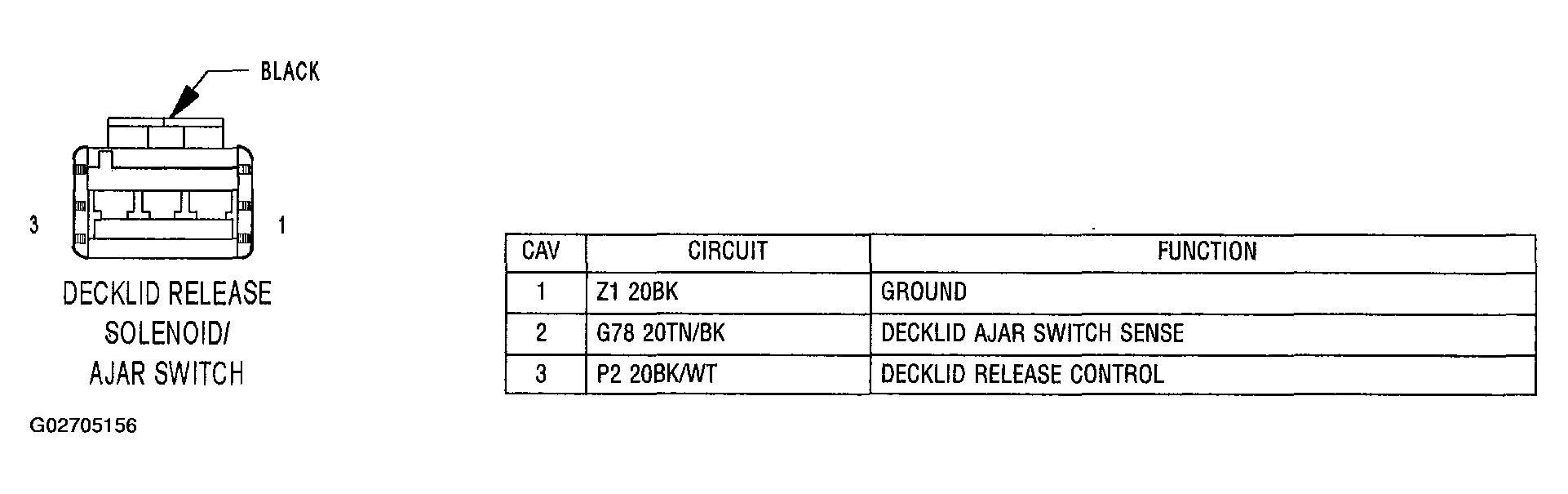

Fig 30: Identifying Decklid Release Solenoid/Ajar Switch Connector Pinouts

G02705156

Courtesy of DAIMLERCHRYSLER CORP.

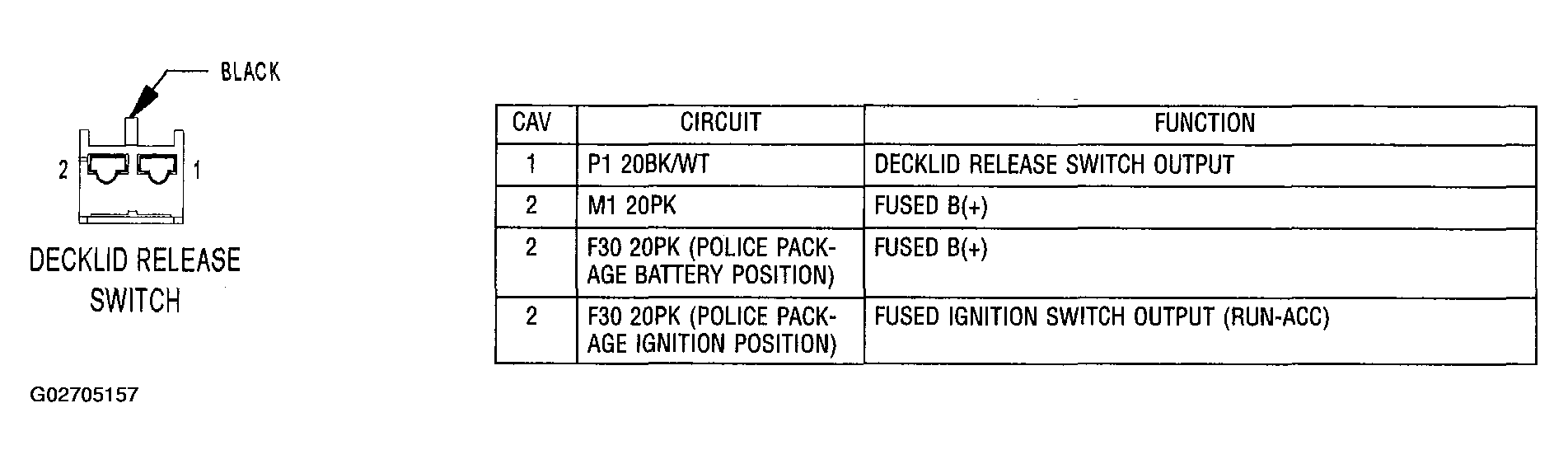

Fig 31: Identifying Decklid Release Switch Connector Pinouts

G02705157

Courtesy of DAIMLERCHRYSLER CORP.

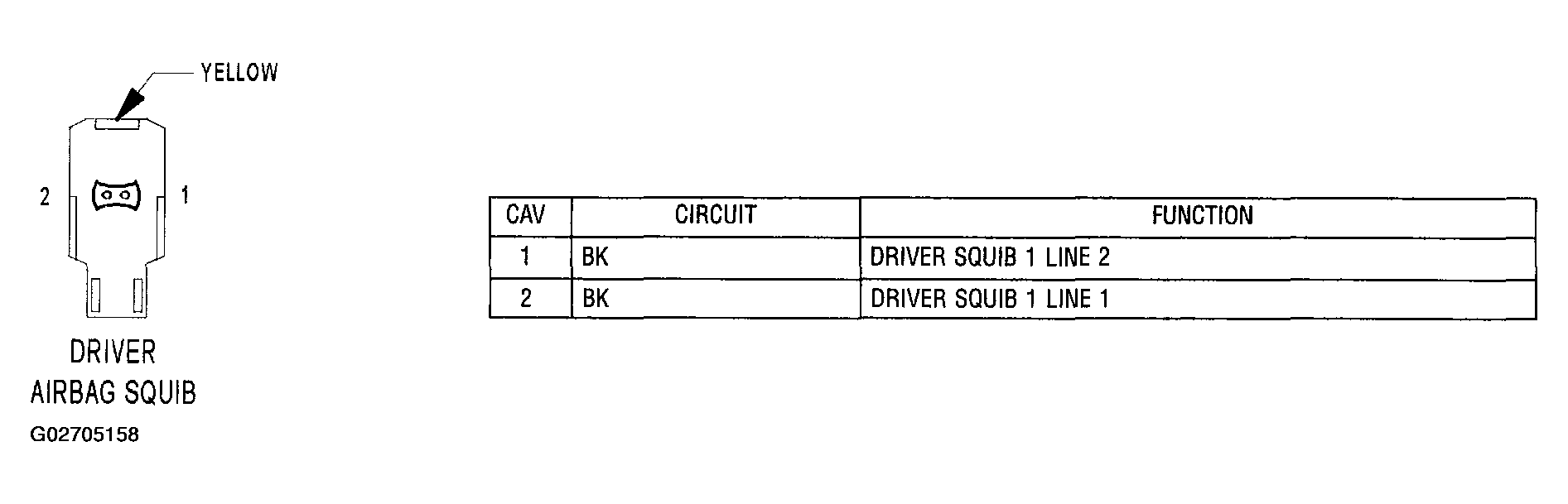

Fig 32: Identifying Driver Airbag Squib Connector Pinouts

G02705158

Courtesy of DAIMLERCHRYSLER CORP.

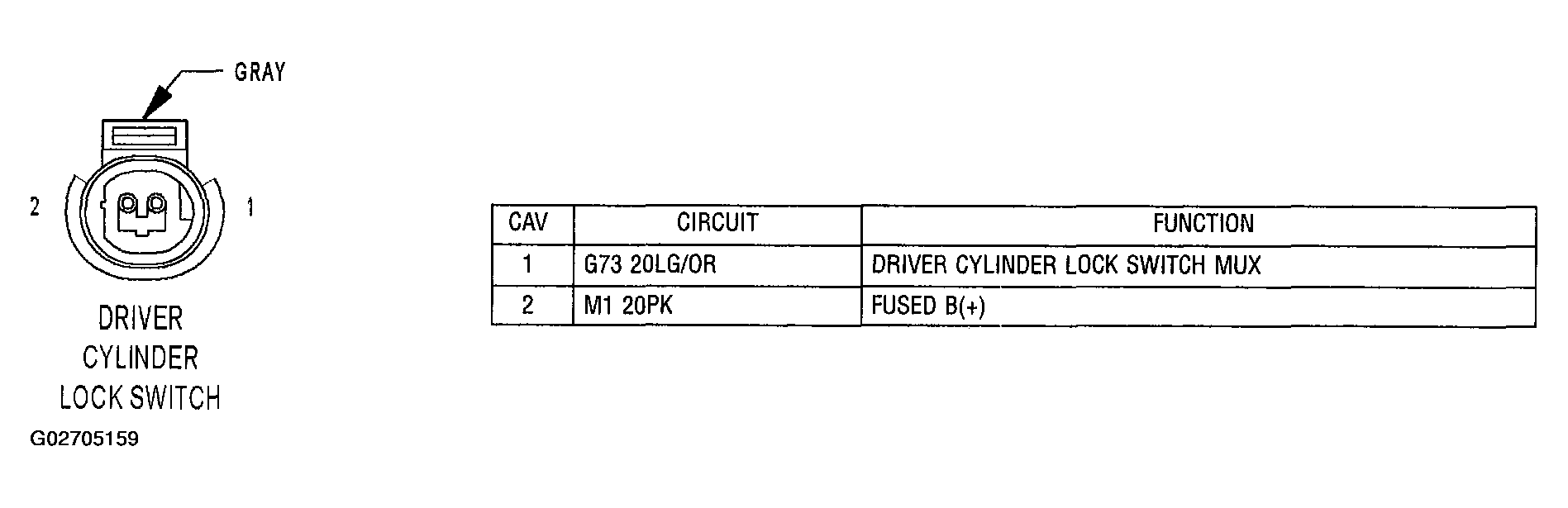

Fig 33: Identifying Driver Cylinder Lock Switch Connector Pinouts

G02705159

Courtesy of DAIMLERCHRYSLER CORP.

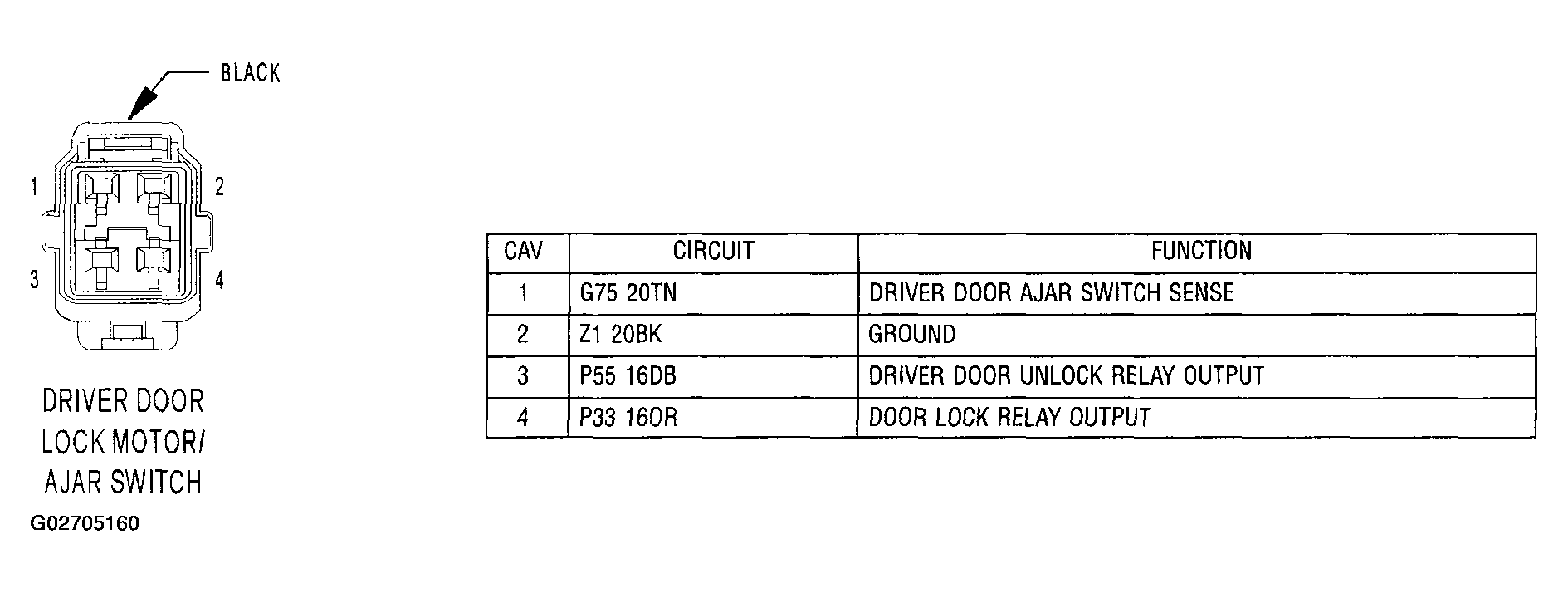

Fig 34: Identifying Driver Door Lock Motor/Ajar Switch Connector Pinouts

G02705160

Courtesy of DAIMLERCHRYSLER CORP.

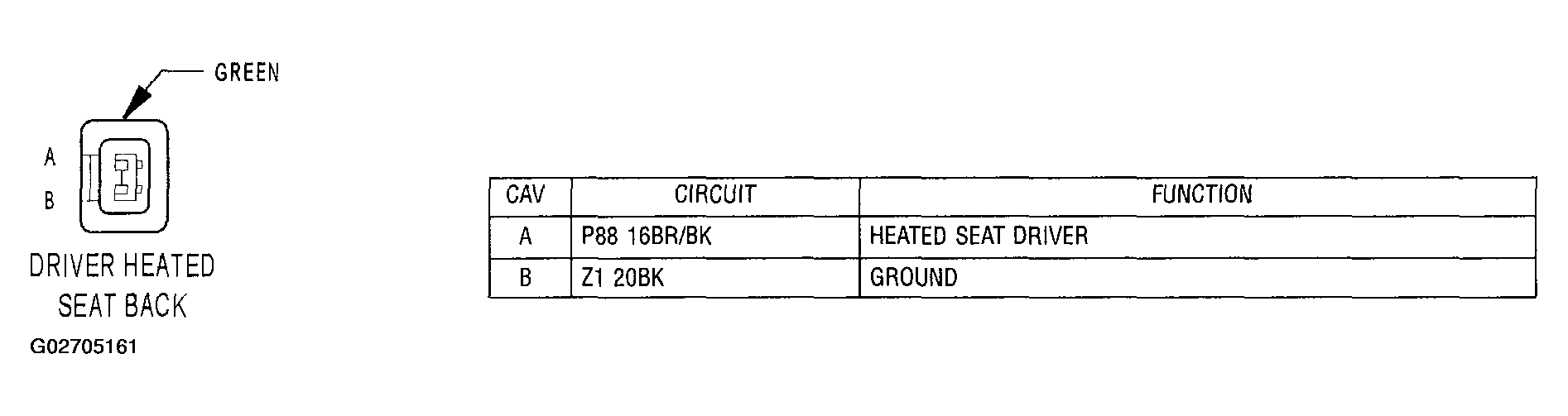

Fig 35: Identifying Driver Heated Seat Back Connector Pinouts

G02705161

Courtesy of DAIMLERCHRYSLER CORP.

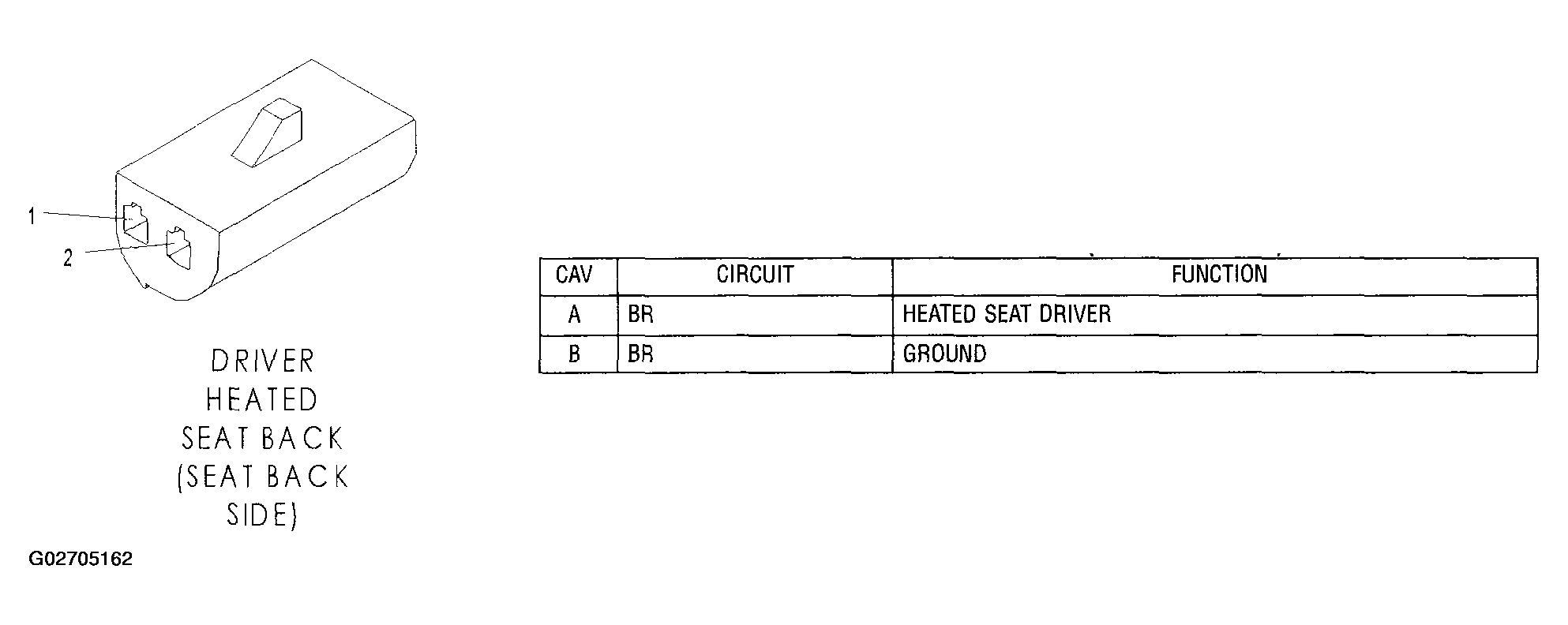

Fig 36: Identifying Driver Heated Seat Back (Seat Back Side) Connector Pinouts

G02705162

Courtesy of DAIMLERCHRYSLER CORP.

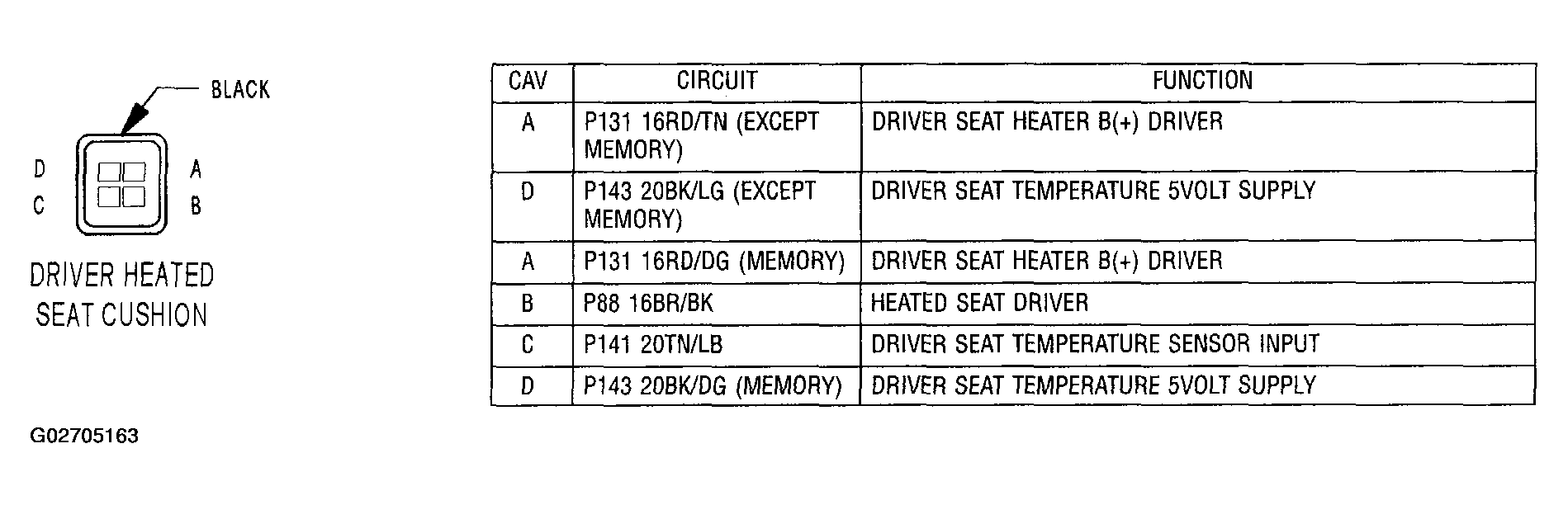

Fig 37: Identifying Driver Heated Seat Cushion Connector Pinouts

G02705163

Courtesy of DAIMLERCHRYSLER CORP.

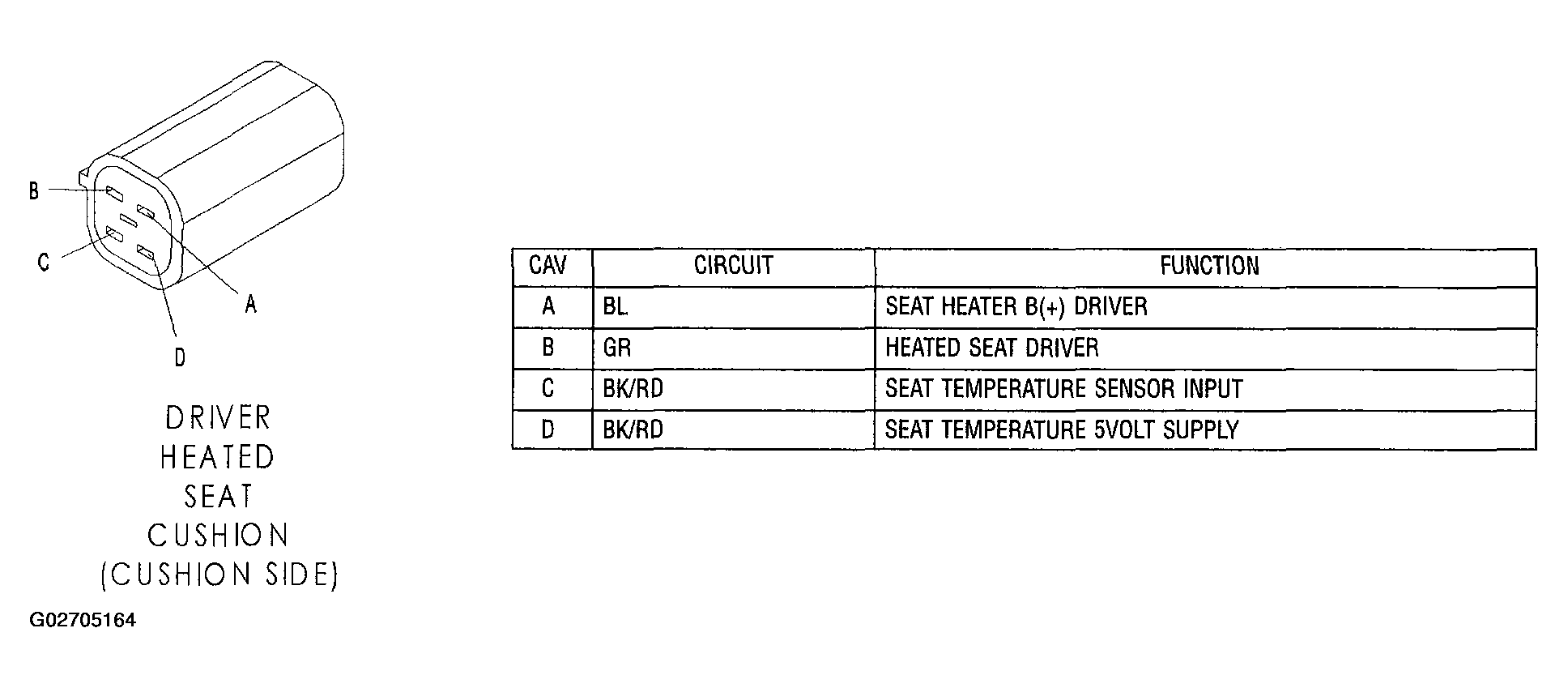

Fig 38: Identifying Driver Heated Seat Cushion (Cushion Side) Connector Pinouts

G02705164

Courtesy of DAIMLERCHRYSLER CORP.

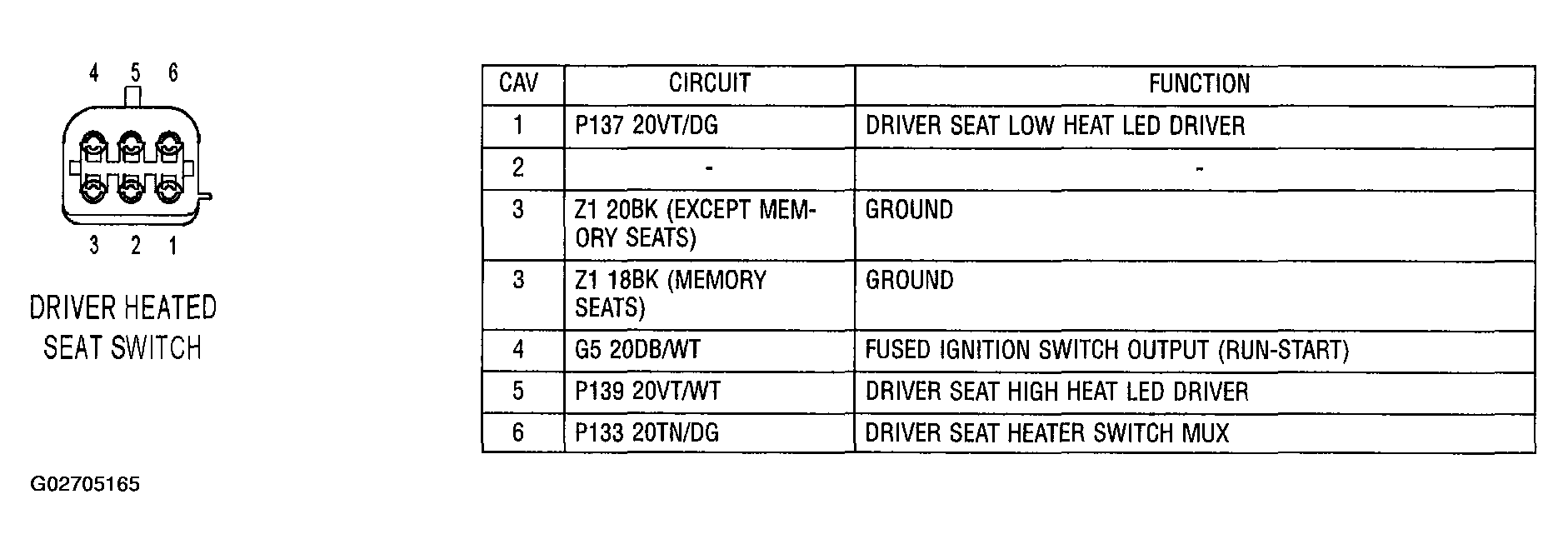

Fig 39: Identifying Driver Heated Seat Switch Connector Pinouts

G02705165

Courtesy of DAIMLERCHRYSLER CORP.

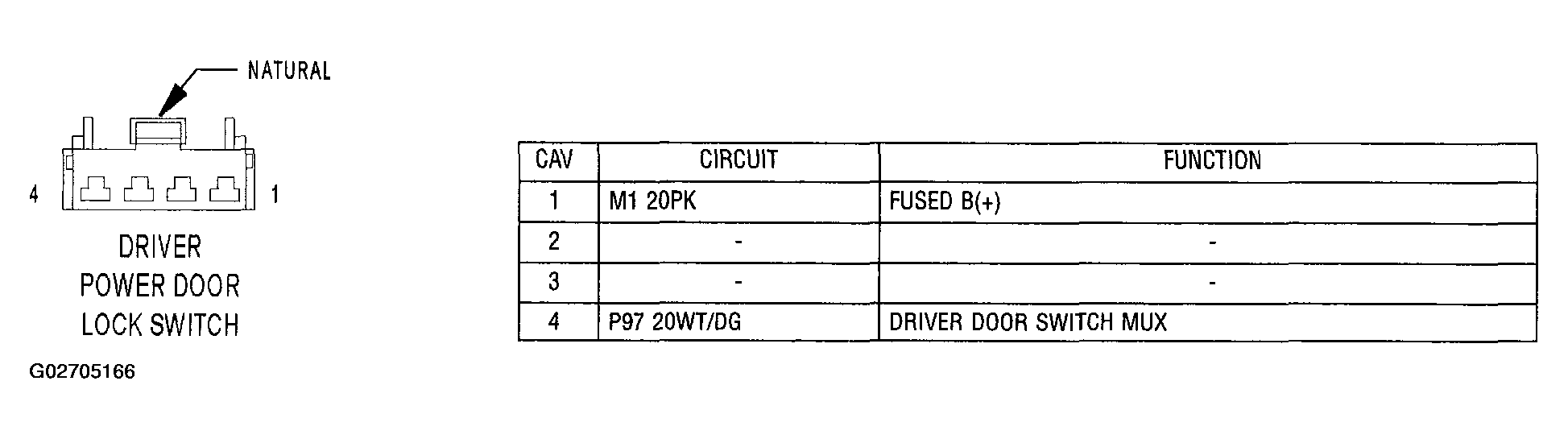

Fig 40: Identifying Driver Power Door Lock Switch Connector Pinouts

G02705166

Courtesy of DAIMLERCHRYSLER CORP.

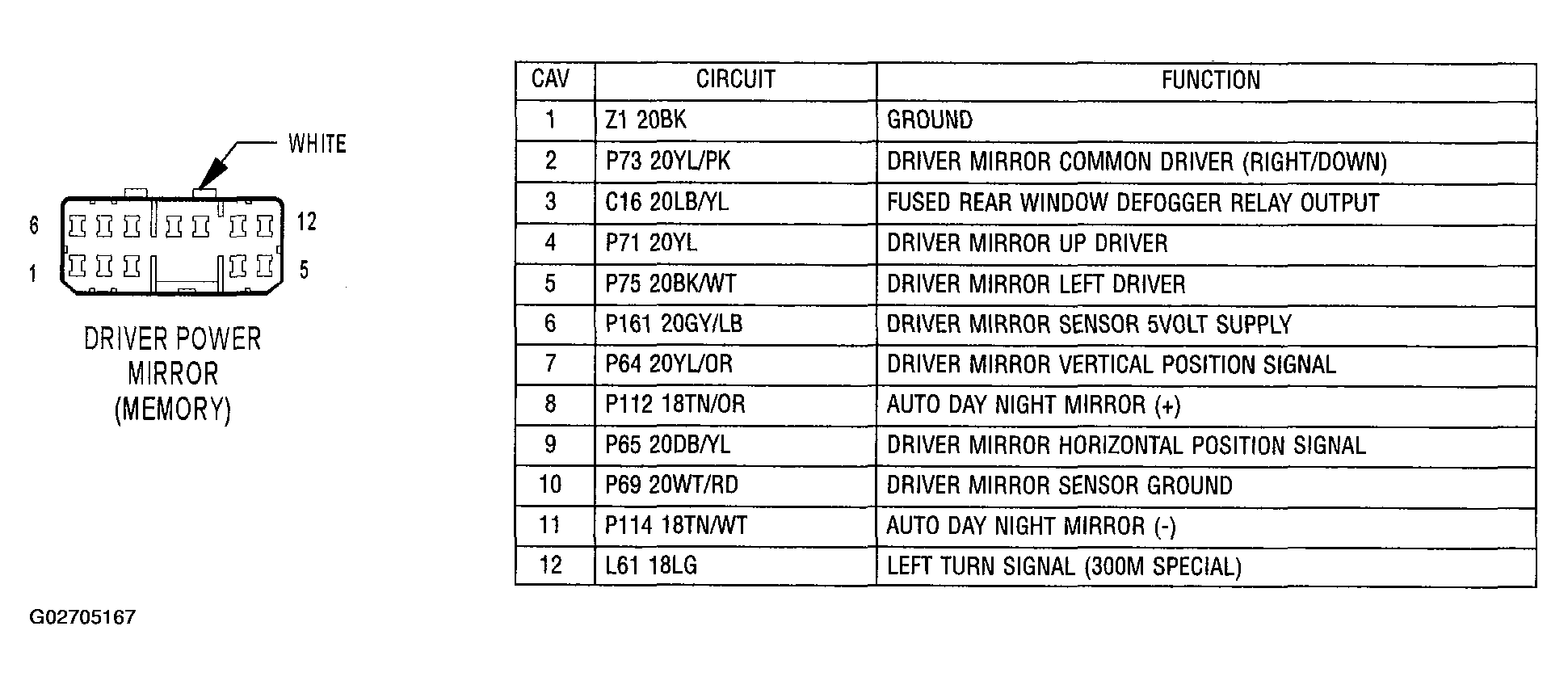

Fig 41: Identifying Driver Power Mirror (Memory) Connector Pinouts

G02705167

Courtesy of DAIMLERCHRYSLER CORP.

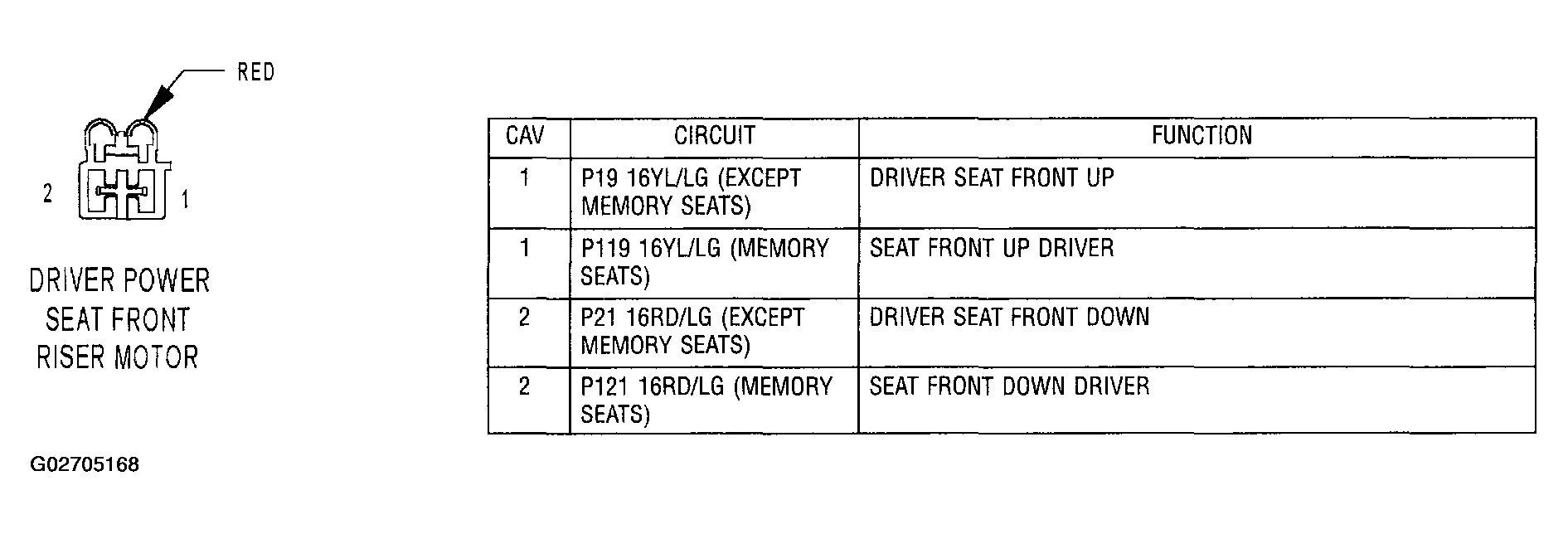

Fig 42: Identifying Driver Power Seat Front Riser Motor Connector Pinouts

G02705168

Courtesy of DAIMLERCHRYSLER CORP.

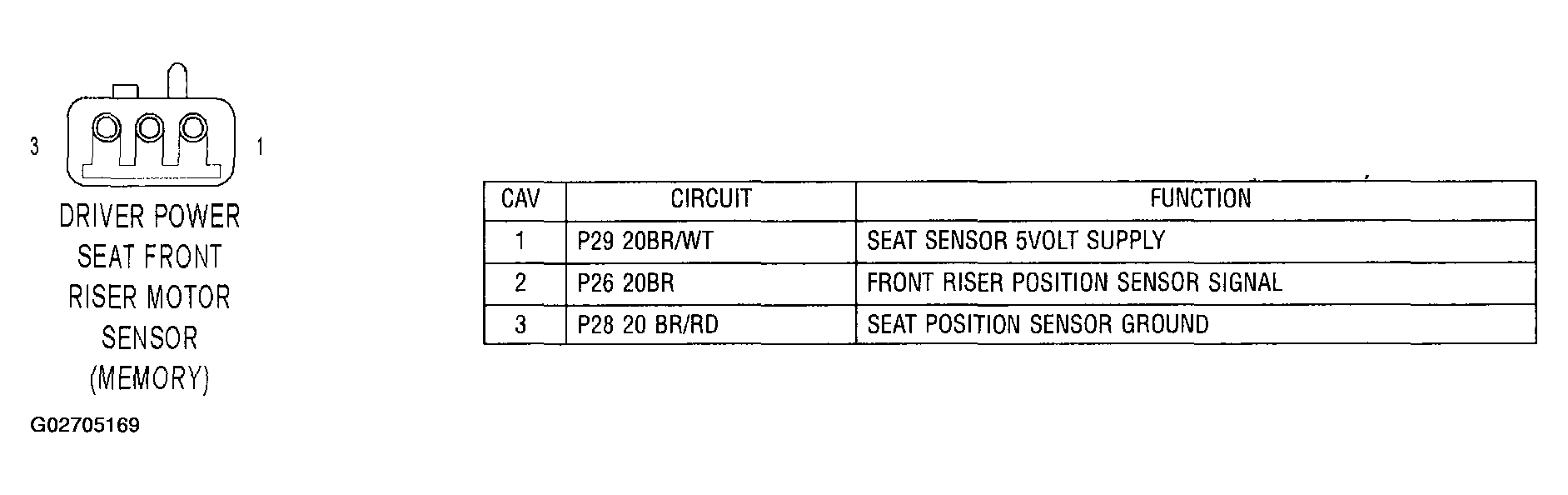

Fig 43: Identifying Driver Power Seat Front Riser Motor Sensor (Memory) Connector Pinouts

G02705169

Courtesy of DAIMLERCHRYSLER CORP.

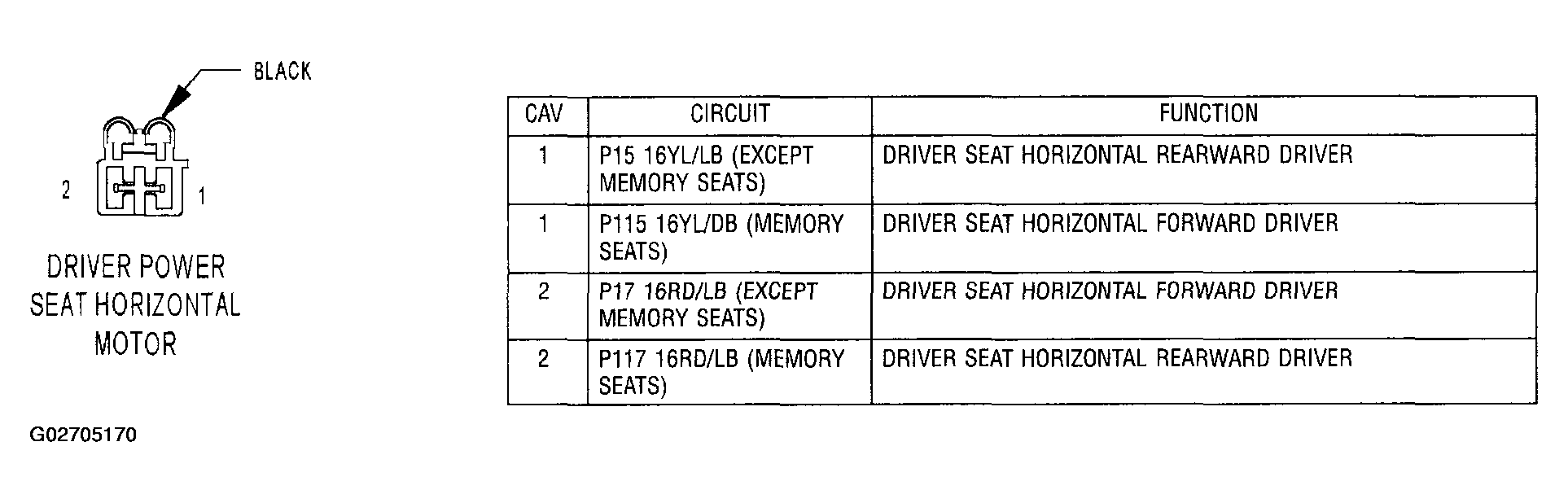

Fig 44: Identifying Driver Power Seat Horizontal Motor Connector Pinouts

G02705170

Courtesy of DAIMLERCHRYSLER CORP.

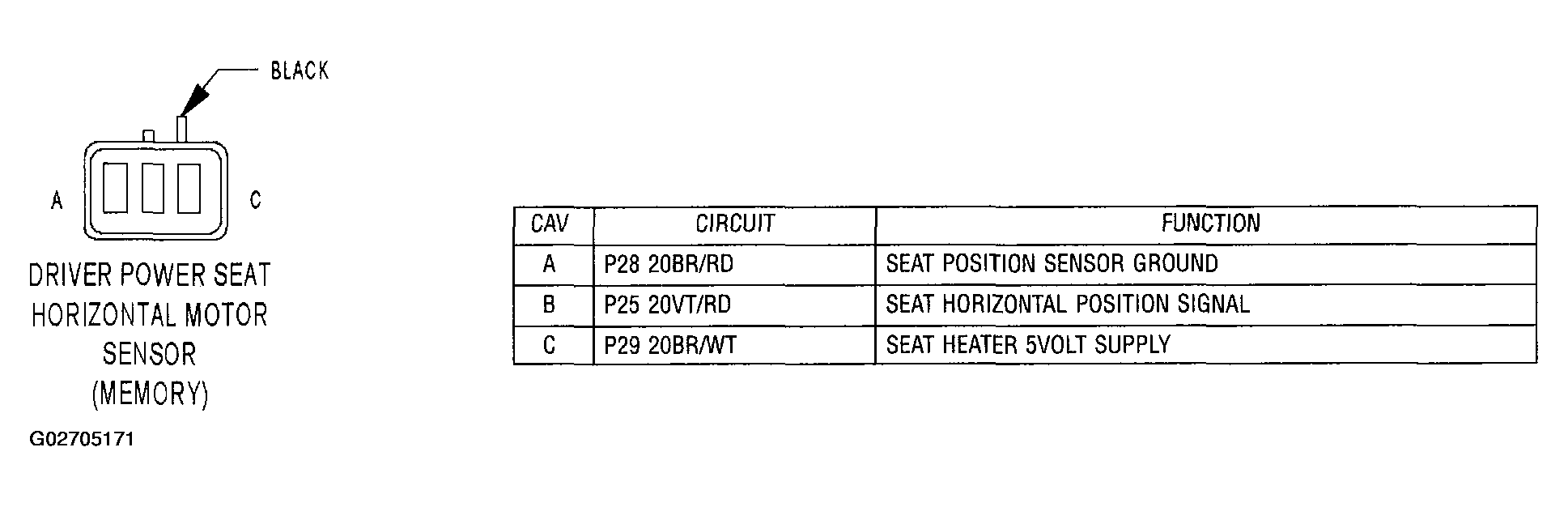

Fig 45: Identifying Driver Power Seat Horizontal Motor Sensor (Memory) Connector Pinouts

G02705171

Courtesy of DAIMLERCHRYSLER CORP.

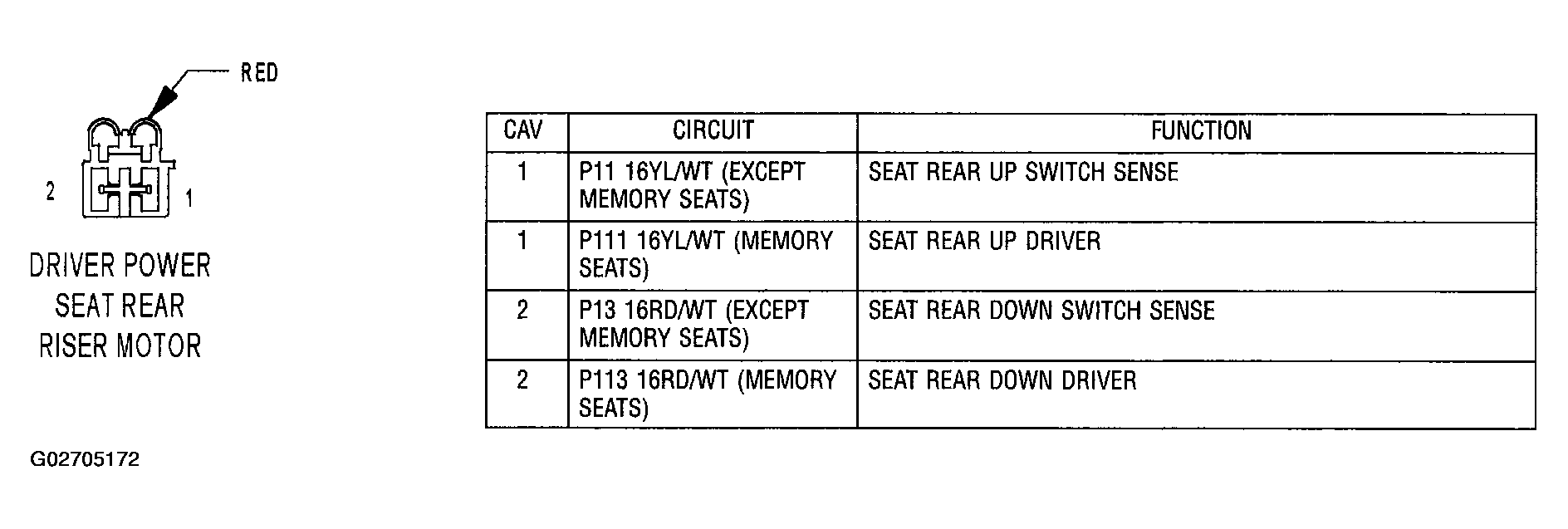

Fig 46: Identifying Driver Power Seat Rear Riser Motor Connector Pinouts

G02705172

Courtesy of DAIMLERCHRYSLER CORP.

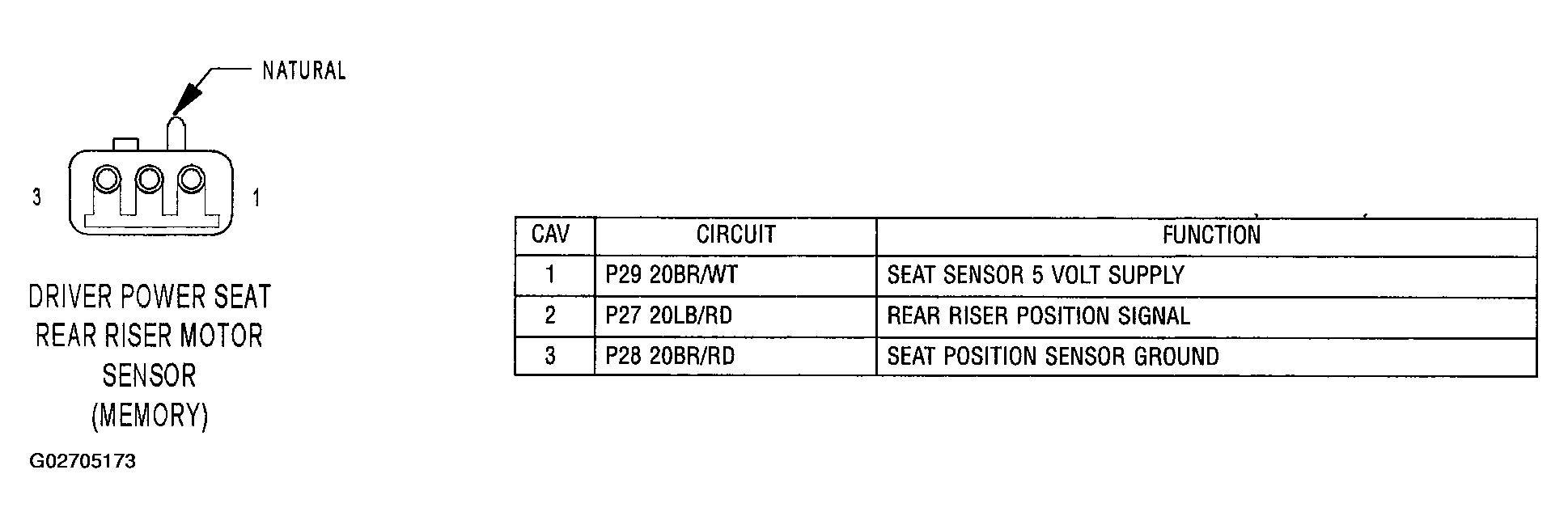

Fig 47: Identifying Driver Power Seat Rear Riser Motor Sensor (Memory) Connector Pinouts

G02705173

Courtesy of DAIMLERCHRYSLER CORP.

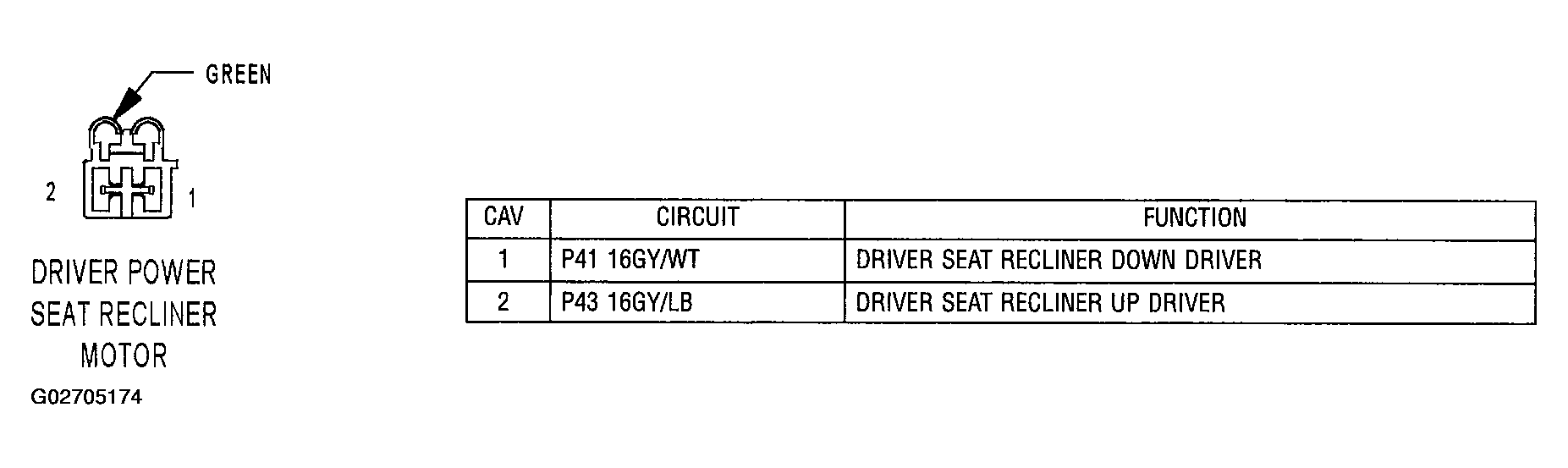

Fig 48: Identifying Driver Power Seat Recliner Motor Connector Pinouts

G02705174

Courtesy of DAIMLERCHRYSLER CORP.

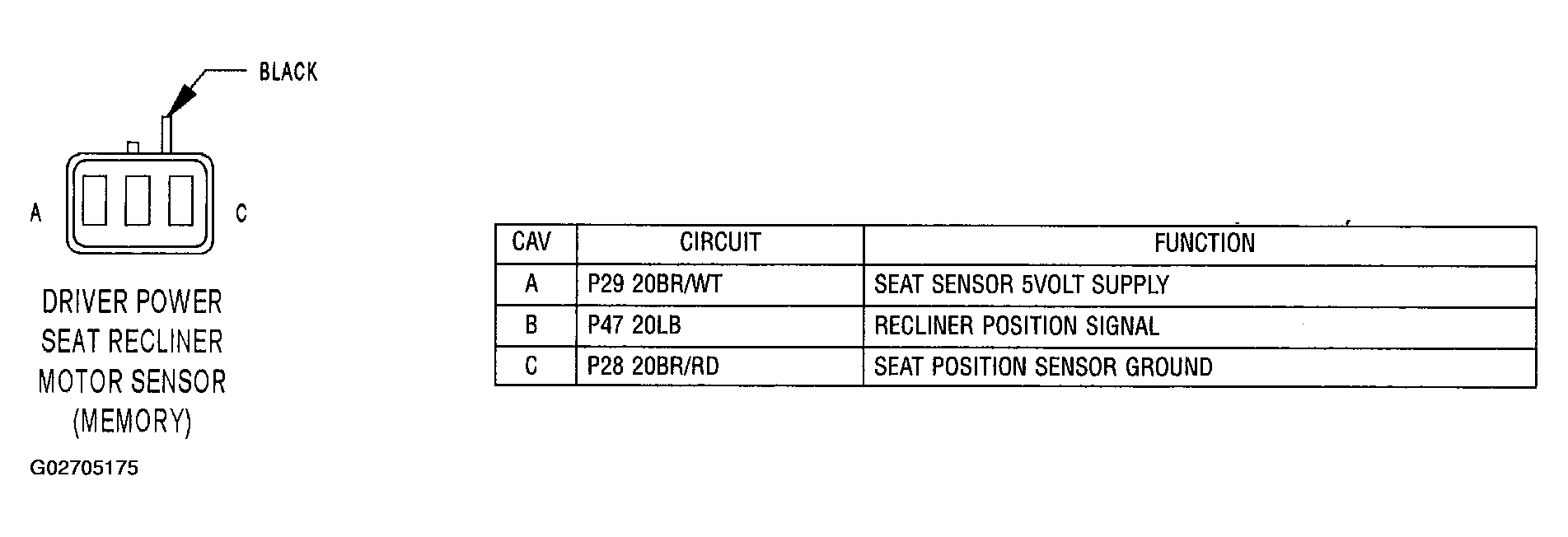

Fig 49: Identifying Driver Power Seat Recliner Motor Sensor (Memory) Connector Pinouts

G02705175

Courtesy of DAIMLERCHRYSLER CORP.

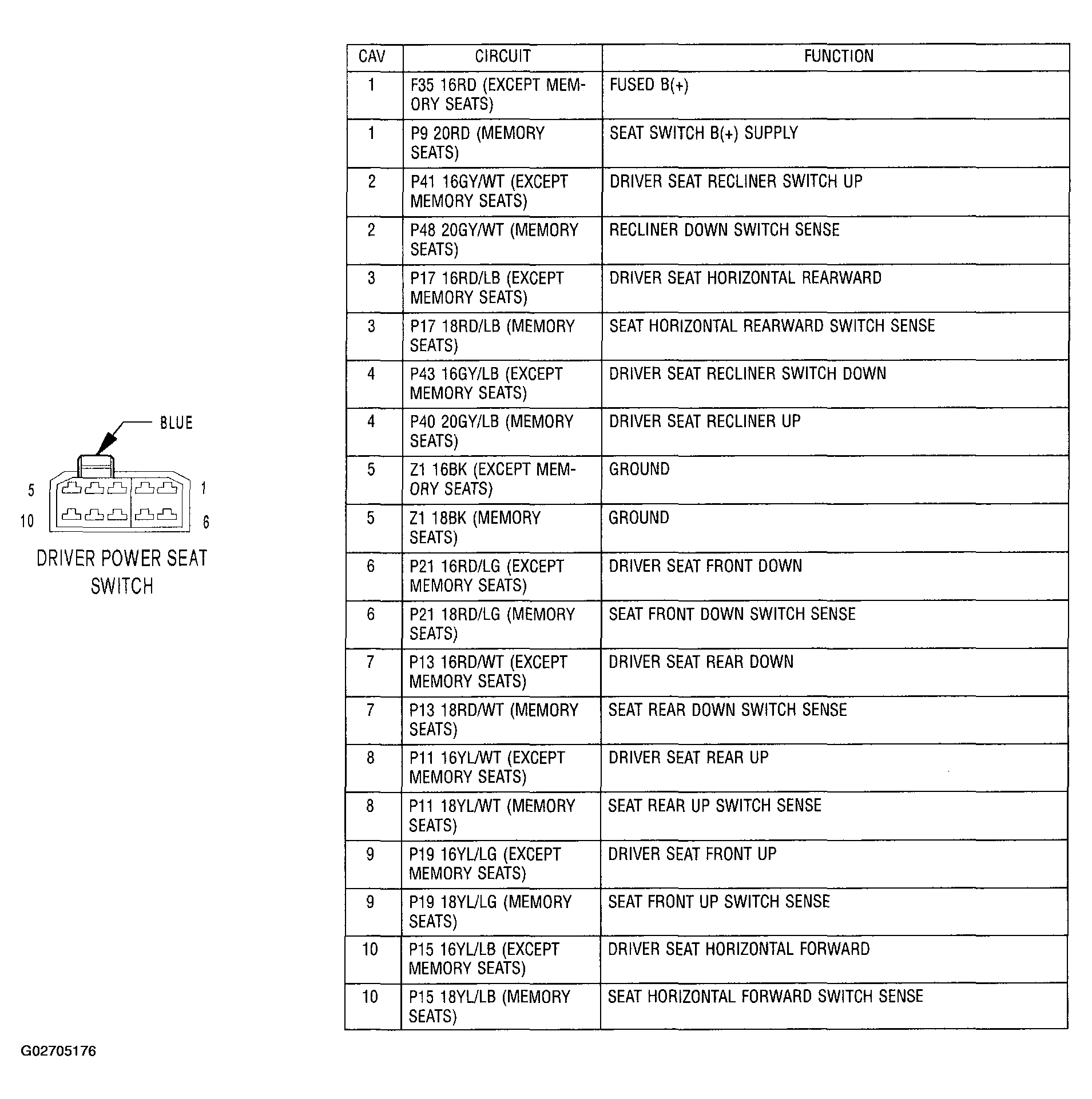

Fig 50: Identifying Driver Power Seat Switch Connector Pinouts

G02705176

Courtesy of DAIMLERCHRYSLER CORP.

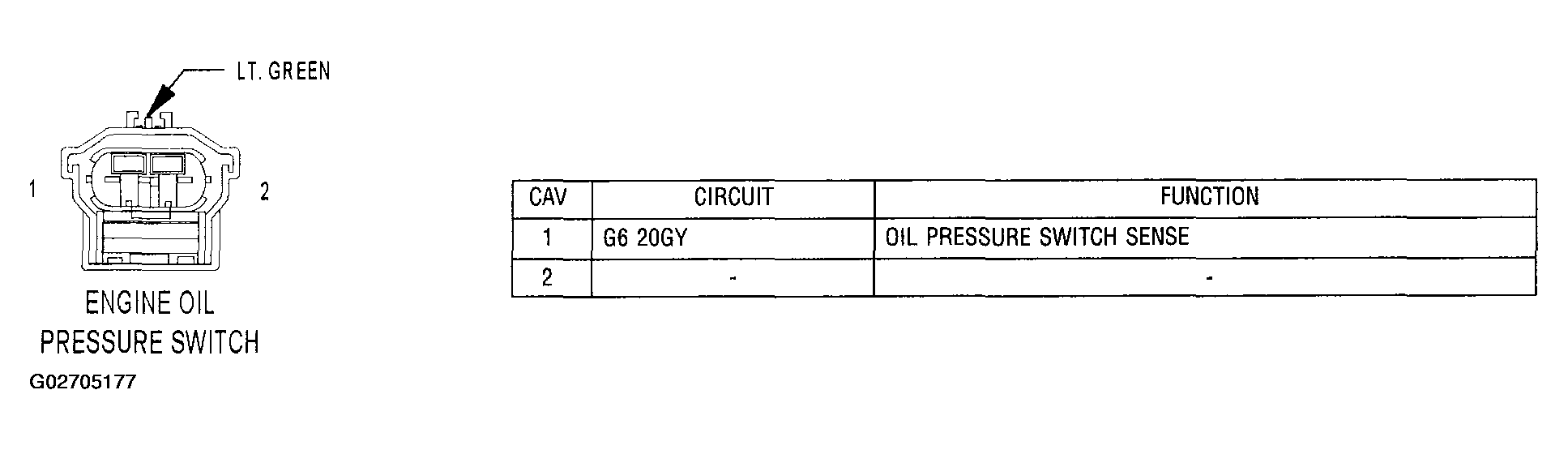

Fig 51: Identifying Engine Oil Pressure Switch Connector Pinouts

G02705177

Courtesy of DAIMLERCHRYSLER CORP.

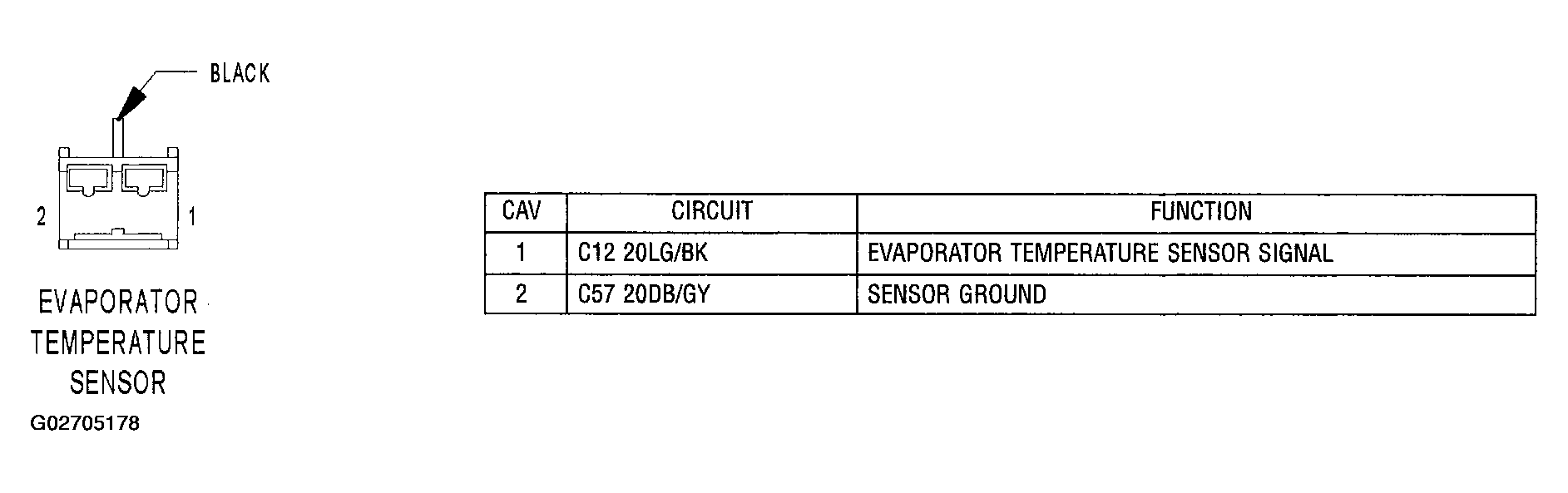

Fig 52: Identifying Evaporator Temperature Sensor Connector Pinouts

G02705178

Courtesy of DAIMLERCHRYSLER CORP.

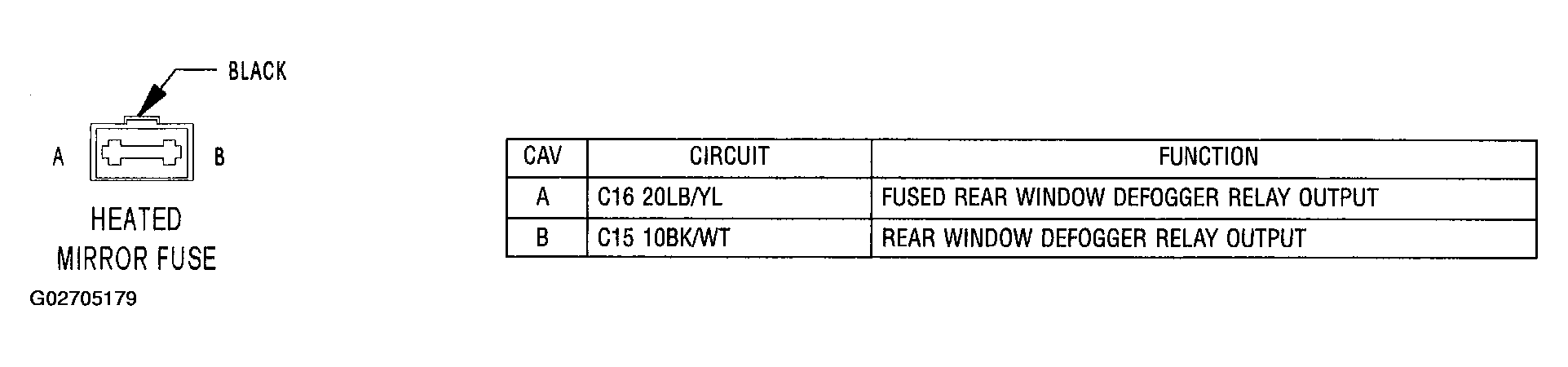

Fig 53: Identifying Heated Mirror Fuse Connector Pinouts

G02705179

Courtesy of DAIMLERCHRYSLER CORP.

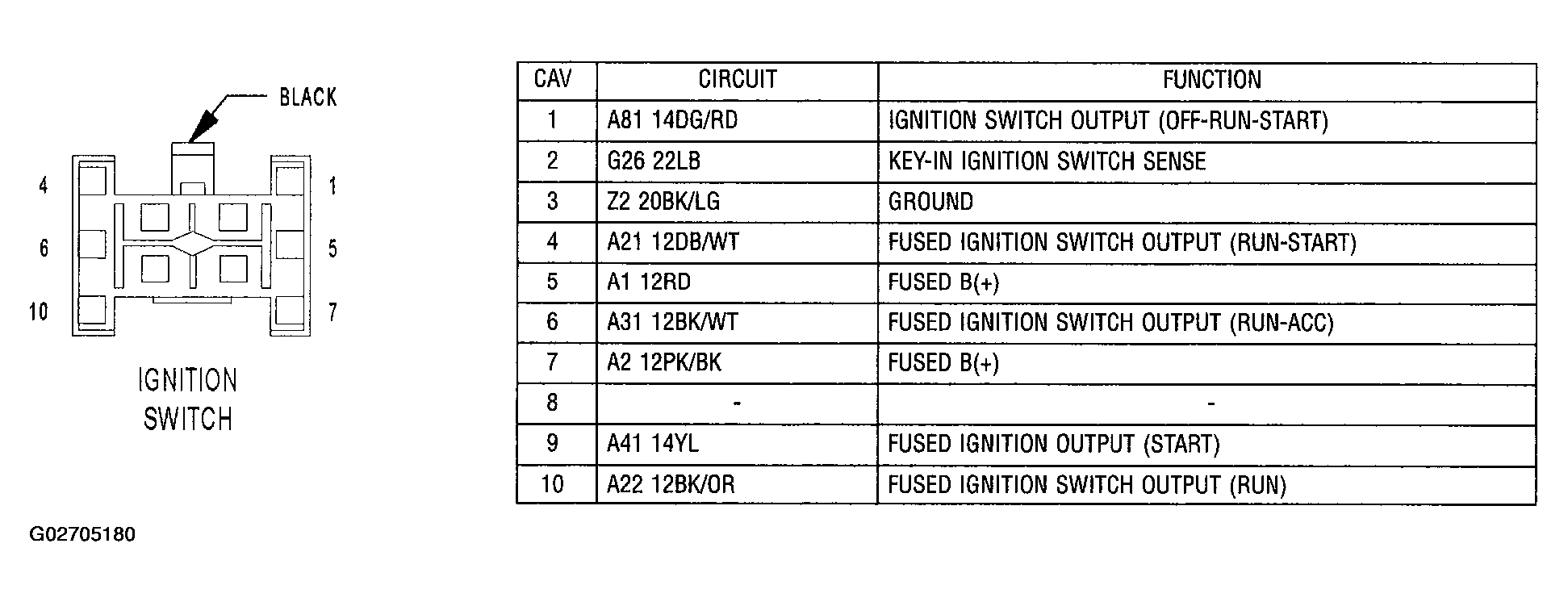

Fig 54: Identifying Ignition Switch Connector Pinouts

G02705180

Courtesy of DAIMLERCHRYSLER CORP.

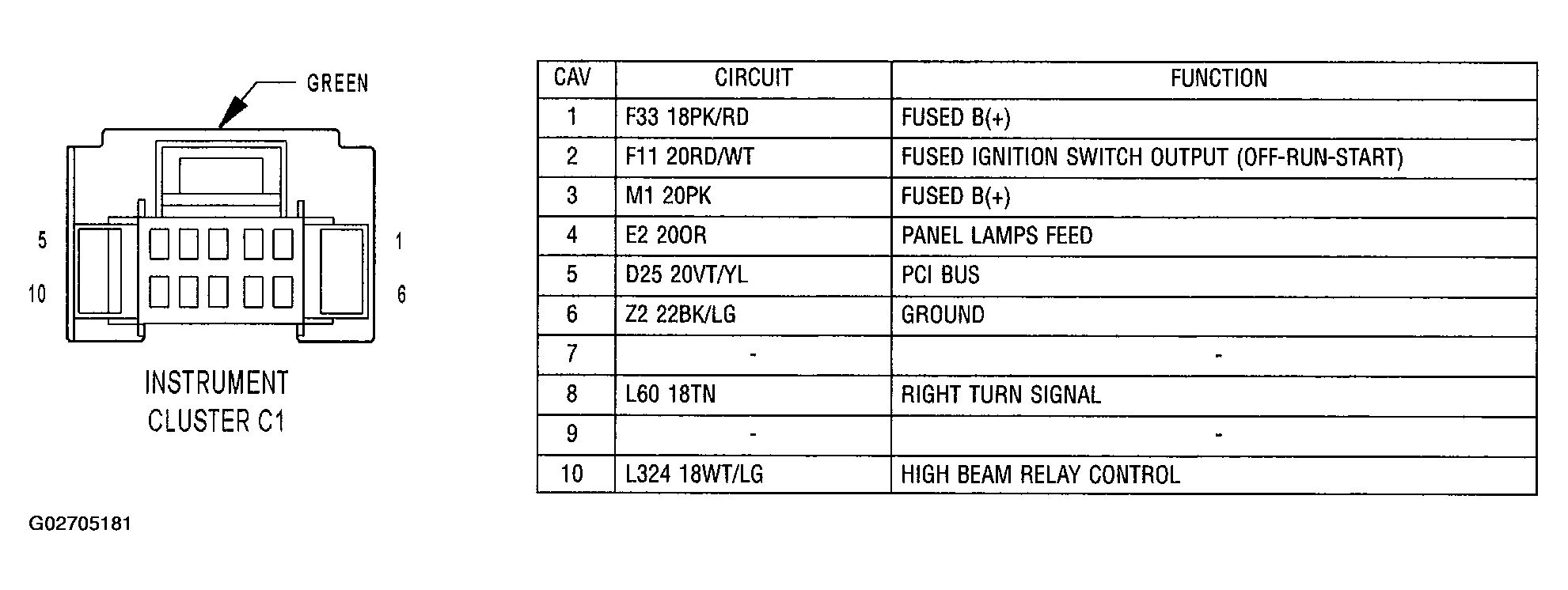

Fig 55: Identifying Instrument Cluster C1 Connector Pinouts

G02705181

Courtesy of DAIMLERCHRYSLER CORP.

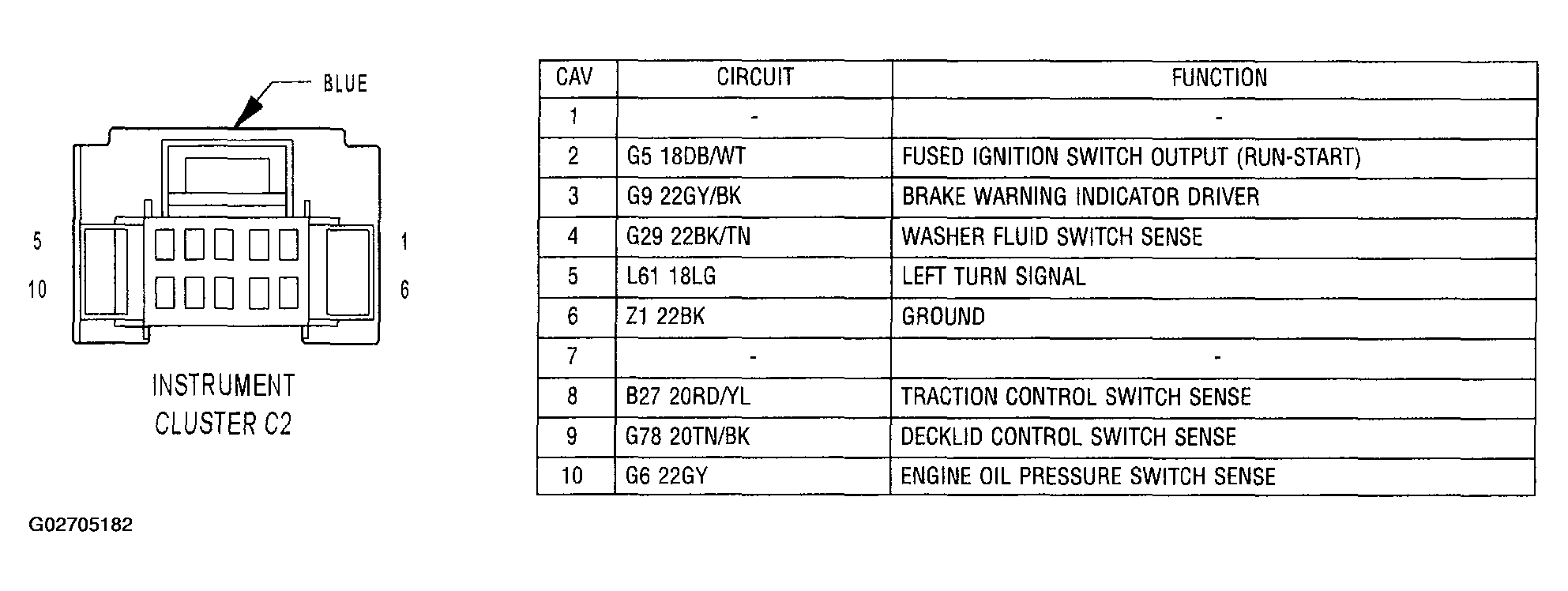

Fig 56: Identifying Instrument Cluster C2 Connector Pinouts

G02705182

Courtesy of DAIMLERCHRYSLER CORP.

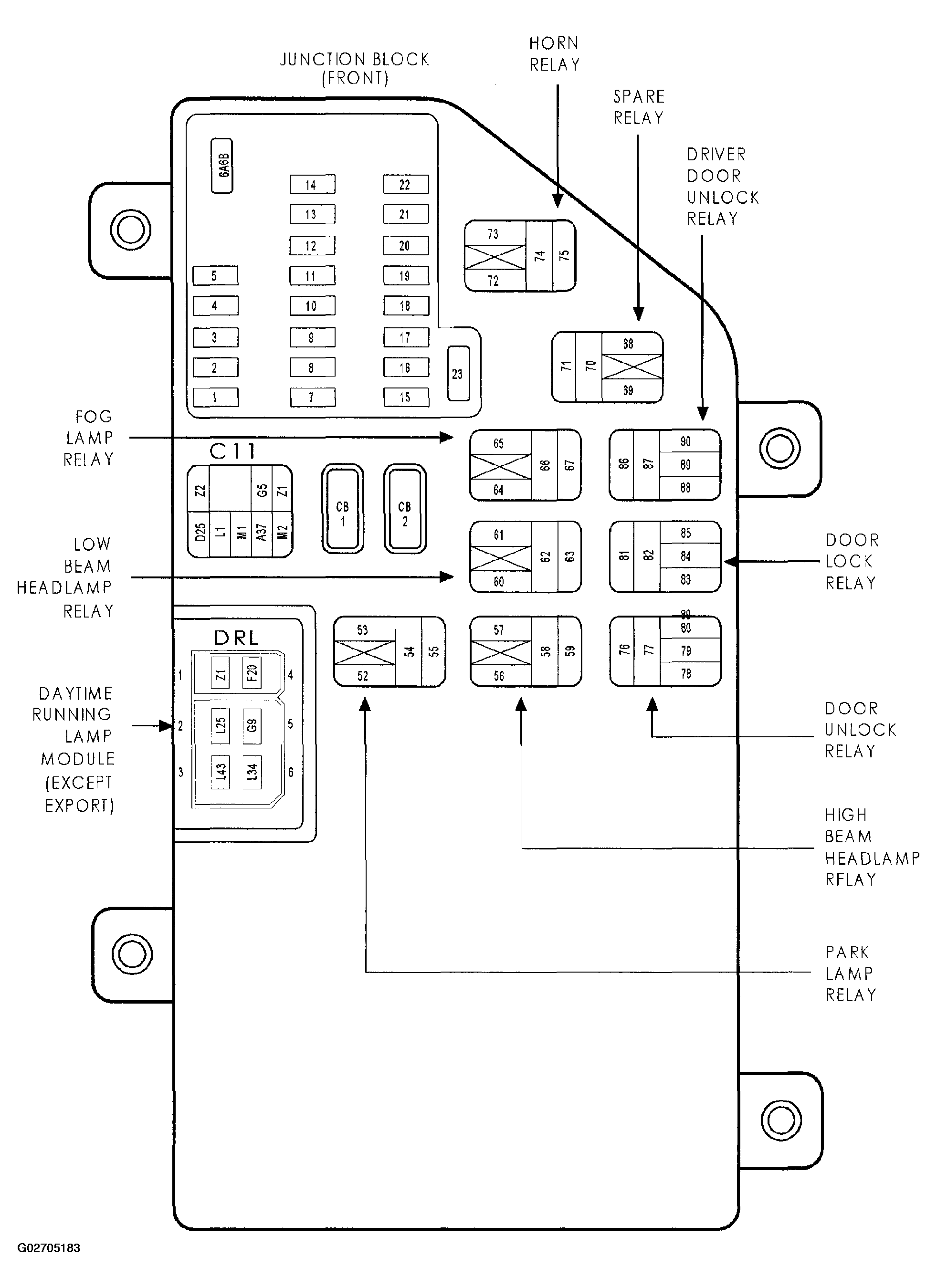

Fig 57: Identifying Junction Block Connector Pinouts (1 Of 2)

G02705183

Courtesy of DAIMLERCHRYSLER CORP.

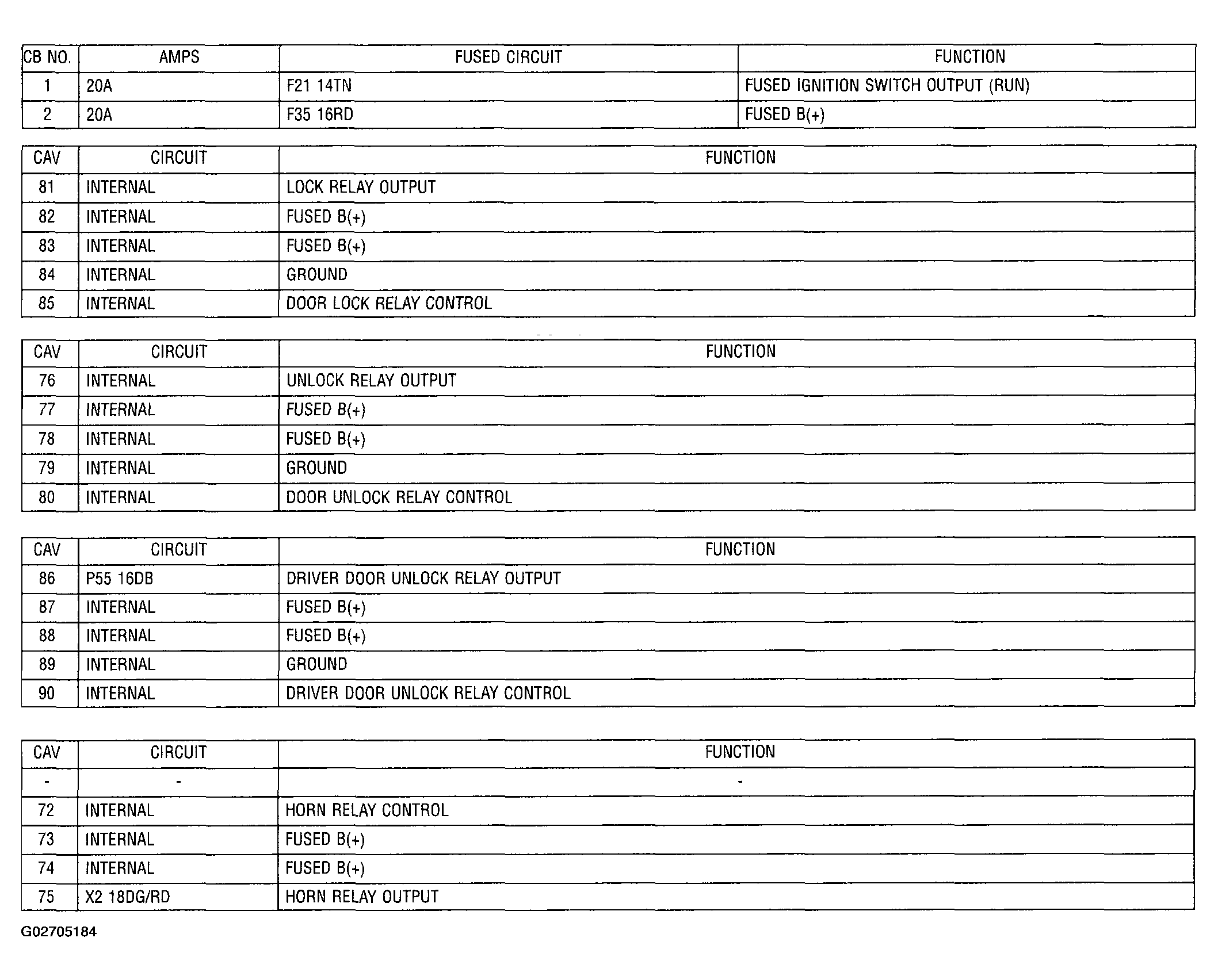

Fig 58: Identifying Junction Block Connector Pinouts (2 Of 2)

G02705184

Courtesy of DAIMLERCHRYSLER CORP.

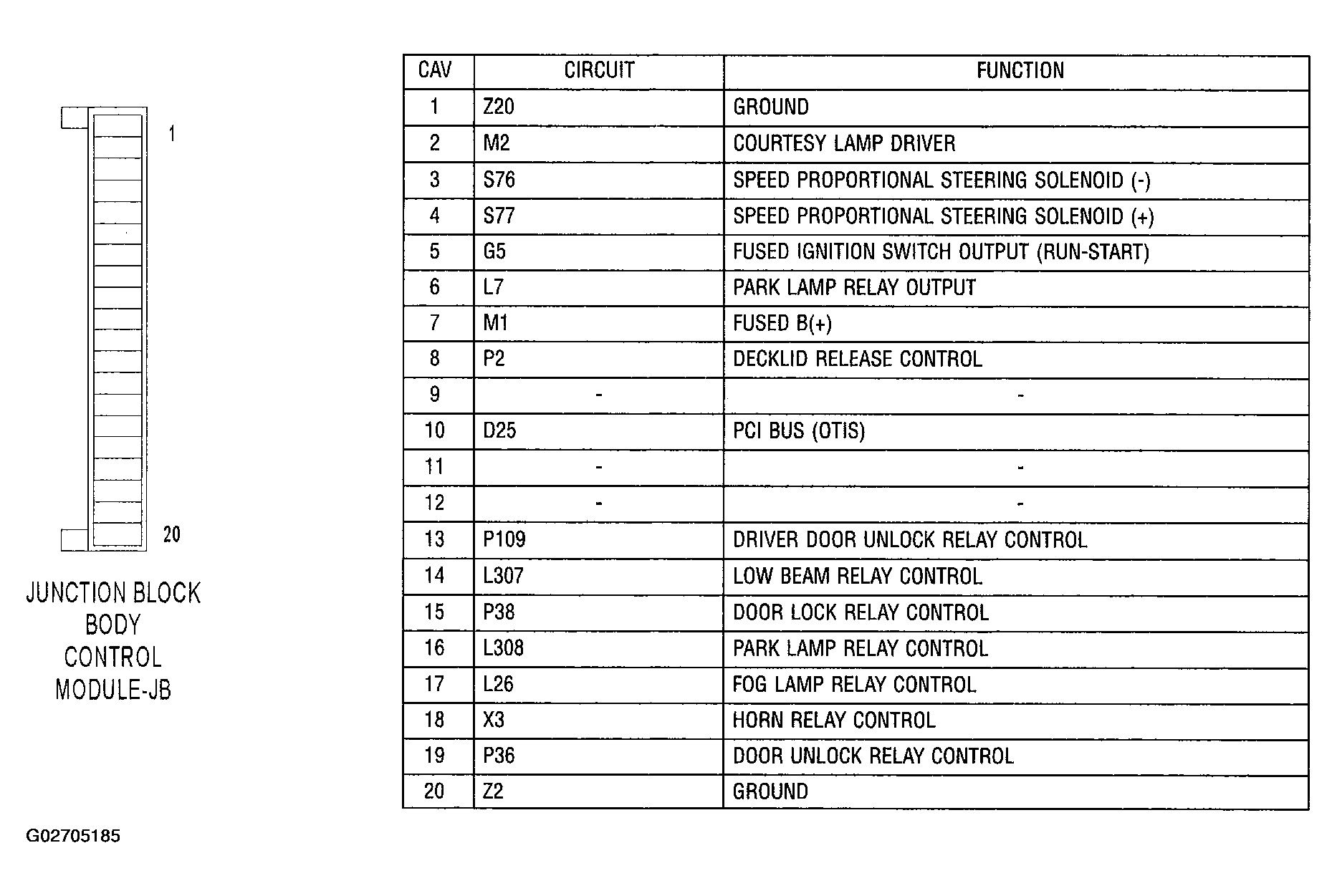

Fig 59: Identifying Junction Block Body Control Module-JB Connector Pinouts

G02705185

Courtesy of DAIMLERCHRYSLER CORP.

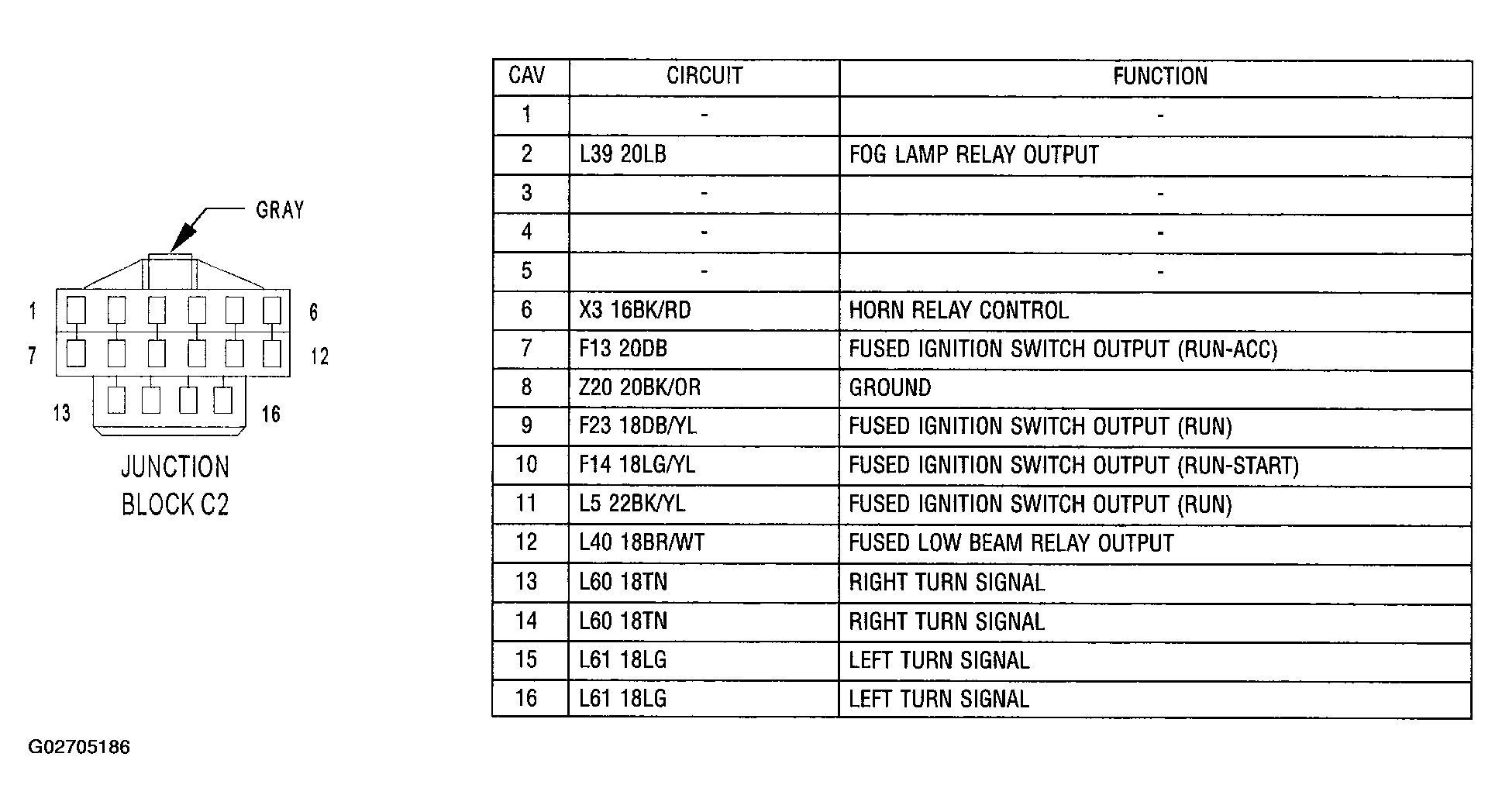

Fig 60: Identifying Junction Block C2 Connector Pinouts

G02705186

Courtesy of DAIMLERCHRYSLER CORP.

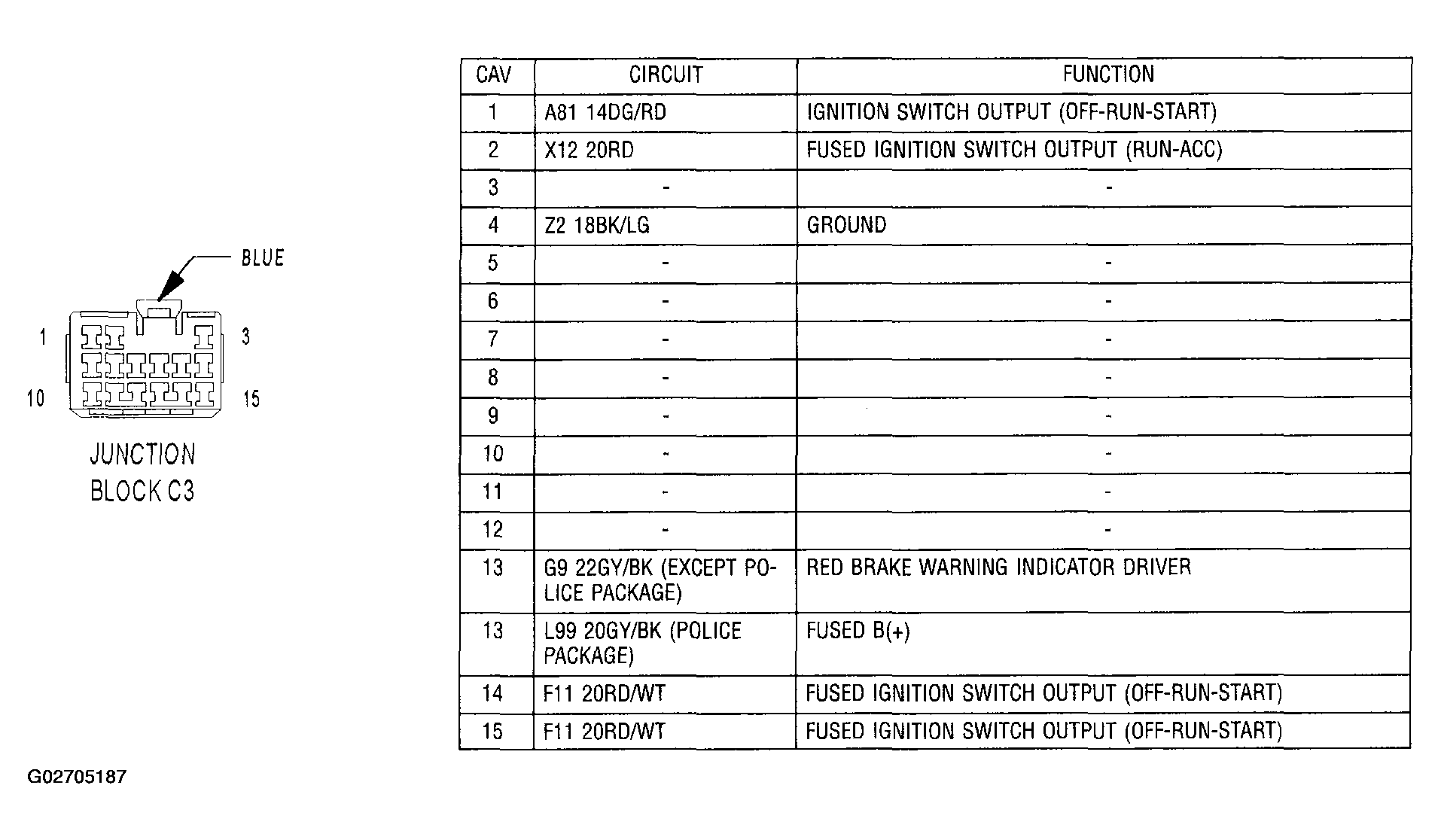

Fig 61: Identifying Junction Block C3 Connector Pinouts

G02705187

Courtesy of DAIMLERCHRYSLER CORP.

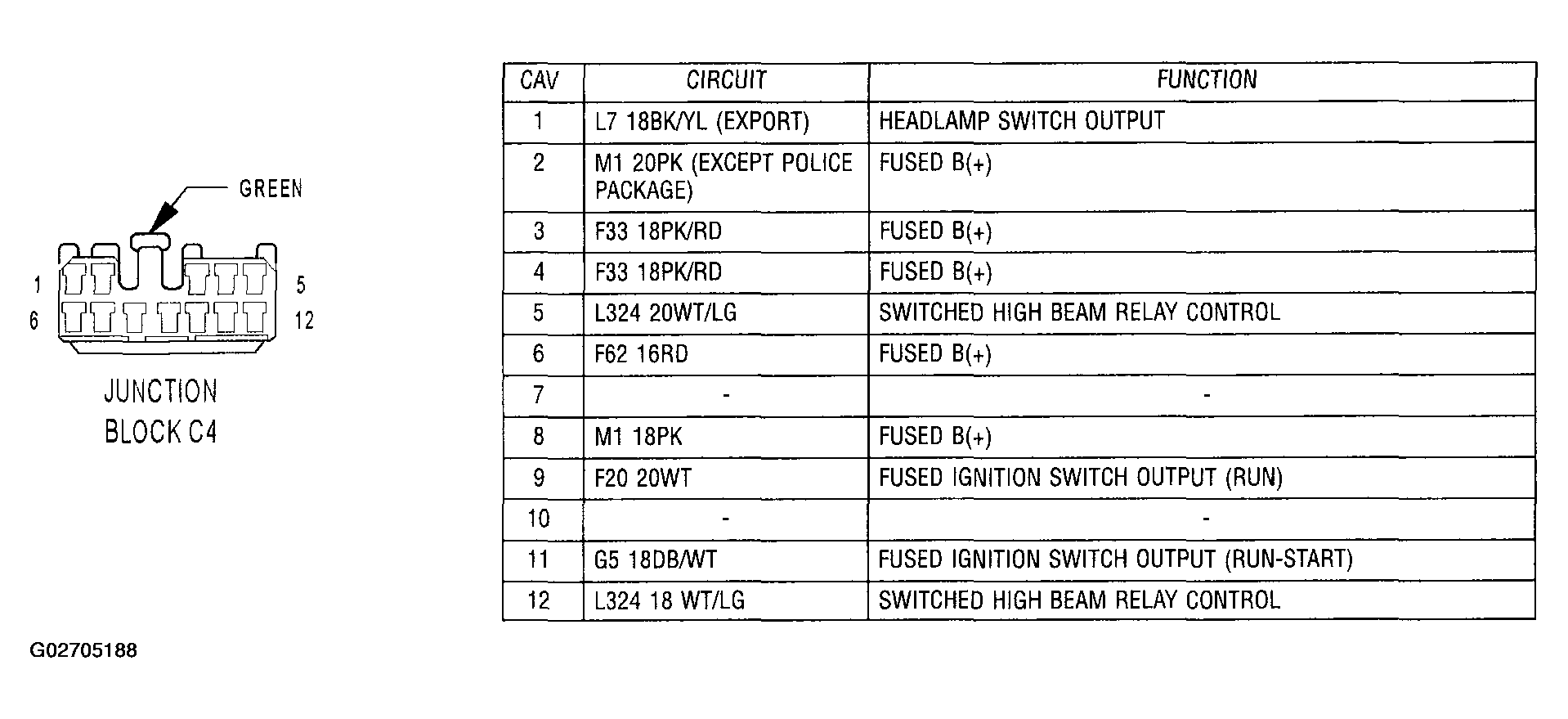

Fig 62: Identifying Junction Block C4 Connector Pinouts

G02705188

Courtesy of DAIMLERCHRYSLER CORP.

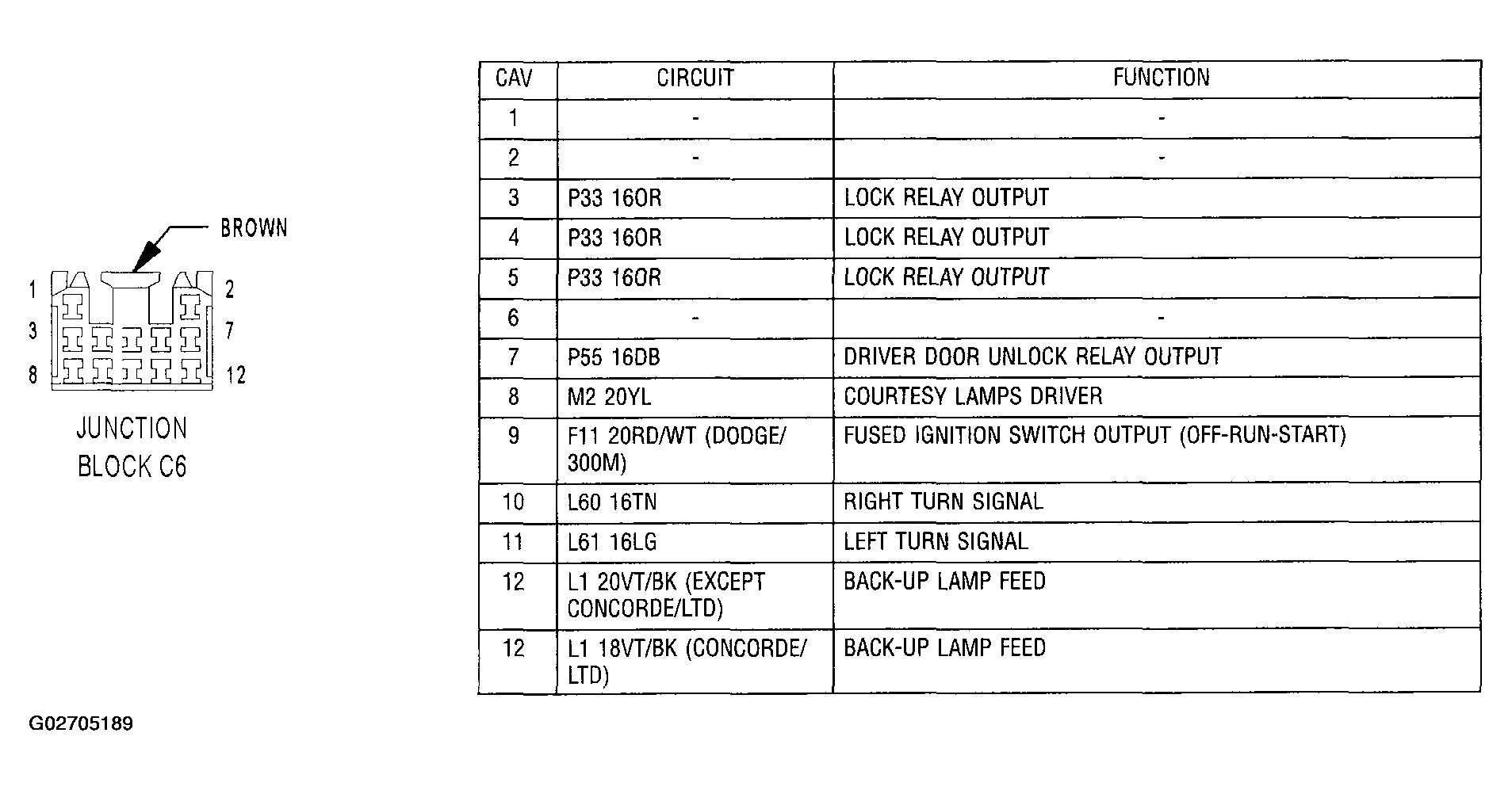

Fig 63: Identifying Junction Block C6 Connector Pinouts

G02705189

Courtesy of DAIMLERCHRYSLER CORP.

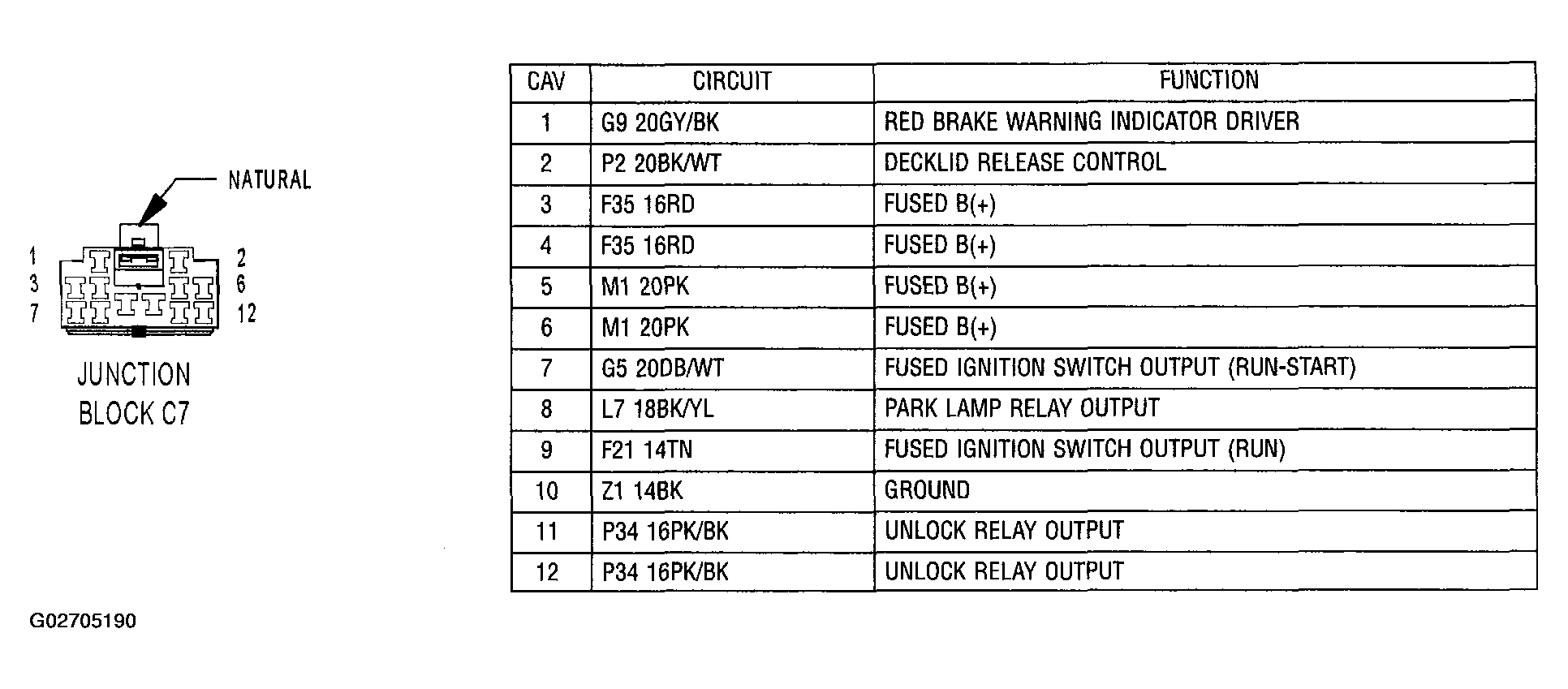

Fig 64: Identifying Junction Block C7 Connector Pinouts

G02705190

Courtesy of DAIMLERCHRYSLER CORP.

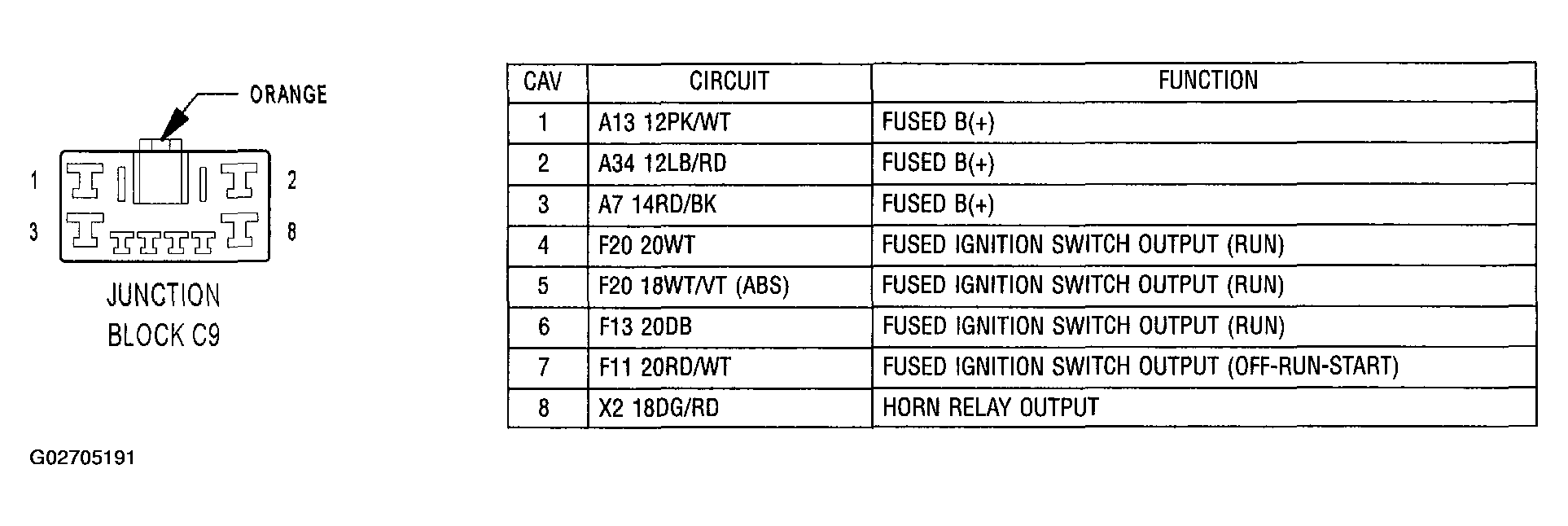

Fig 65: Identifying Junction Block C9 Connector Pinouts

G02705191

Courtesy of DAIMLERCHRYSLER CORP.

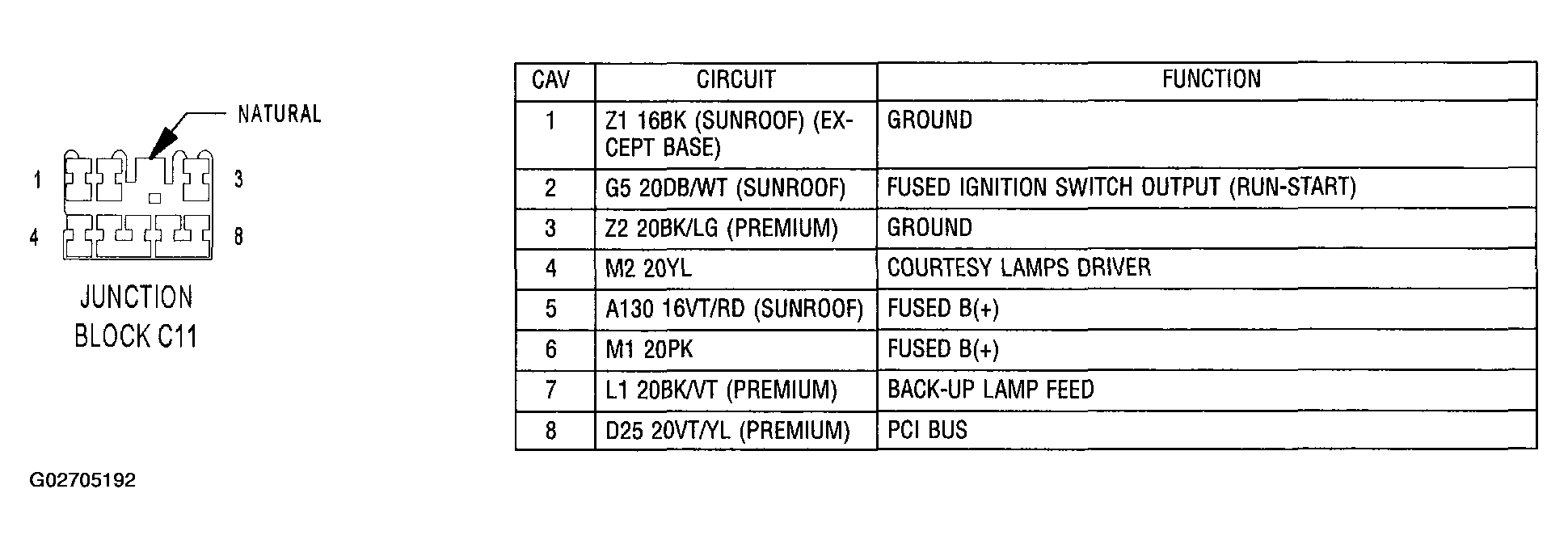

Fig 66: Identifying Junction Block C11 Connector Pinouts

G02705192

Courtesy of DAIMLERCHRYSLER CORP.

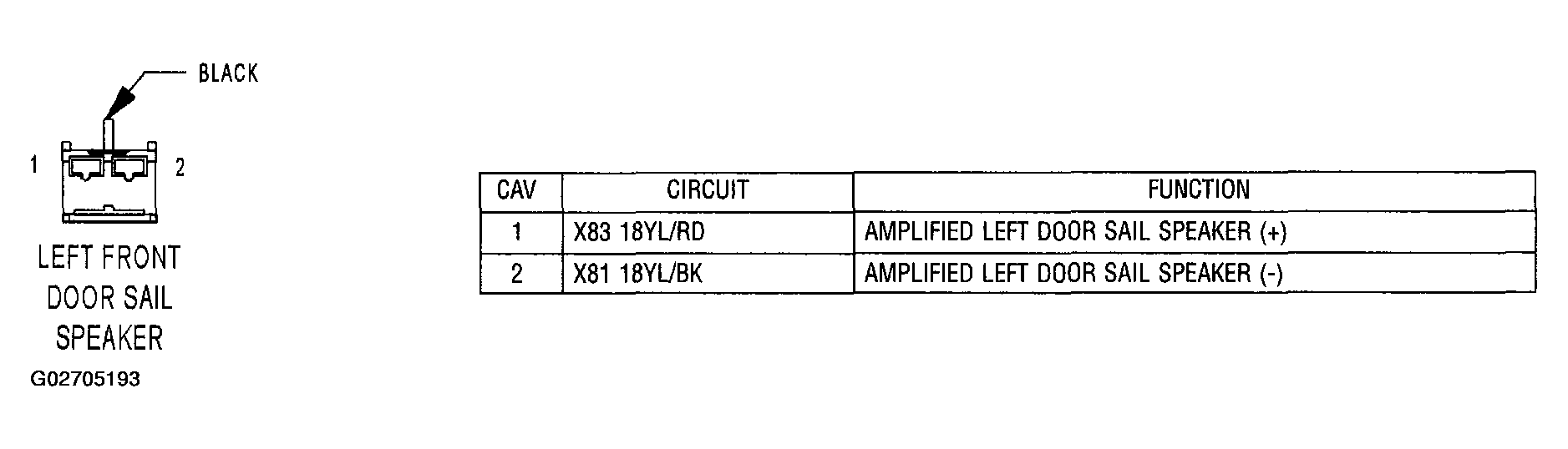

Fig 67: Identifying Left Front Door Sail Speaker Connector Pinouts

G02705193

Courtesy of DAIMLERCHRYSLER CORP.

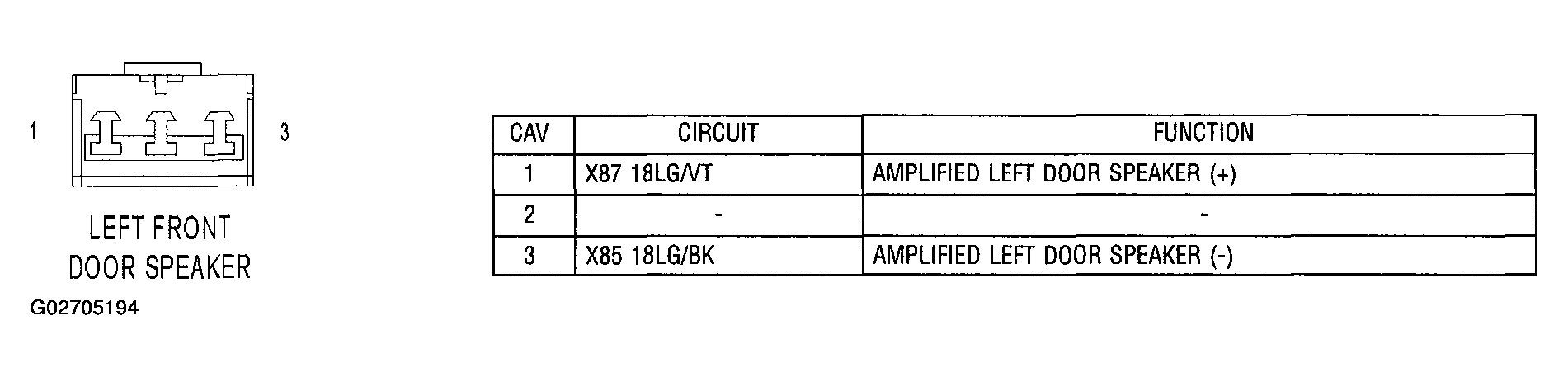

Fig 68: Identifying Left Front Door Speaker Connector Pinouts

G02705194

Courtesy of DAIMLERCHRYSLER CORP.

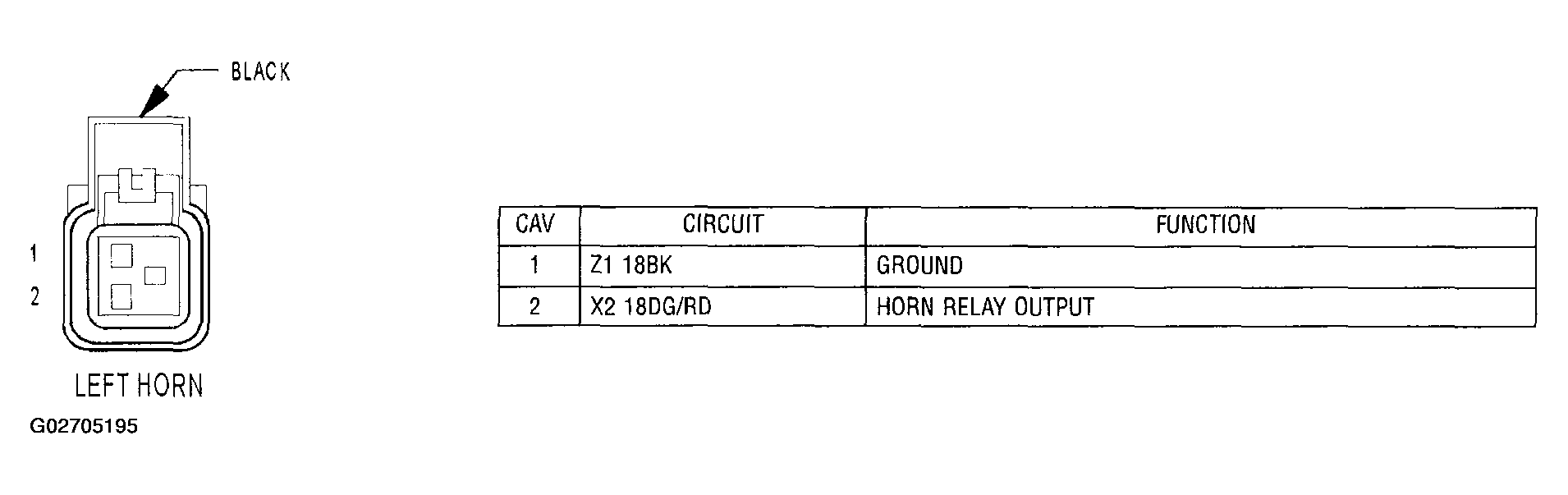

Fig 69: Identifying Left Horn Connector Pinouts

G02705195

Courtesy of DAIMLERCHRYSLER CORP.

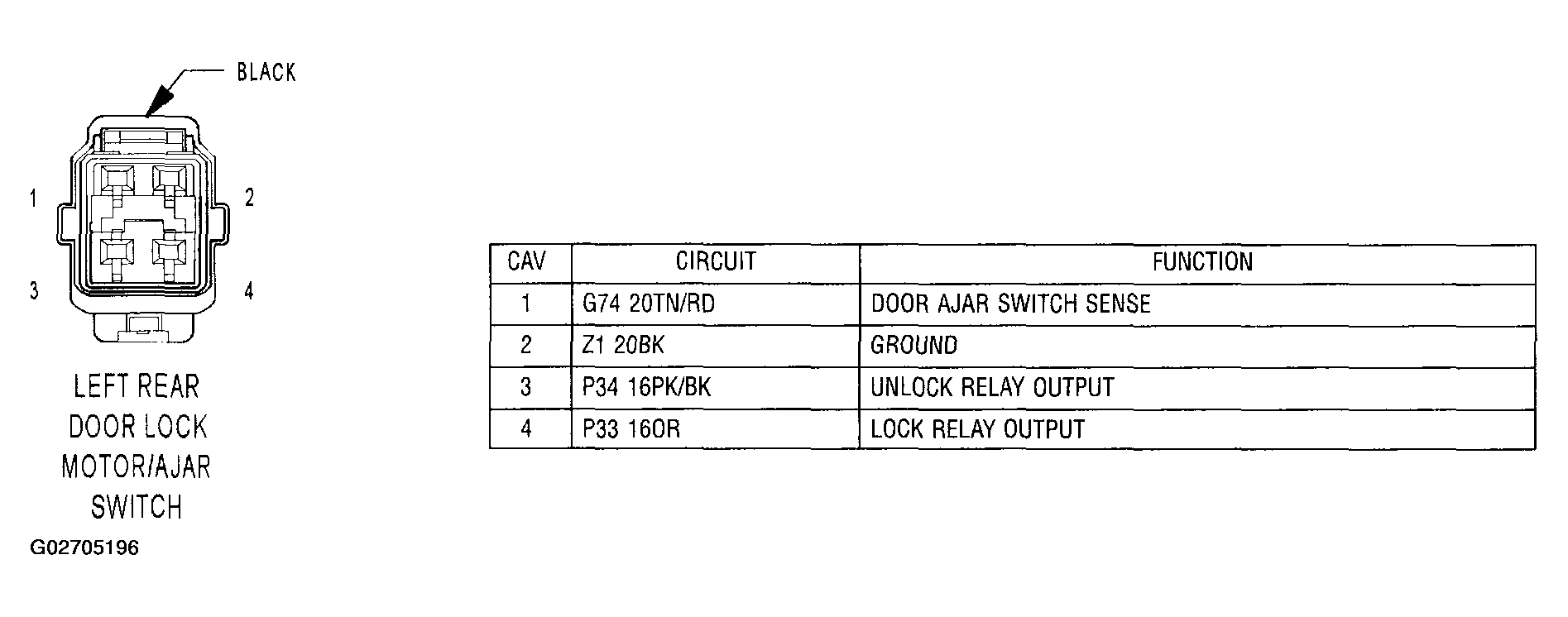

Fig 70: Identifying Left Rear Door Lock Motor/Ajar Switch Connector Pinouts

G02705196

Courtesy of DAIMLERCHRYSLER CORP.

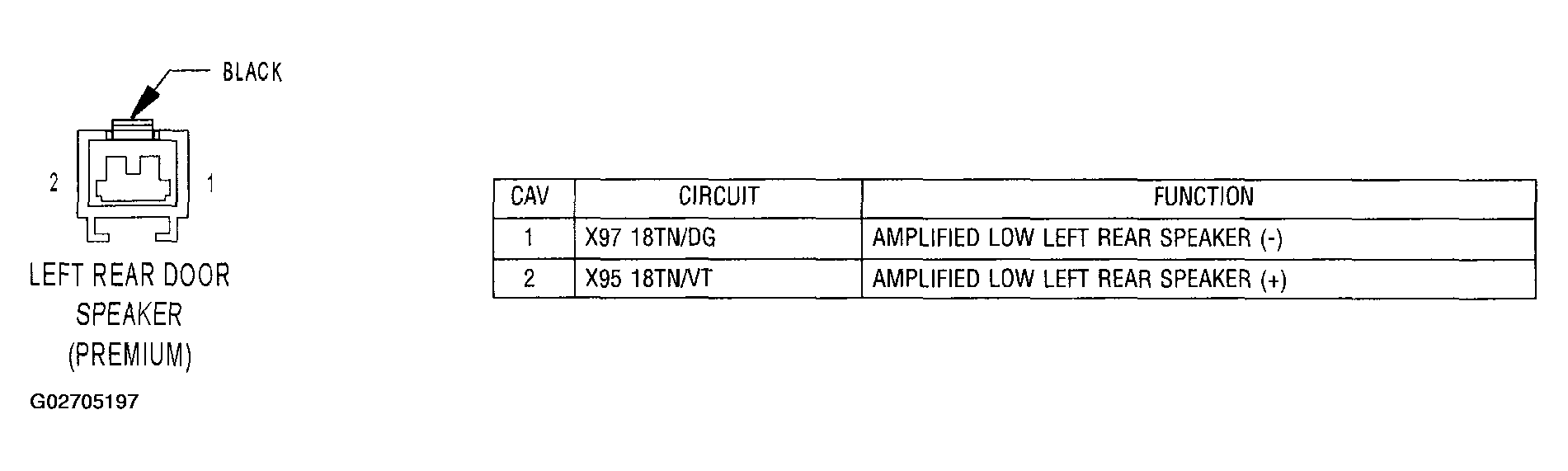

Fig 71: Identifying Left Rear Door Speaker (Premium) Connector Pinouts

G02705197

Courtesy of DAIMLERCHRYSLER CORP.

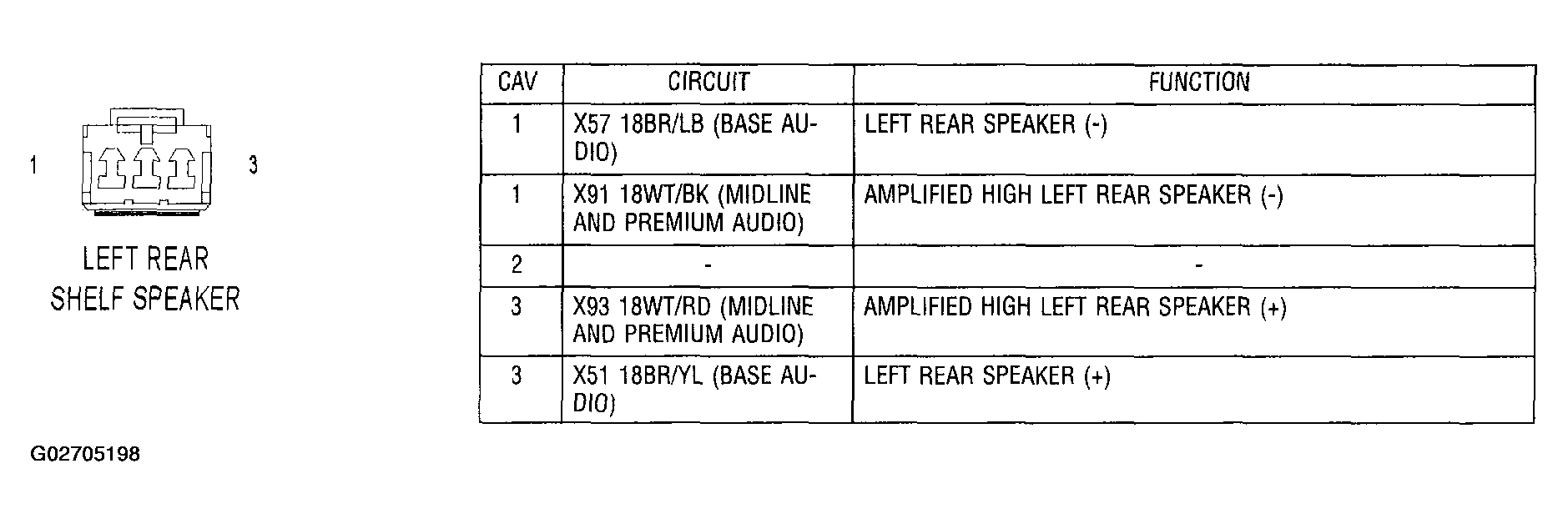

Fig 72: Identifying Left Rear Shelf Speaker Connector Pinouts

G02705198

Courtesy of DAIMLERCHRYSLER CORP.

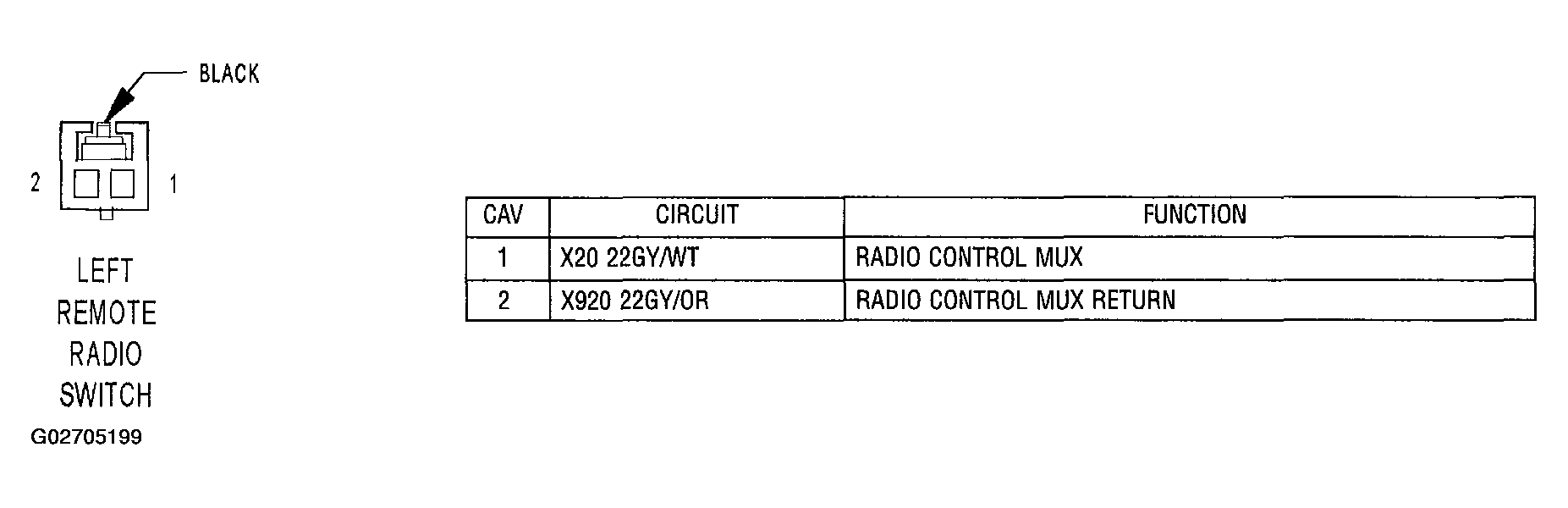

Fig 73: Identifying Left Remote Radio Switch Connector Pinouts

G02705199

Courtesy of DAIMLERCHRYSLER CORP.

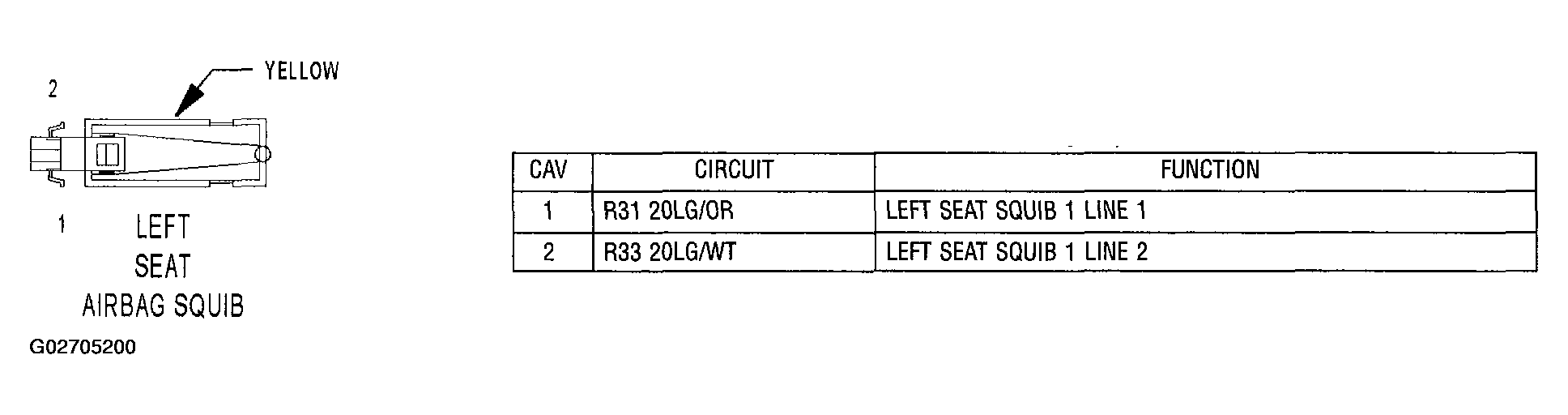

Fig 74: Identifying Left Seat Airbag Squib Connector Pinouts

G02705200

Courtesy of DAIMLERCHRYSLER CORP.

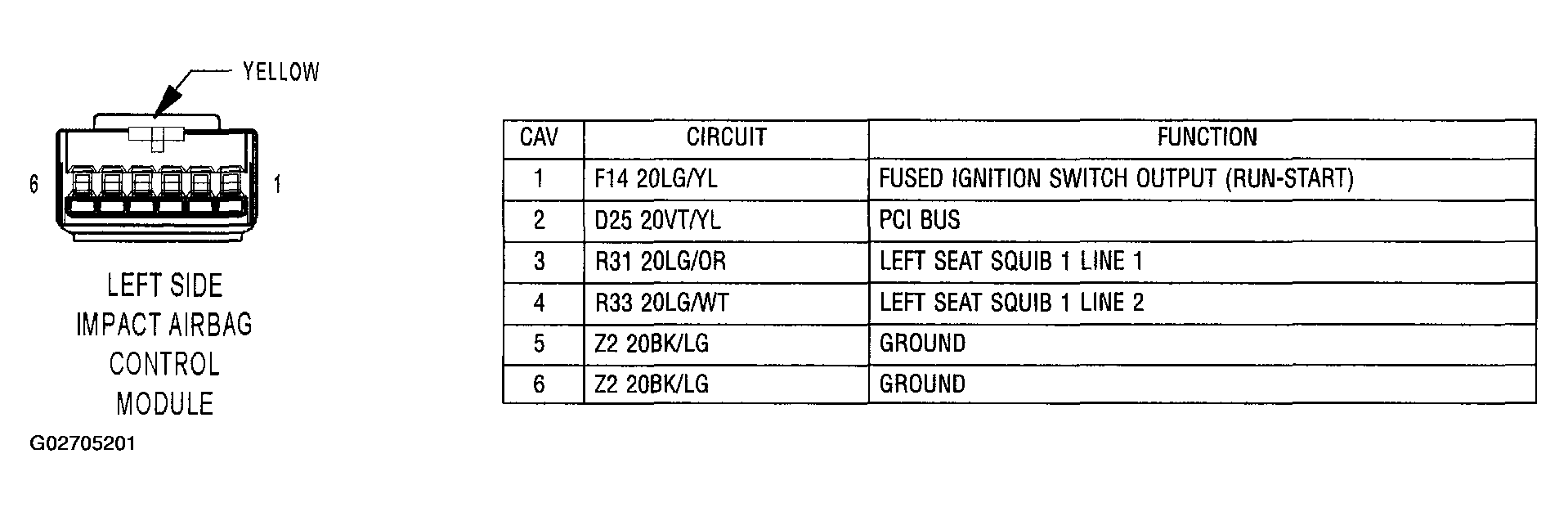

Fig 75: Identifying Left Side Impact Airbag Control Module Connector Pinouts

G02705201

Courtesy of DAIMLERCHRYSLER CORP.

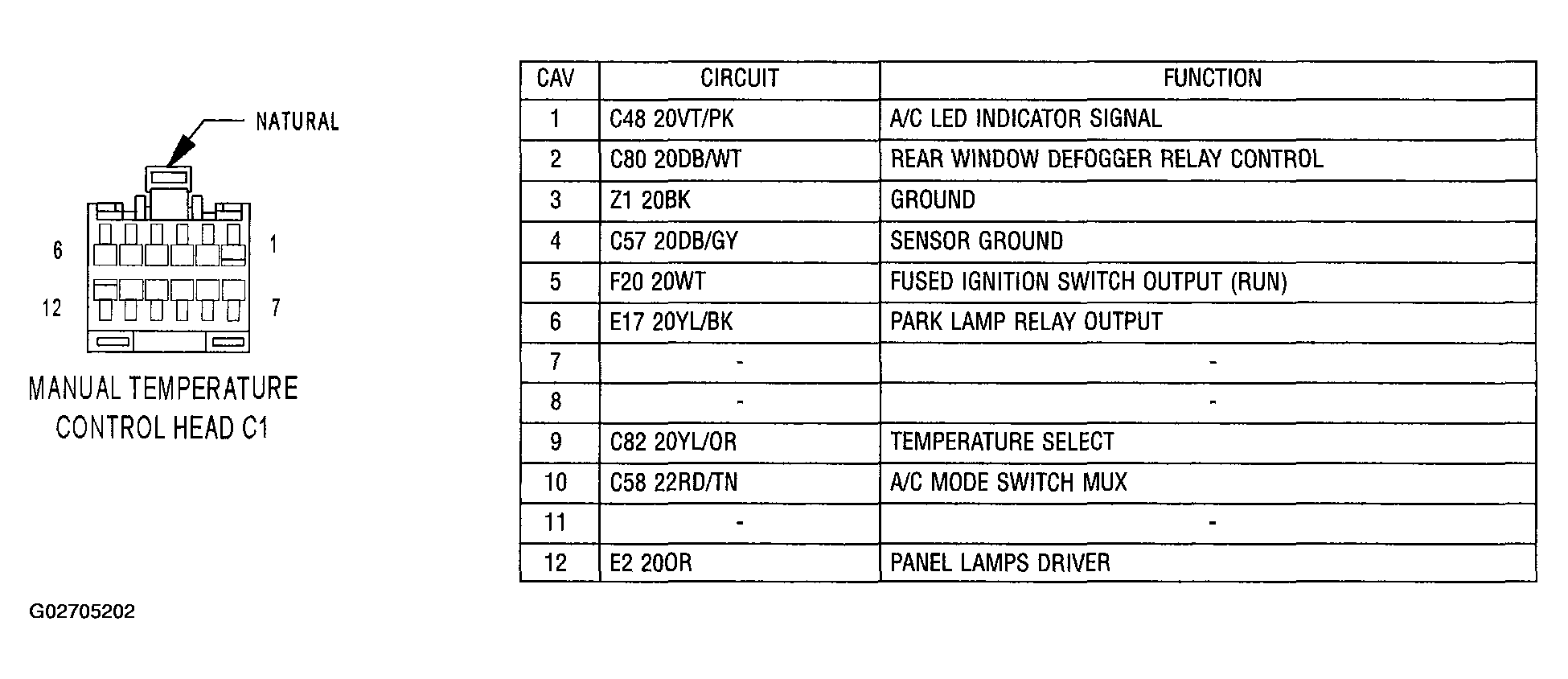

Fig 76: Identifying Manual Temperature Control Head C1 Connector Pinouts

G02705202

Courtesy of DAIMLERCHRYSLER CORP.

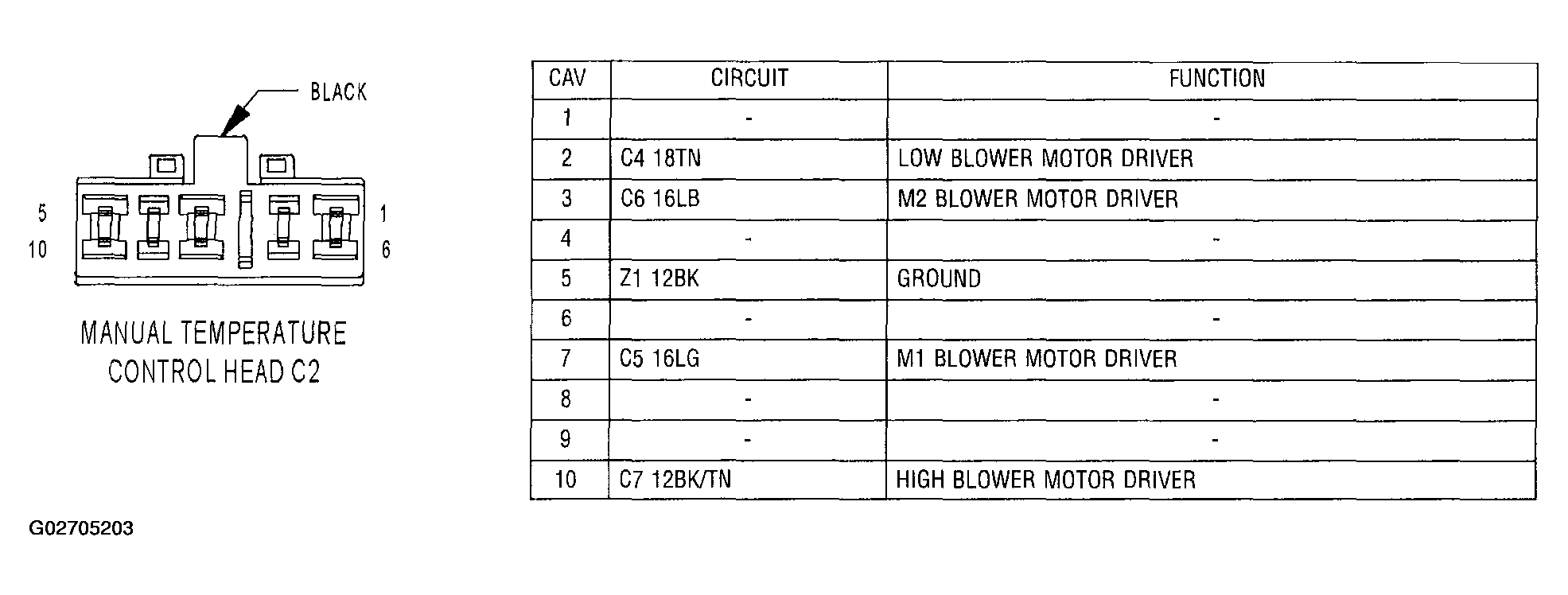

Fig 77: Identifying Manual Temperature Control Head C2 Connector Pinouts

G02705203

Courtesy of DAIMLERCHRYSLER CORP.

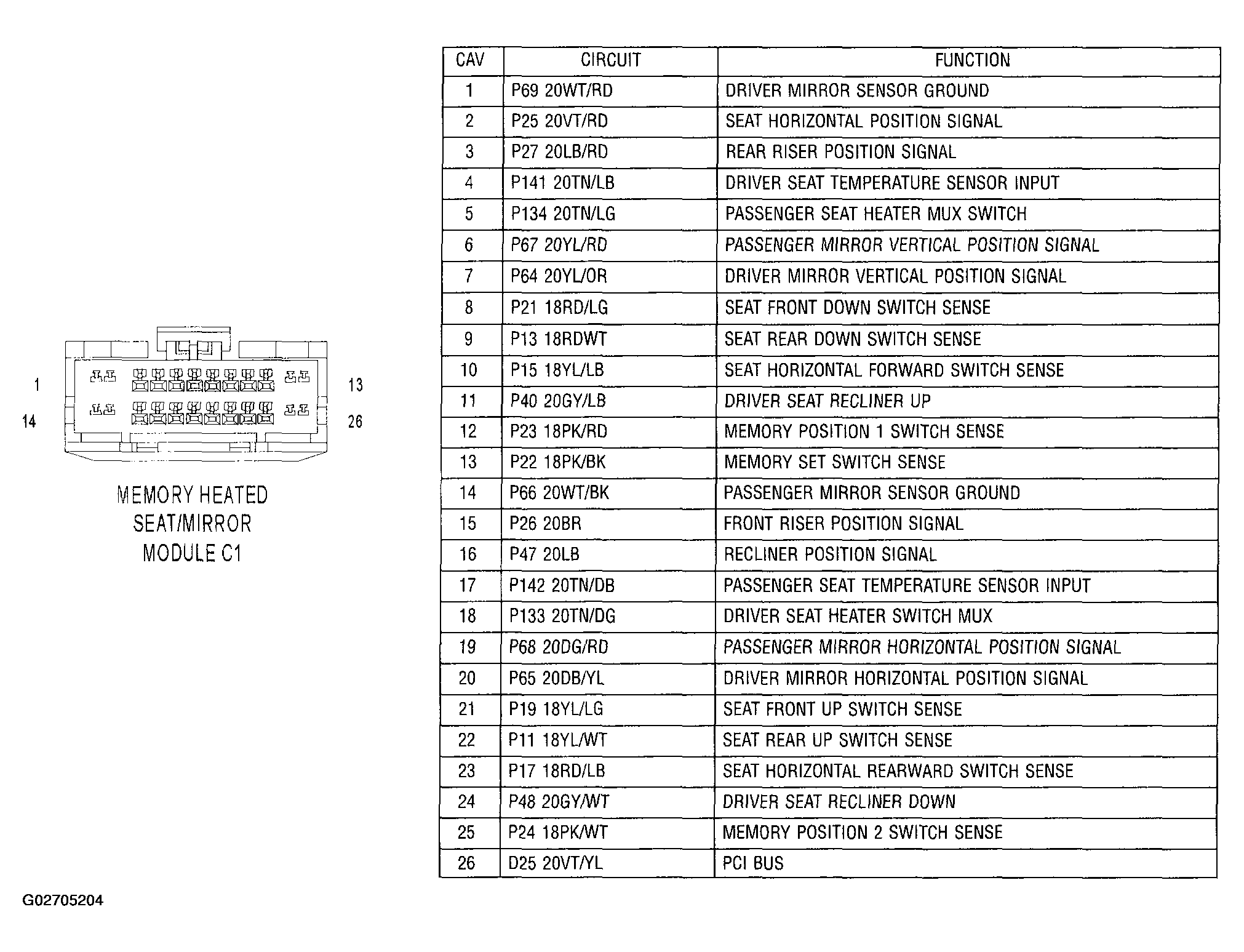

Fig 78: Identifying Memory Heated Seat/Mirror Module C1 Connector Pinouts

G02705204

Courtesy of DAIMLERCHRYSLER CORP.

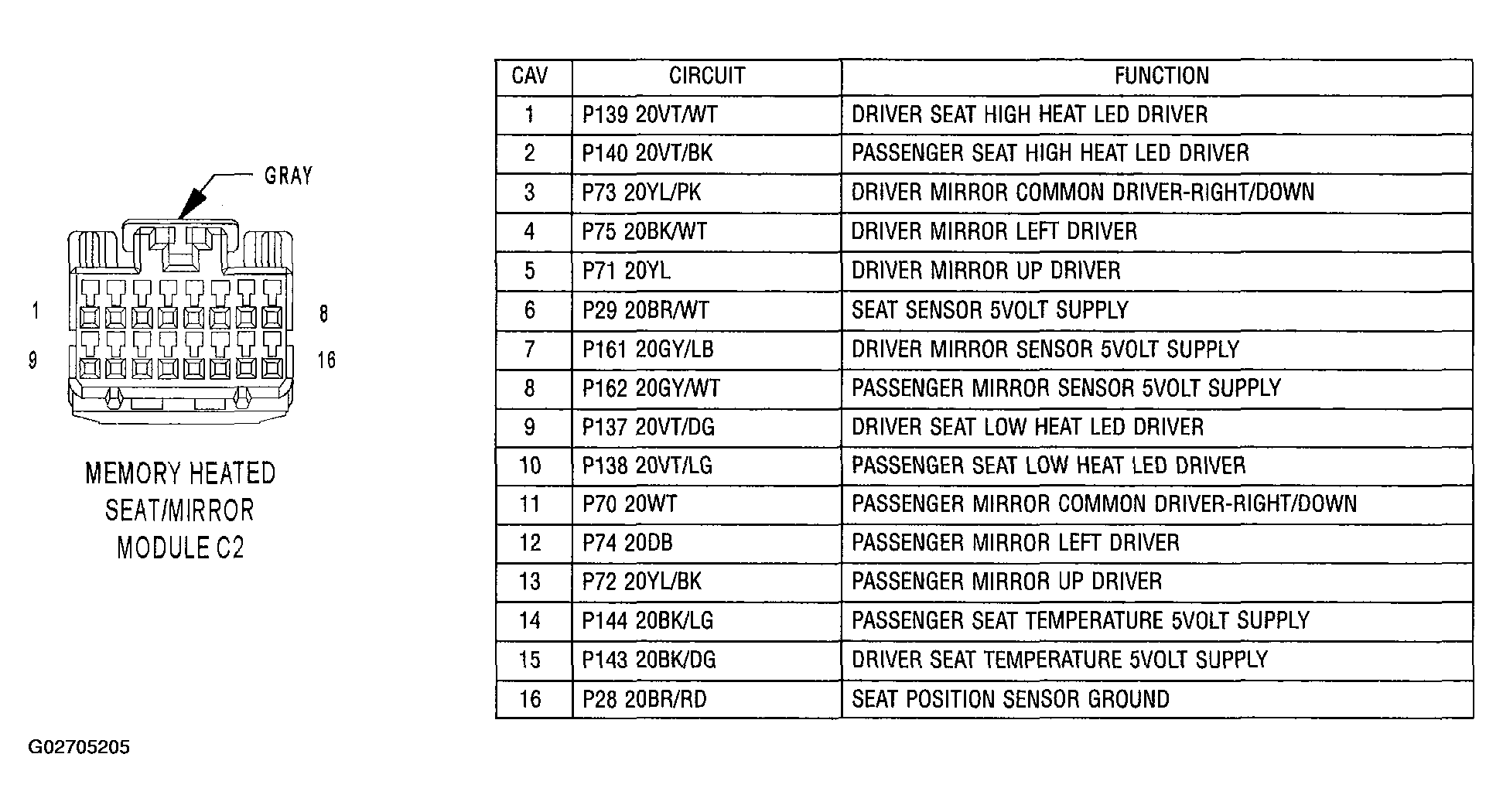

Fig 79: Identifying Memory Heated Seat/Mirror Module C2 Connector Pinouts

G02705205

Courtesy of DAIMLERCHRYSLER CORP.

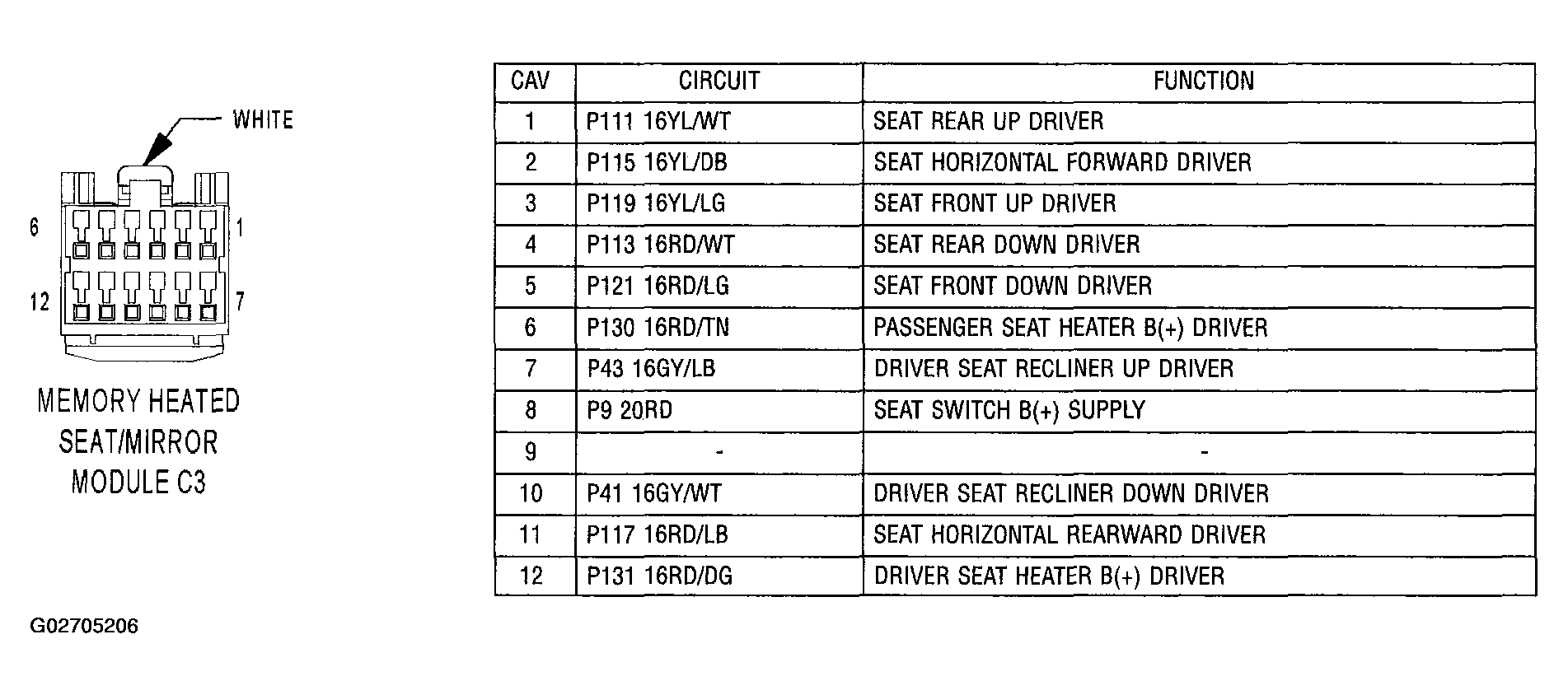

Fig 80: Identifying Memory Heated Seat/Mirror Module C3 Connector Pinouts

G02705206

Courtesy of DAIMLERCHRYSLER CORP.

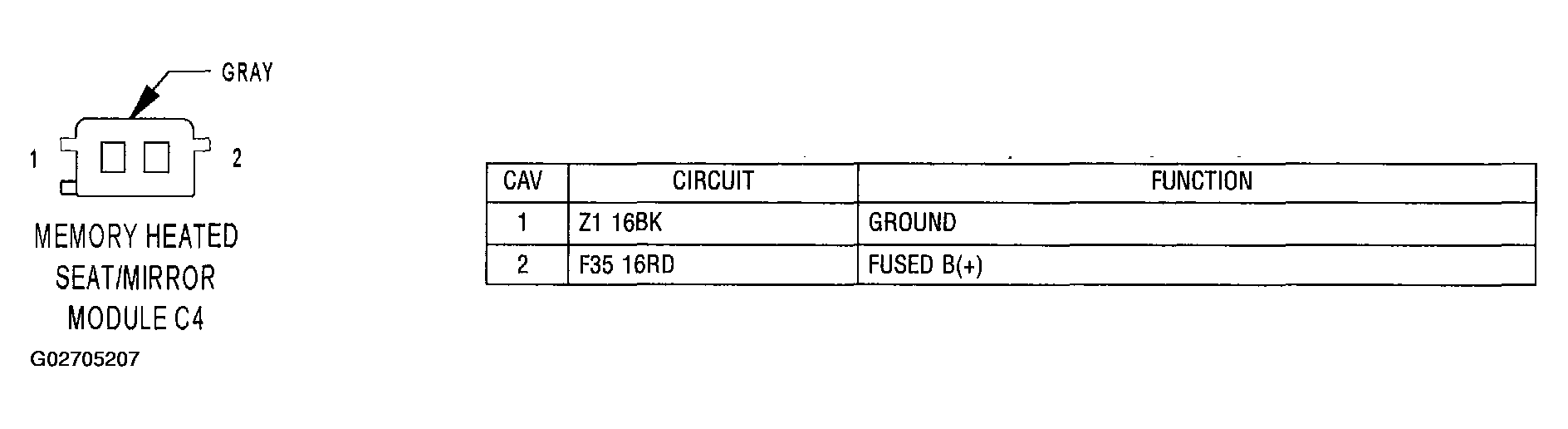

Fig 81: Identifying Memory Heated Seat/Mirror Module C4 Connector Pinouts

G02705207

Courtesy of DAIMLERCHRYSLER CORP.

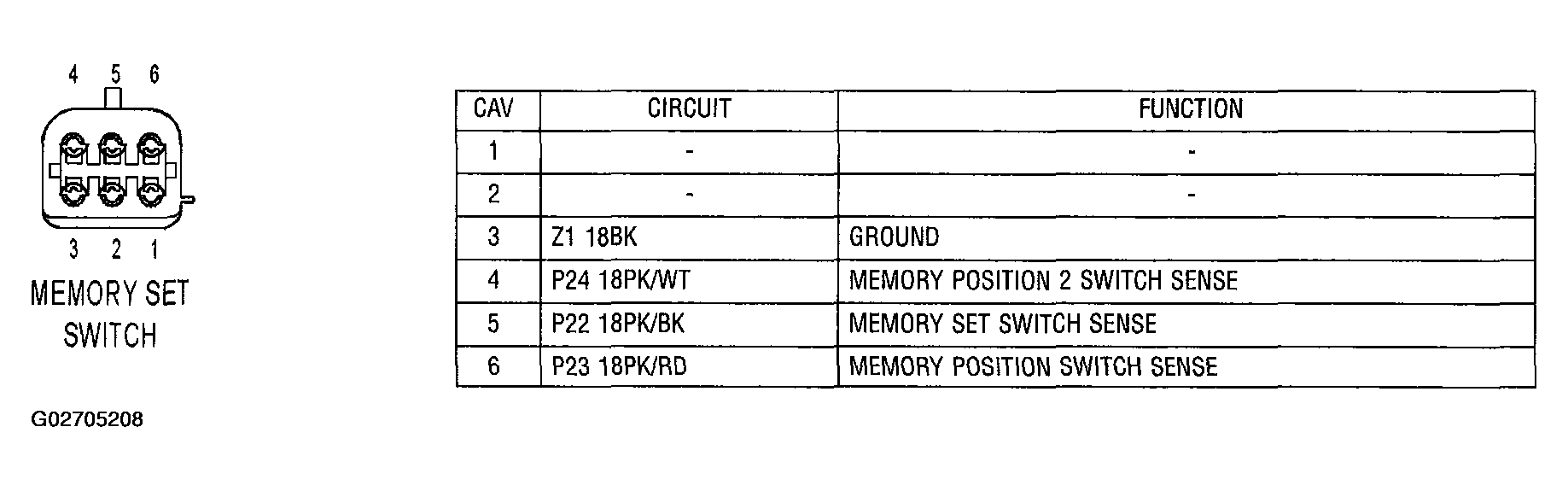

Fig 82: Identifying Memory Set Switch Connector Pinouts

G02705208

Courtesy of DAIMLERCHRYSLER CORP.

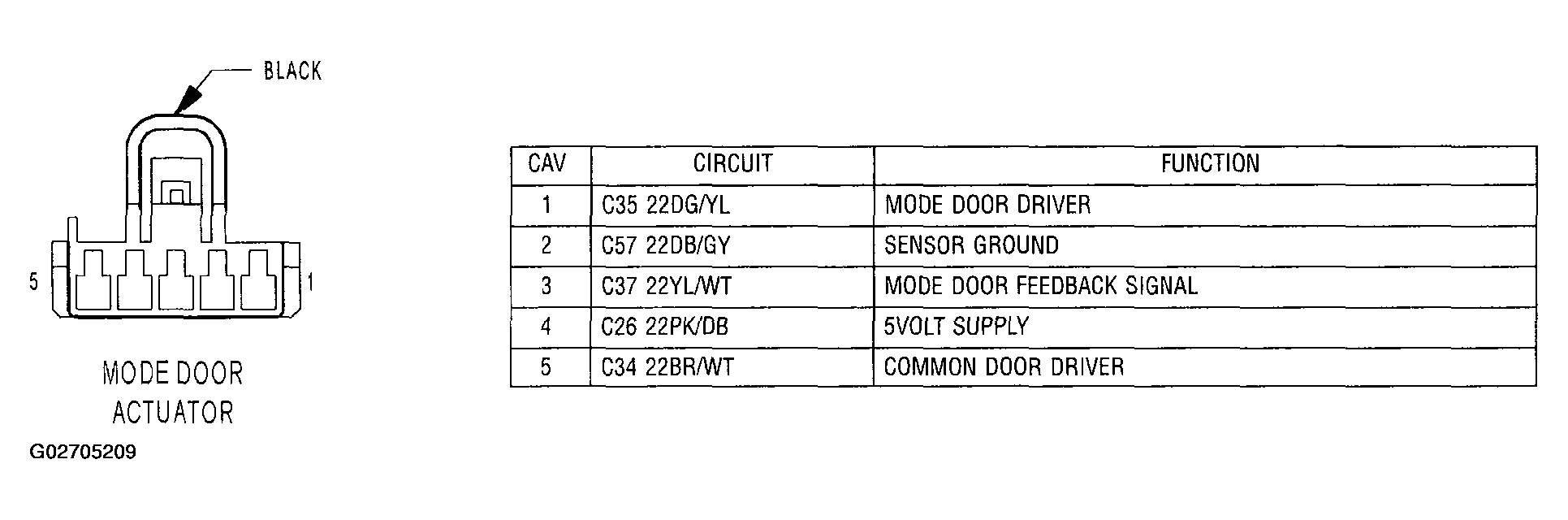

Fig 83: Identifying Mode Door Actuator Connector Pinouts

G02705209

Courtesy of DAIMLERCHRYSLER CORP.

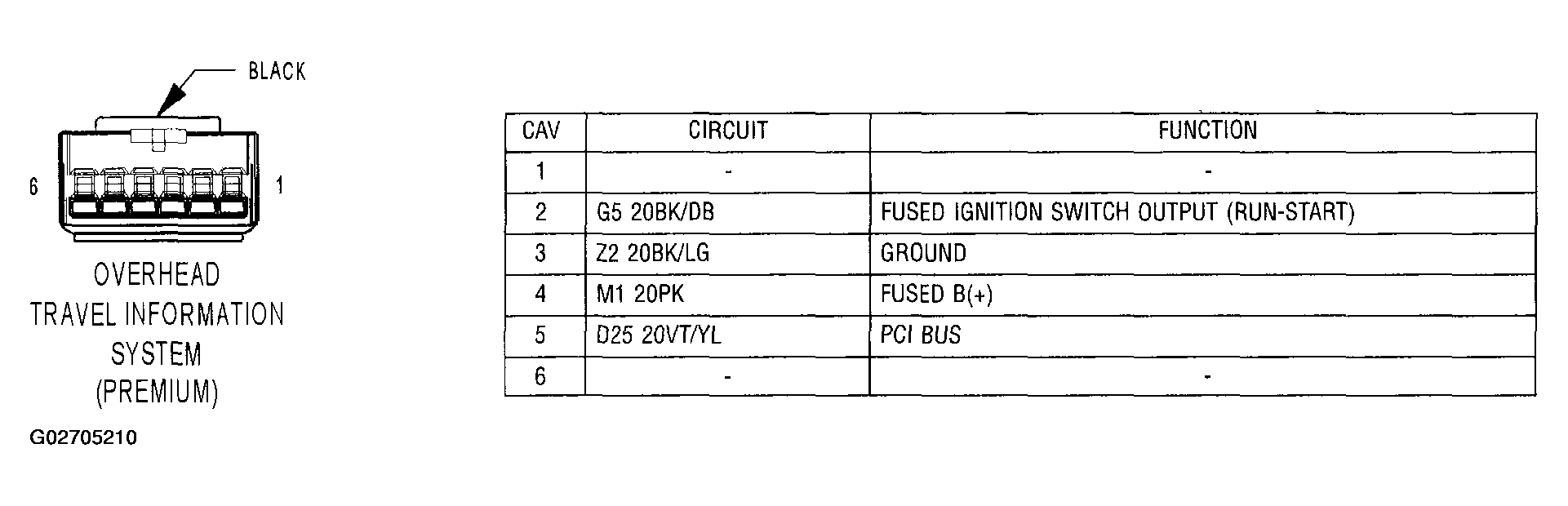

Fig 84: Identifying Overhead Travel Information System (Premium) Connector Pinouts

G02705210

Courtesy of DAIMLERCHRYSLER CORP.

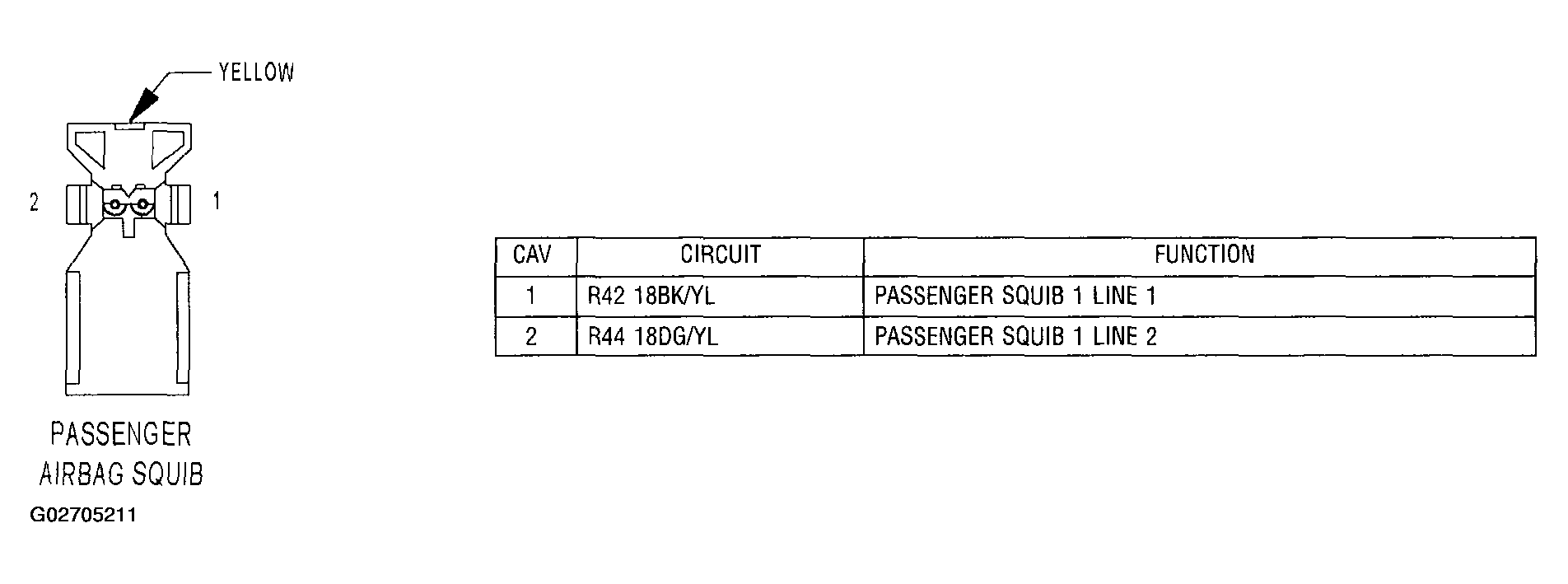

Fig 85: Identifying Passenger Airbag Squib Connector Pinouts

G02705211

Courtesy of DAIMLERCHRYSLER CORP.

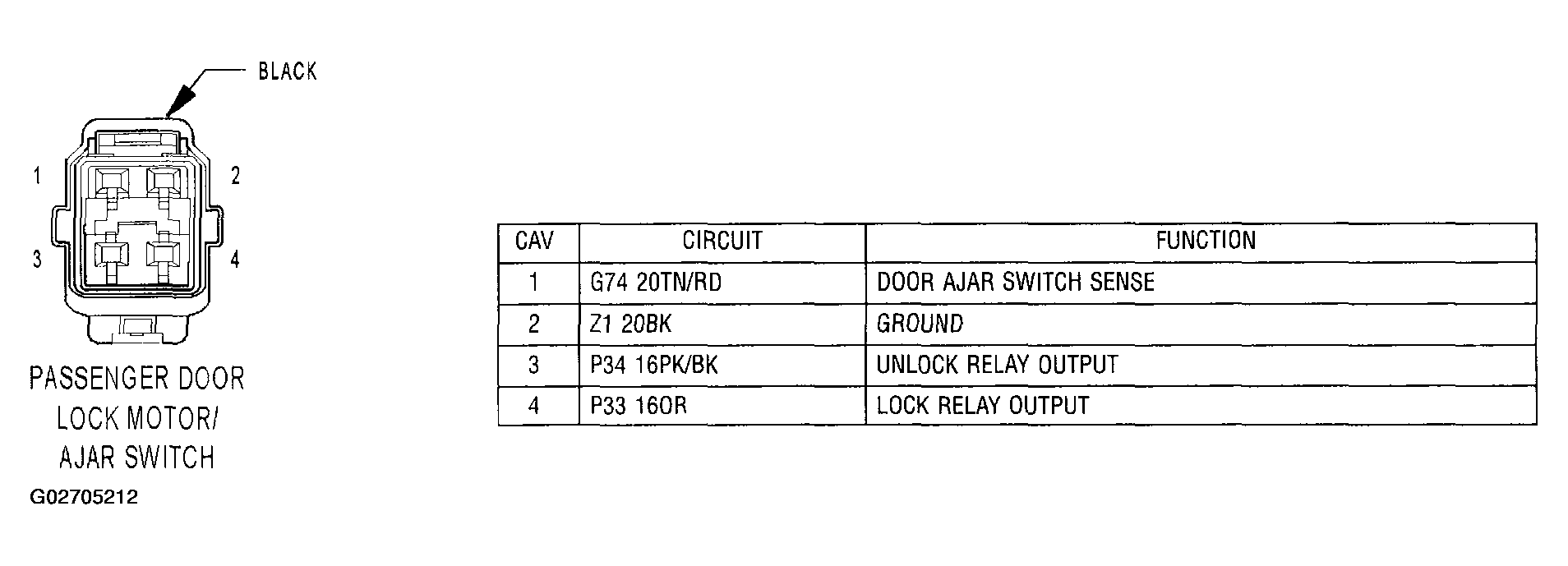

Fig 86: Identifying Passenger Door Lock Motor/Ajar Switch Connector Pinouts

G02705212

Courtesy of DAIMLERCHRYSLER CORP.

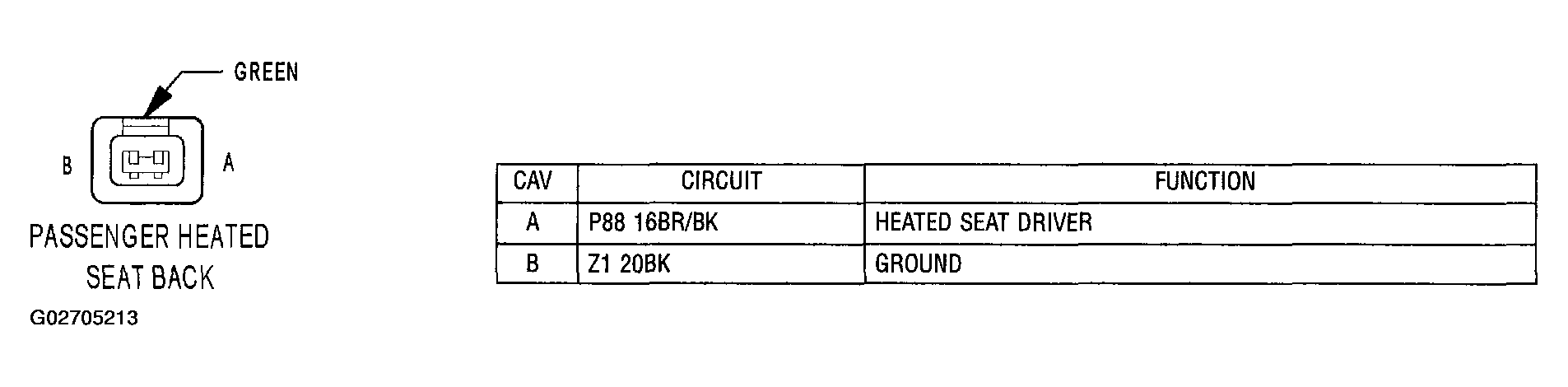

Fig 87: Identifying Passenger Heated Seat Back Connector Pinouts

G02705213

Courtesy of DAIMLERCHRYSLER CORP.

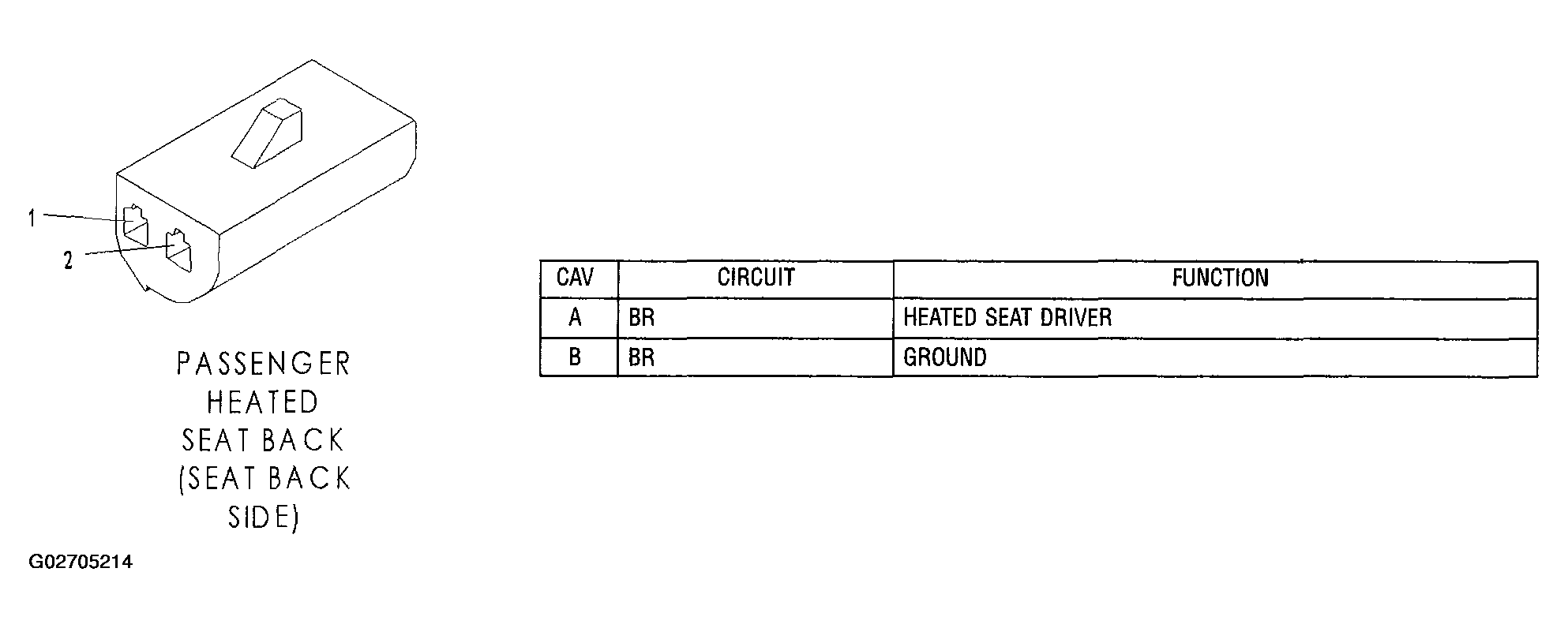

Fig 88: Identifying Passenger Heated Seat Back (Seat Back Side) Connector Pinouts

G02705214

Courtesy of DAIMLERCHRYSLER CORP.

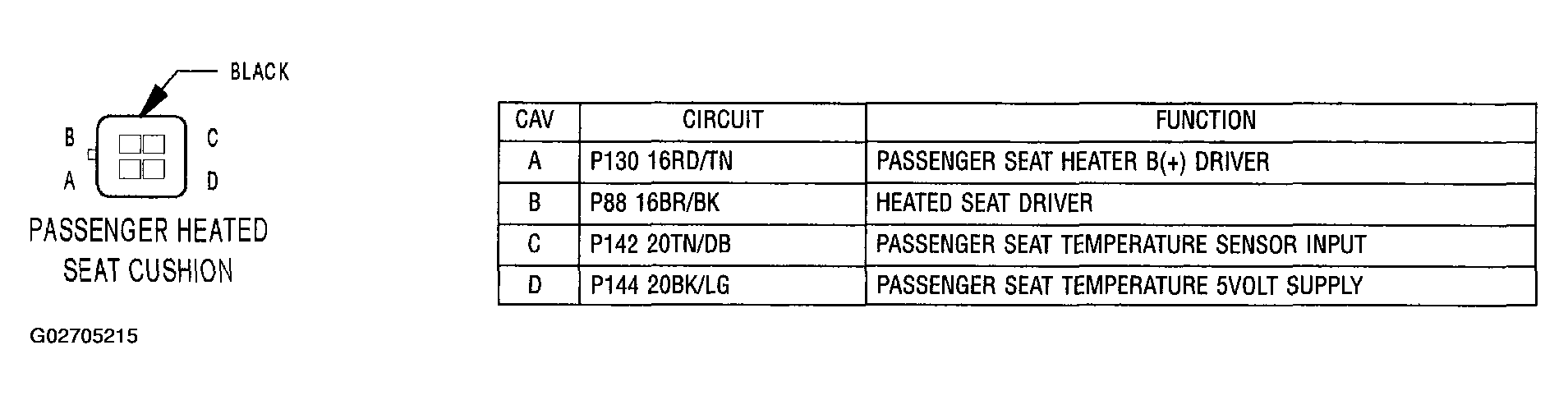

Fig 89: Identifying Passenger Heated Seat Cushion Connector Pinouts

G02705215

Courtesy of DAIMLERCHRYSLER CORP.

Fig 90: Identifying Passenger Heated Seat Cushion (Cushion Side) Connector Pinouts

G02705216

Courtesy of DAIMLERCHRYSLER CORP.

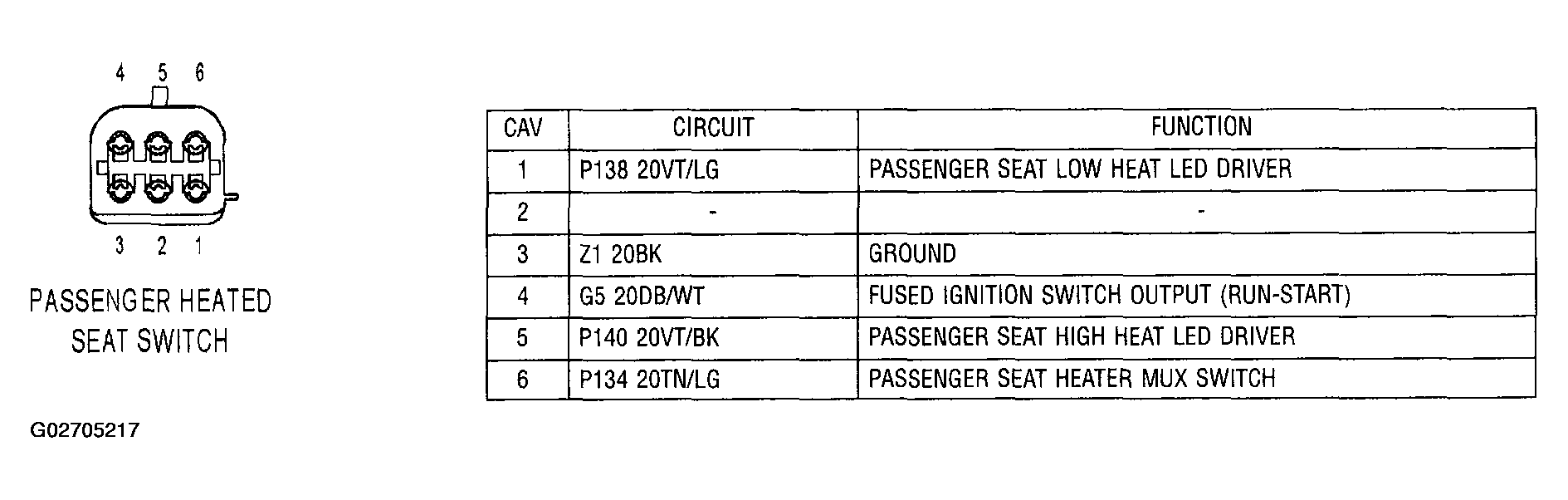

Fig 91: Identifying Passenger Heated Seat Switch Connector Pinouts

G02705217

Courtesy of DAIMLERCHRYSLER CORP.

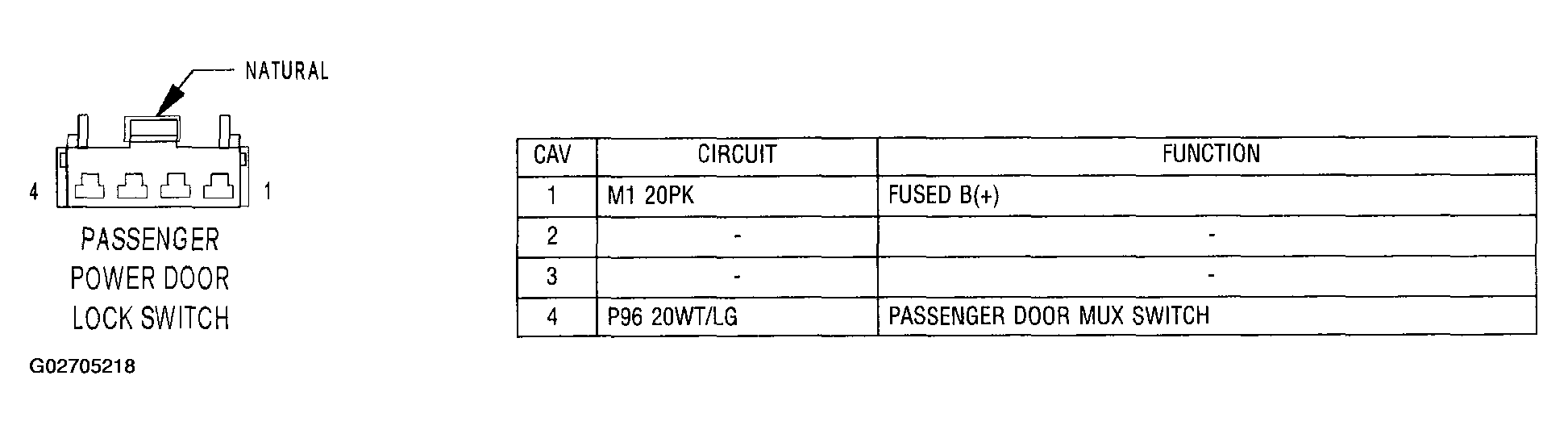

Fig 92: Identifying Passenger Power Door Lock Switch Connector Pinouts

G02705218

Courtesy of DAIMLERCHRYSLER CORP.

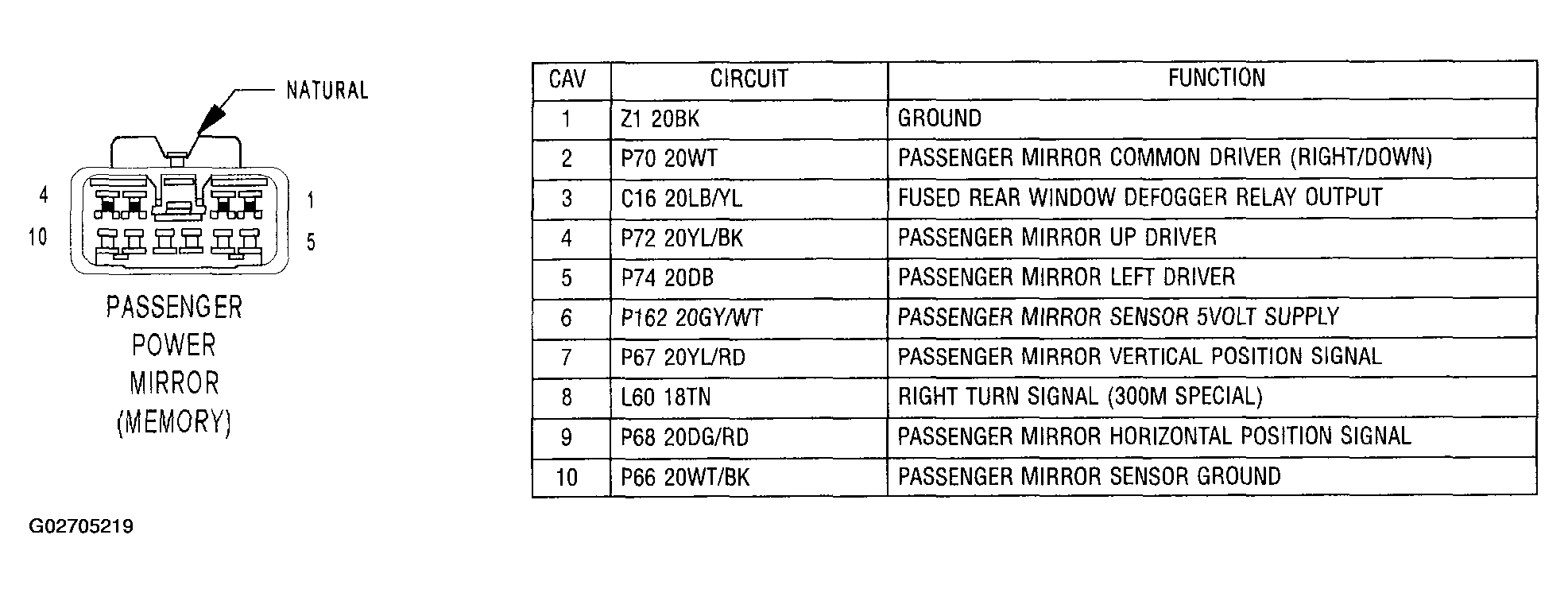

Fig 93: Identifying Passenger Power Mirror (Memory) Connector Pinouts

G02705219

Courtesy of DAIMLERCHRYSLER CORP.

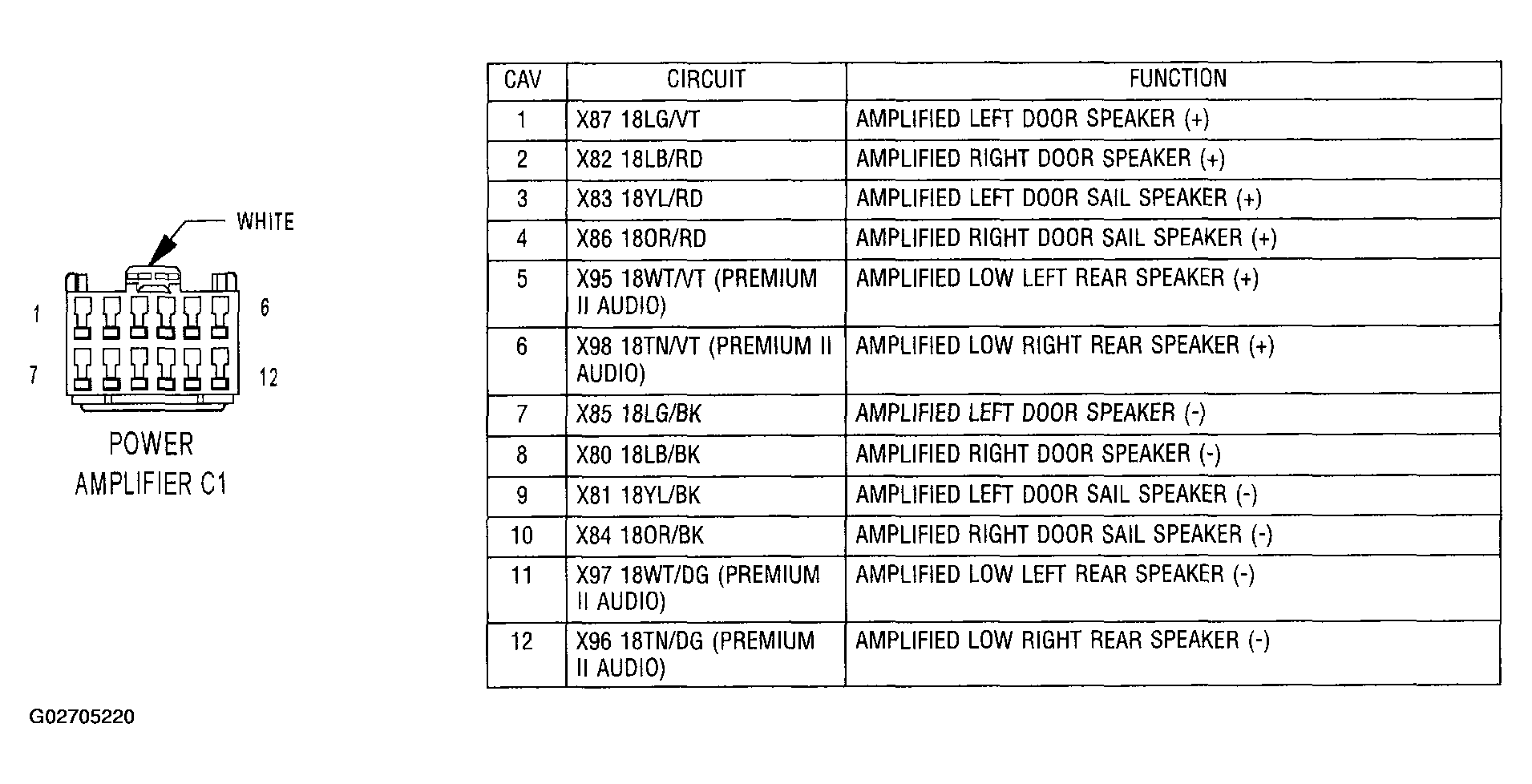

Fig 94: Identifying Power Amplifier C1 Connector Pinouts

G02705220

Courtesy of DAIMLERCHRYSLER CORP.

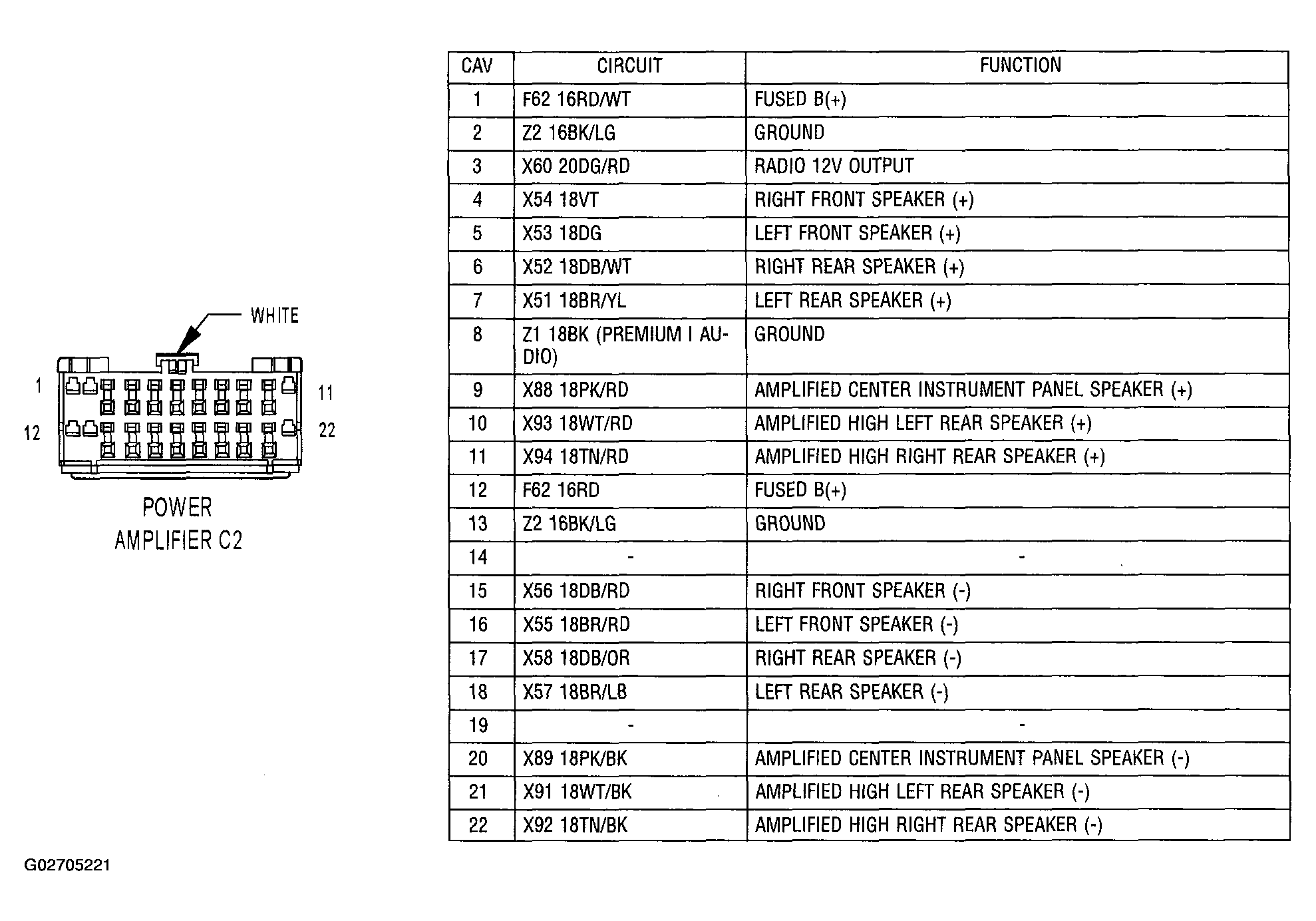

Fig 95: Identifying Power Amplifier C2 Connector Pinouts

G02705221

Courtesy of DAIMLERCHRYSLER CORP.

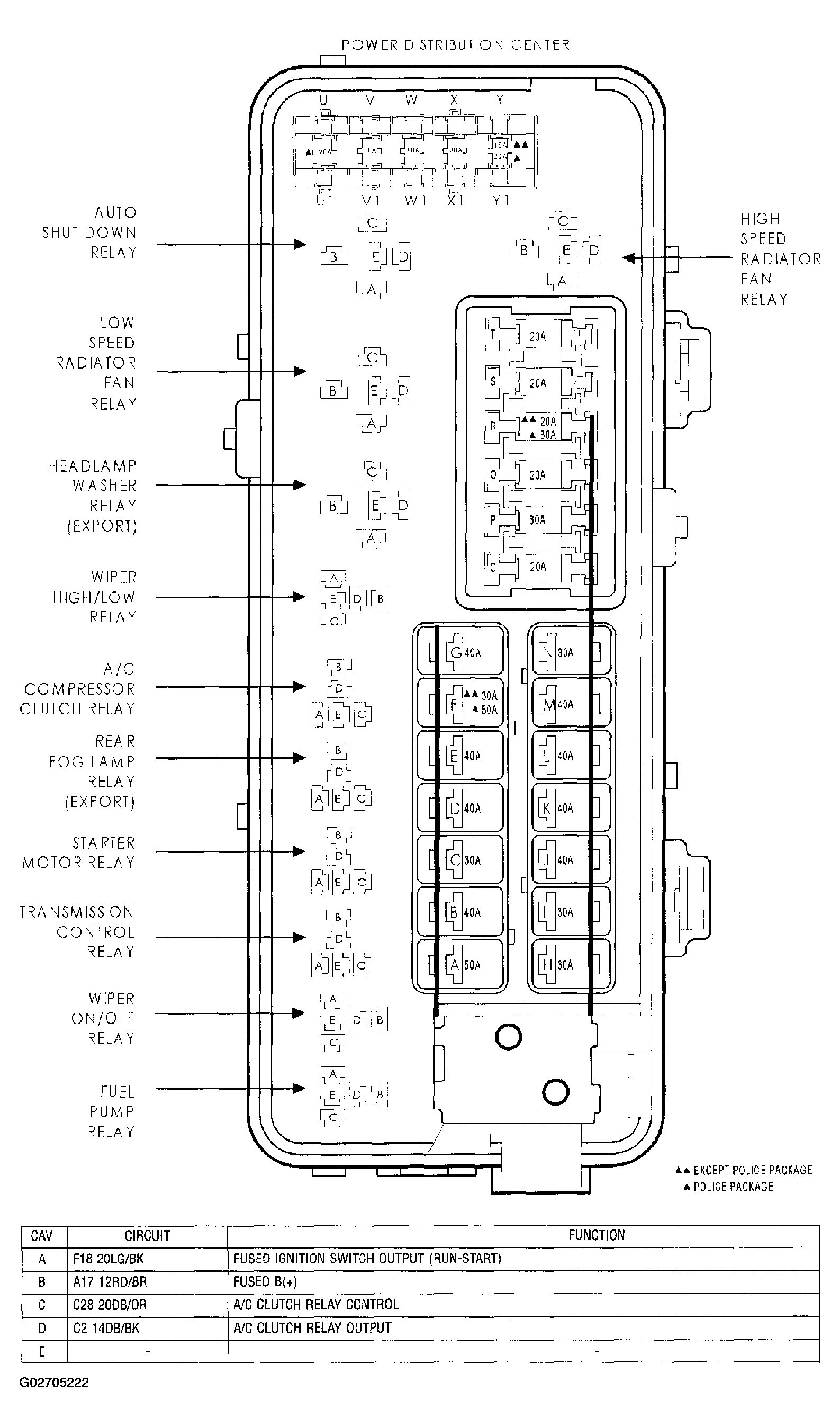

Fig 96: Identifying Power Distribution Center & A/C Compressor Clutch Relay Connector Pinouts

G02705222

Courtesy of DAIMLERCHRYSLER CORP.

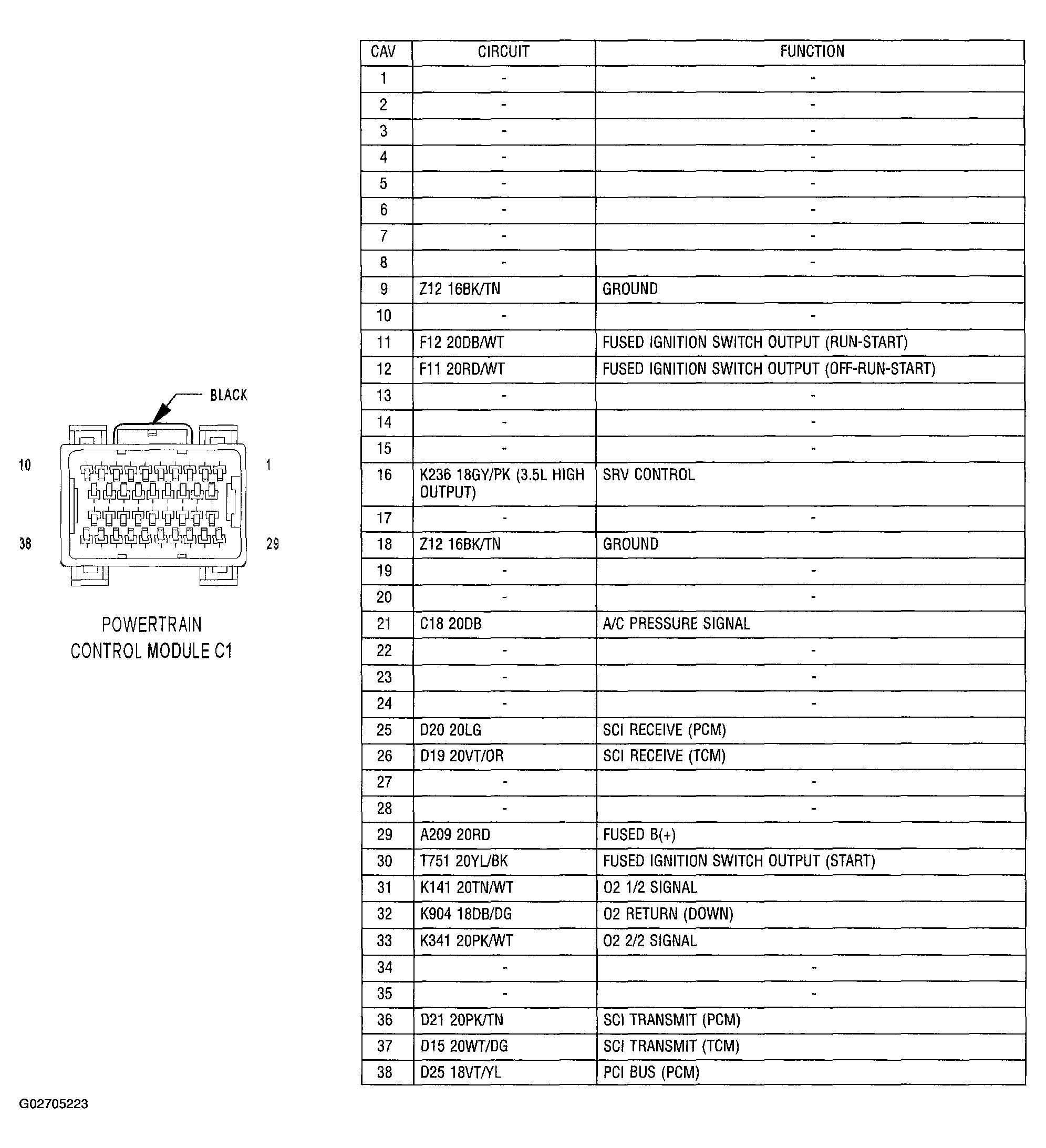

Fig 97: Identifying Powertrain Control Module C1 Connector Pinouts

G02705223

Courtesy of DAIMLERCHRYSLER CORP.

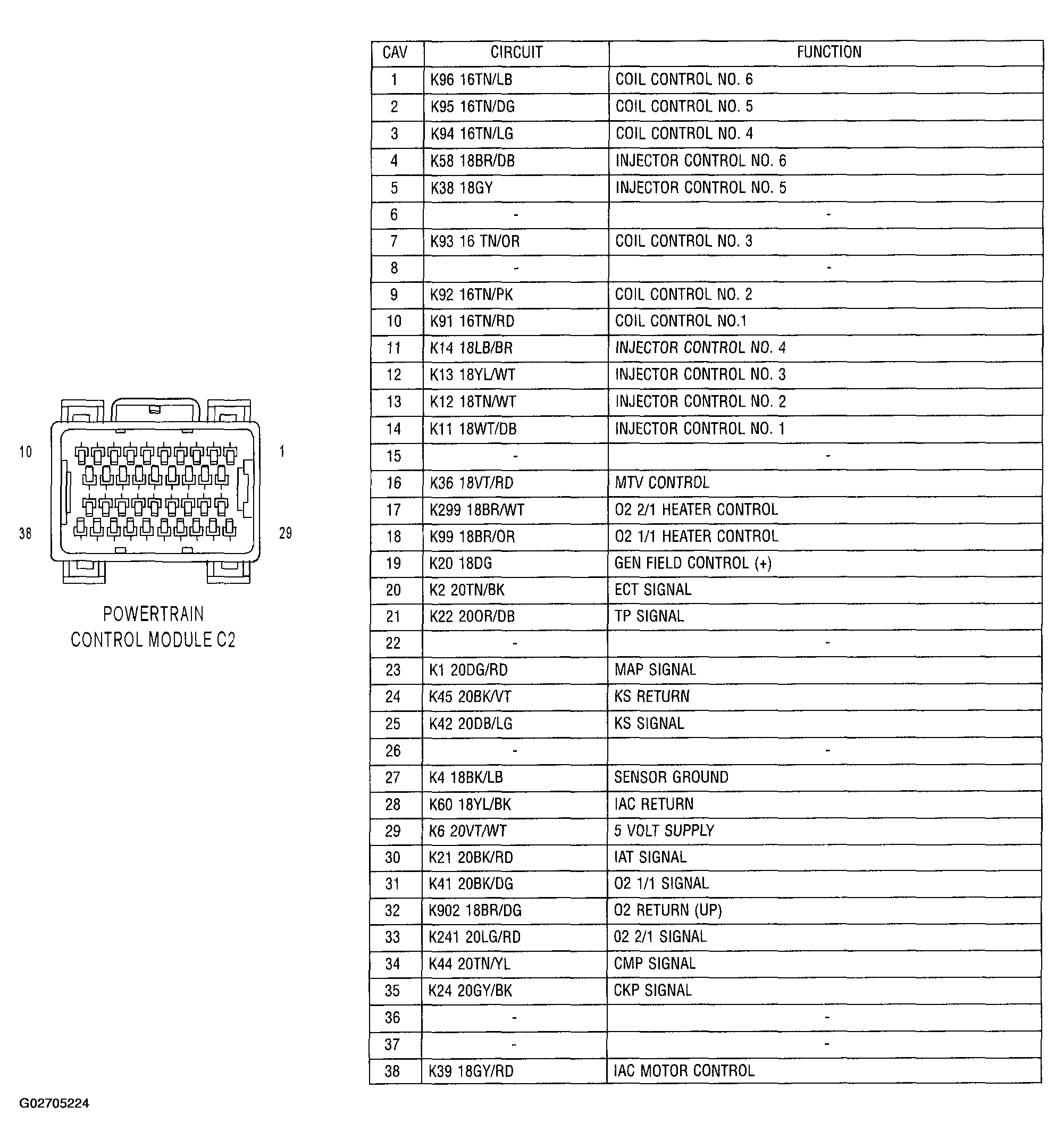

Fig 98: Identifying Powertrain Control Module C2 Connector Pinouts

G02705224

Courtesy of DAIMLERCHRYSLER CORP.

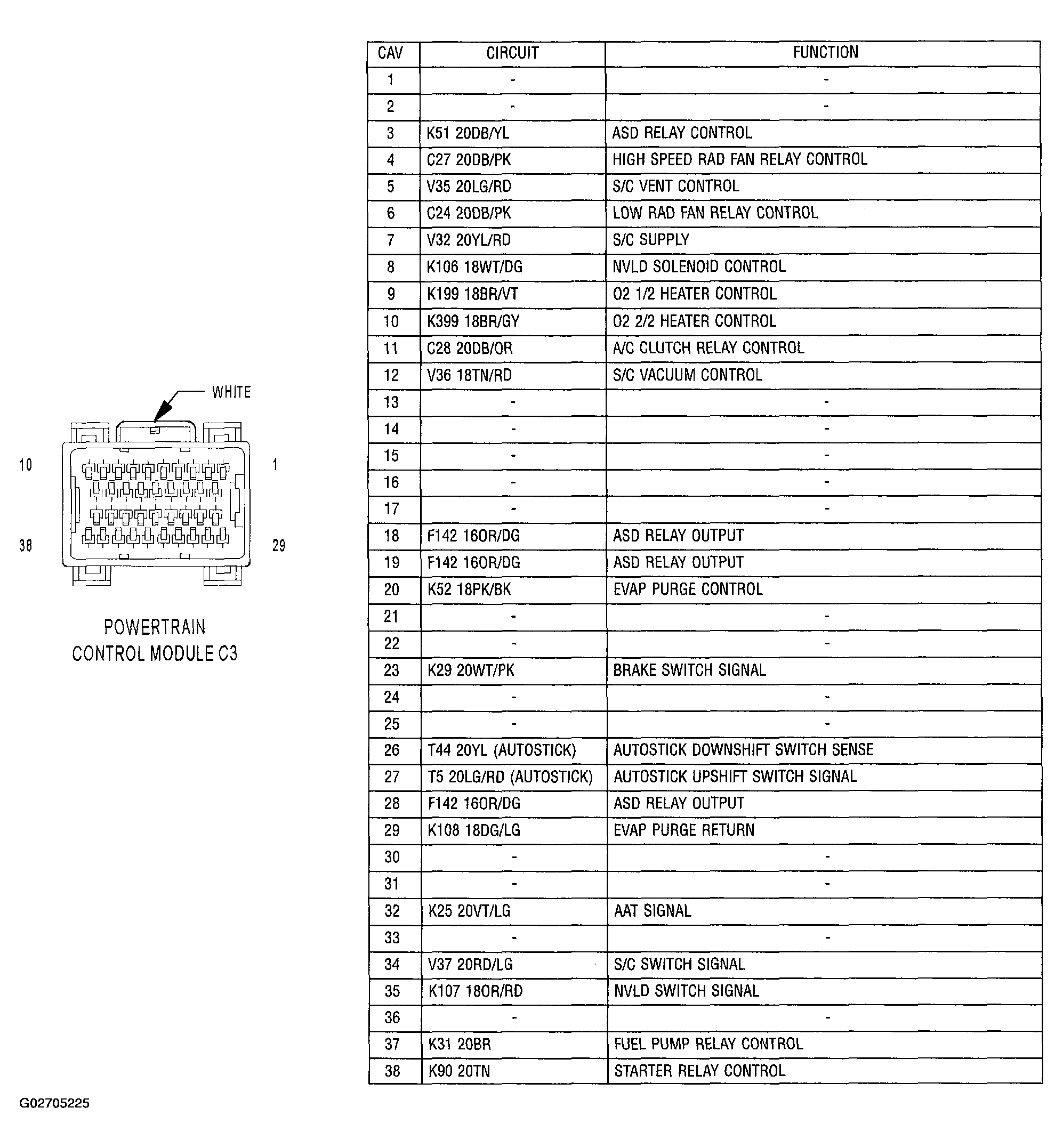

Fig 99: Identifying Powertrain Control Module C3 Connector Pinouts

G02705225

Courtesy of DAIMLERCHRYSLER CORP.

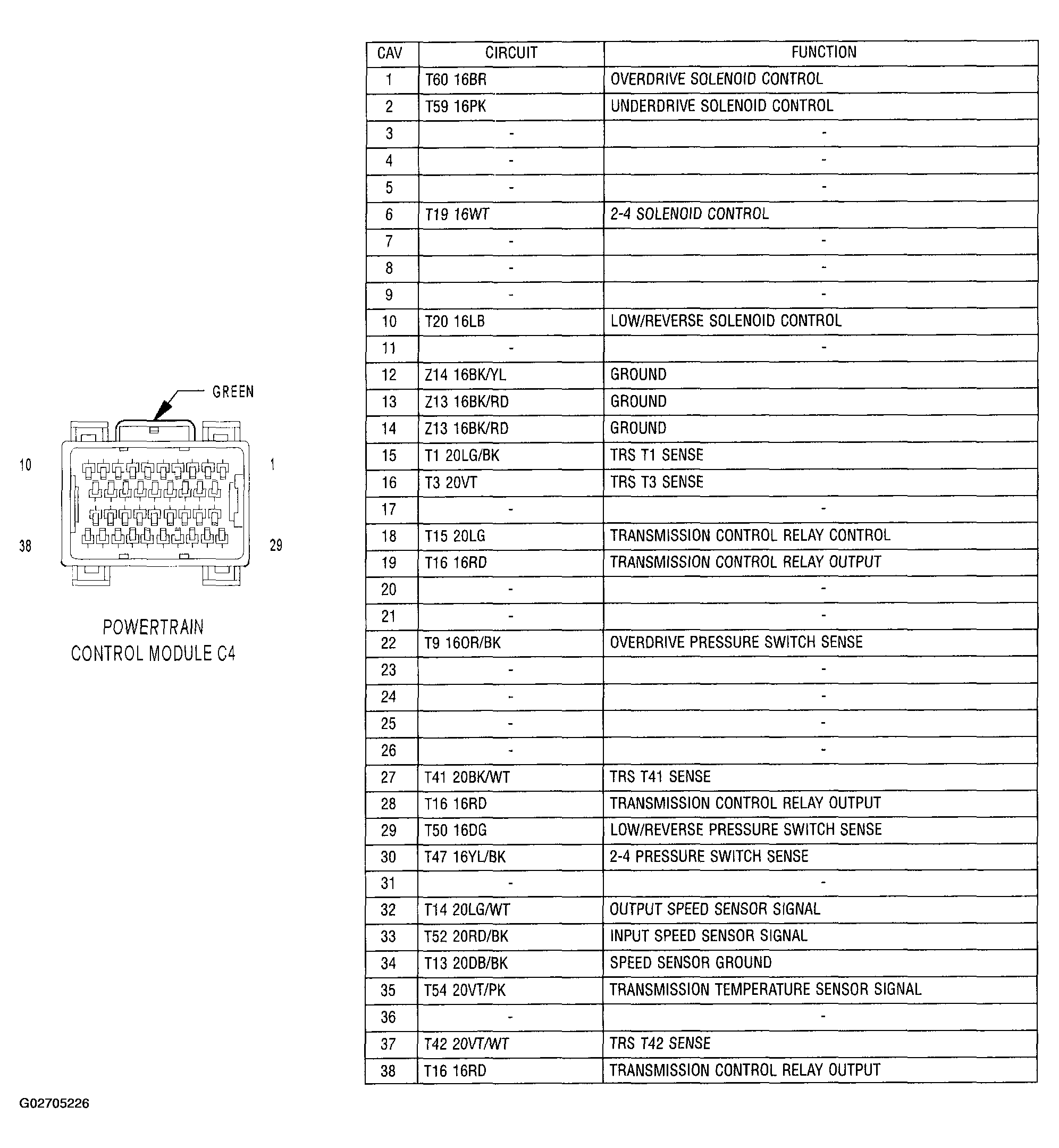

Fig 100: Identifying Powertrain Control Module C4 Connector Pinouts

G02705226

Courtesy of DAIMLERCHRYSLER CORP.

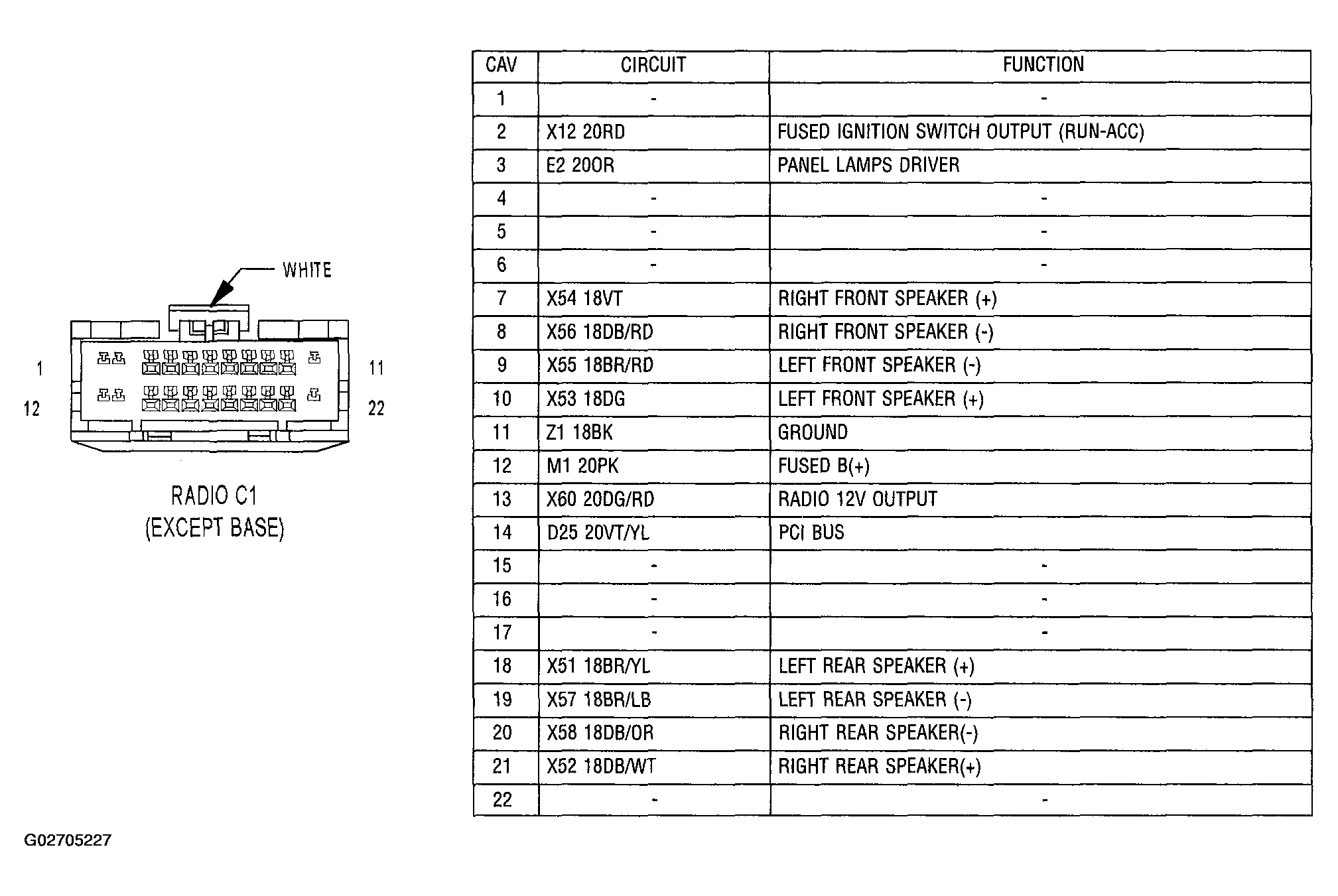

Fig 101: Identifying Radio C1 (Except Base) Connector Pinouts

G02705227

Courtesy of DAIMLERCHRYSLER CORP.

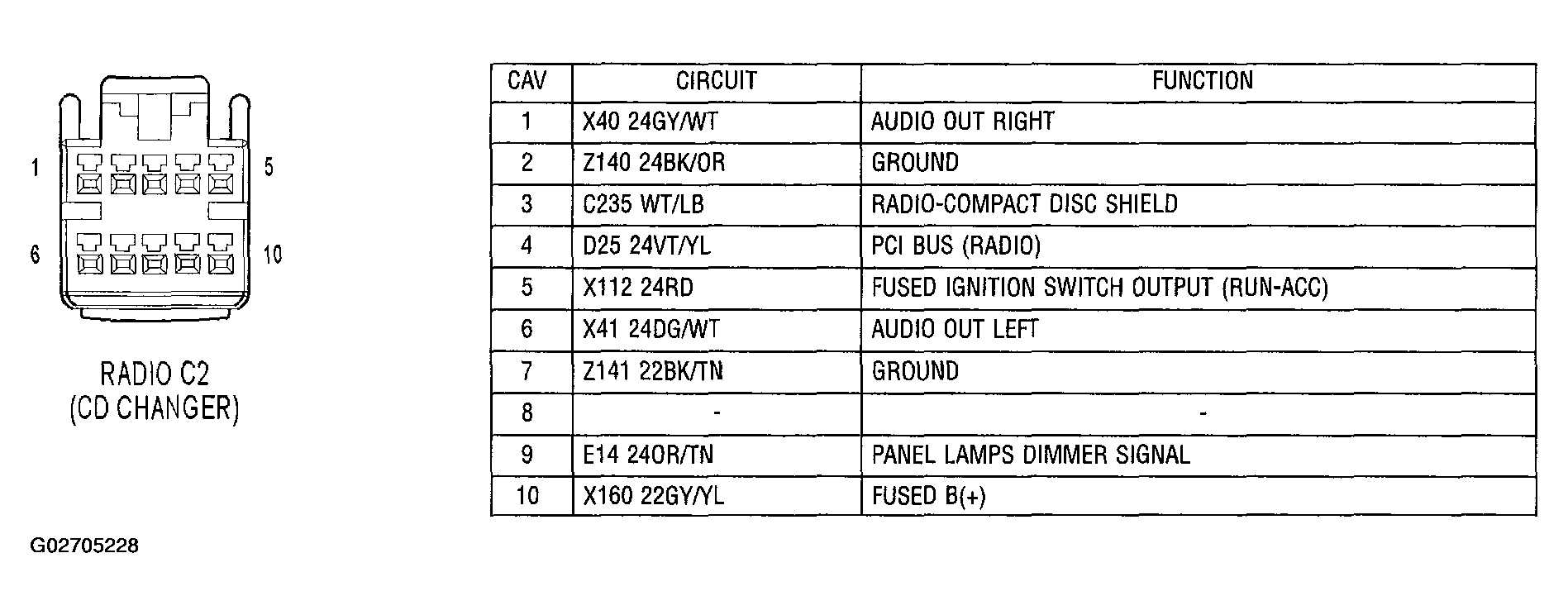

Fig 102: Identifying Radio C2 (CD Changer) Connector Pinouts

G02705228

Courtesy of DAIMLERCHRYSLER CORP.

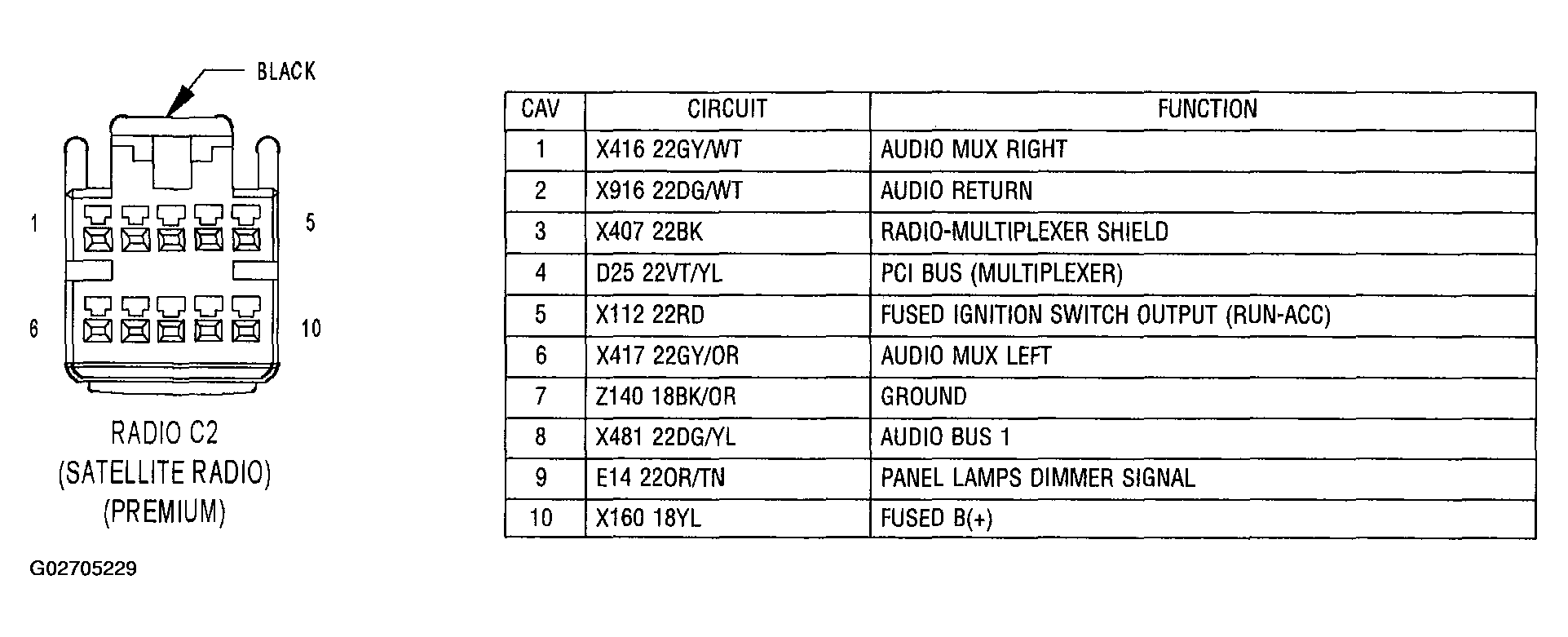

Fig 103: Identifying Radio C2 (Satellite Radio) (Premium) Connector Pinouts

G02705229

Courtesy of DAIMLERCHRYSLER CORP.

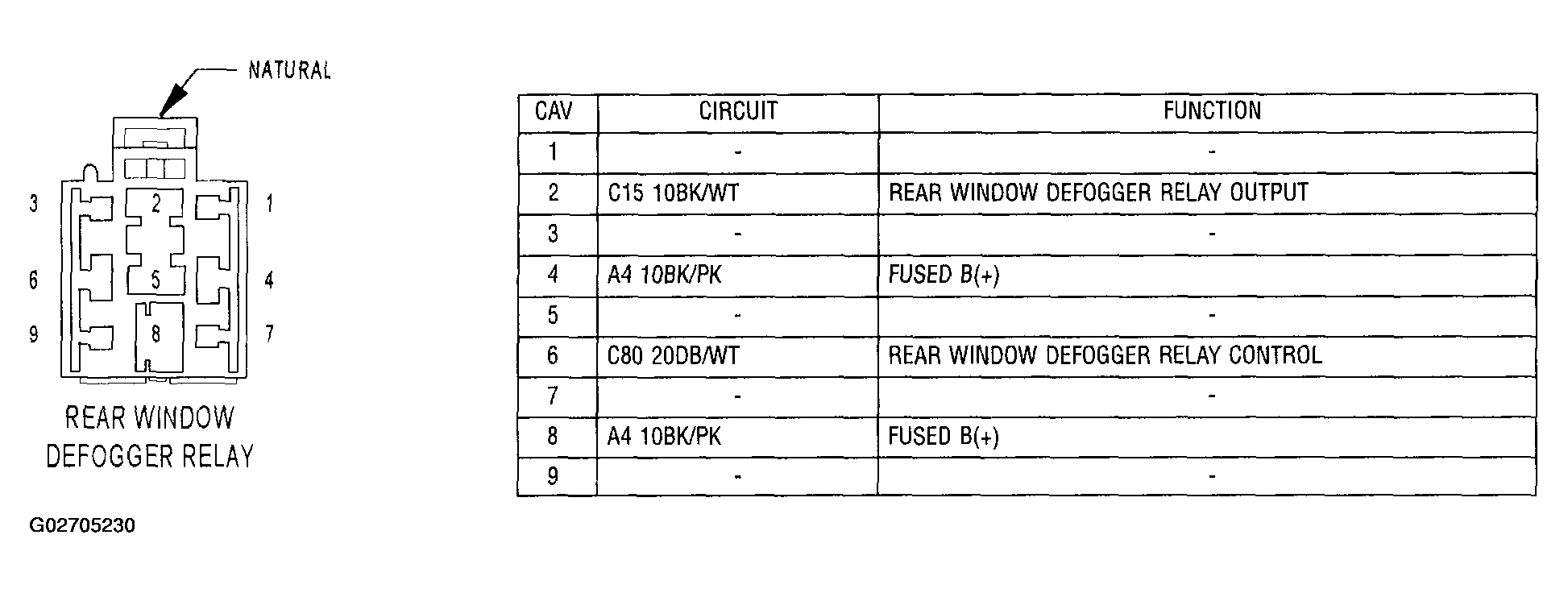

Fig 104: Identifying Rear Window Defogger Relay Connector Pinouts

G02705230

Courtesy of DAIMLERCHRYSLER CORP.

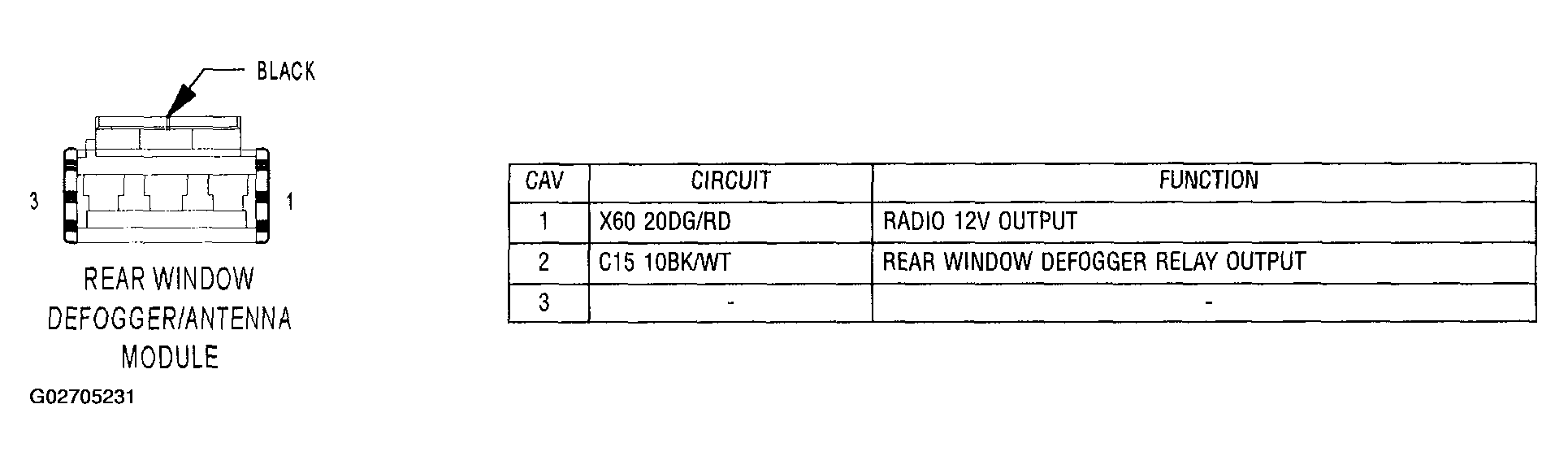

Fig 105: Identifying Rear Window Defogger/Antenna Module Connector Pinouts

G02705231

Courtesy of DAIMLERCHRYSLER CORP.

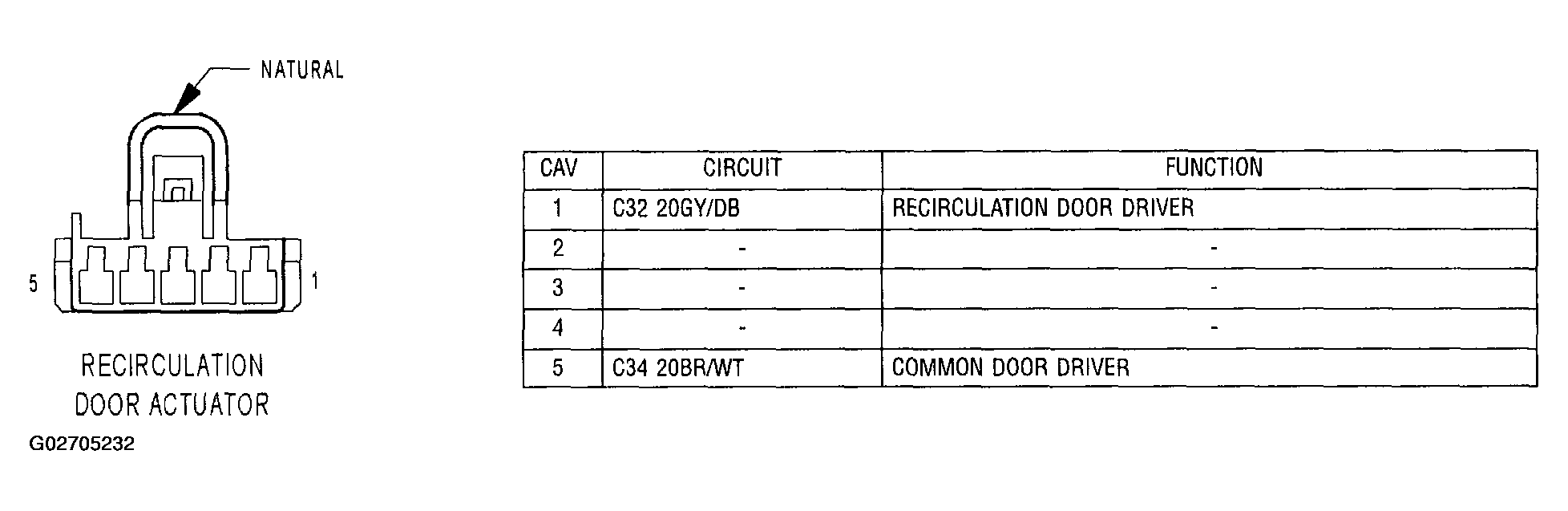

Fig 106: Identifying Recirculation Door Actuator Connector Pinouts

G02705232

Courtesy of DAIMLERCHRYSLER CORP.

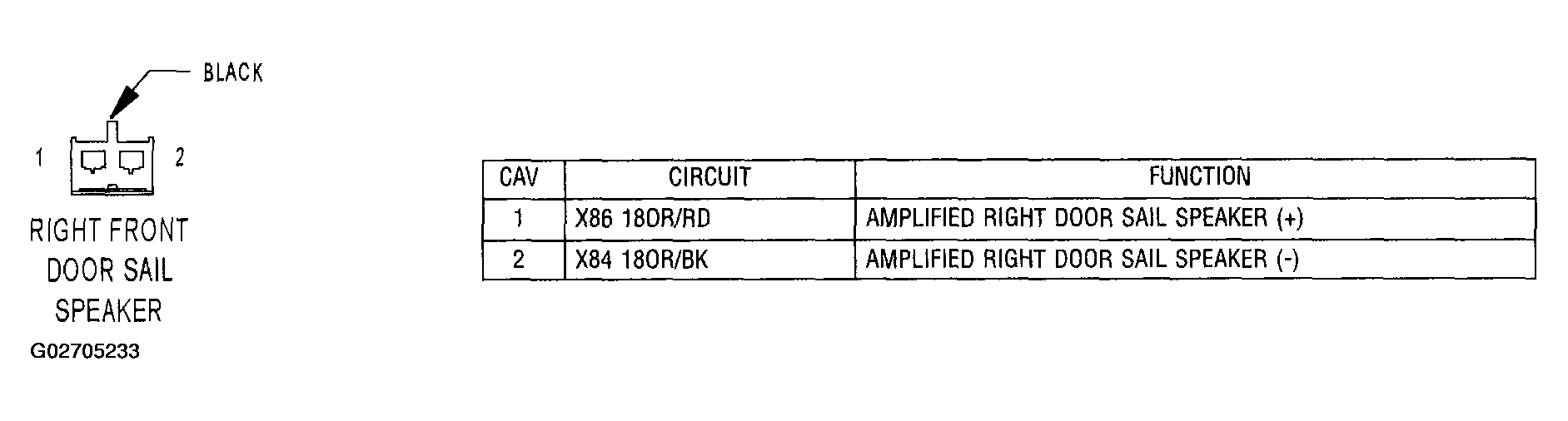

Fig 107: Identifying Right Front Door Sail Speaker Connector Pinouts

G02705233

Courtesy of DAIMLERCHRYSLER CORP.

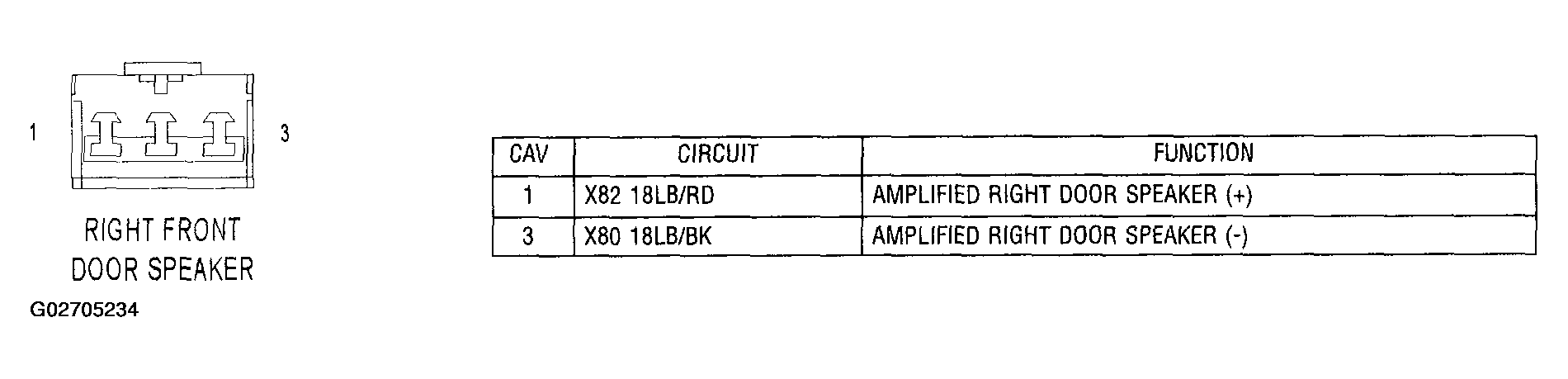

Fig 108: Identifying Right Front Door Speaker Connector Pinouts

G02705234

Courtesy of DAIMLERCHRYSLER CORP.

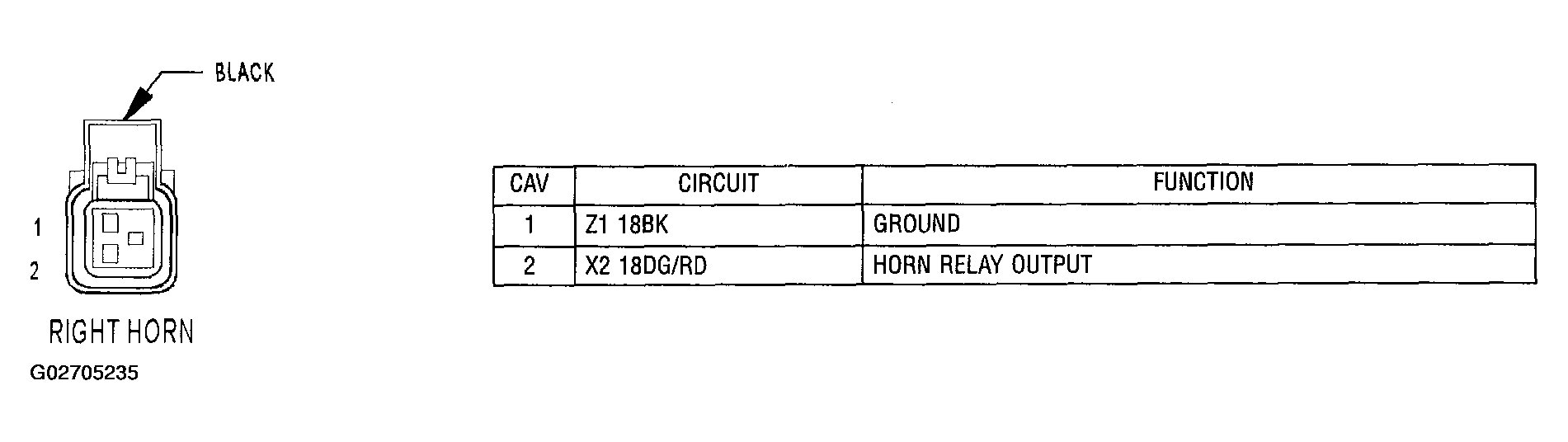

Fig 109: Identifying Right Horn Connector Pinouts

G02705235

Courtesy of DAIMLERCHRYSLER CORP.

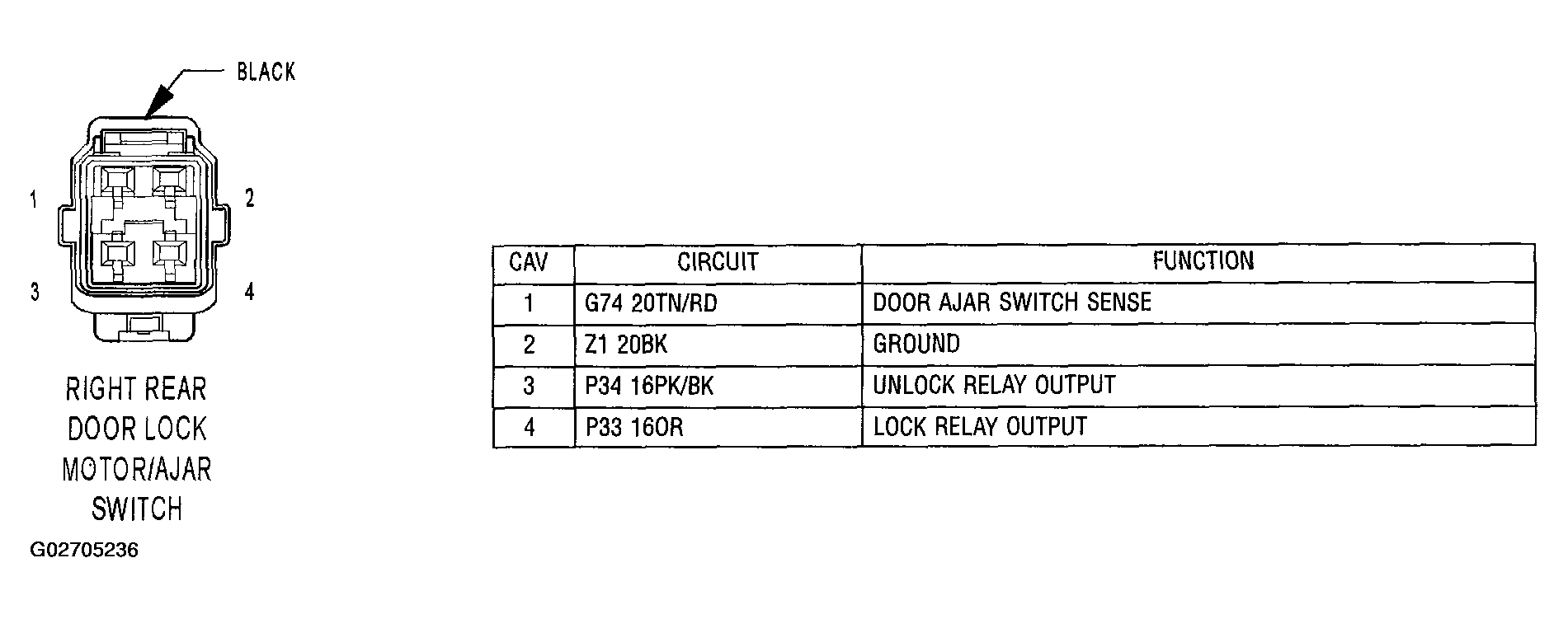

Fig 110: Identifying Right Rear Door Lock Motor/Ajar Switch Connector Pinouts

G02705236

Courtesy of DAIMLERCHRYSLER CORP.

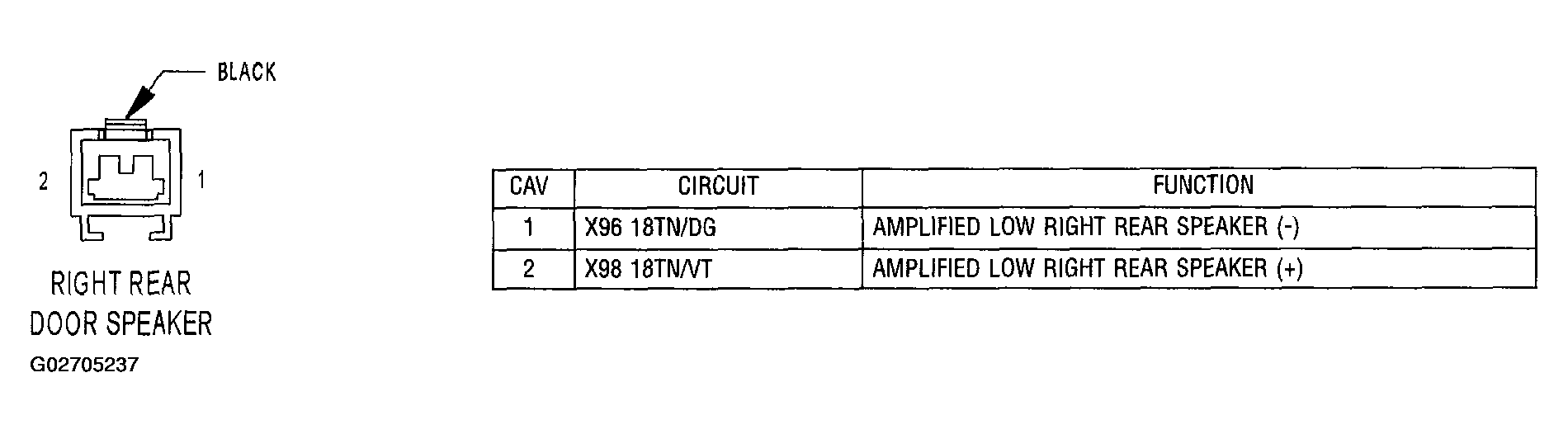

Fig 111: Identifying Right Rear Door Speaker Connector Pinouts

G02705237

Courtesy of DAIMLERCHRYSLER CORP.

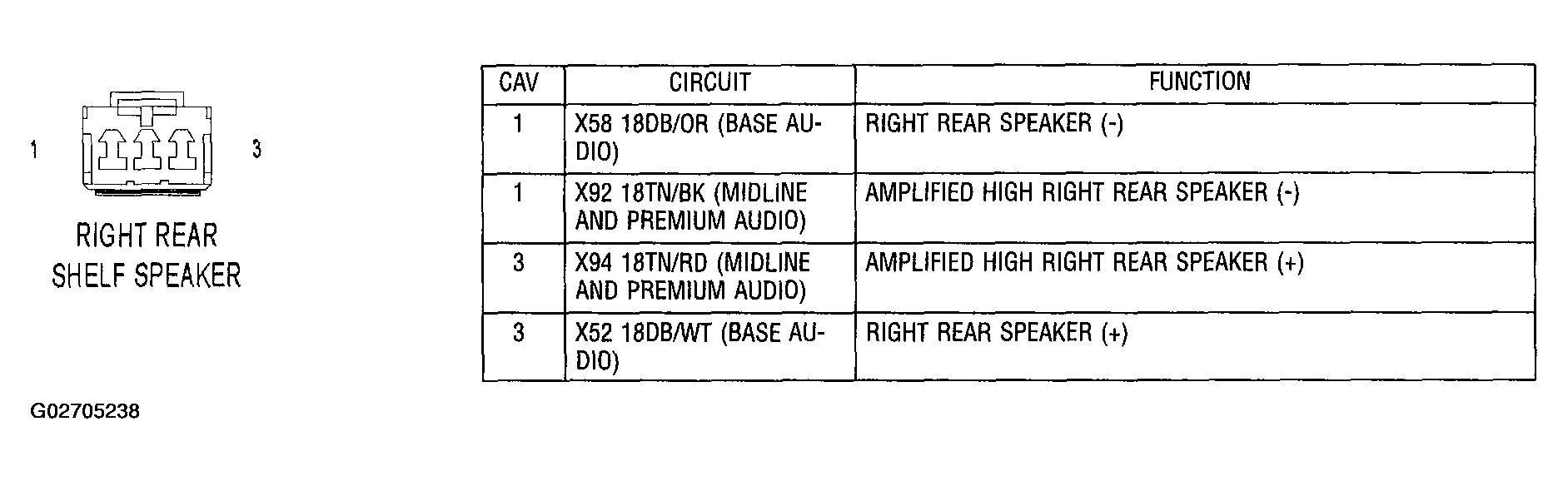

Fig 112: Identifying Right Rear Shelf Speaker Connector Pinouts

G02705238

Courtesy of DAIMLERCHRYSLER CORP.

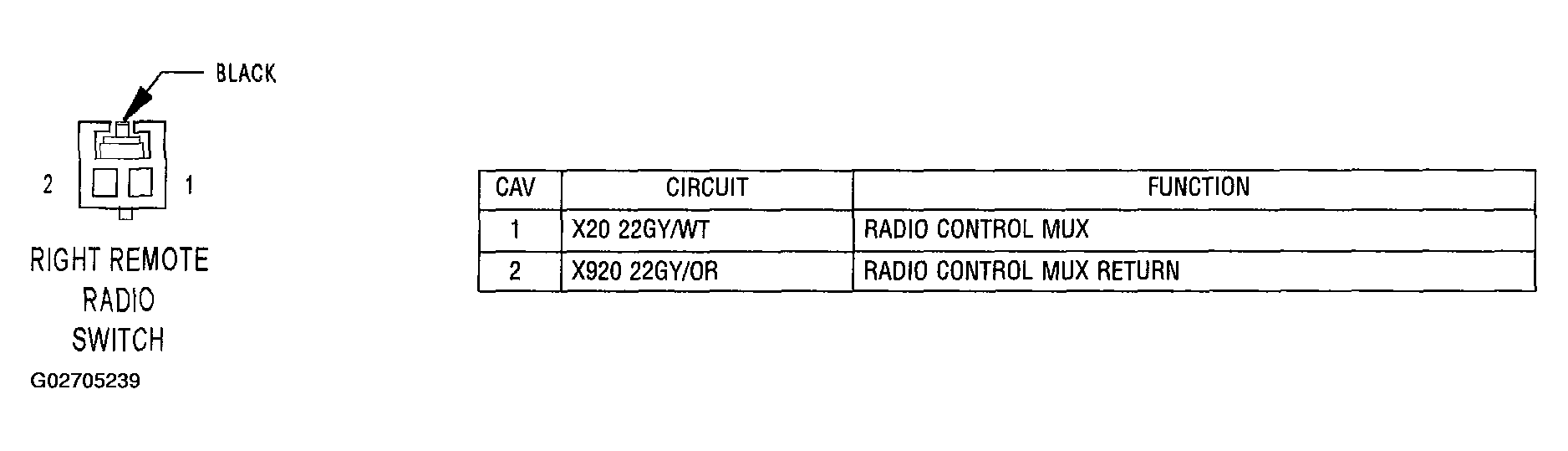

Fig 113: Identifying Right Remote Radio Switch Connector Pinouts

G02705239

Courtesy of DAIMLERCHRYSLER CORP.

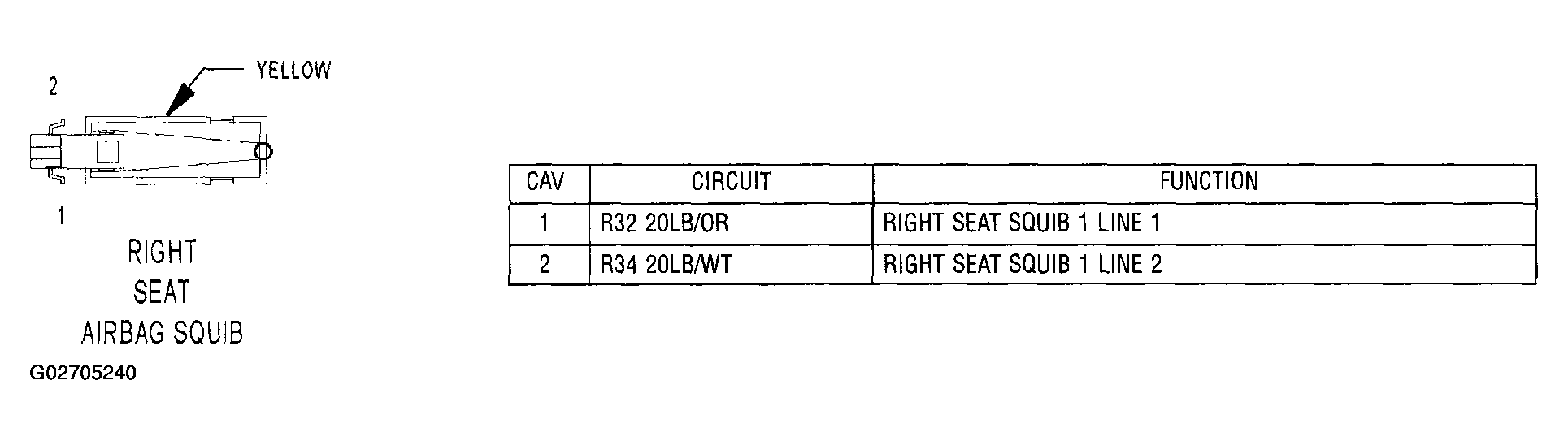

Fig 114: Identifying Right Seat Airbag Squib Connector Pinouts

G02705240

Courtesy of DAIMLERCHRYSLER CORP.

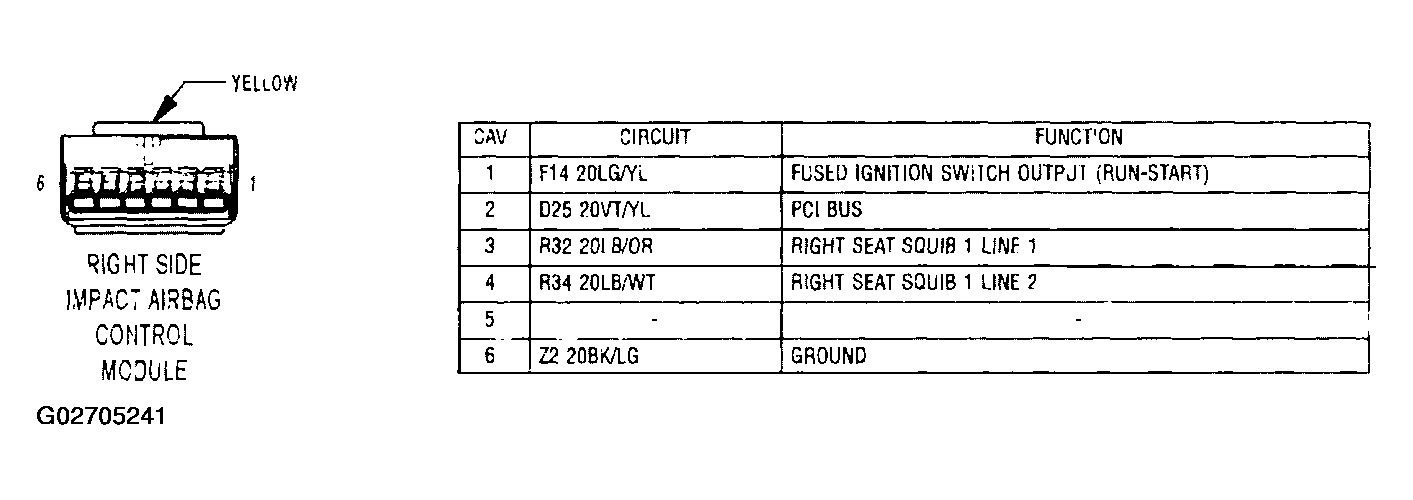

Fig 115: Identifying Right Side Impact Airbag Control Module - Yellow 6 Way Connector Pinouts

G02705241

Courtesy of DAIMLERCHRYSLER CORP.

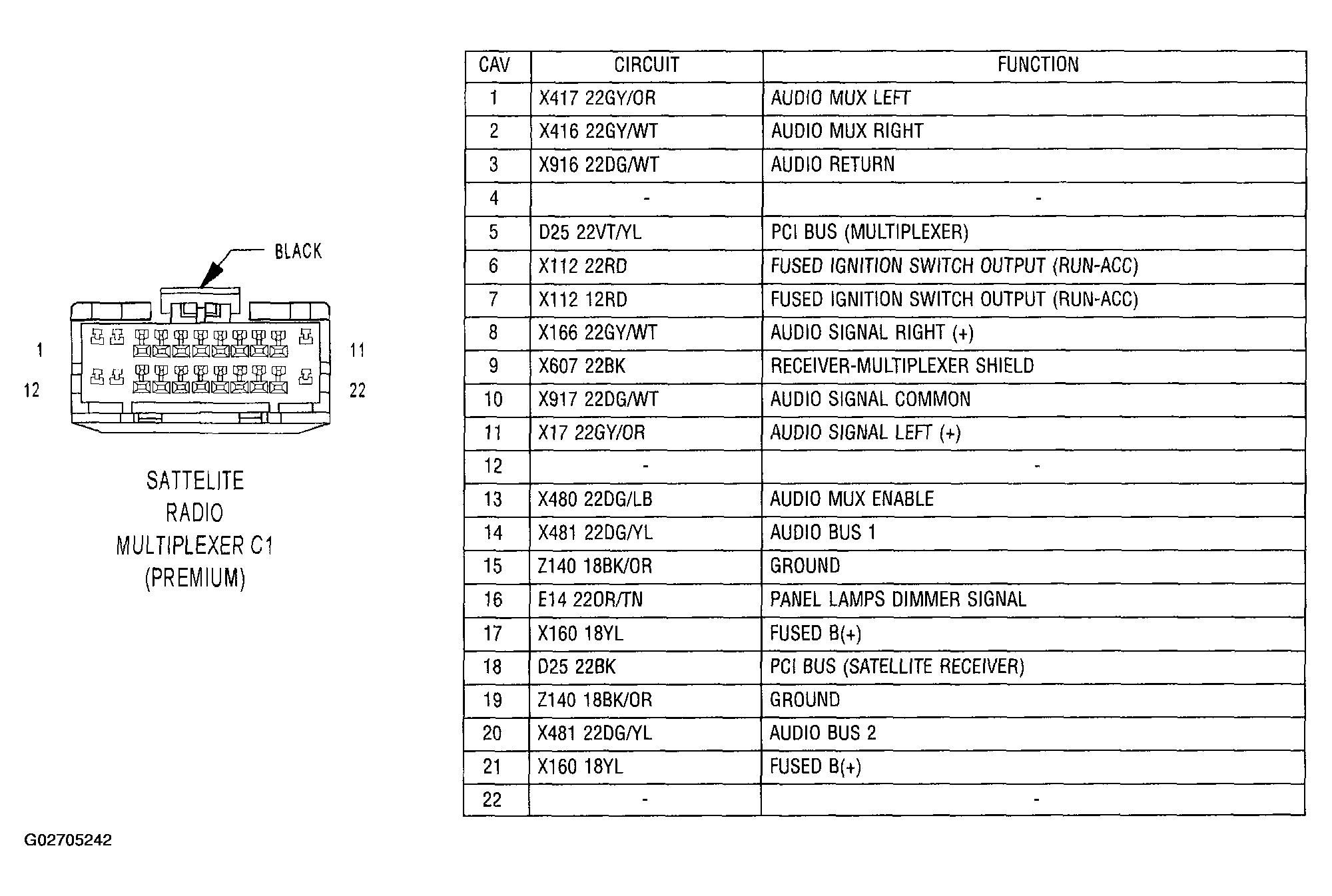

Fig 116: Identifying Satellite Radio Multiplexer C1 (Premium) Connector Pinouts

G02705242

Courtesy of DAIMLERCHRYSLER CORP.

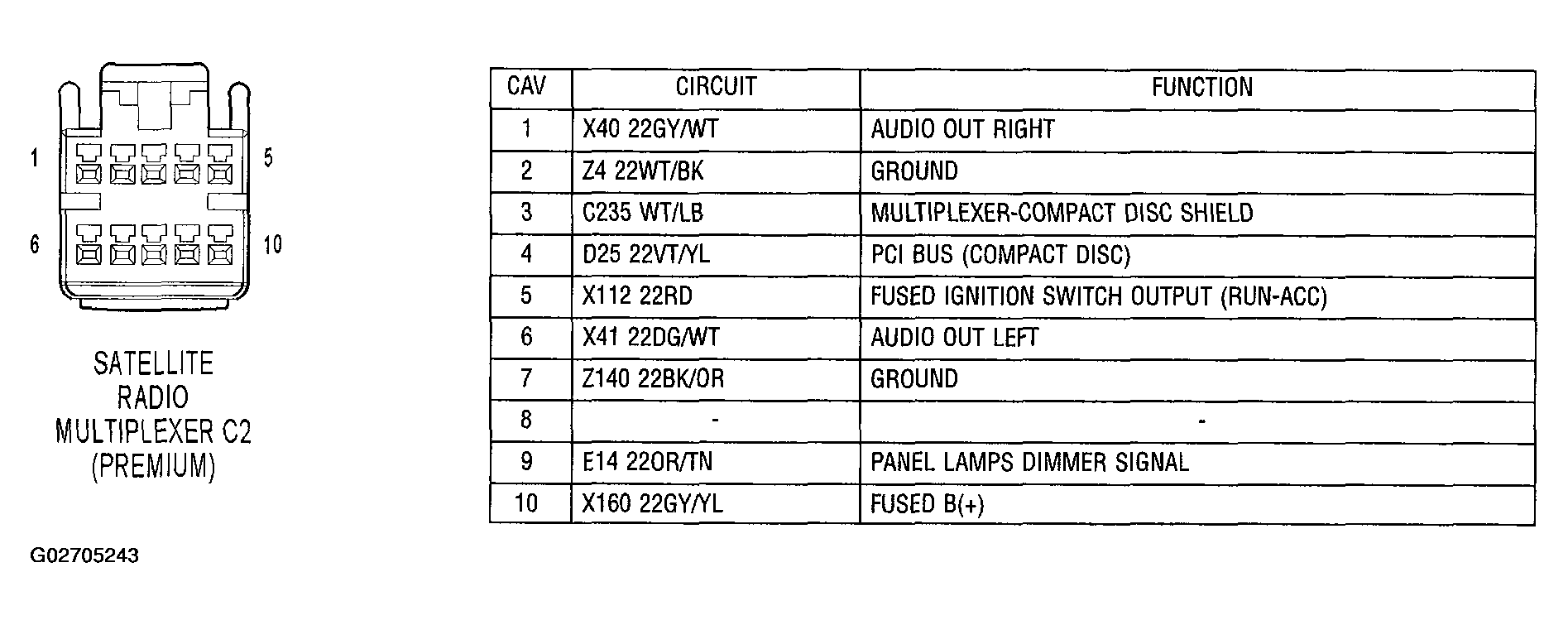

Fig 117: Identifying Satellite Radio Multiplexer C2 (Premium) Connector Pinouts

G02705243

Courtesy of DAIMLERCHRYSLER CORP.

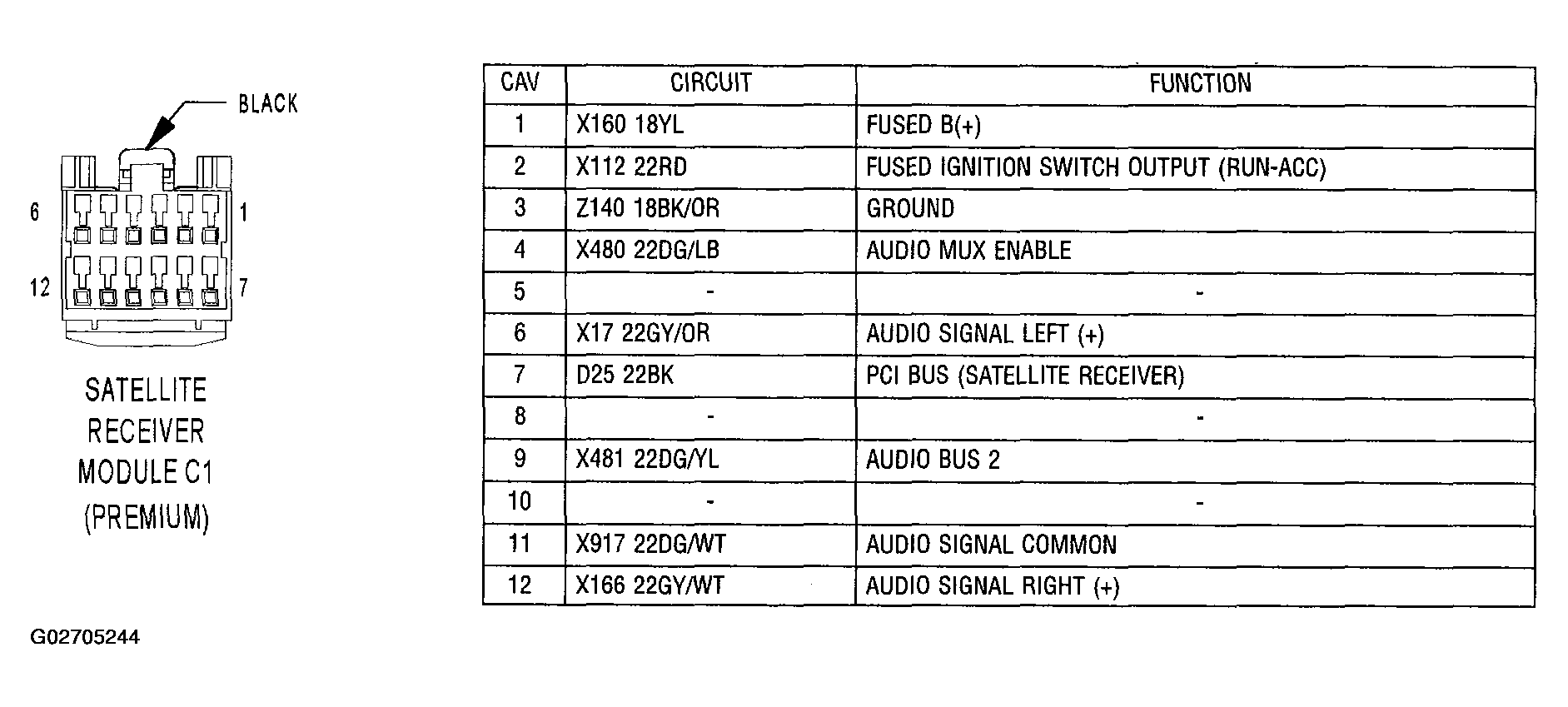

Fig 118: Identifying Satellite Receiver Module C1 (Premium) Connector Pinouts

G02705244

Courtesy of DAIMLERCHRYSLER CORP.

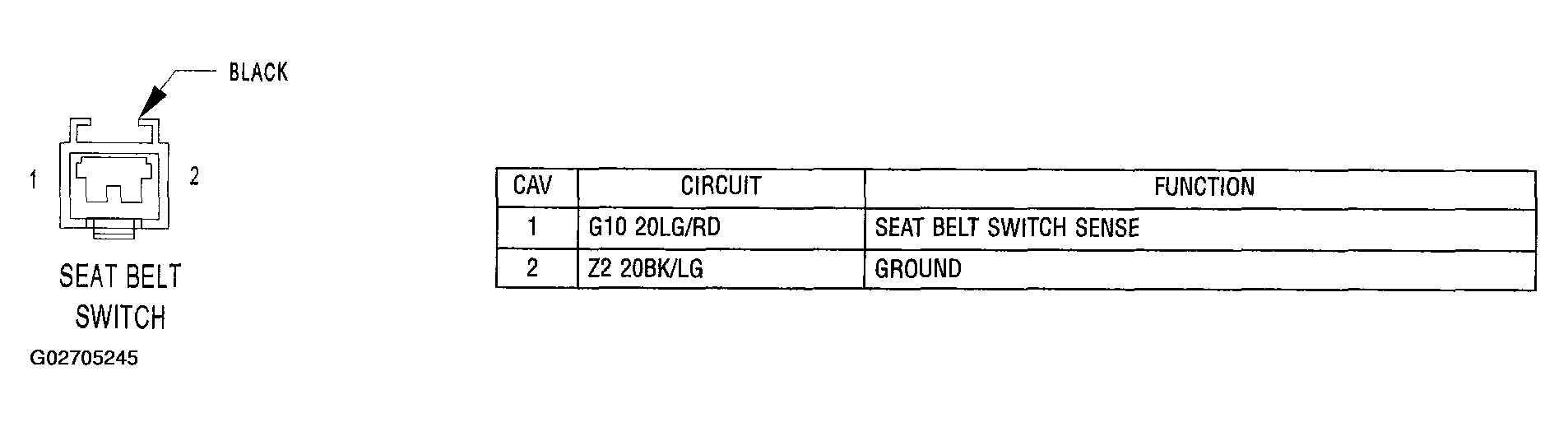

Fig 119: Identifying Seat Belt Switch Connector Pinouts

G02705245

Courtesy of DAIMLERCHRYSLER CORP.

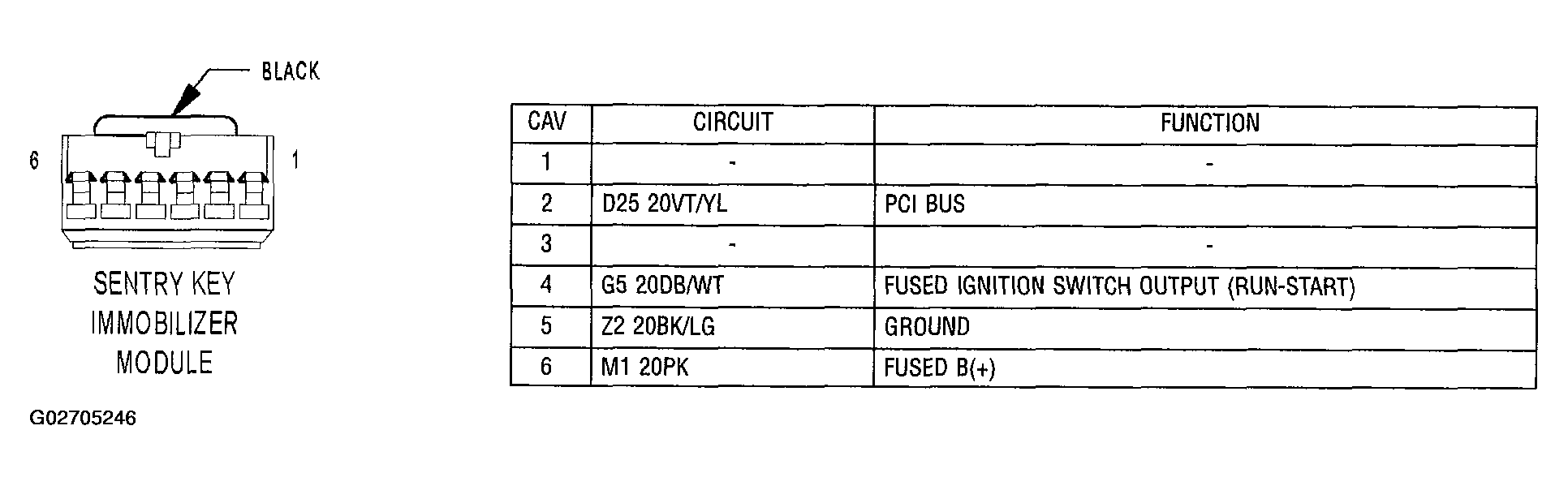

Fig 120: Identifying Sentry Key Immobilizer Module Connector Pinouts

G02705246

Courtesy of DAIMLERCHRYSLER CORP.

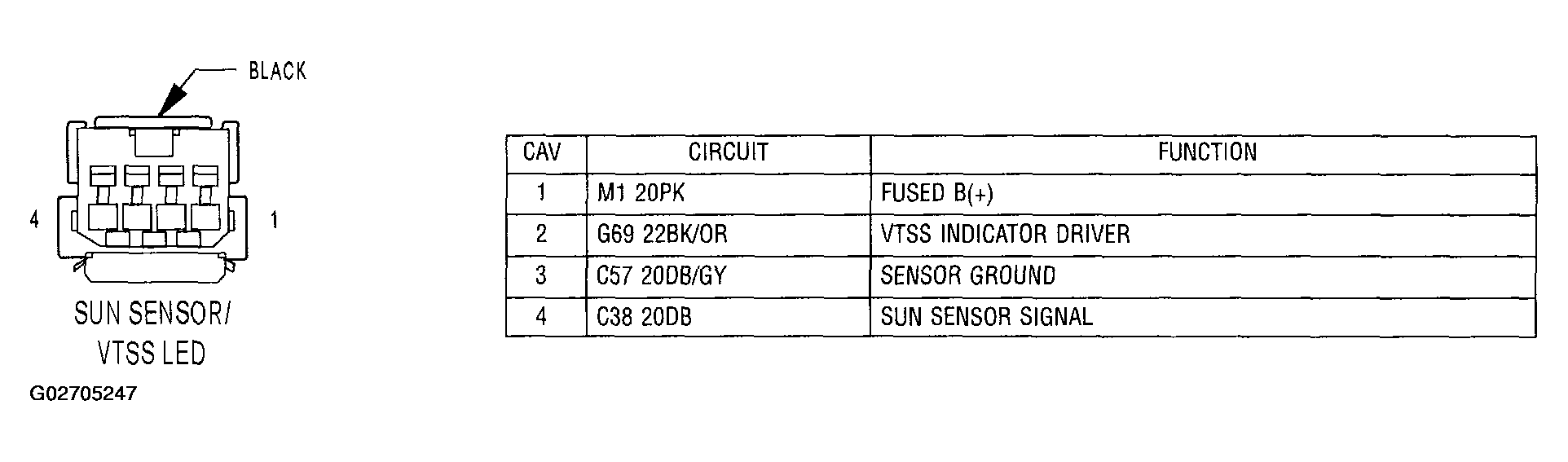

Fig 121: Identifying Sun Sensor/VTSS Led Connector Pinouts

G02705247

Courtesy of DAIMLERCHRYSLER CORP.

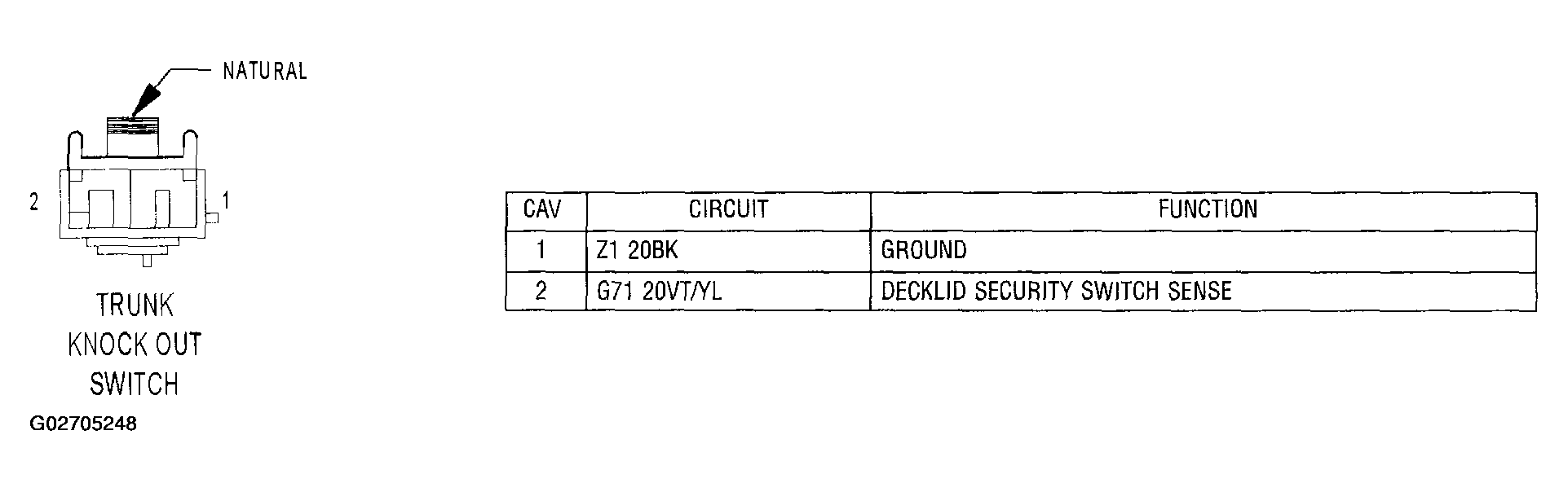

Fig 122: Identifying Trunk Knock Out Switch Connector Pinouts

G02705248

Courtesy of DAIMLERCHRYSLER CORP.

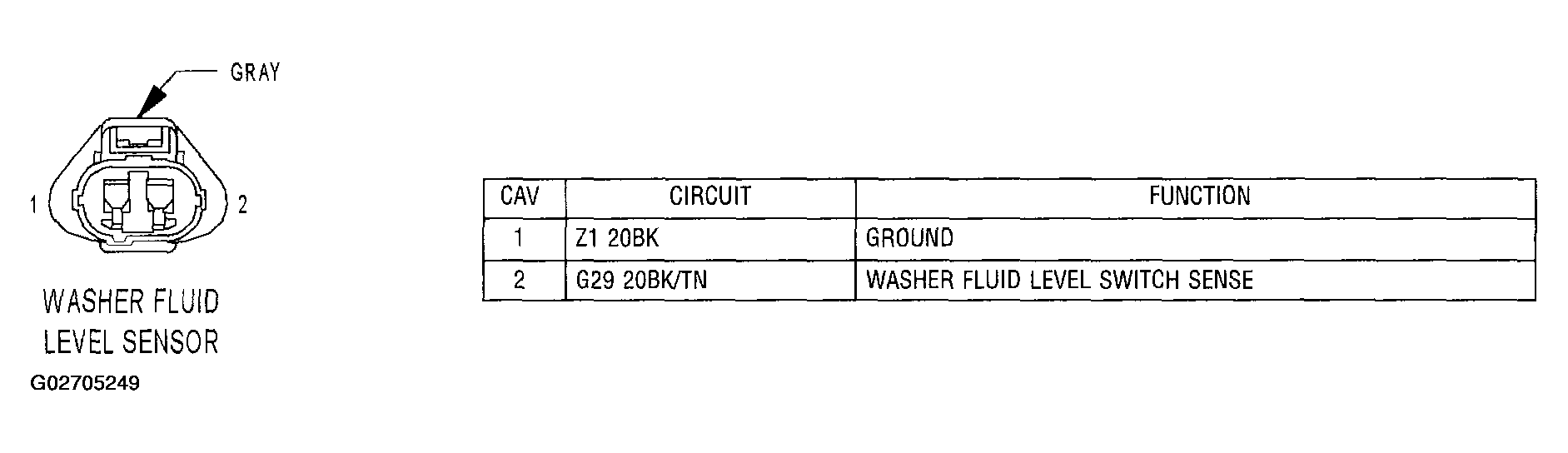

Fig 123: Identifying Washer Fluid Level Sensor Connector Pinouts

G02705249

Courtesy of DAIMLERCHRYSLER CORP.
