Airbag Systems

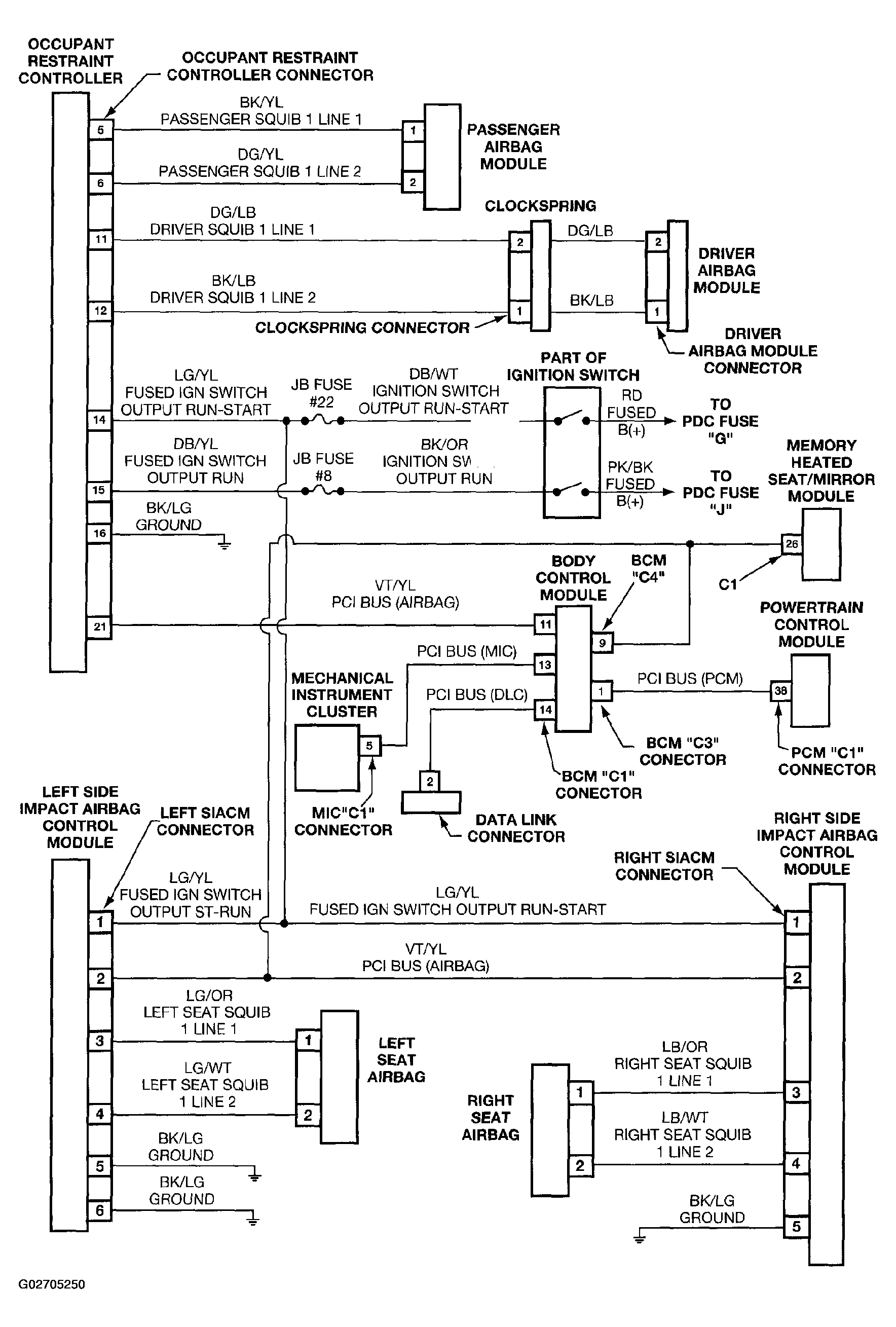

Fig 1: Schematic Diagrams - Airbag Systems
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
