Cd Changer

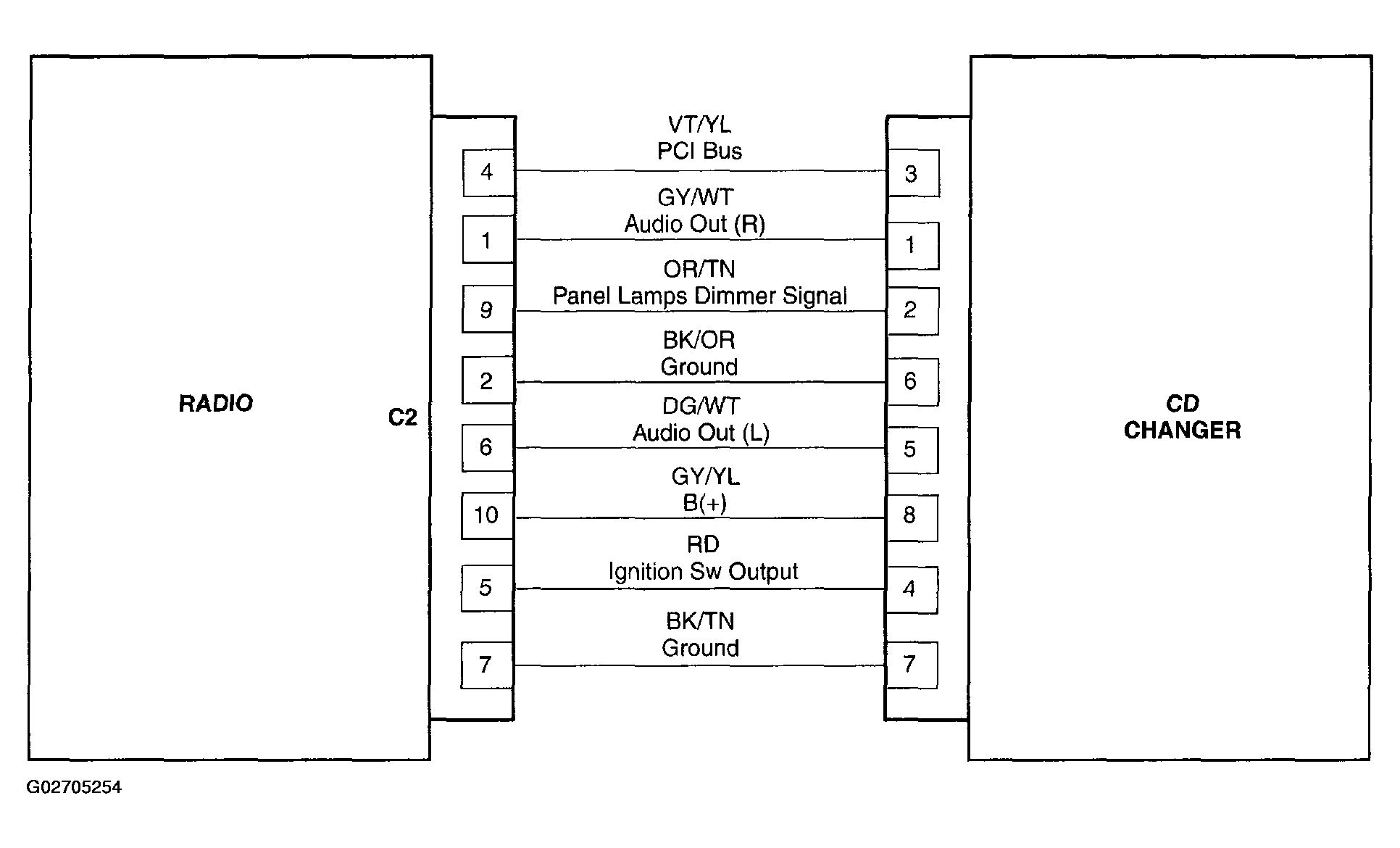

Fig 1: Schematic Diagrams - CD Changer
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
