Chime Warning System

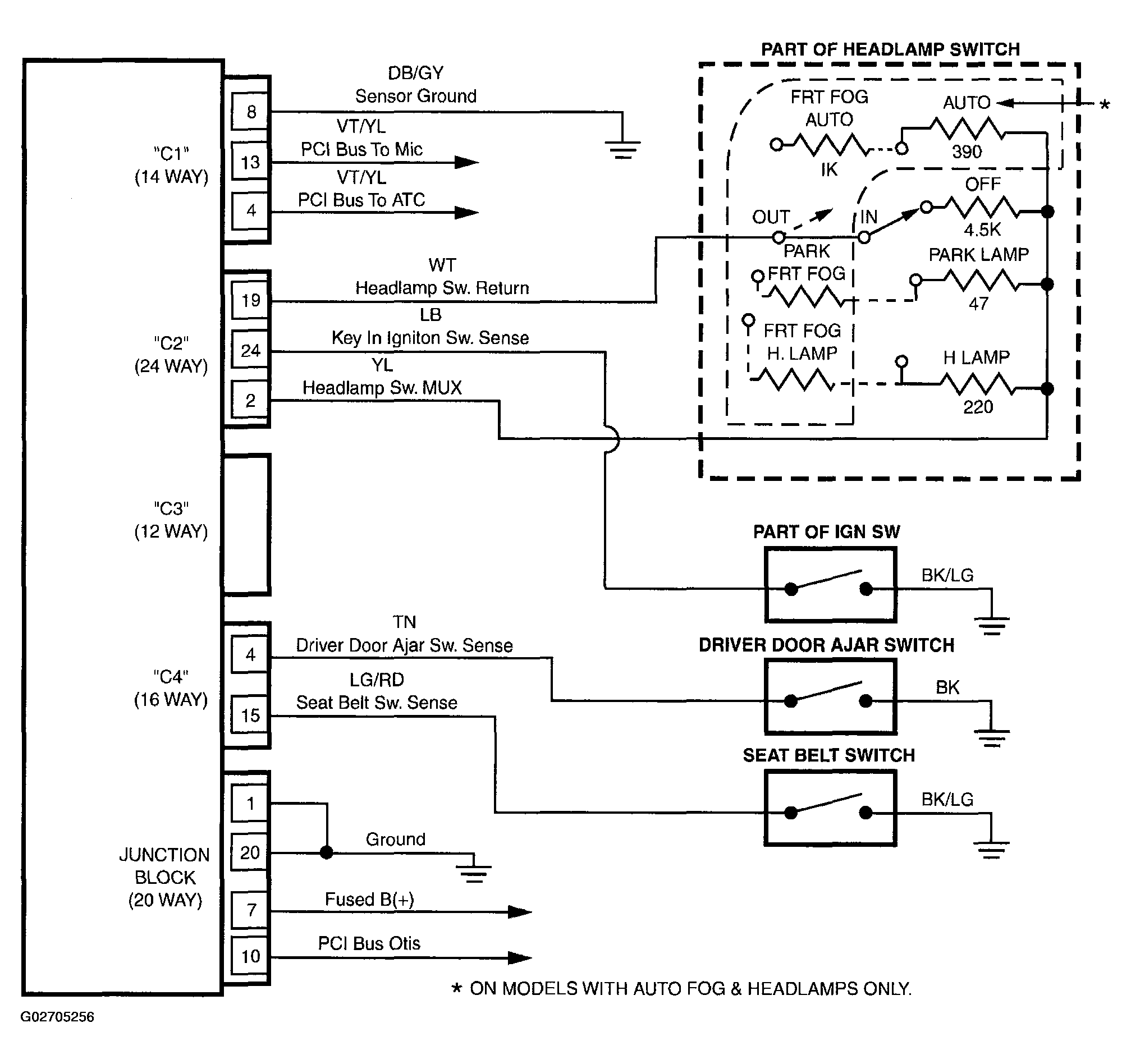

Fig 1: Schematic Diagrams - Chime Warning System
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
