Climate Control - Automatic Temperature Control

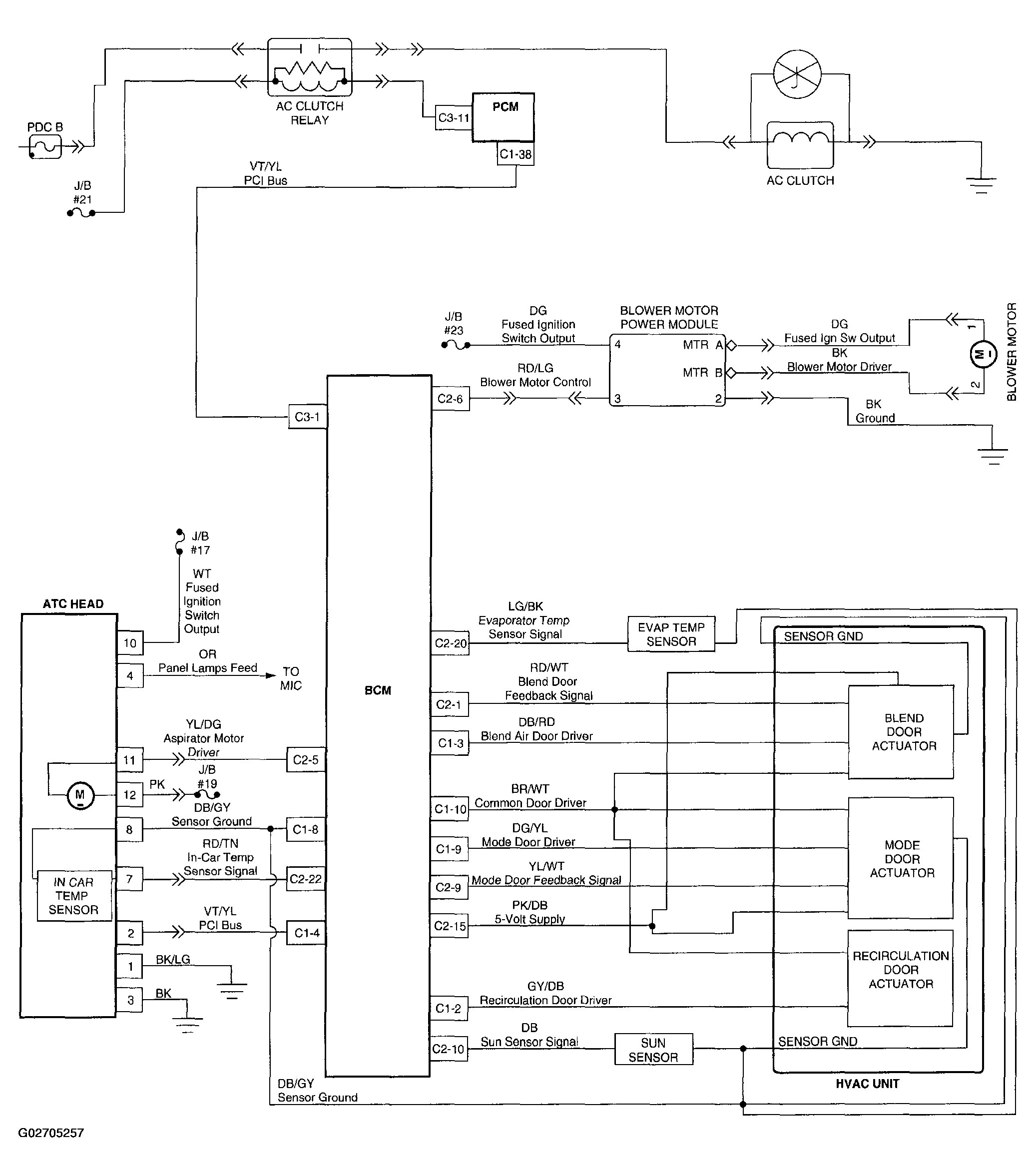

Fig 1: Schematic Diagrams - Climate Control - Automatic Temperature Control
G02705257Courtesy of DAIMLERCHRYSLER CORP.
