Schematic Diagram: Communications: Notes

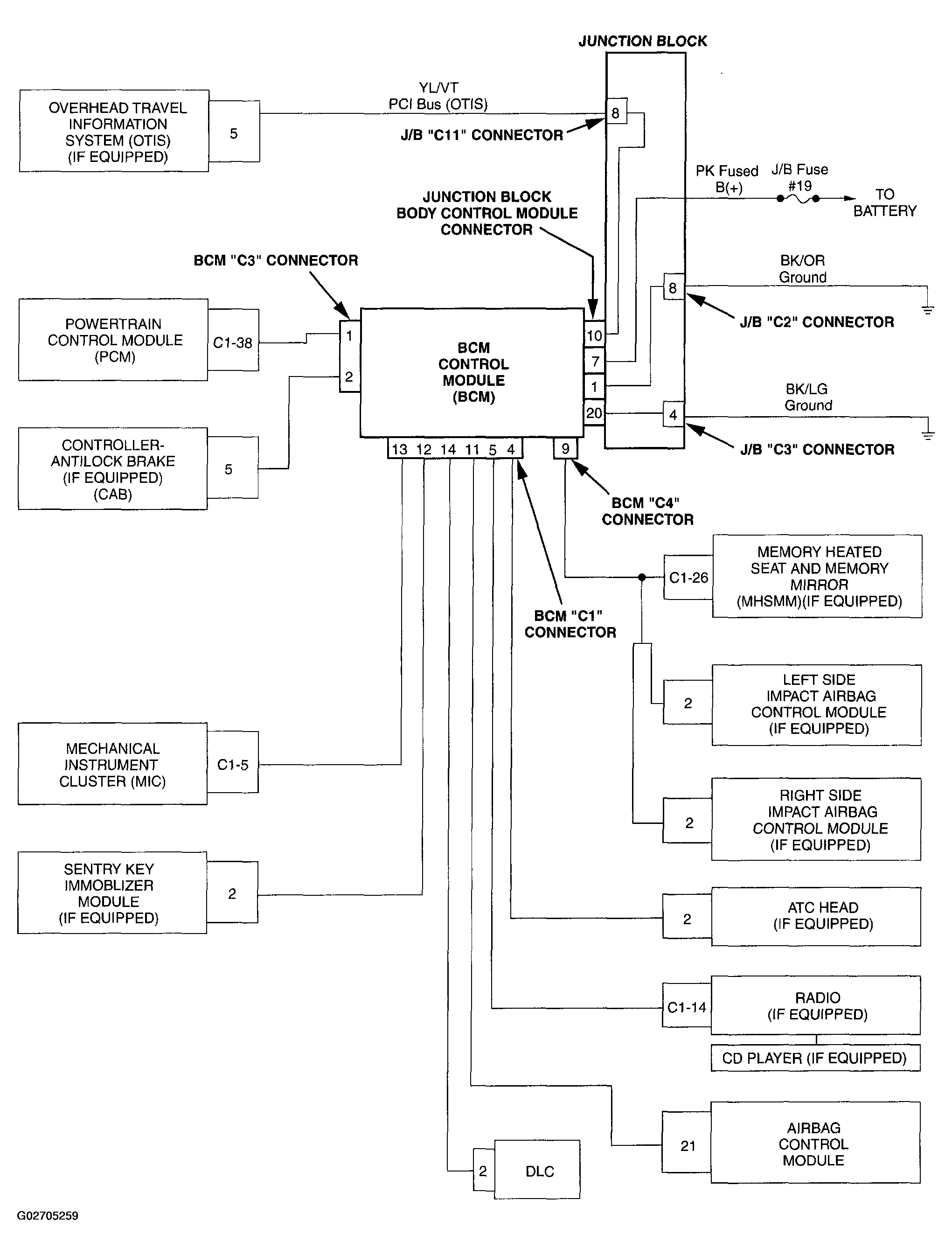

Fig 1: Schematic Diagrams - Communications

G02705259

Courtesy of DAIMLERCHRYSLER CORP.
