Pcm Communication

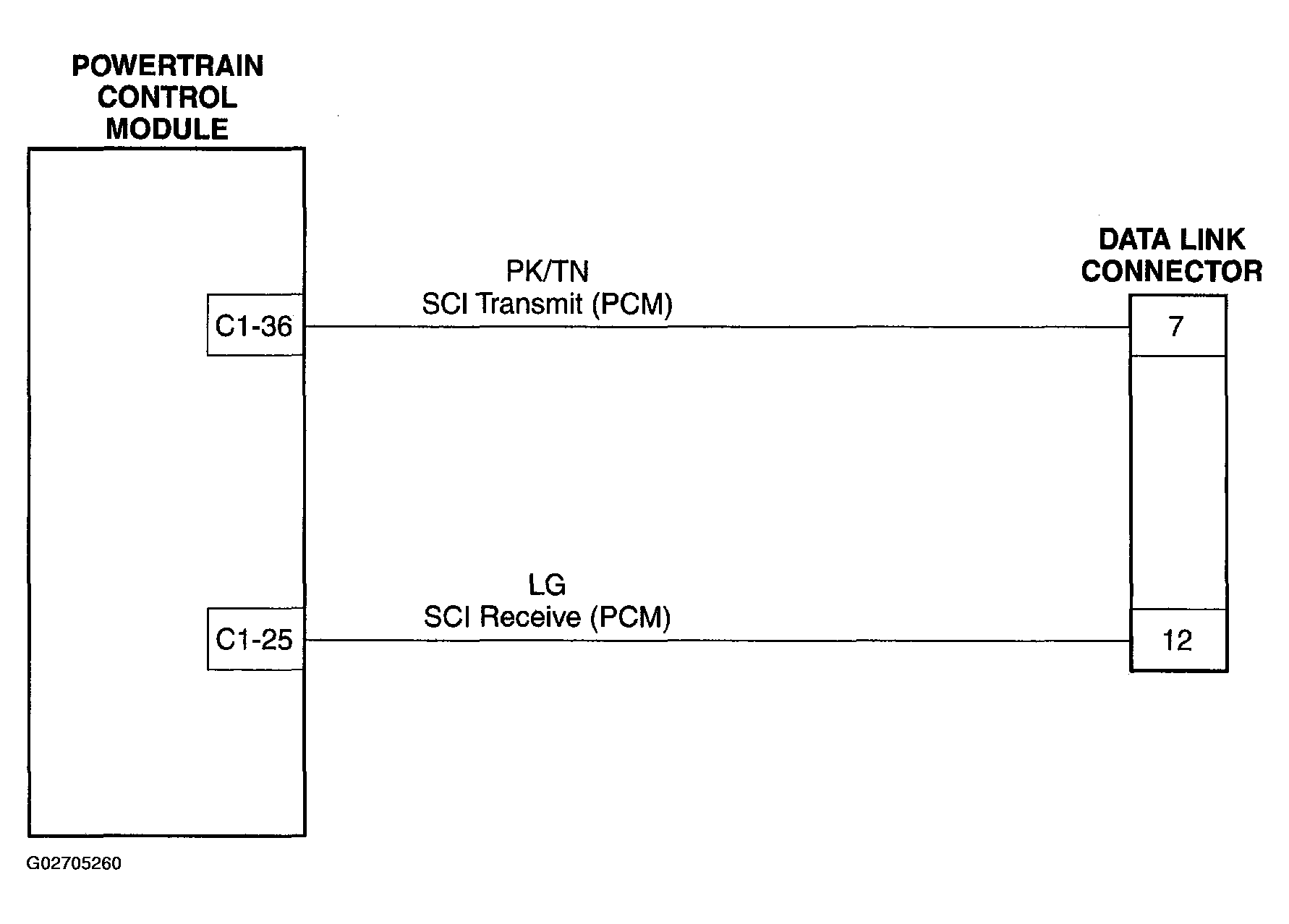

Fig 1: Schematic Diagrams - PCM Communication

G02705260

Courtesy of DAIMLERCHRYSLER CORP.
