Speed Proportional Steering

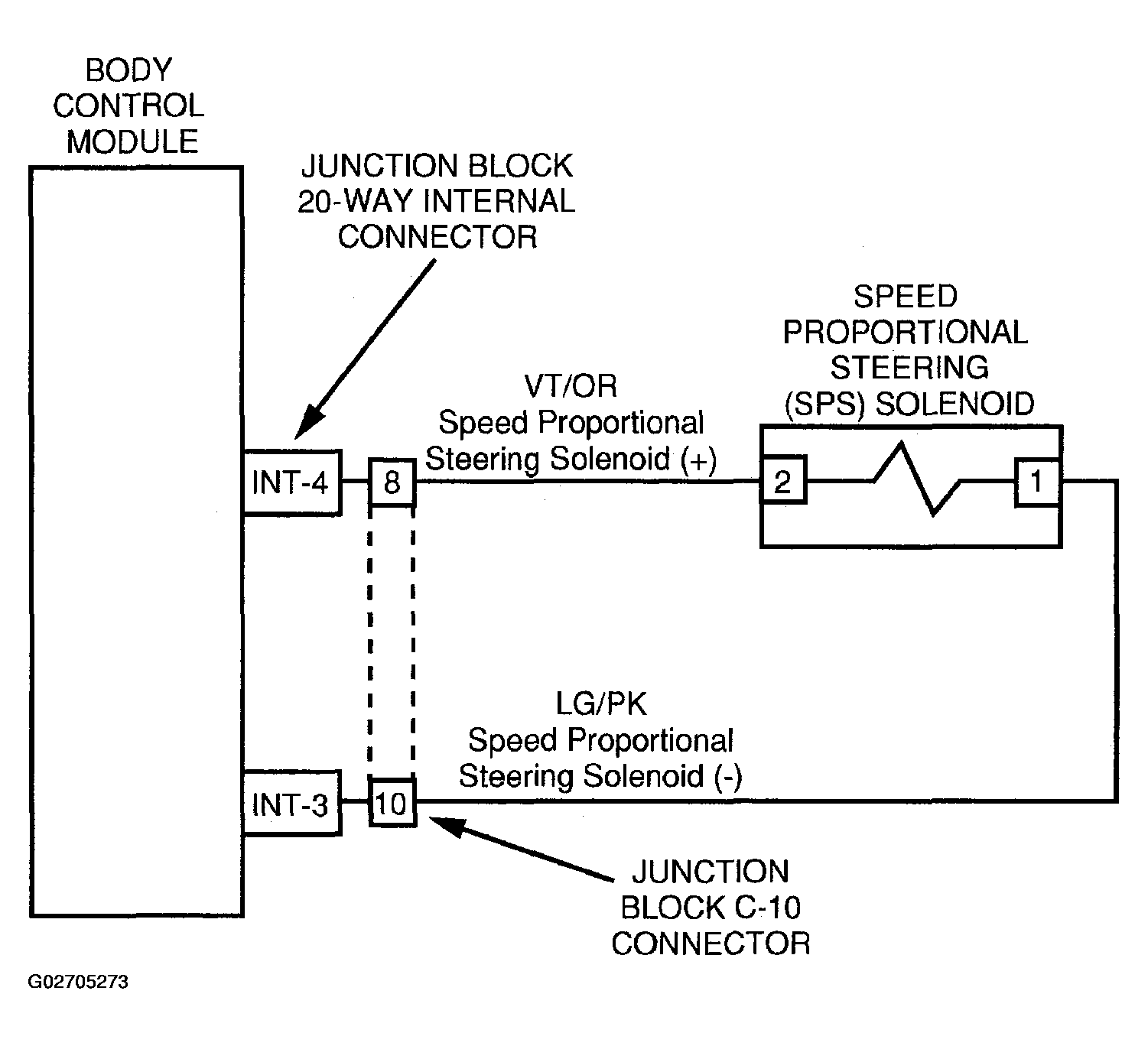

Fig 1: Schematic Diagrams - Speed Proportional Steering
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
