Verification Tests

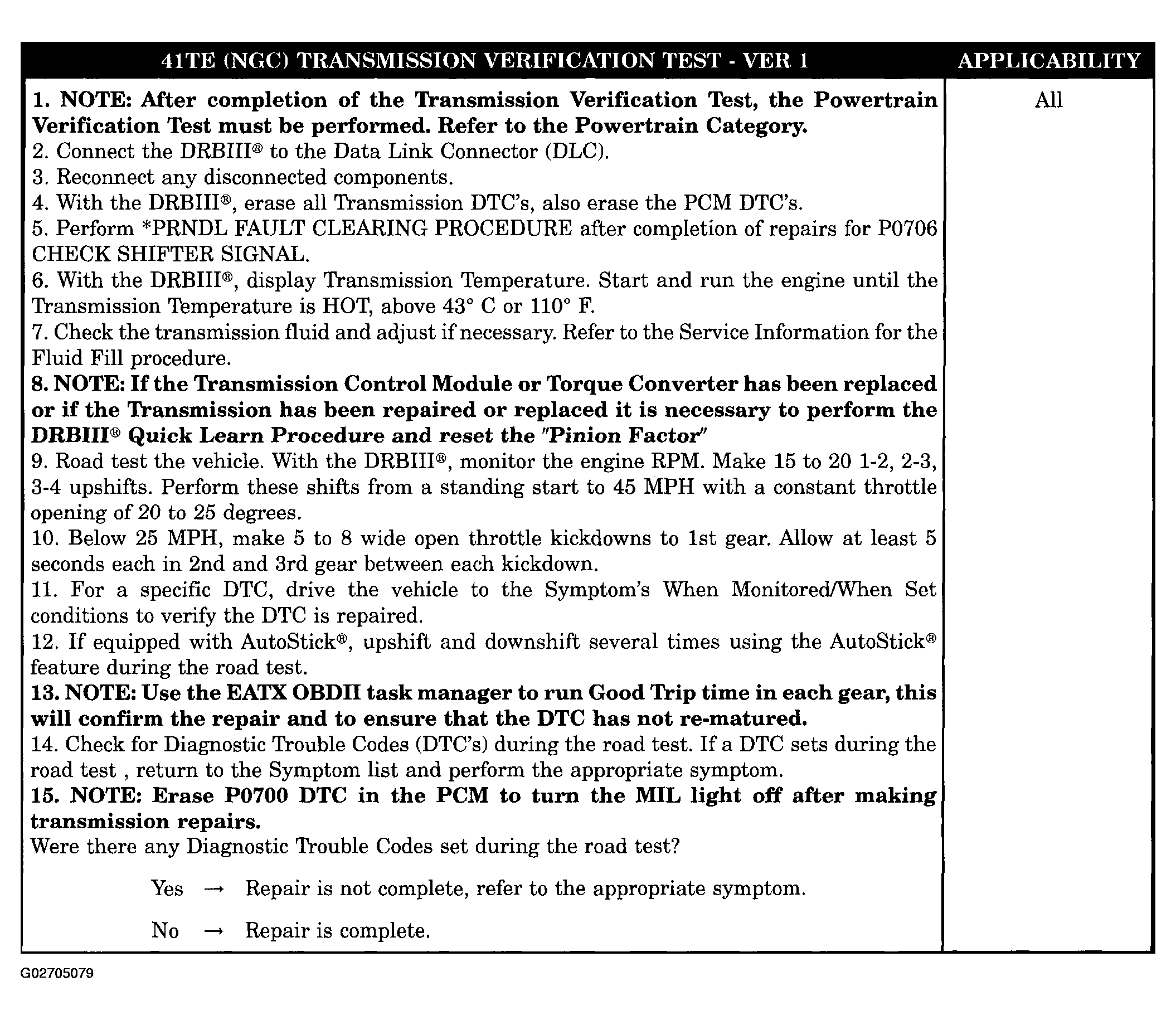

Fig 1: 41TE (NGC) Transmission Verification Test -VER 1
G02705079Courtesy of DAIMLERCHRYSLER CORP.

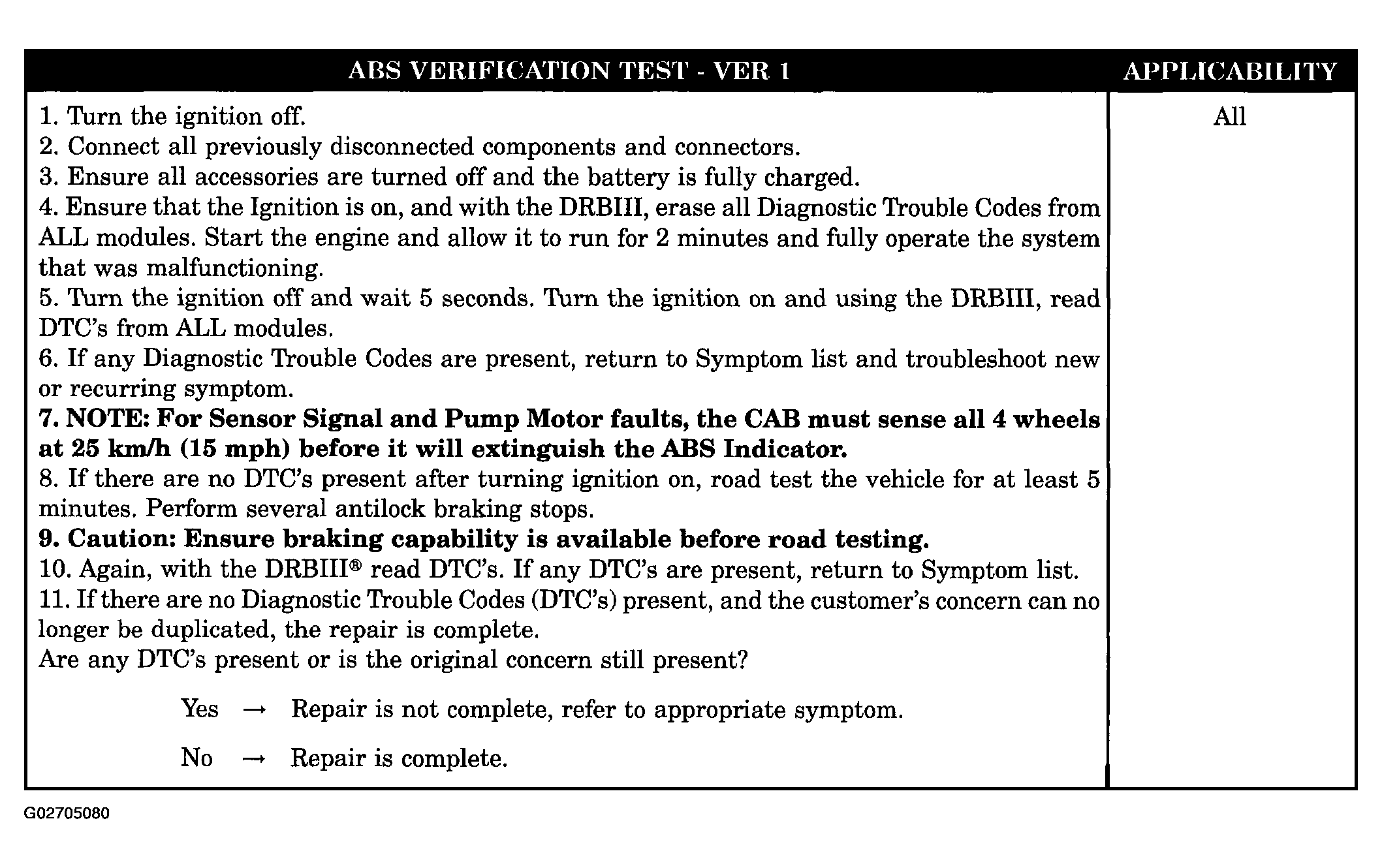

Fig 2: ABS Verification Test -VER 1
G02705080Courtesy of DAIMLERCHRYSLER CORP.

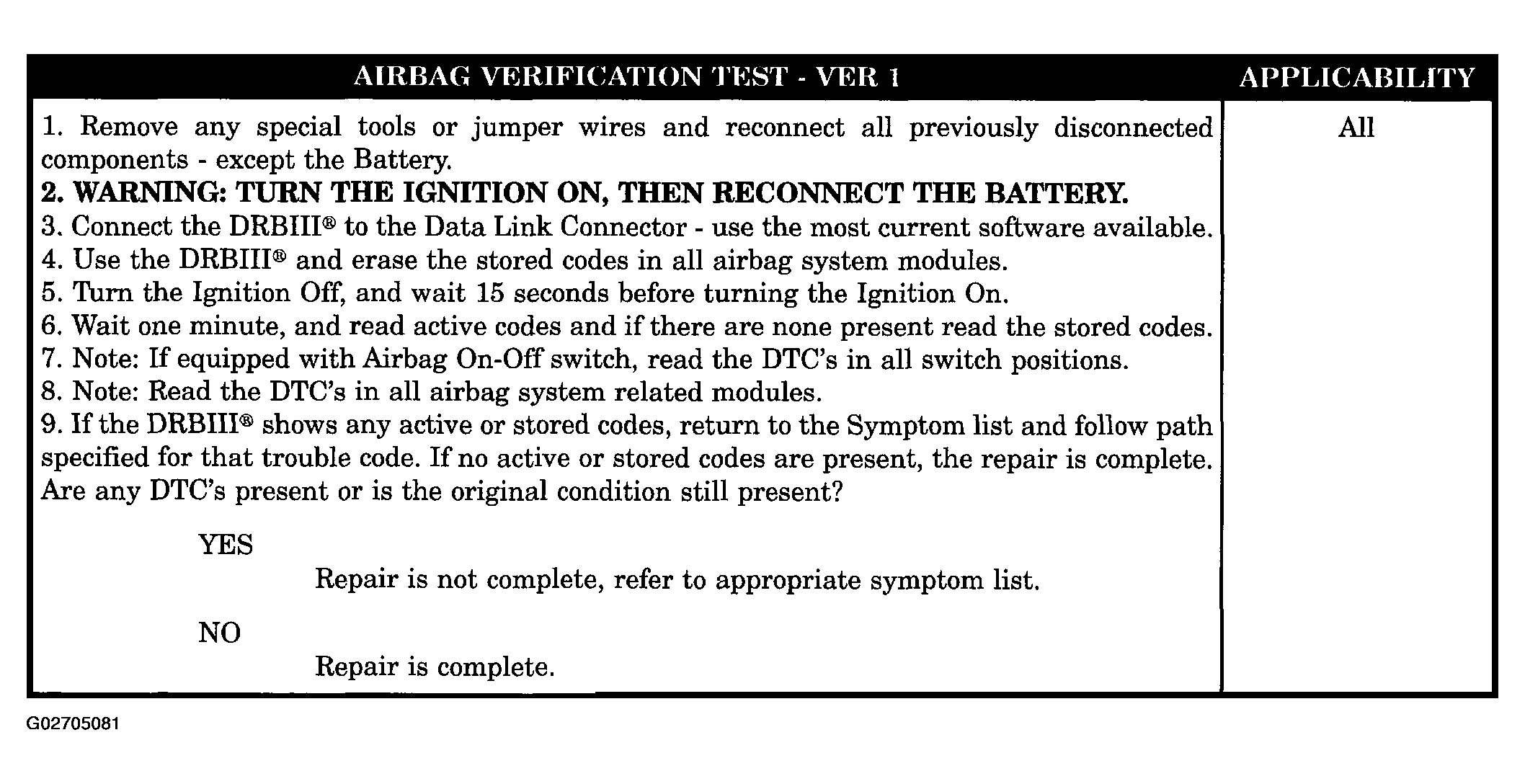

Fig 3: Airbag Verification Test -VER 1
G02705081Courtesy of DAIMLERCHRYSLER CORP.

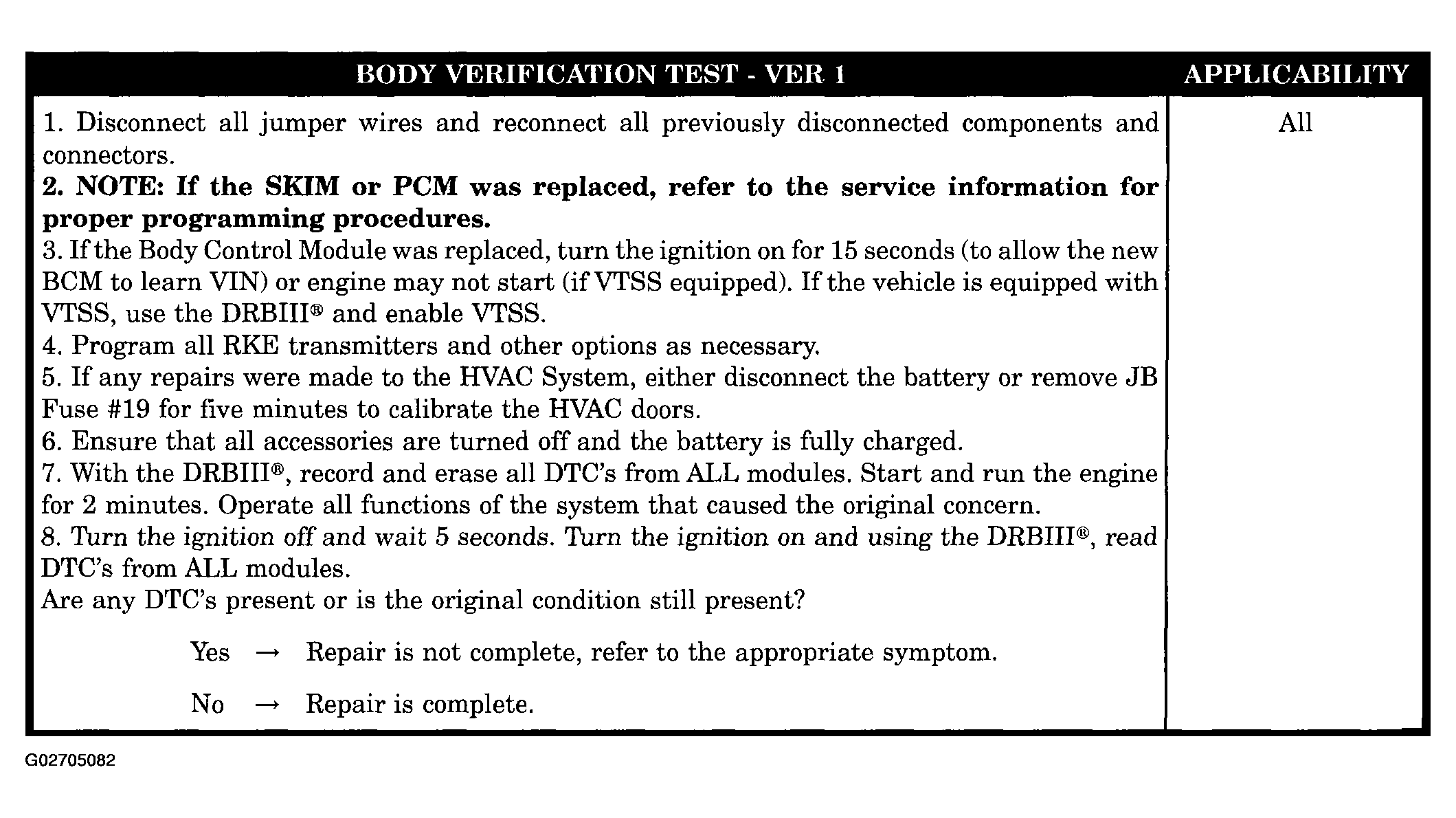

Fig 4: Body Verification Test - VER 1
G02705082Courtesy of DAIMLERCHRYSLER CORP.

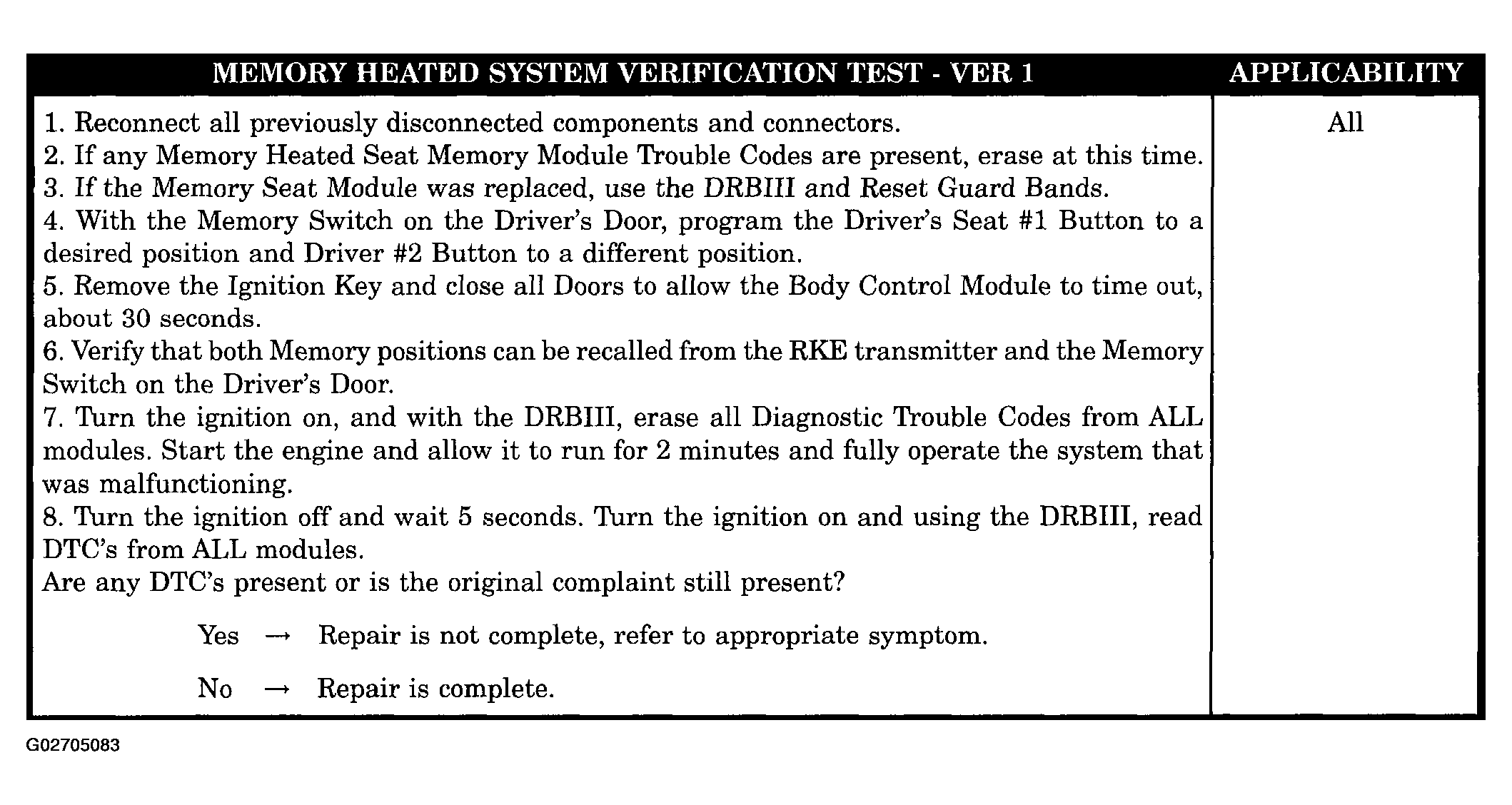

Fig 5: Memory Heated System Verification Test -VER 1
G02705083Courtesy of DAIMLERCHRYSLER CORP.

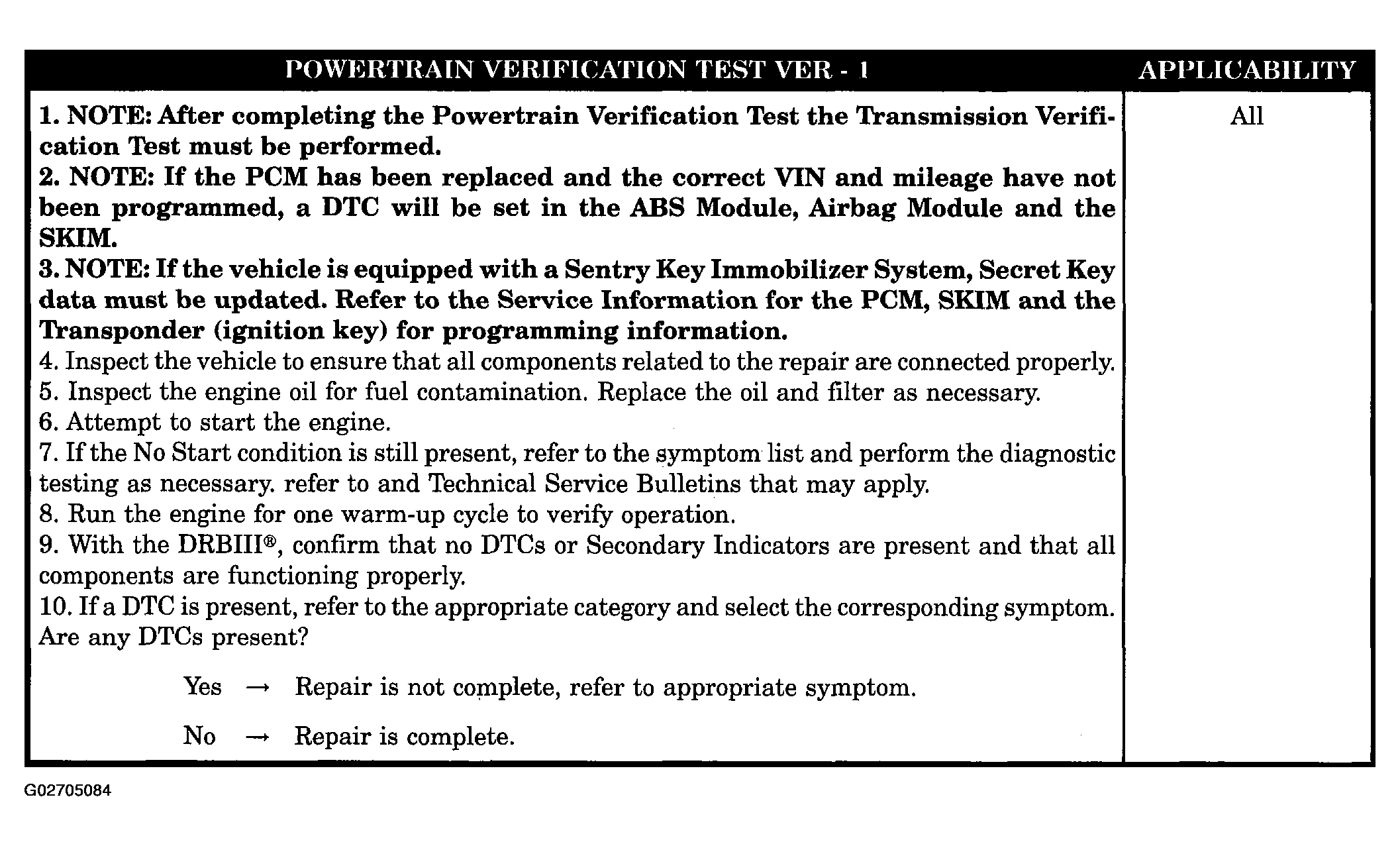

Fig 6: Powertrain Verification Test -VER 1
G02705084Courtesy of DAIMLERCHRYSLER CORP.

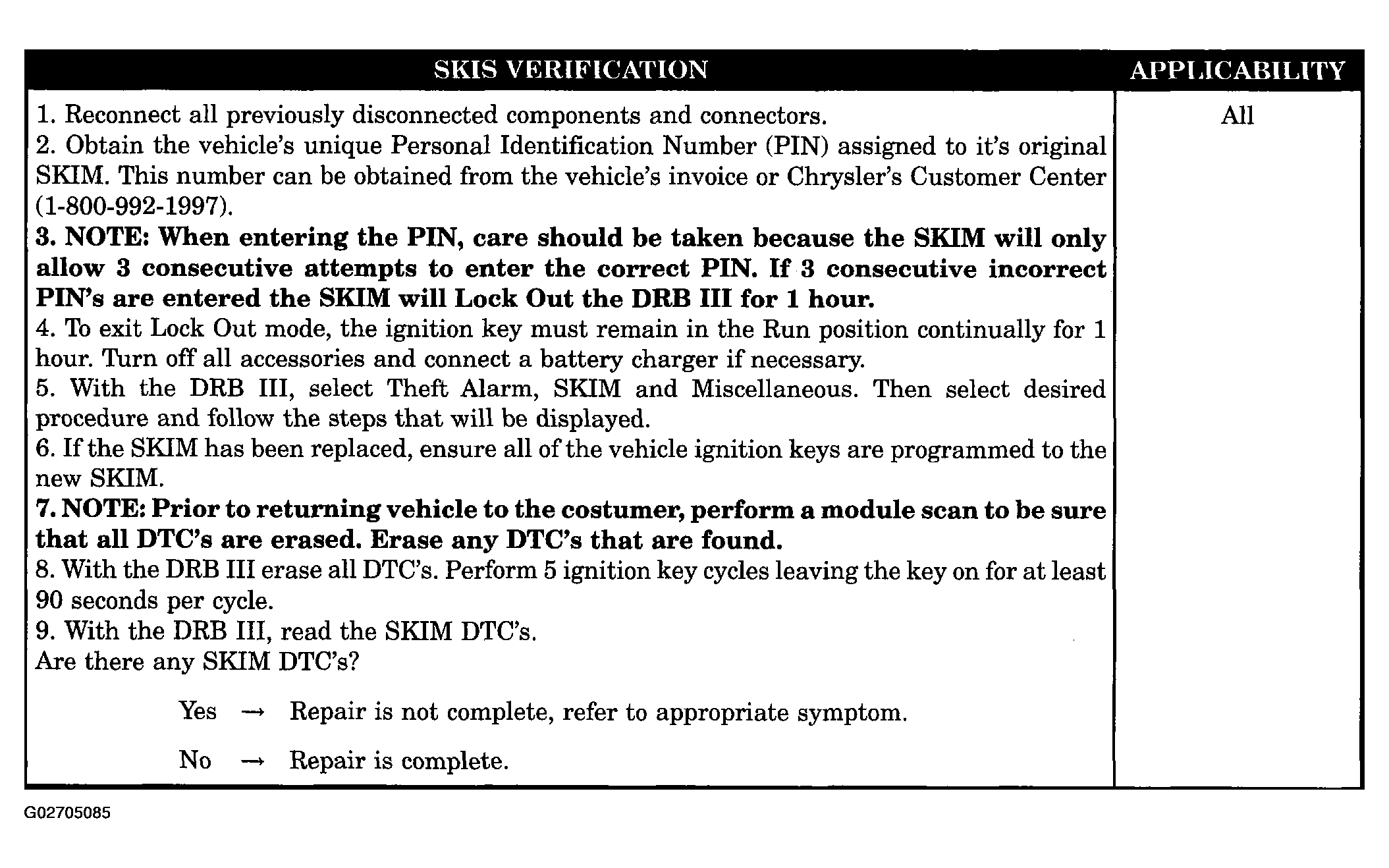

Fig 7: SKIS Verification Test
G02705085Courtesy of DAIMLERCHRYSLER CORP.

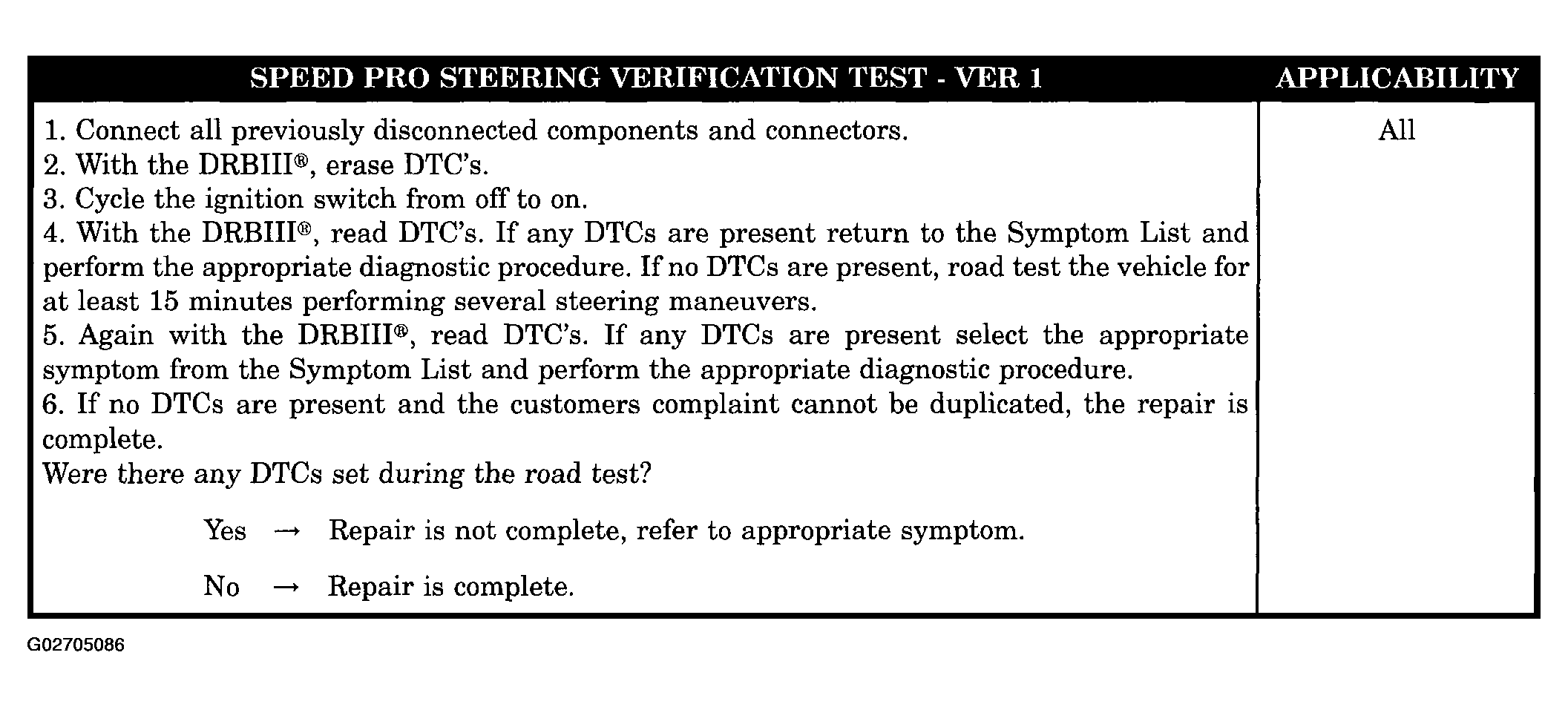

Fig 8: Speed PRO Steering Verification Test - VER 1
G02705086Courtesy of DAIMLERCHRYSLER CORP.

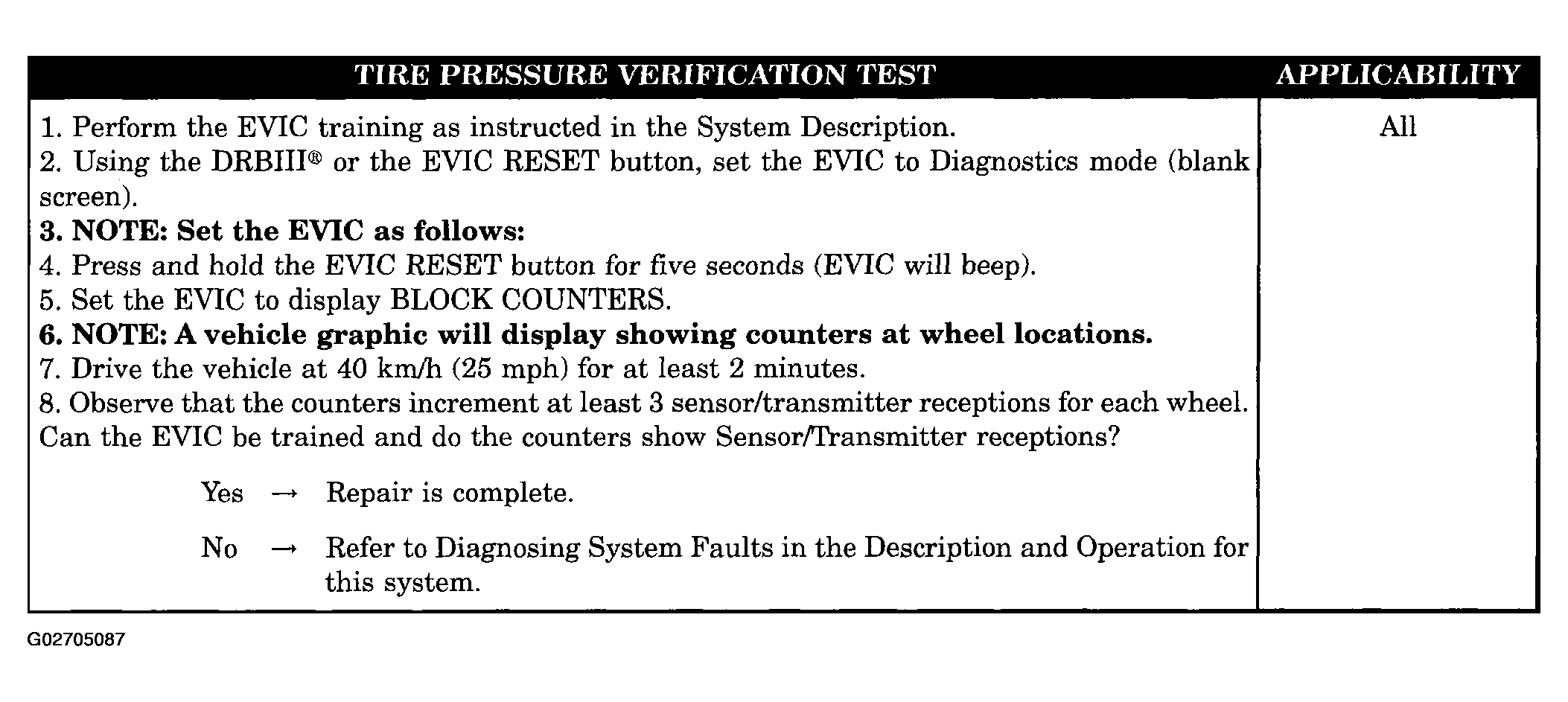

Fig 9: Tire Pressure Verification Test
G02705087Courtesy of DAIMLERCHRYSLER CORP.

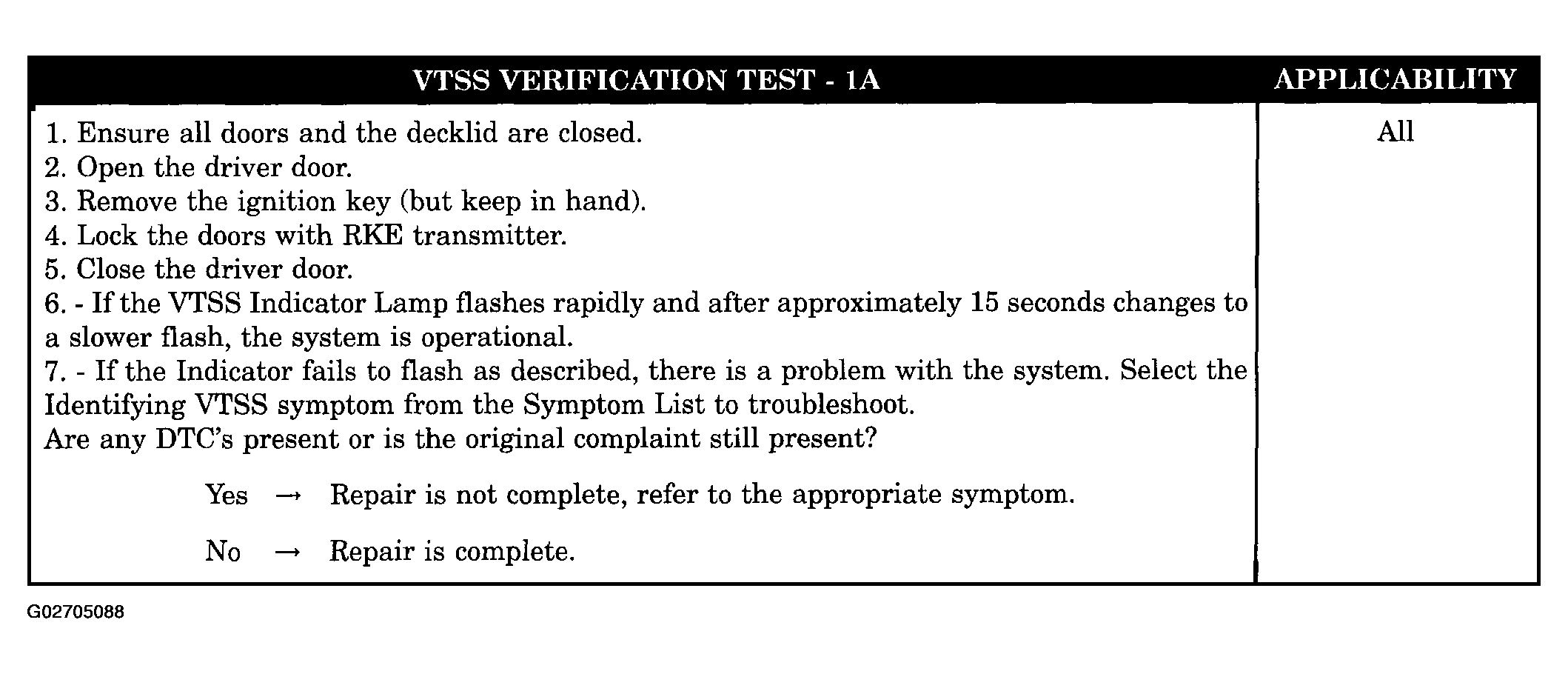

Fig 10: VTSS Verification Test - 1A
G02705088Courtesy of DAIMLERCHRYSLER CORP.
