Power Window Switch: Removal: Front

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch (Fig 1 ).

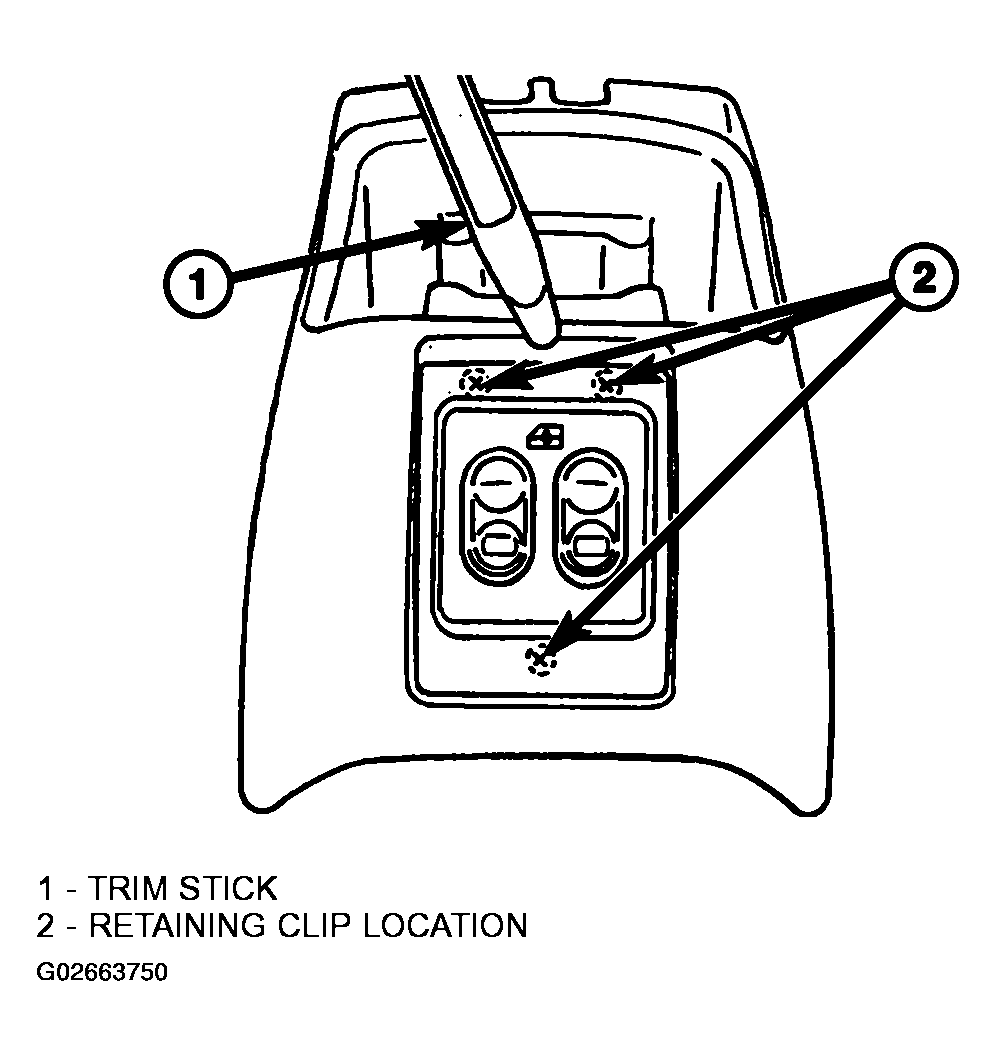

    Fig 1: Removing Window Switch (Rear Shown - Front Similar)
    G02663750Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove switch and disconnect electrical harness connector (Fig 2 ).

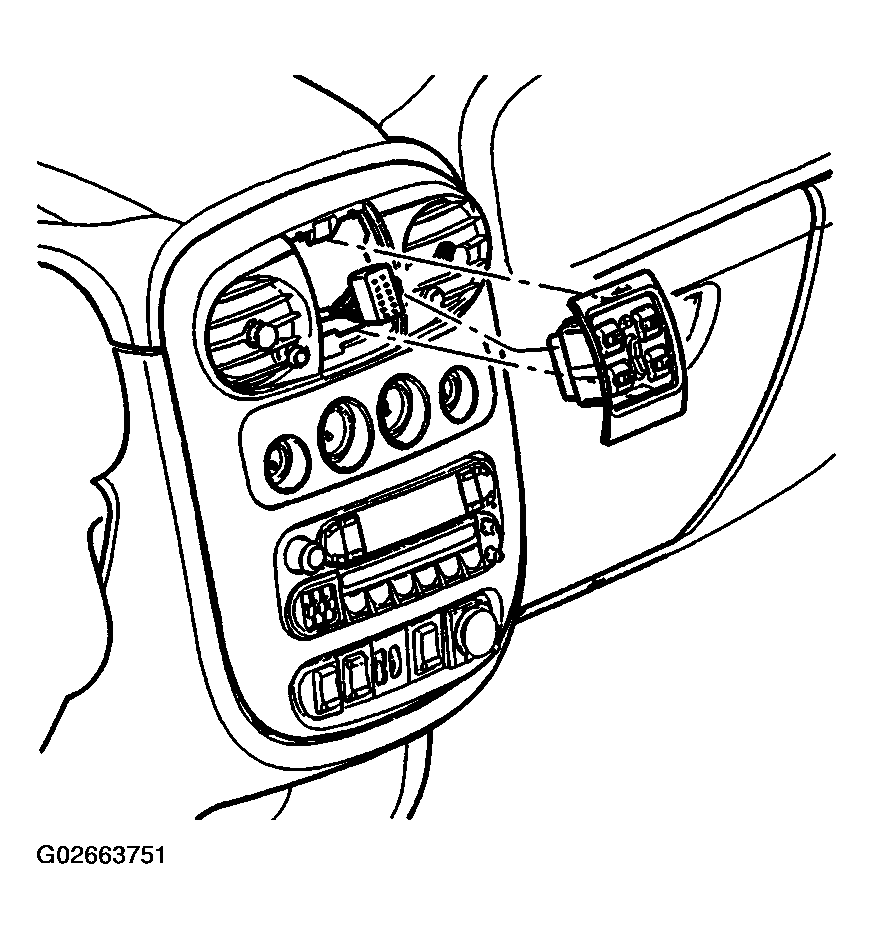

    Fig 2: Removing Front Window Switch
    G02663751Courtesy of DAIMLERCHRYSLER CORP.
