AUTOSTICK Switch Harness Connector End View

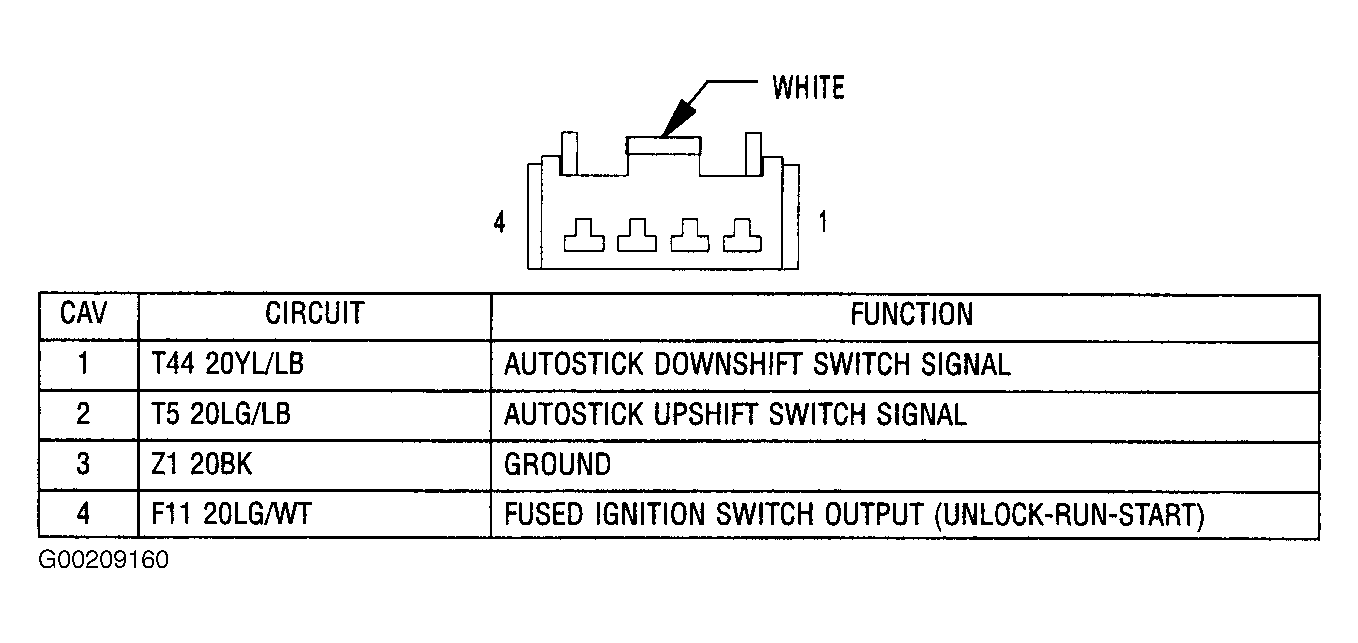

Fig 1: Identifying Autostick Switch Harness Connector Terminals
G00209160Courtesy of CHRYSLER CORP.
