Powertrain Control Module Harness Connector End View

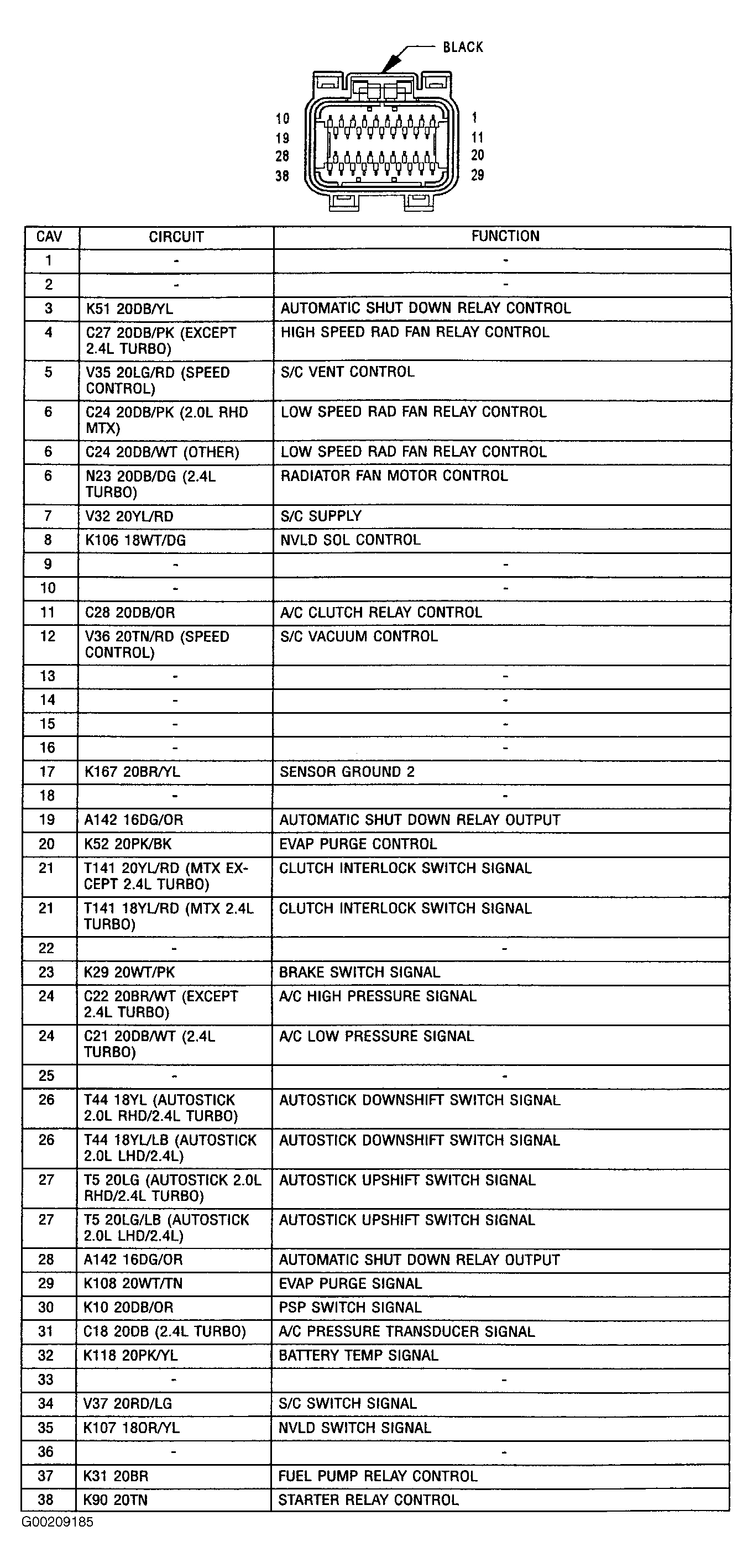

Fig 1: Identifying Powertrain Control Module Harness Connector Terminals (C1) Black

Courtesy of CHRYSLER CORP.

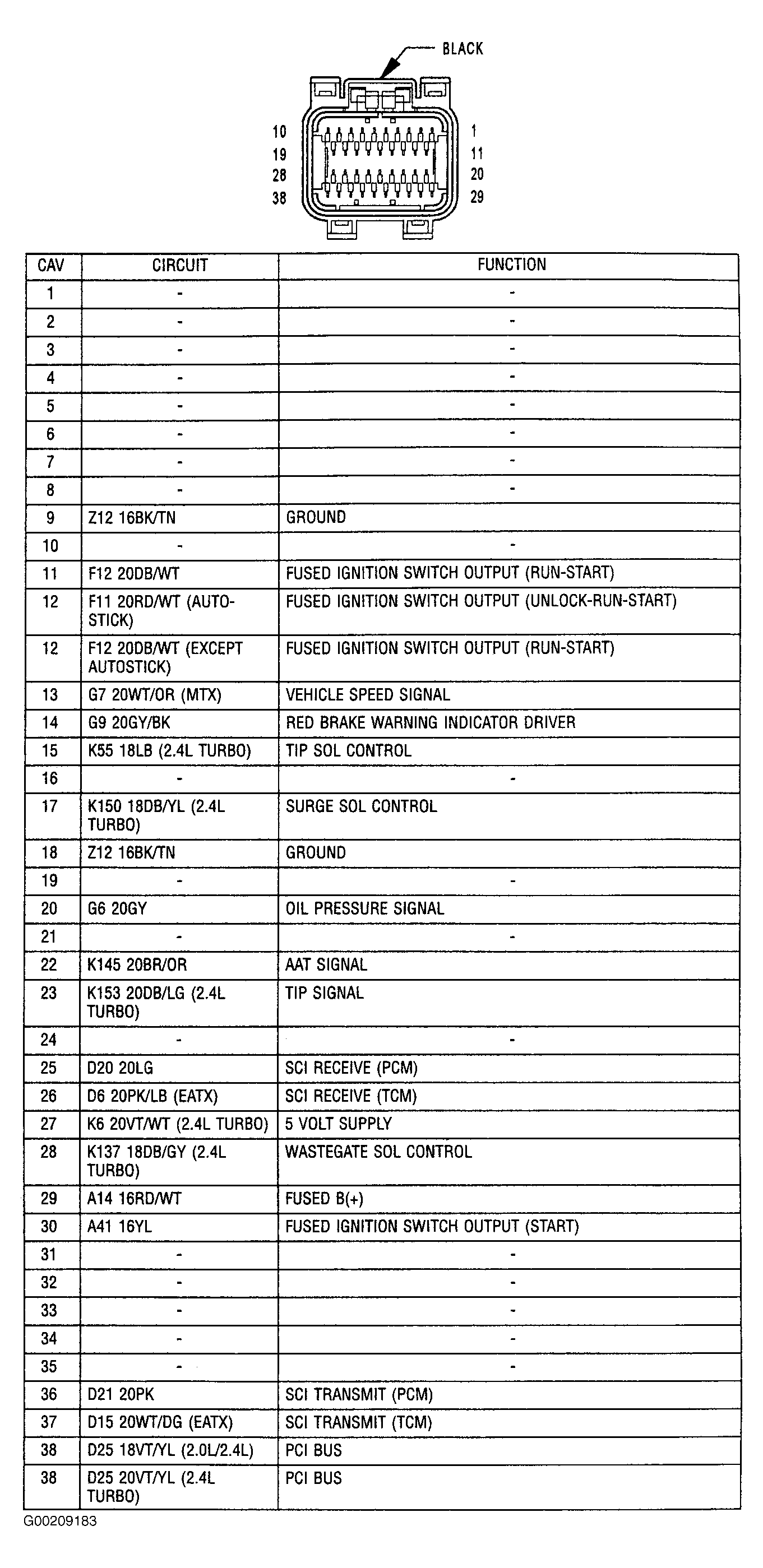

Fig 2: Identifying Powertrain Control Module Harness Connector Terminals (C2) Black

Courtesy of CHRYSLER CORP.

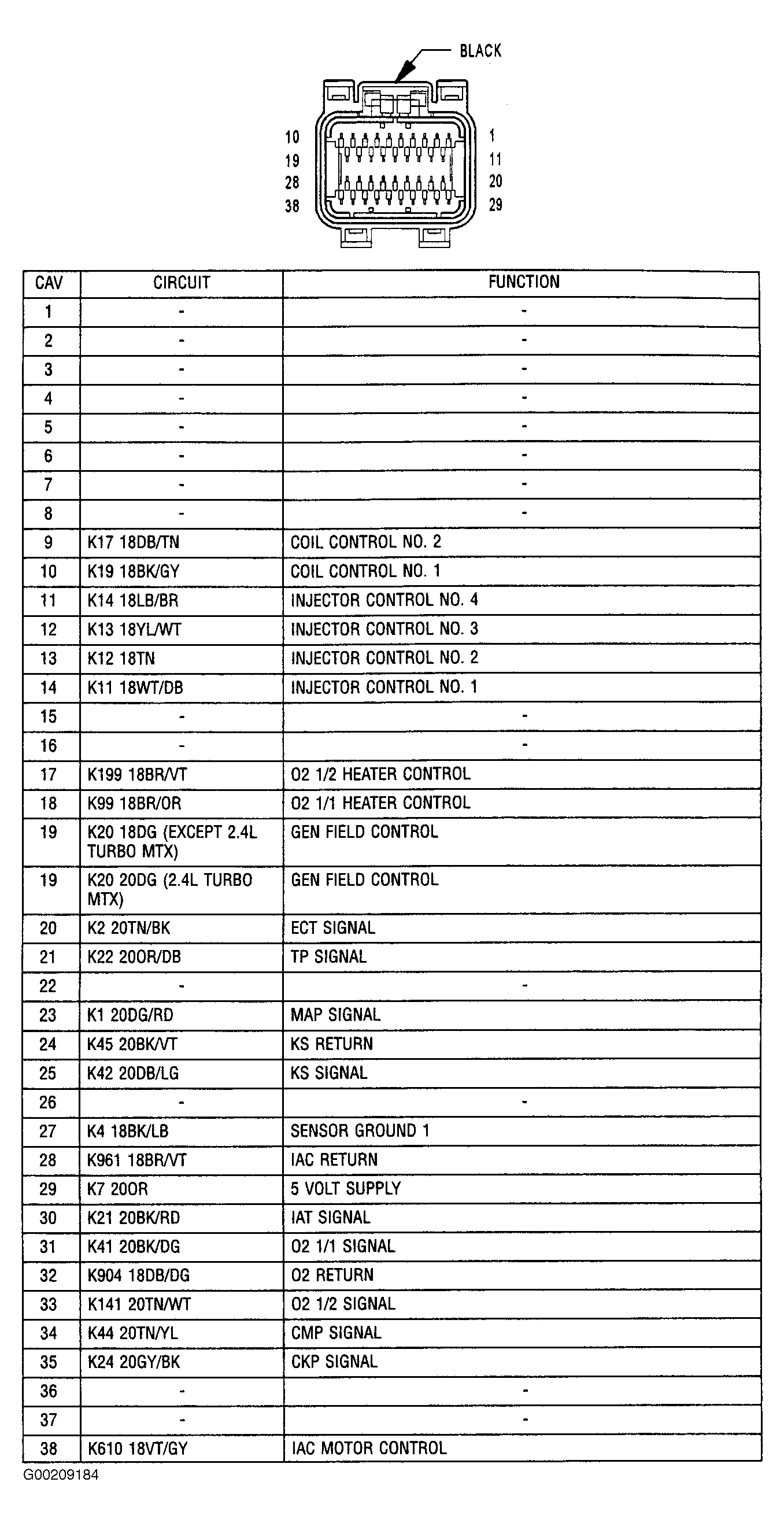

Fig 3: Identifying Powertrain Control Module Harness Connector Terminals (C3) Black

Courtesy of CHRYSLER CORP.

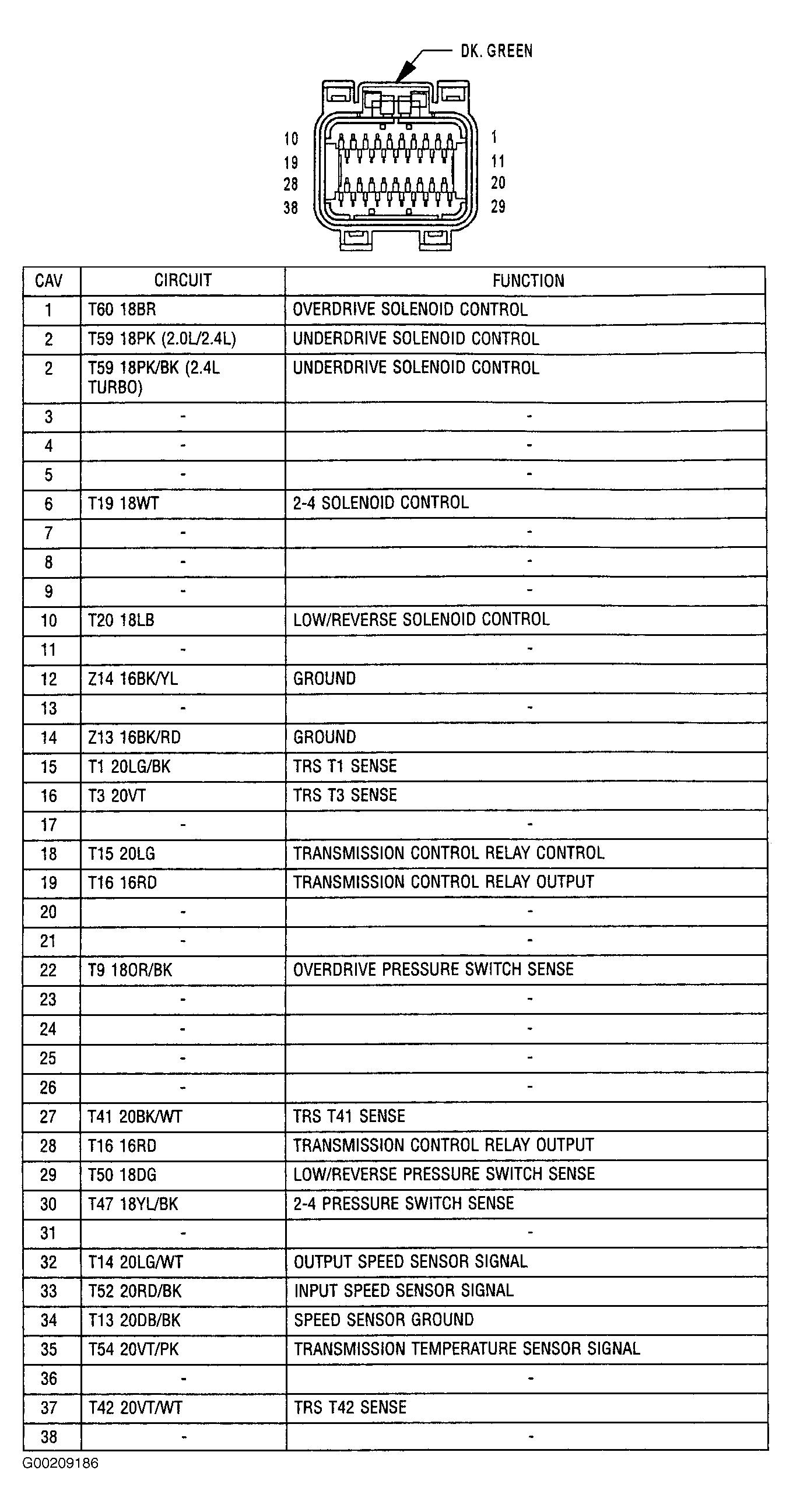

Fig 4: Identifying Powertrain Control Module Harness Connector Terminals (C4) Dark Green

Courtesy of CHRYSLER CORP.
