Speed Control Servo Harness Connector End View

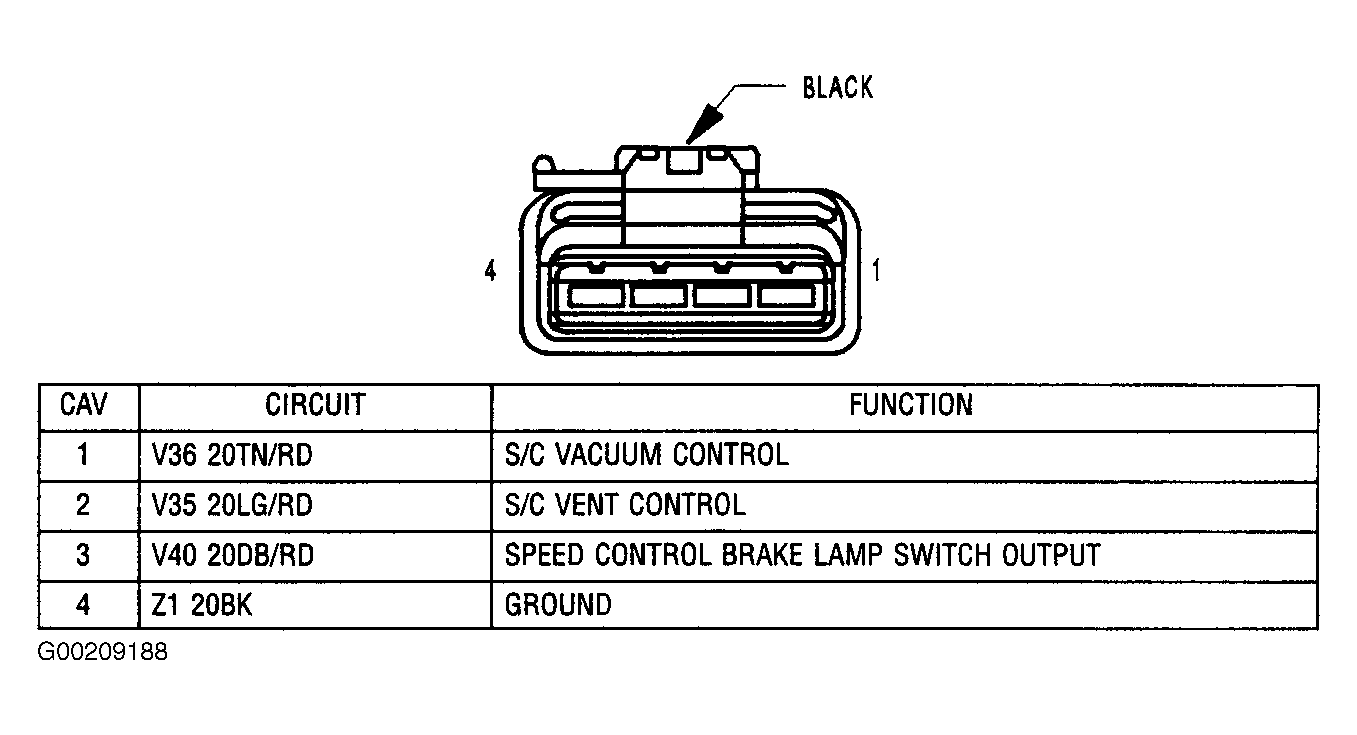

Fig 1: Identifying Speed Control Servo Harness Connector Terminals
G00209188Courtesy of CHRYSLER CORP.
