Fuel Pump Relay

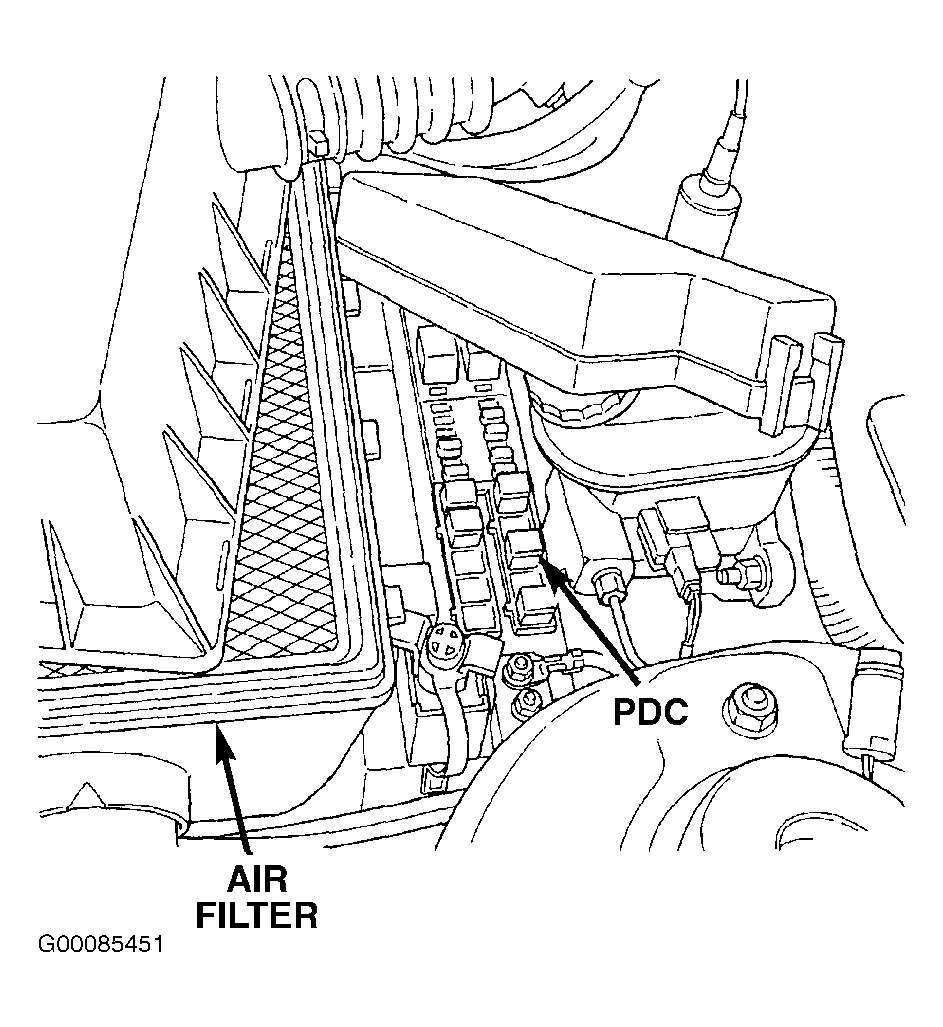

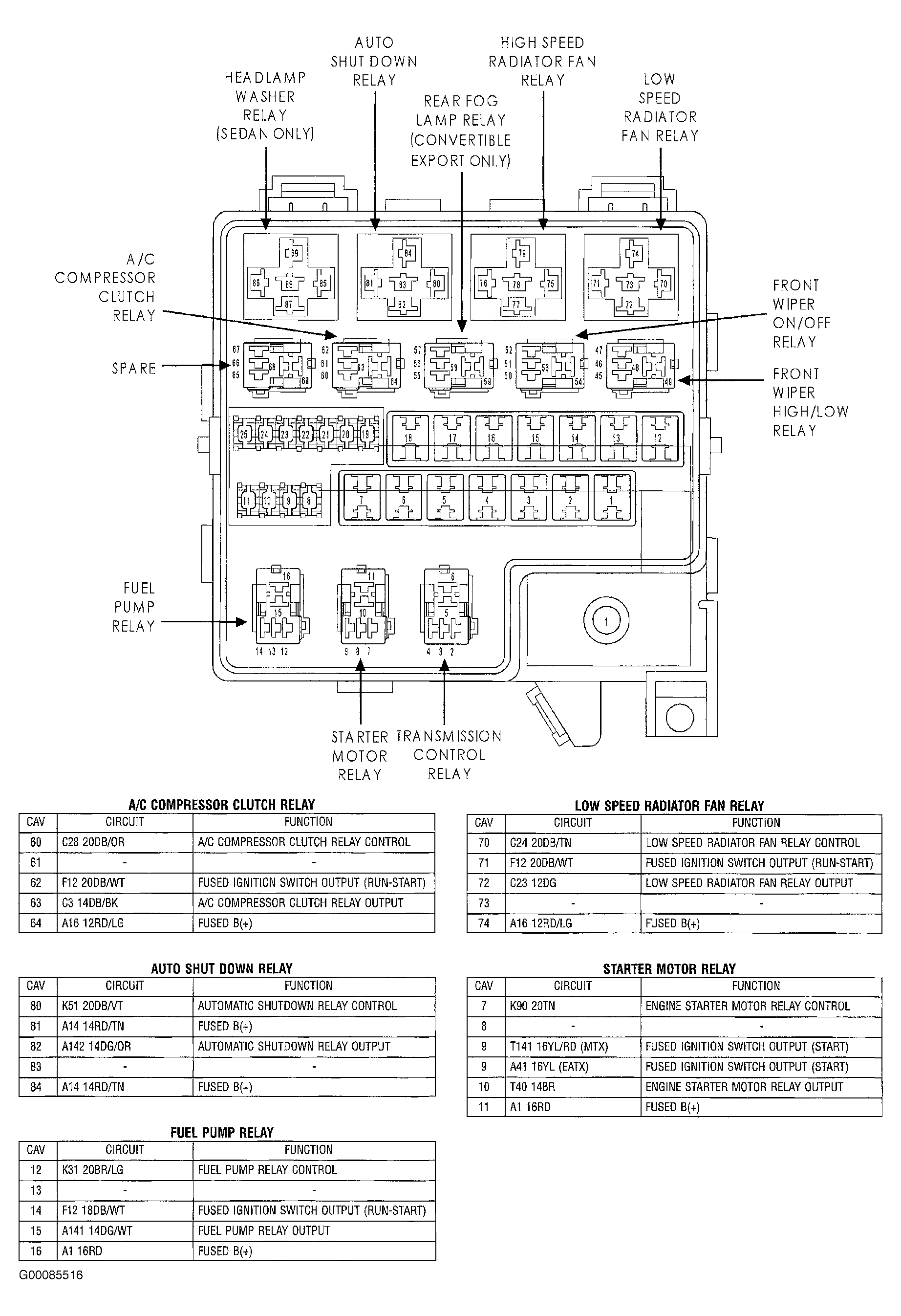

Fuel pump relay is located in Power Distribution Center (PDC). See Figure . PDC is located in engine compartment. See Figure . Individual component testing is not available from manufacturer. For fuel pump relay circuit testing, perform related diagnostic test. See DIAGNOSTIC TROUBLE CODE DEFINITIONS in SELF-DIAGNOSTICS - PT CRUISER article.
