Camshaft Position Sensor Harness Connector End View

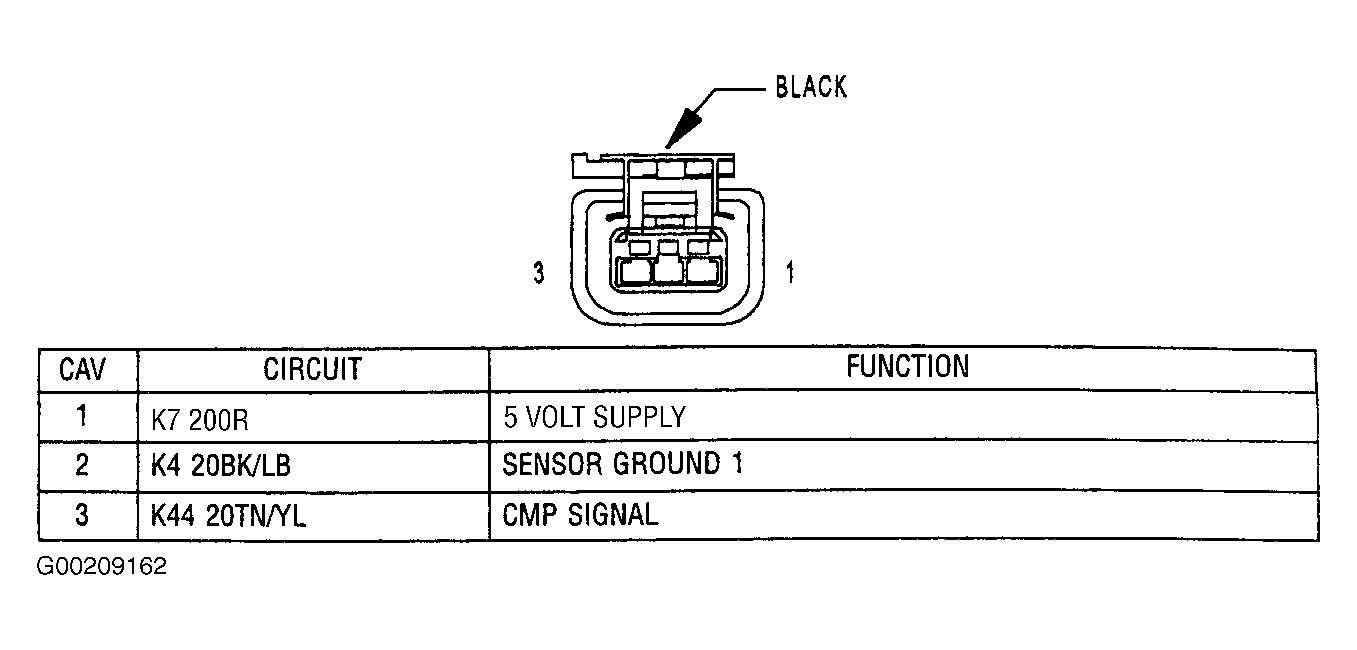

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals
G00209162Courtesy of CHRYSLER CORP.
