PCI Bus Communication Failure Diagnostic Procedure

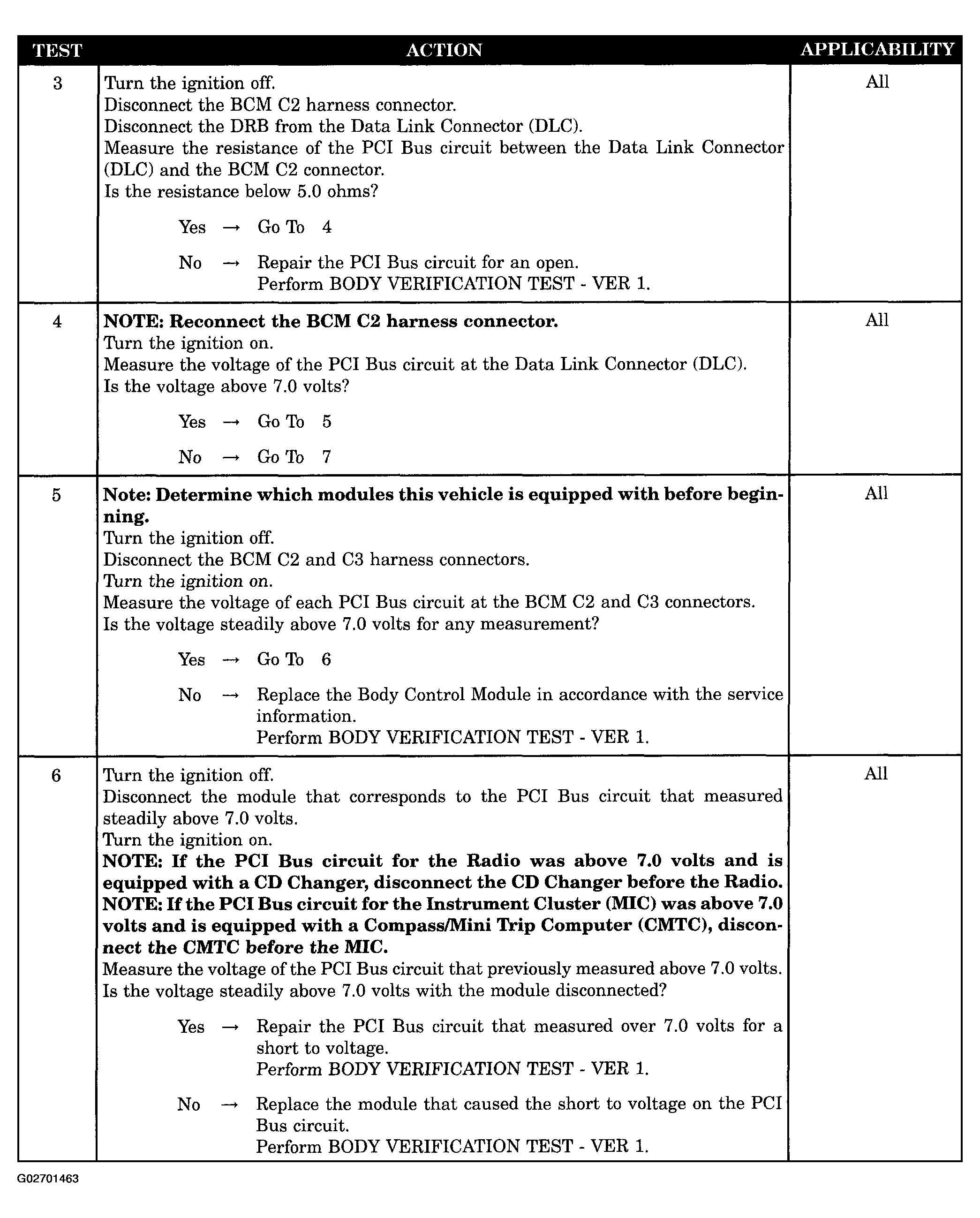

Fig 1: PCI Bus Communication Failure Diagnostic Procedure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

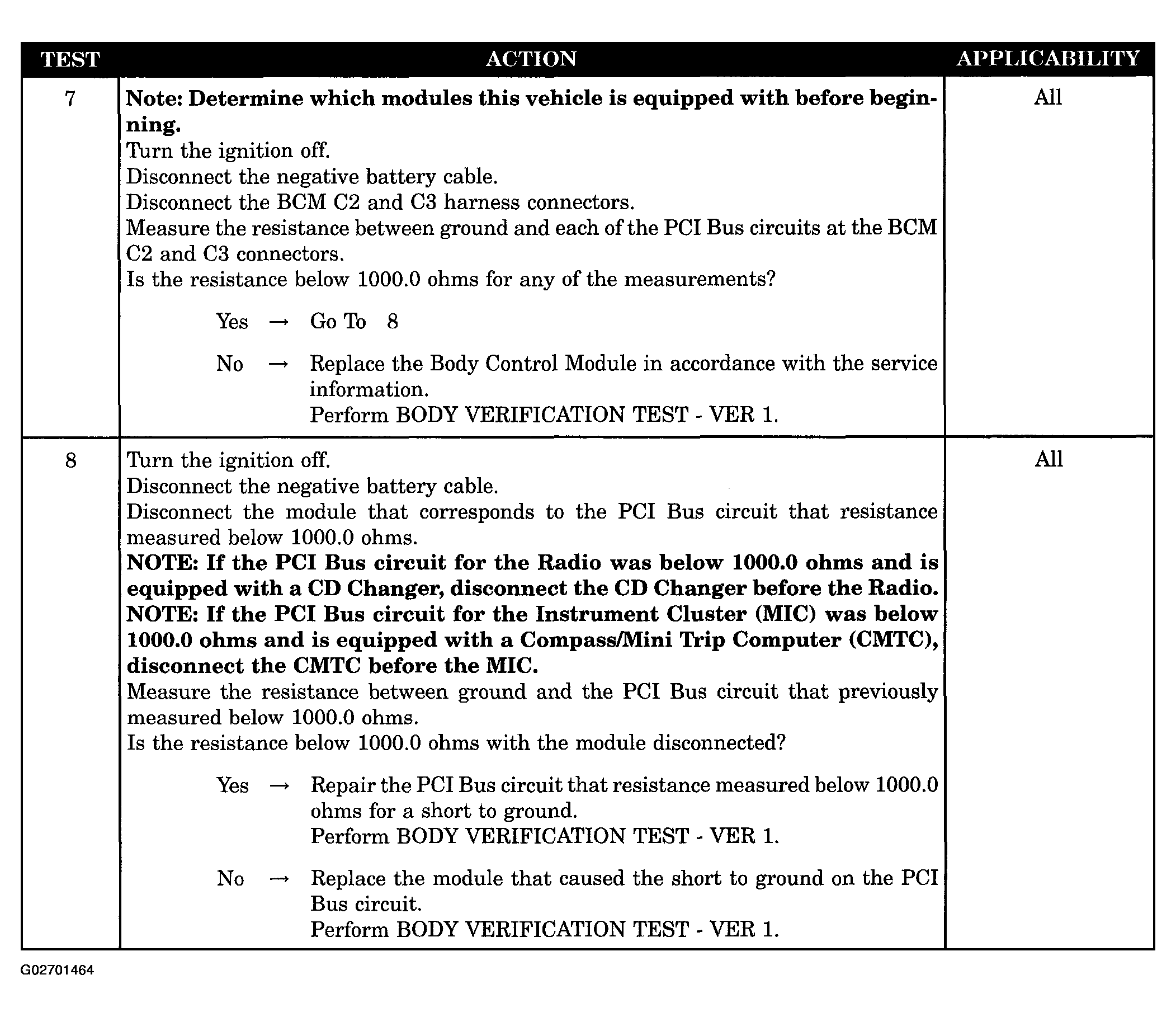

Fig 2: PCI Bus Communication Failure Diagnostic Procedure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

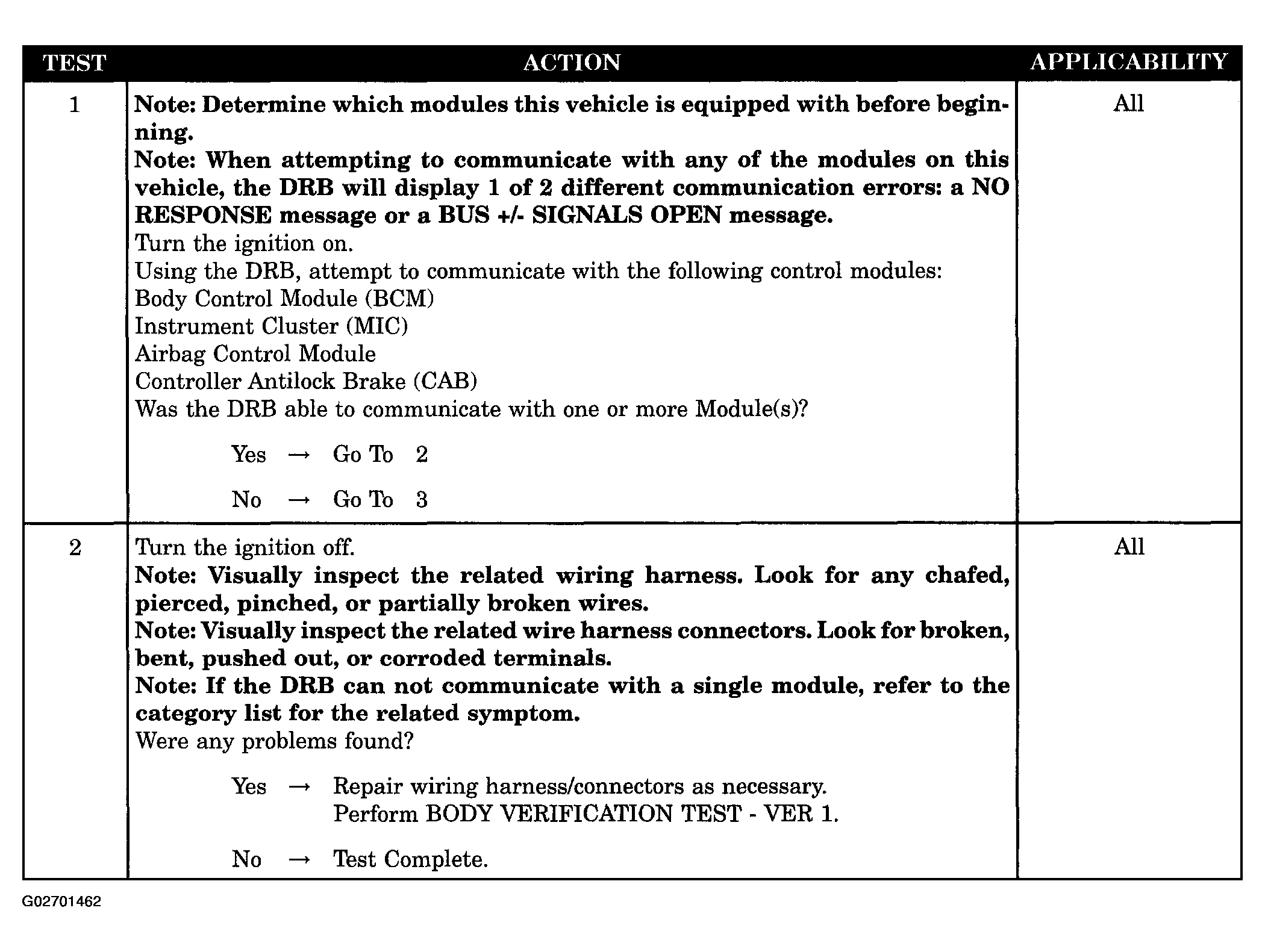

Fig 3: PCI Bus Communication Failure Diagnostic Procedure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
