Oxygen Sensor 2/2 Left Bank Down

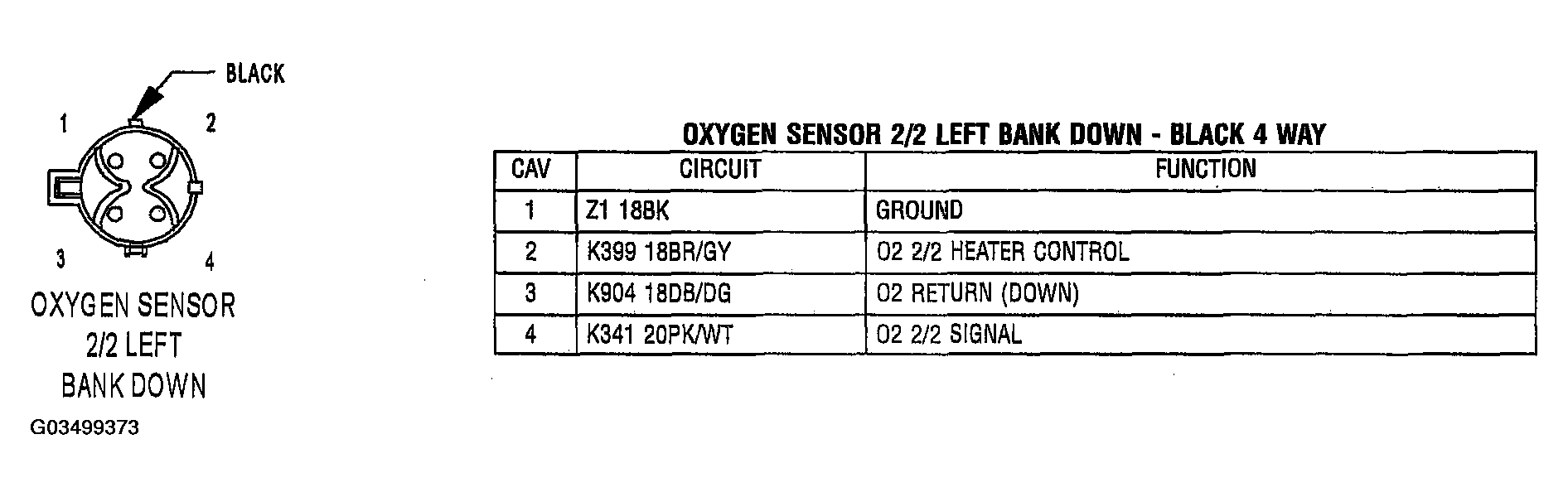

Fig 1: Identifying Oxygen Sensor 2/2 Left Bank Down Sensor Connector
G03499373Courtesy of DAIMLERCHRYSLER CORP.
