Powertrain Control Module C2

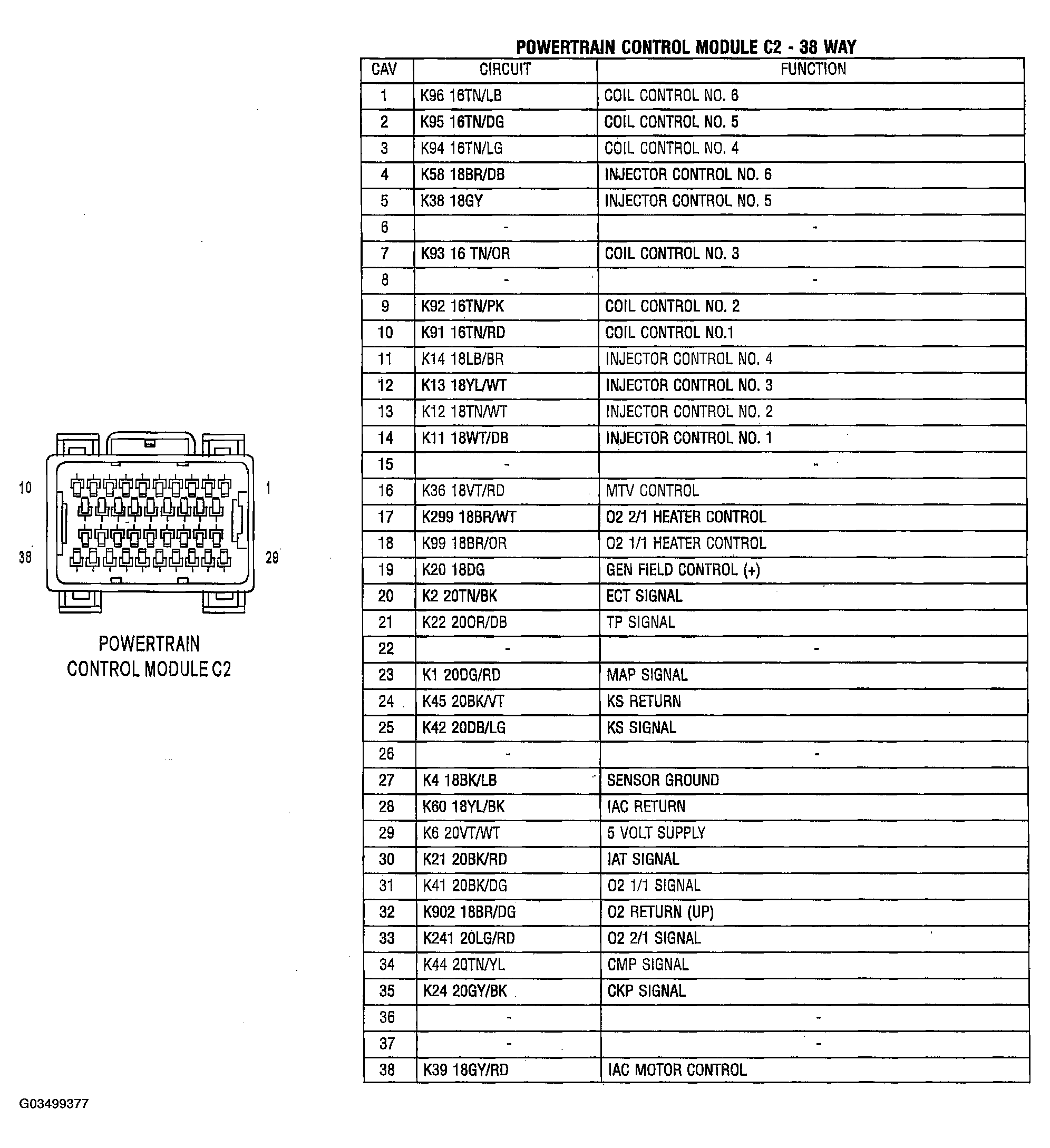

Fig 1: Identifying Powertrain Control Module C2 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
