Verification Tests

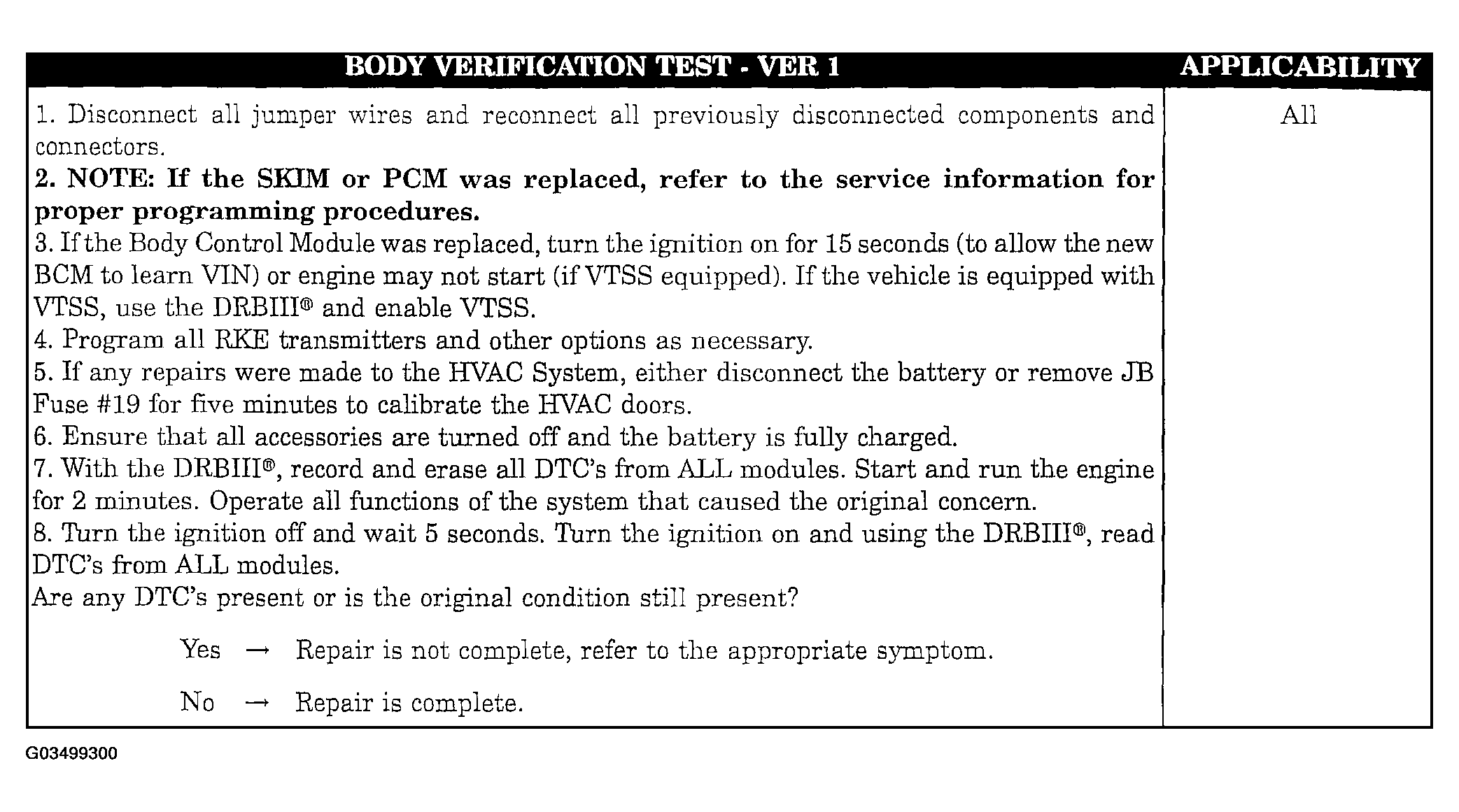

Fig 1: Body Verification Test - VER 1
G03499300Courtesy of DAIMLERCHRYSLER CORP.

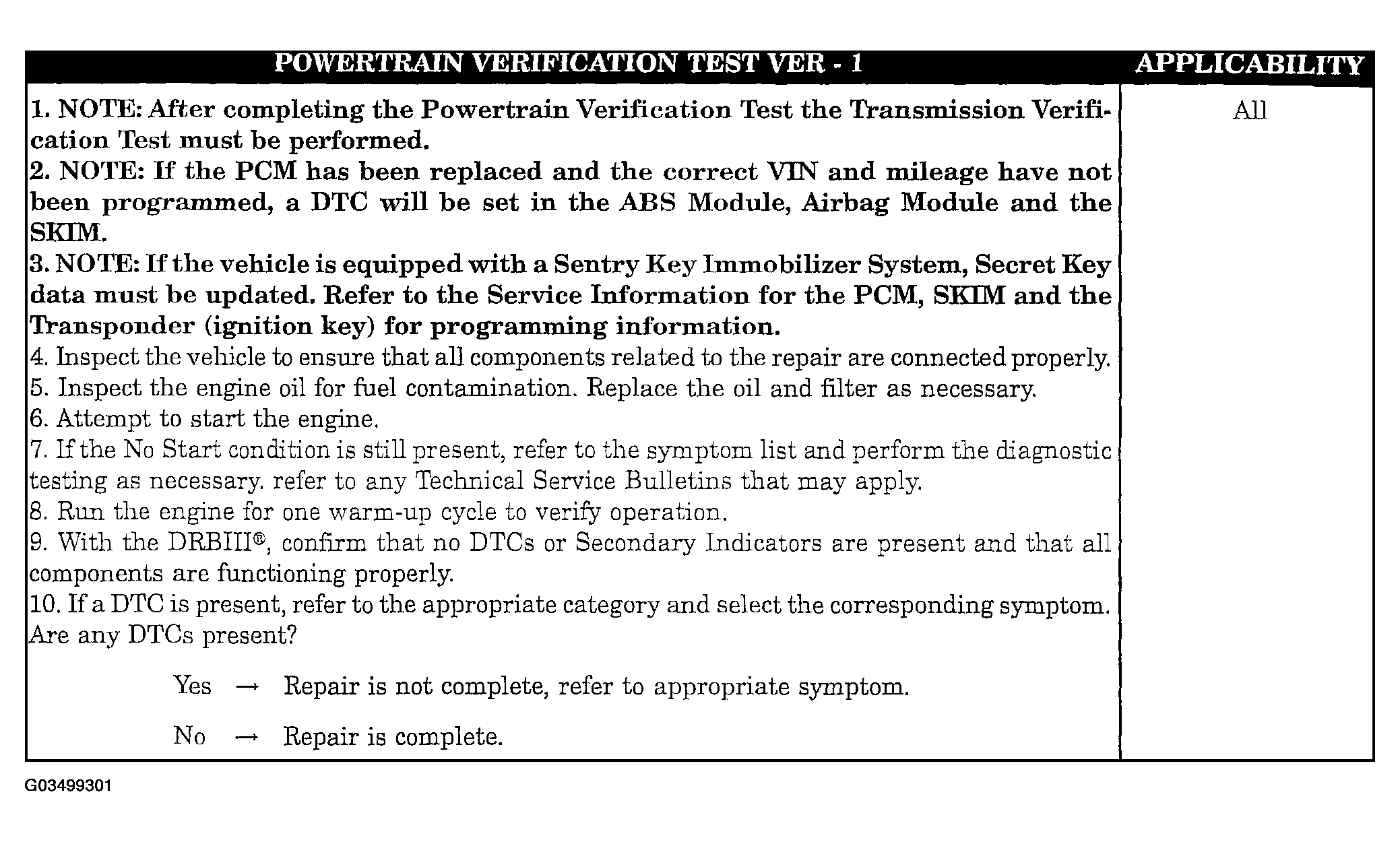

Fig 2: Powertrain Verification Test - VER-1 (1 Of 2)
G03499301Courtesy of DAIMLERCHRYSLER CORP.

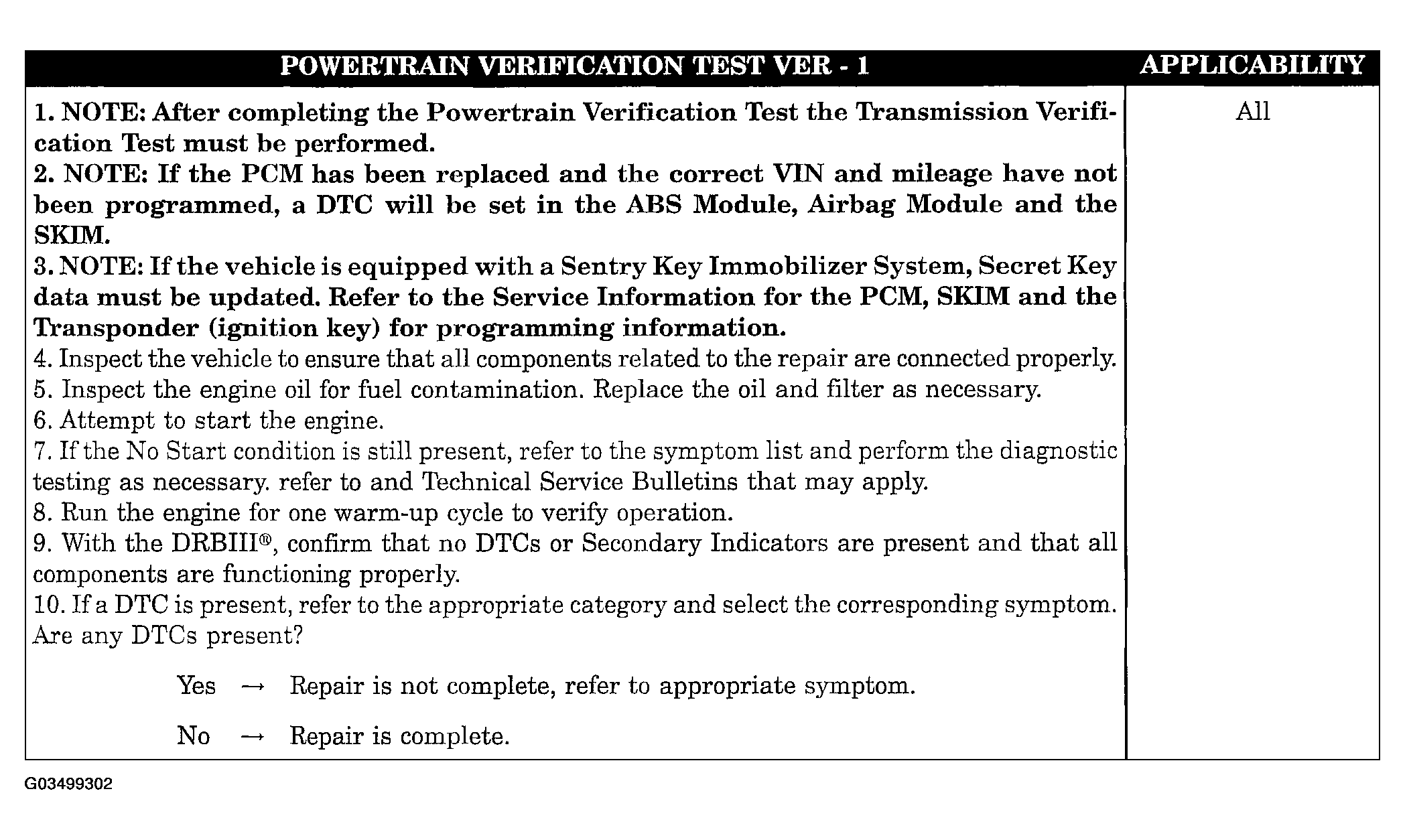

Fig 3: Powertrain Verification Test - VER-1 (2 Of 2)
G03499302Courtesy of DAIMLERCHRYSLER CORP.

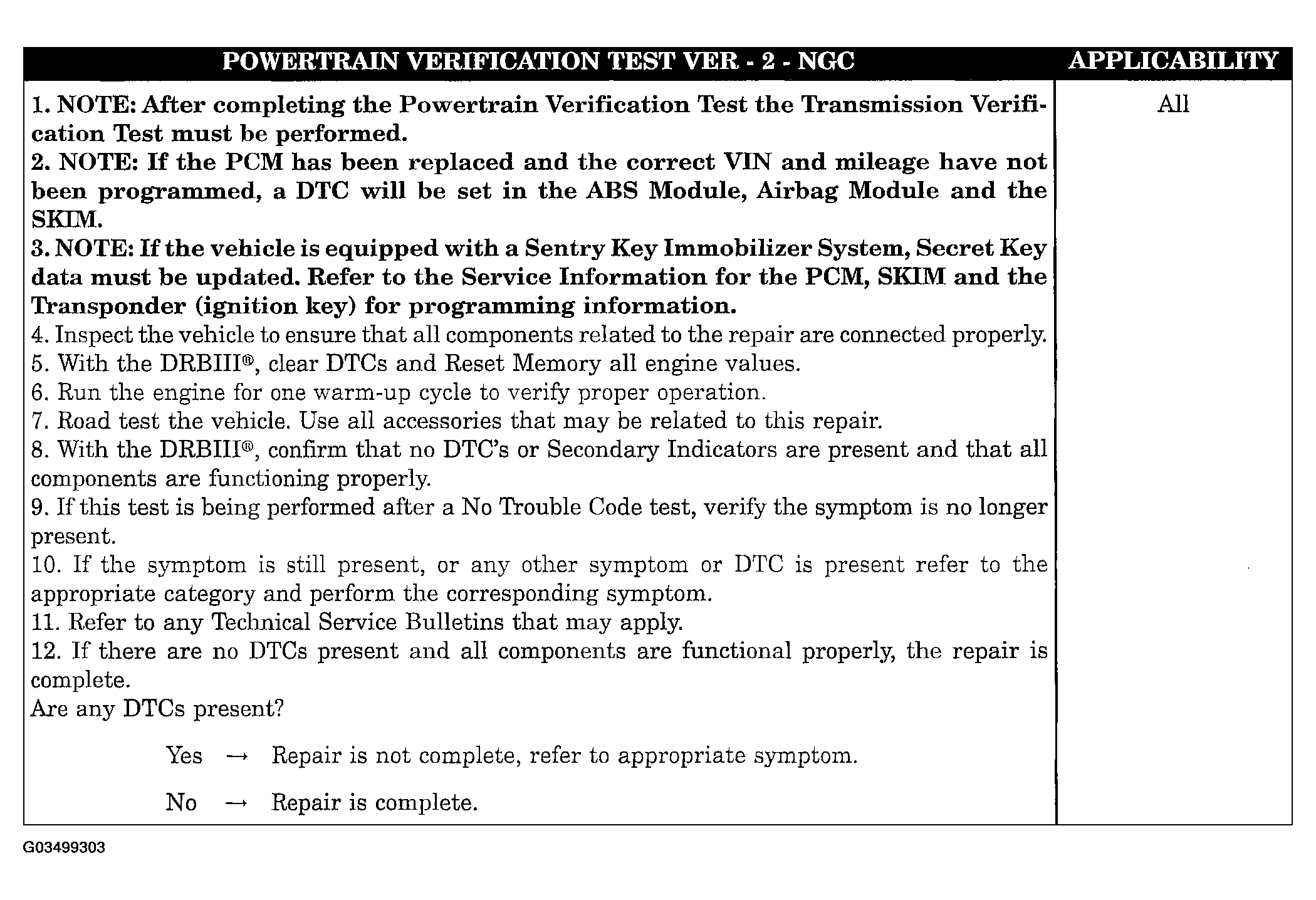

Fig 4: Powertrain Verification Test - VER-2-NGC
G03499303Courtesy of DAIMLERCHRYSLER CORP.

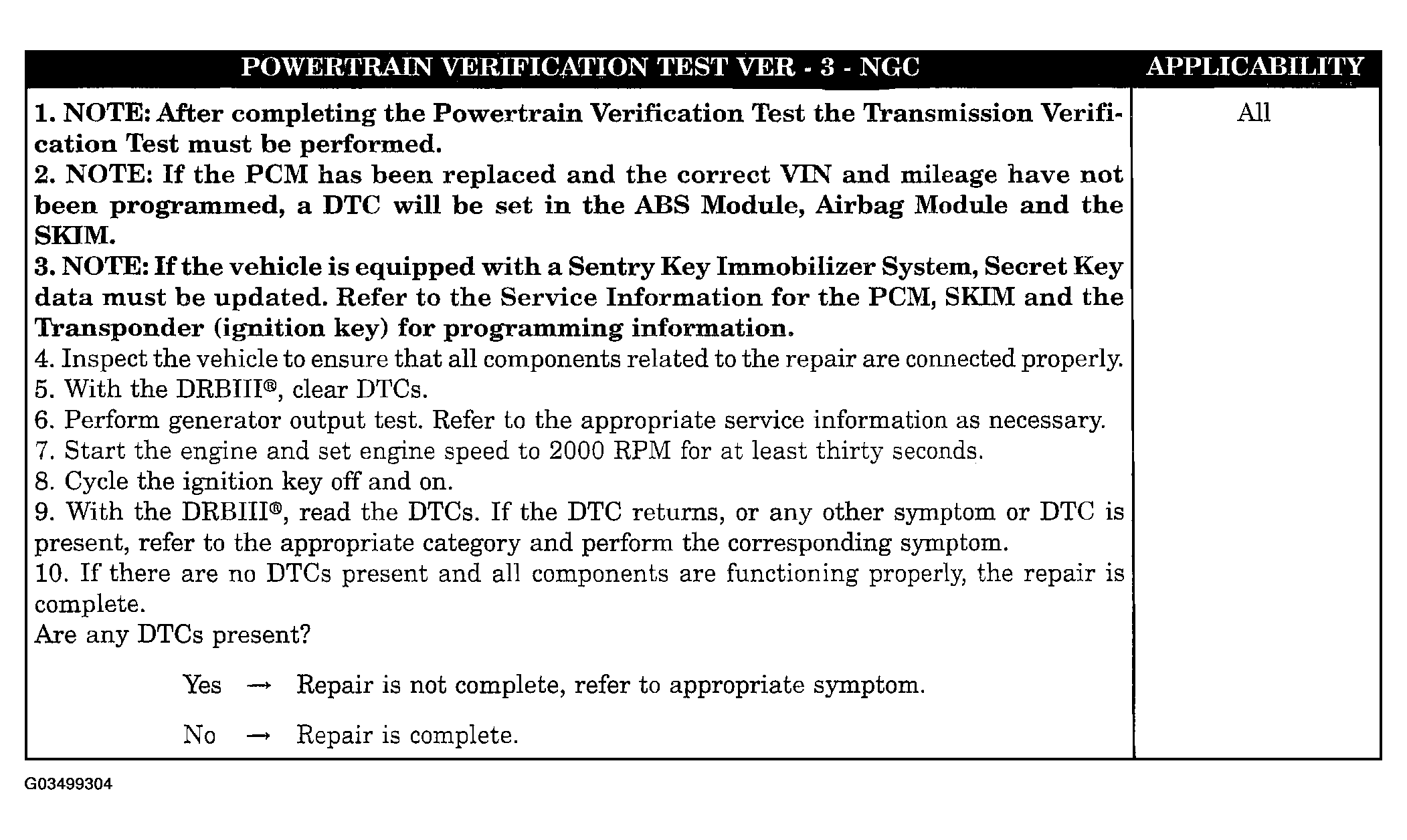

Fig 5: Powertrain Verification Test - VER-3-NGC
G03499304Courtesy of DAIMLERCHRYSLER CORP.

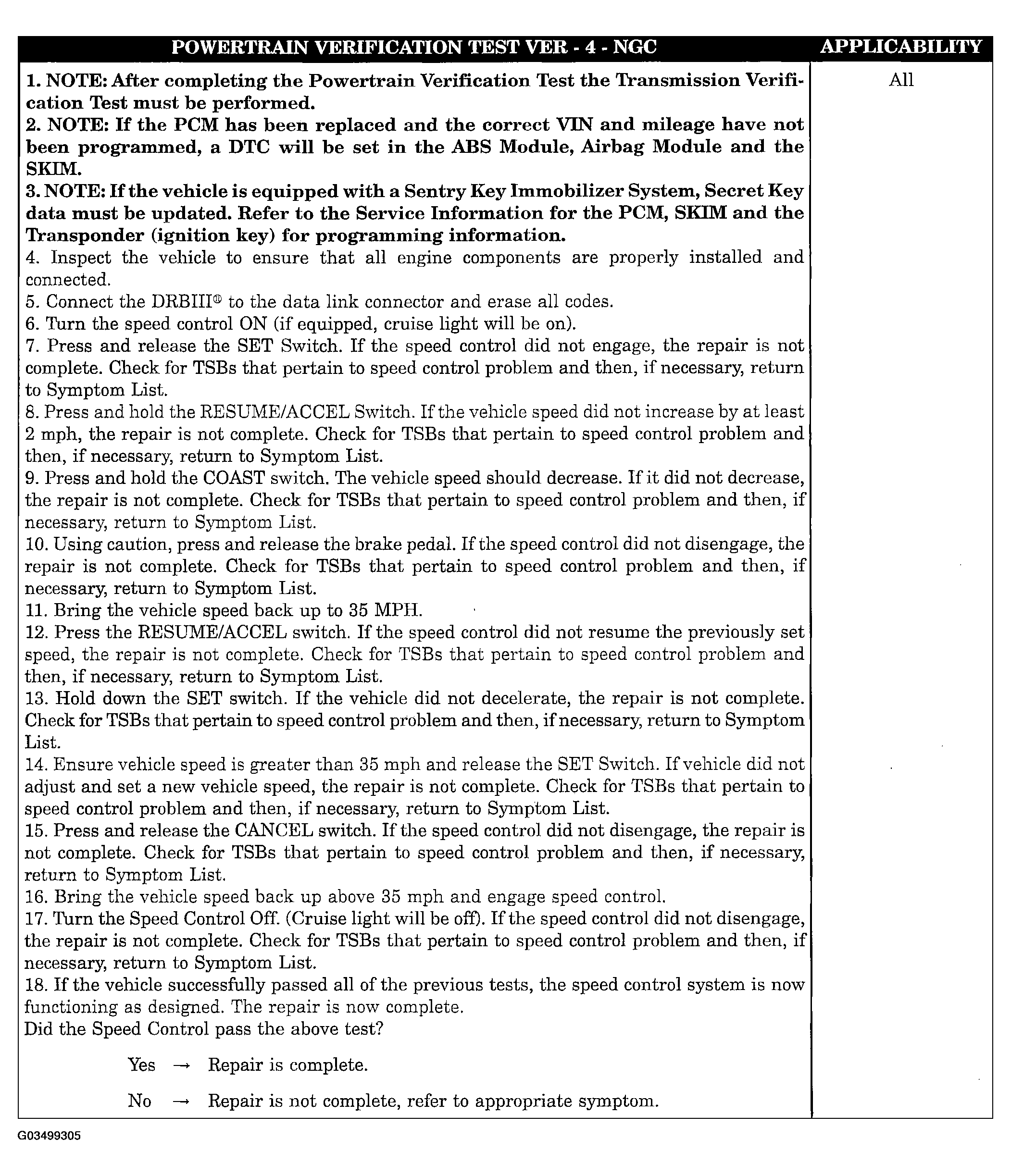

Fig 6: Powertrain Verification Test - VER-4-NGC
G03499305Courtesy of DAIMLERCHRYSLER CORP.

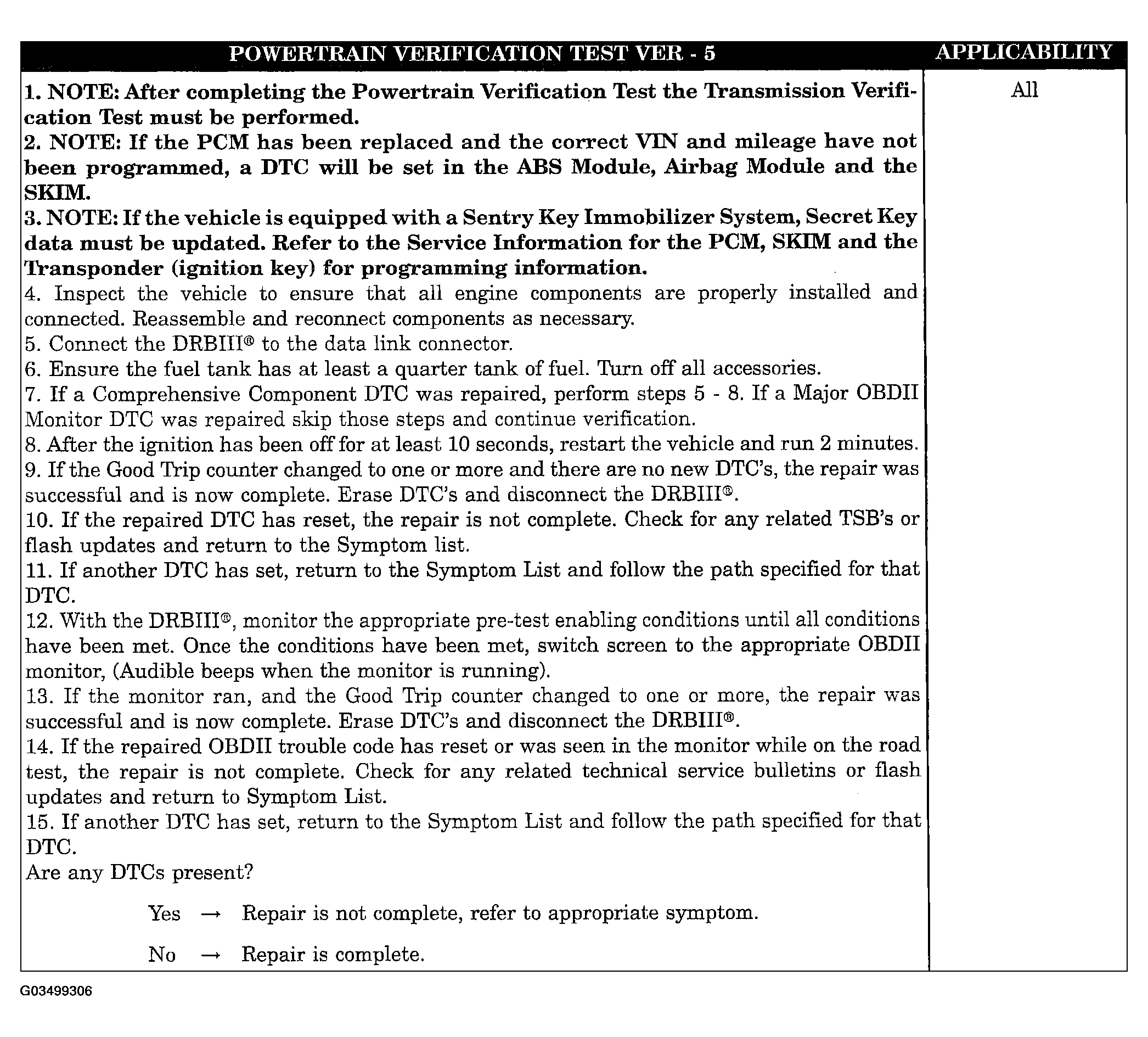

Fig 7: Powertrain Verification Test - VER-5
G03499306Courtesy of DAIMLERCHRYSLER CORP.

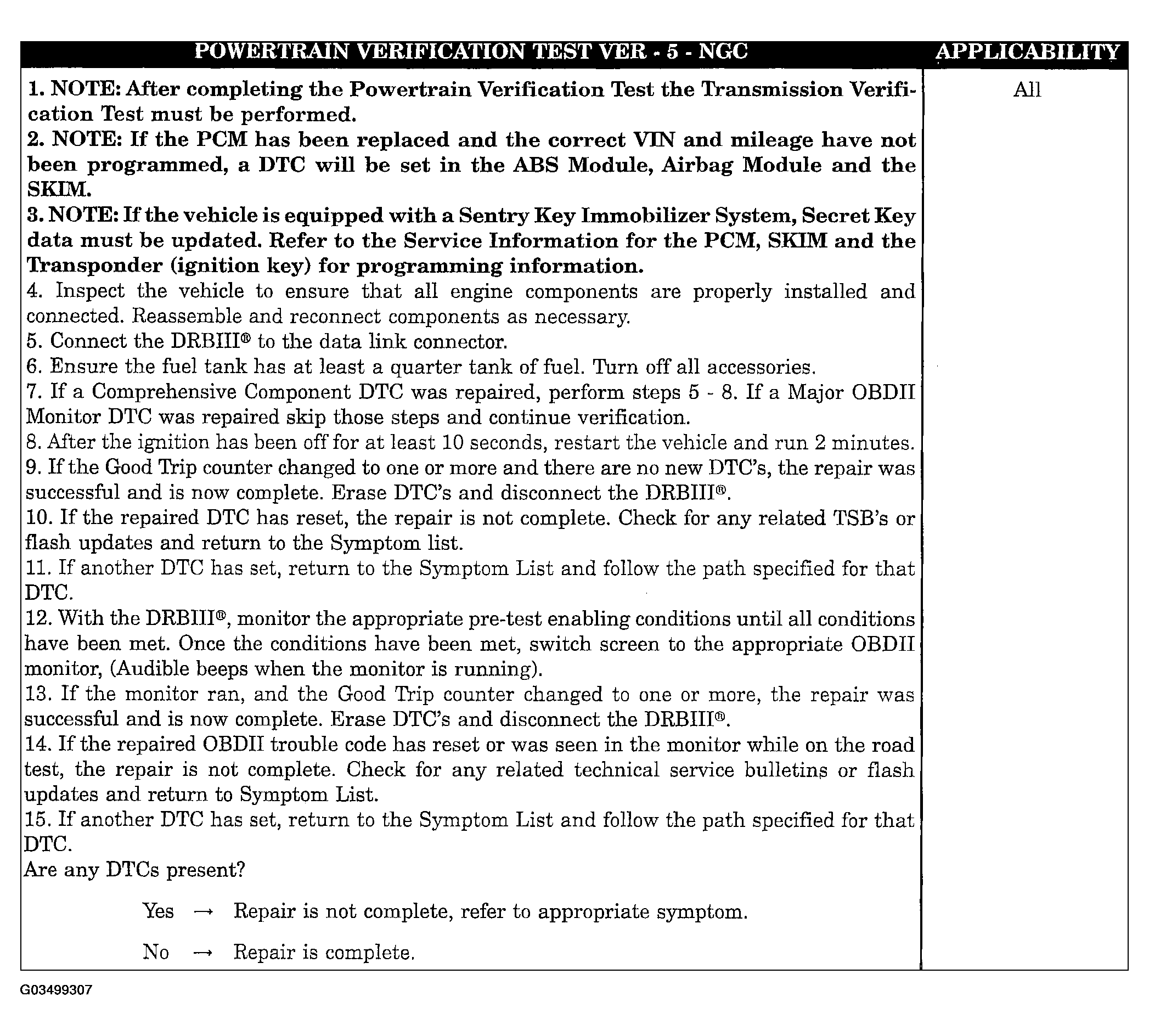

Fig 8: Powertrain Verification Test - VER-5-NGC
G03499307Courtesy of DAIMLERCHRYSLER CORP.

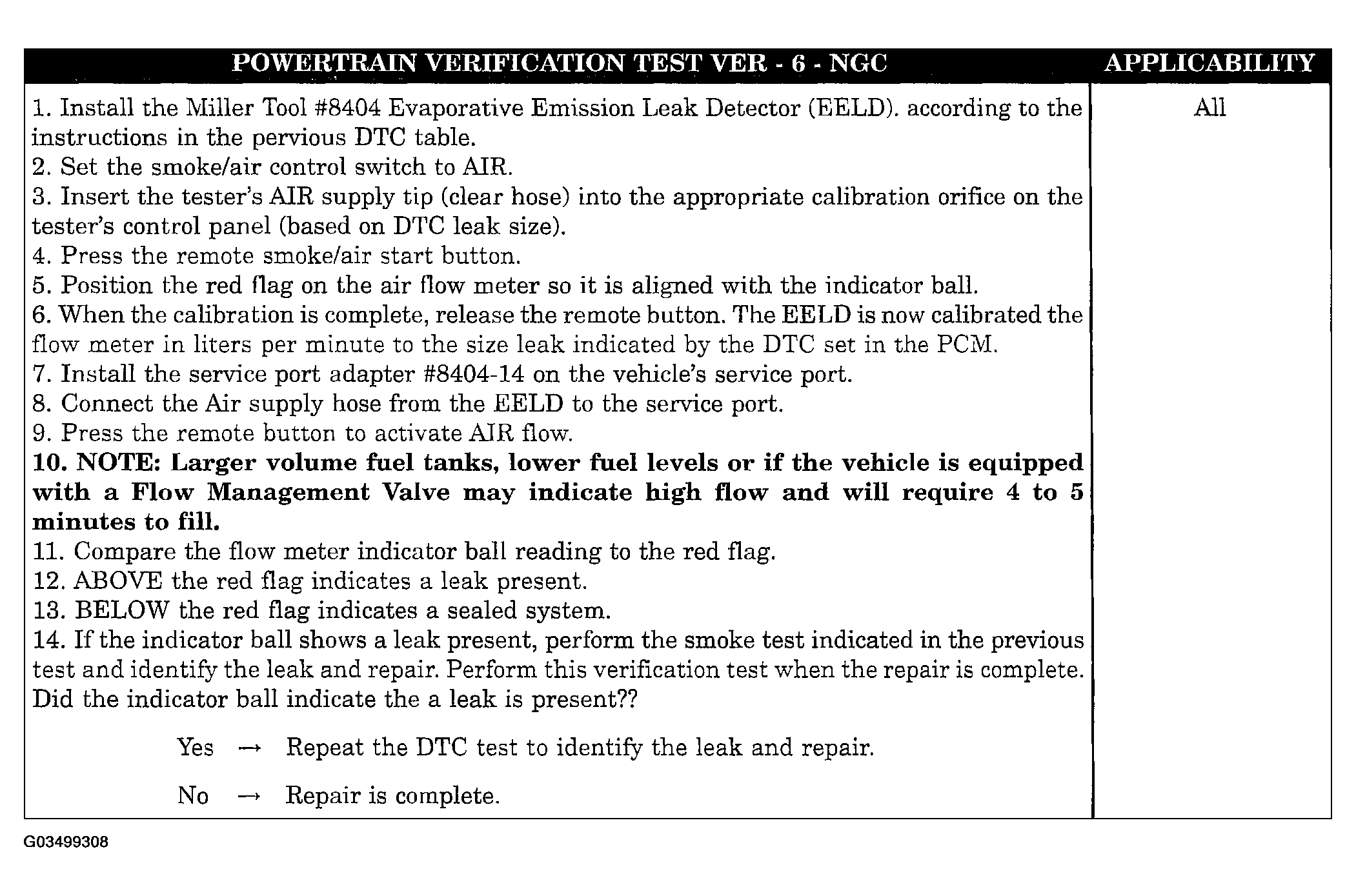

Fig 9: Powertrain Verification Test - VER-6-NGC
G03499308Courtesy of DAIMLERCHRYSLER CORP.

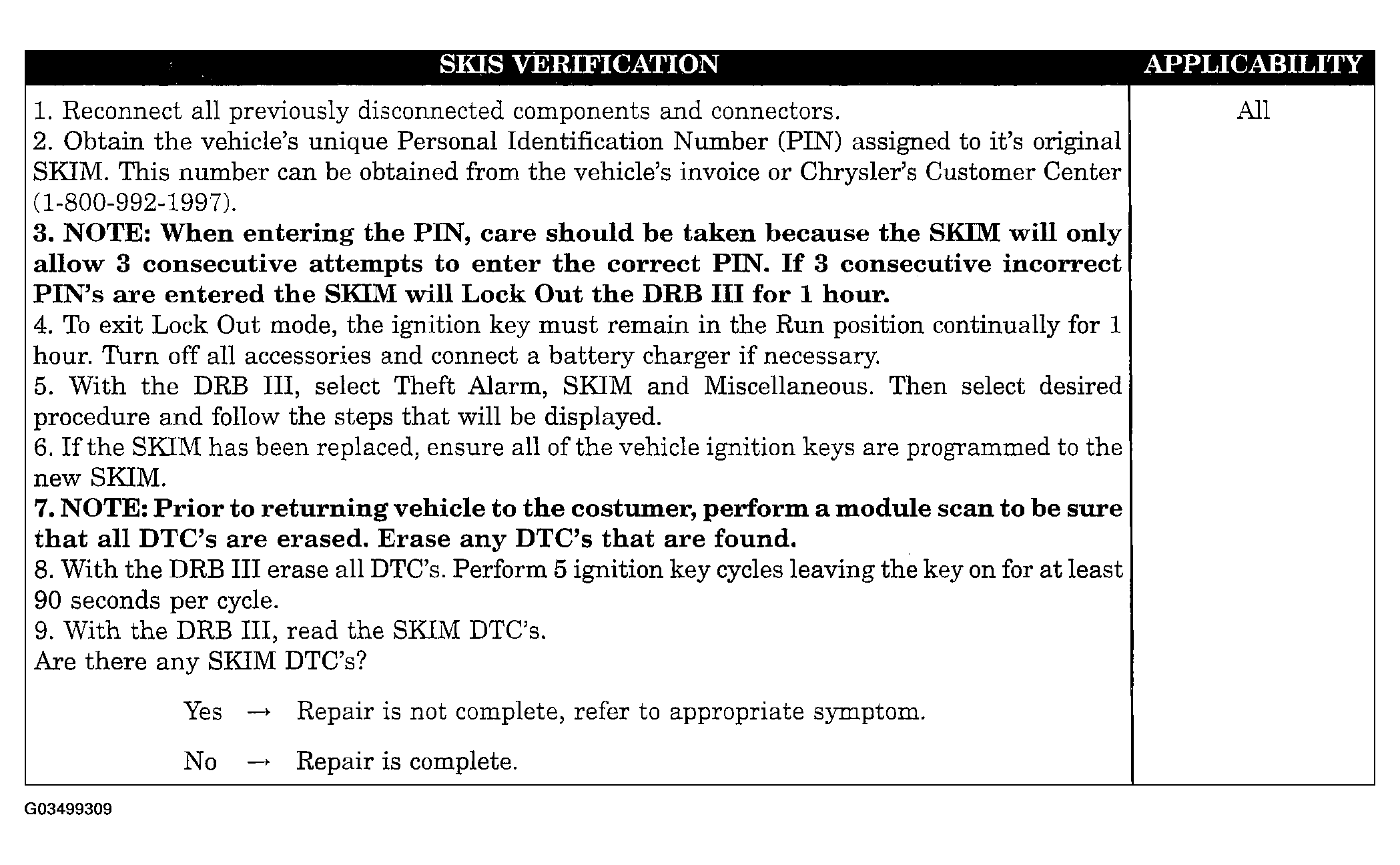

Fig 10: Skis Verification Test
G03499309Courtesy of DAIMLERCHRYSLER CORP.
