Power Window Switch: Removal

WARNING: SEE AIR BAG RESTRAINT SYSTEMS ARTICLE BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect the negative battery cable.
  2. Remove the shifter cover trim panel. See BODY article.
  3. Disconnect the power window switch harness connector (1).

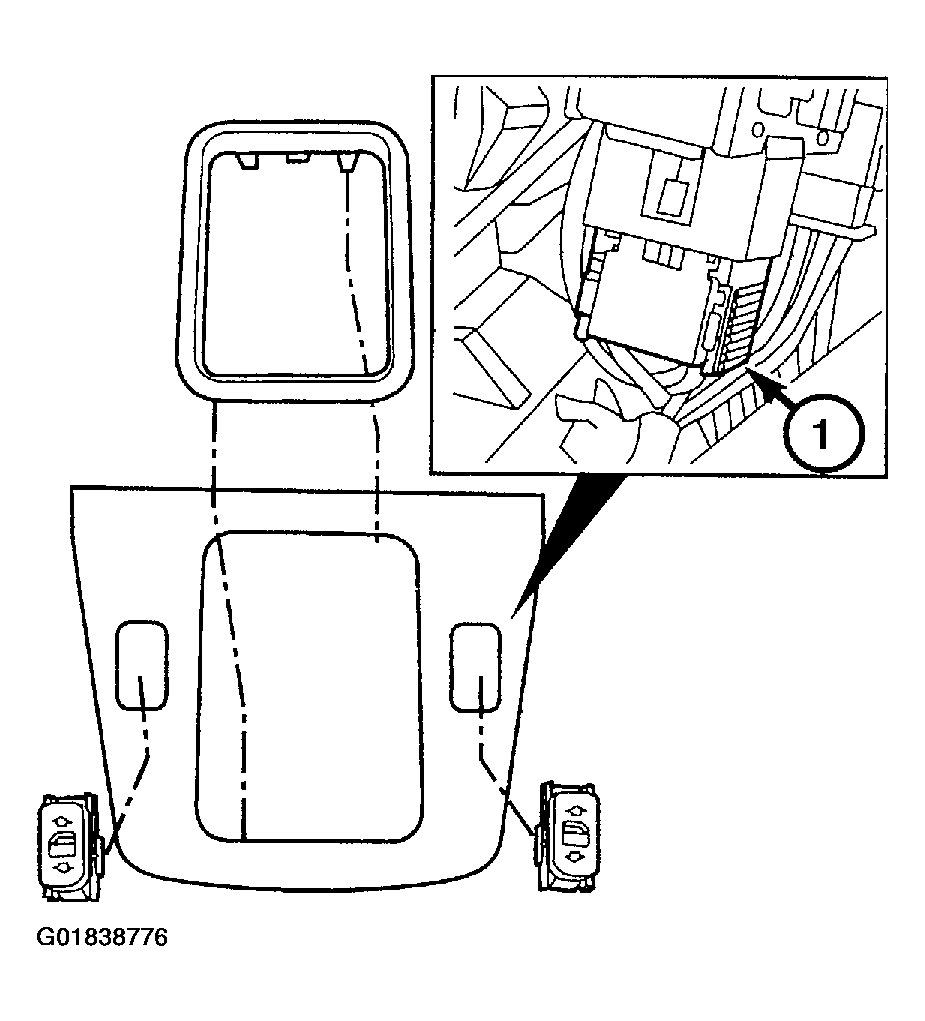

    Fig 1: Removing Power Window Switch
    G01838776Courtesy of DAIMLERCHRYSLER CORP.
  4. Squeeze the clips together and remove the power window switch from the shifter cover trim panel.
