Window Motor: Installation

NOTE: Ensure the original mounting hole pattern is used when installing the power window motor.
NOTE: Before installing, lightly grease the gear on the power window motor.
  1. Position the power window motor into the door.
  2. Install the power window motor attachment rivets (2).

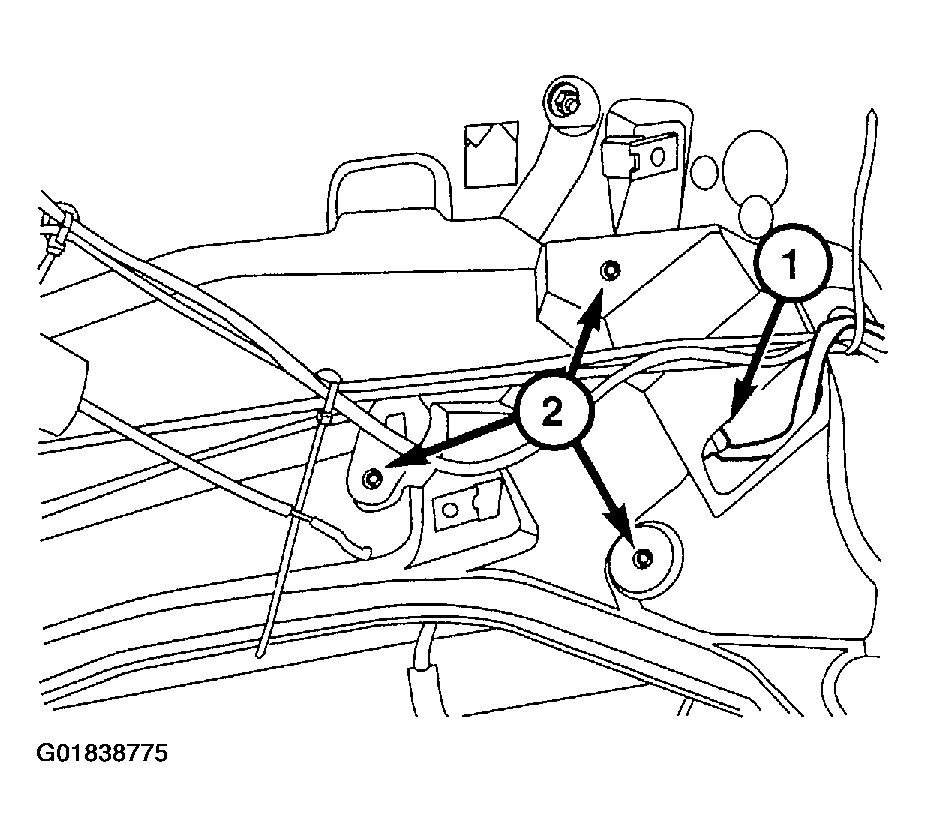

    Fig 1: Installing Power Window Motor
    G01838775Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the power window motor harness connector (1).
  4. Install the door watershield.
  5. Install the door interior trim panel. See BODY article.
  6. Connect the negative battery cable.
