Engine Fuse Block: Installation

  1. Install the engine fuse onto the studs.
  2. Install the plate and the electrical lead to the engine fuse block.

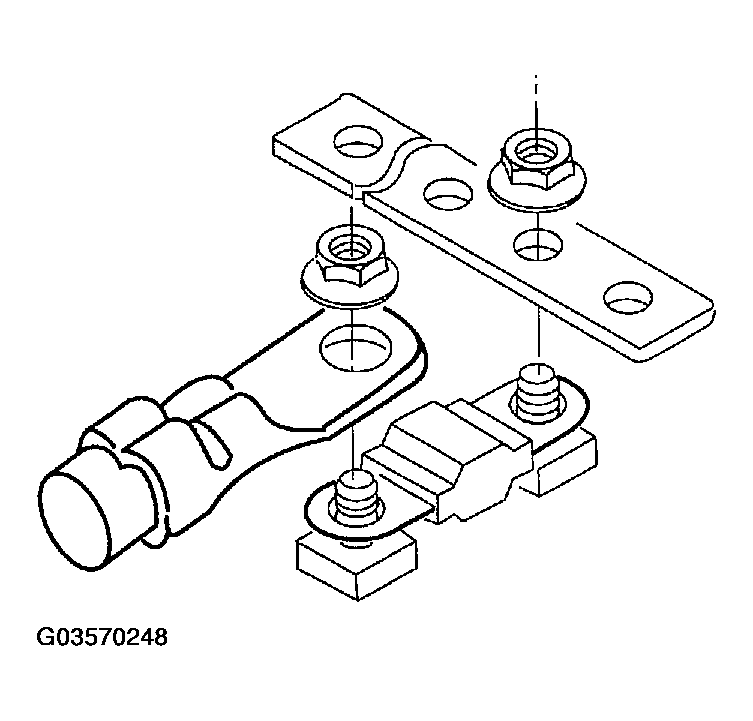

    Fig 1: Installing Plate And Electrical Lead To Engine Fuse Block
    G03570248Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the negative battery cable.
  4. Close the lid (1) to the engine fuse block.
  5. Close the hood.
    Fig 2: Closing Lid To Engine Fuse Block
    G03570249Courtesy of DAIMLERCHRYSLER CORP.
