Engine Fuse Block: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Open the lid (1) of the engine fuse block.

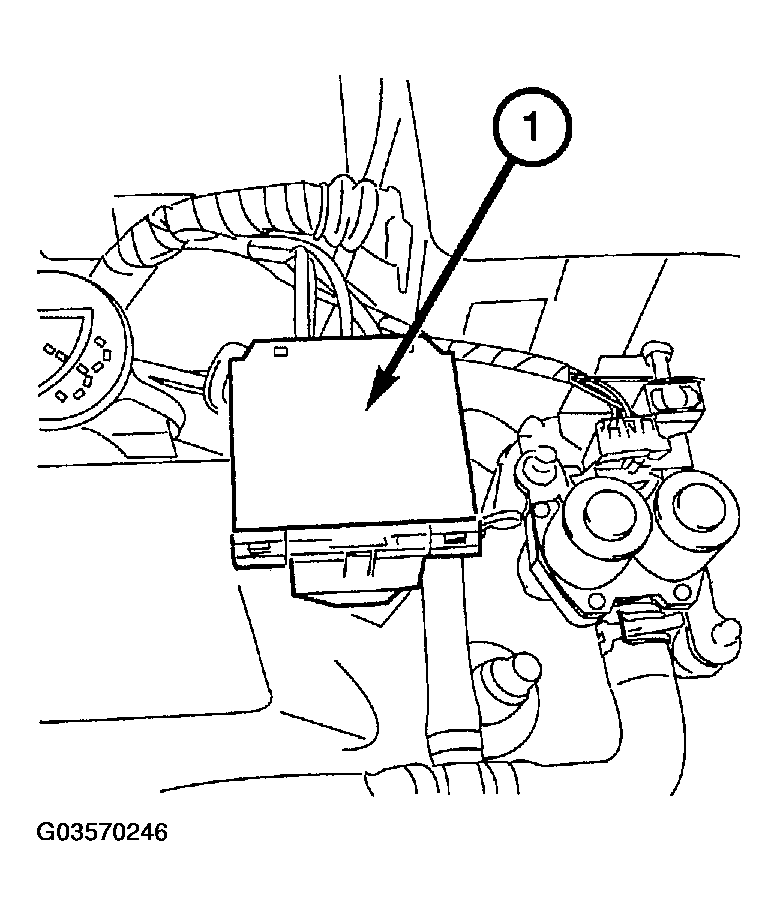

    Fig 1: Opening Lid Of Engine Fuse Block
    G03570246Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the nuts and the electrical leads to the engine fuse block.

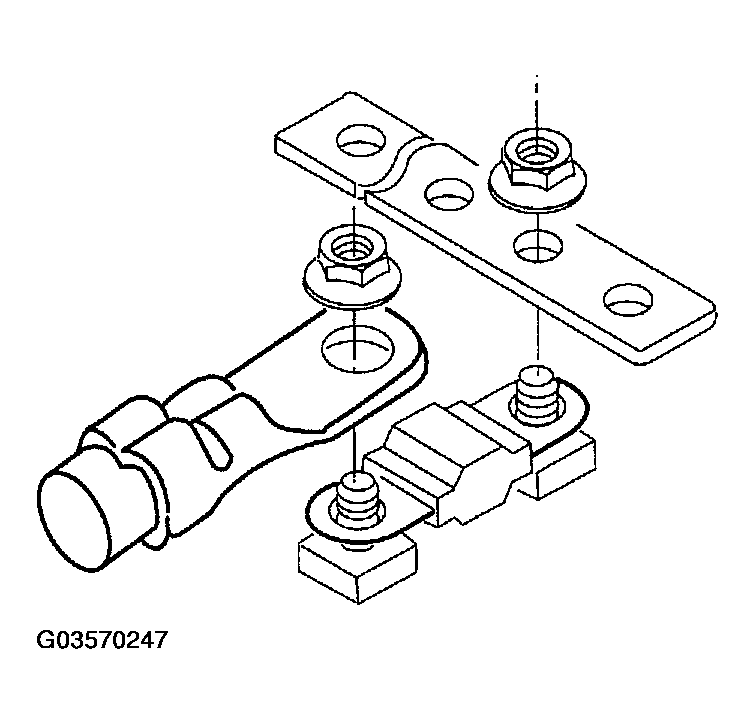

    Fig 2: Removing Nuts
    G03570247Courtesy of DAIMLERCHRYSLER CORP.
  4. Close the lid to the engine fuse block.
  5. Push the tab at the front of the engine fuse block box and remove it from the vehicle.
