Relay Control Module: Removal
- Disconnect and isolate the negative battery cable.
- Open the lid to the control module box.

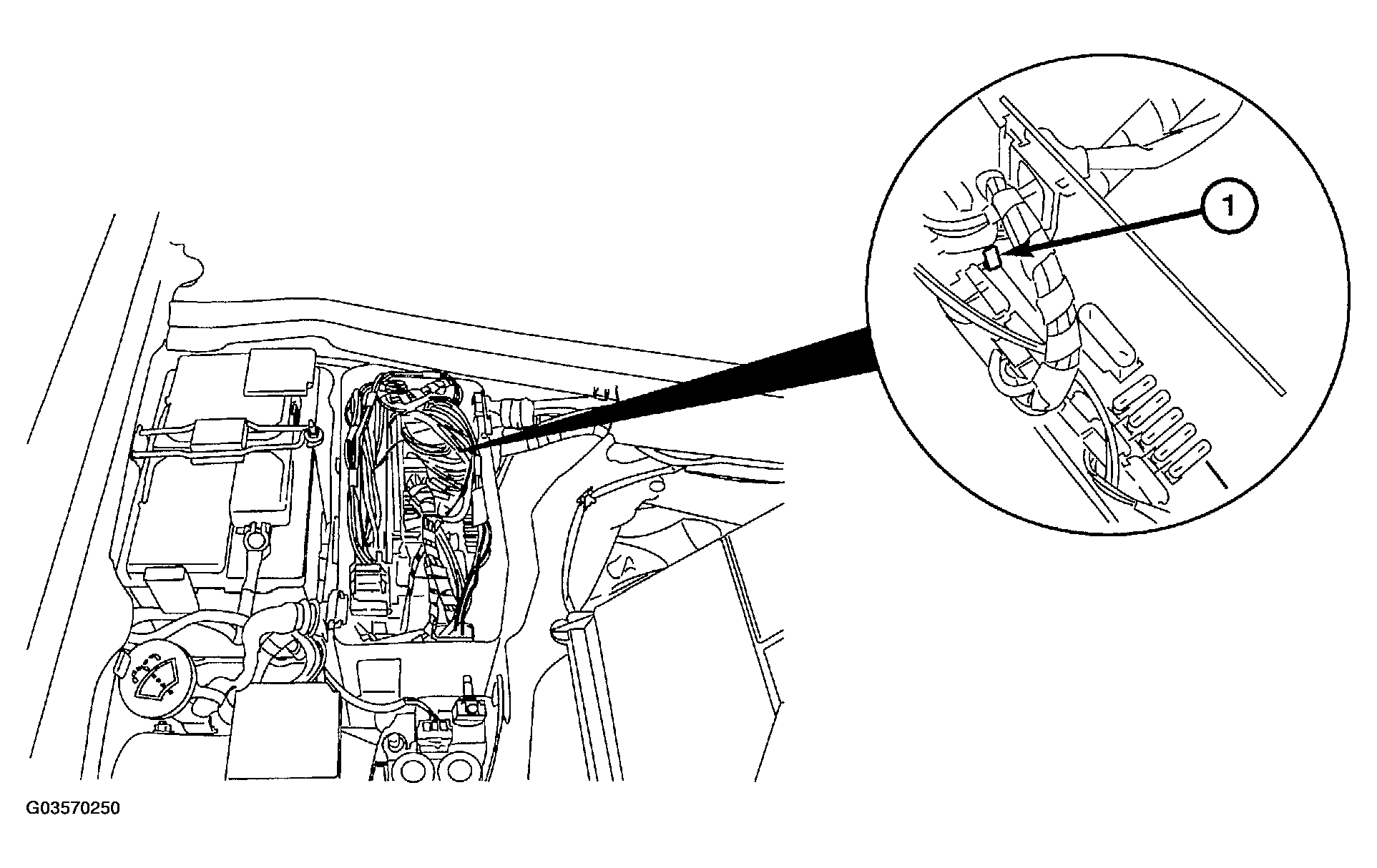

- Move the wires away to the side of the box to access the clip (1) that holds the relay control module in the control module box.
- Push the clip (1) back away from the relay control module and lift the relay control module out of the control module box.
- Remove all of the relay harness connectors from the relay control module.
