UNDERHOOD Accessory Fuse Block: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the lid to the underhood accessory fuse block.
  3. Push the front of the underhood accessory fuse box forward releasing the tabs (1) on the underhood fuse block.

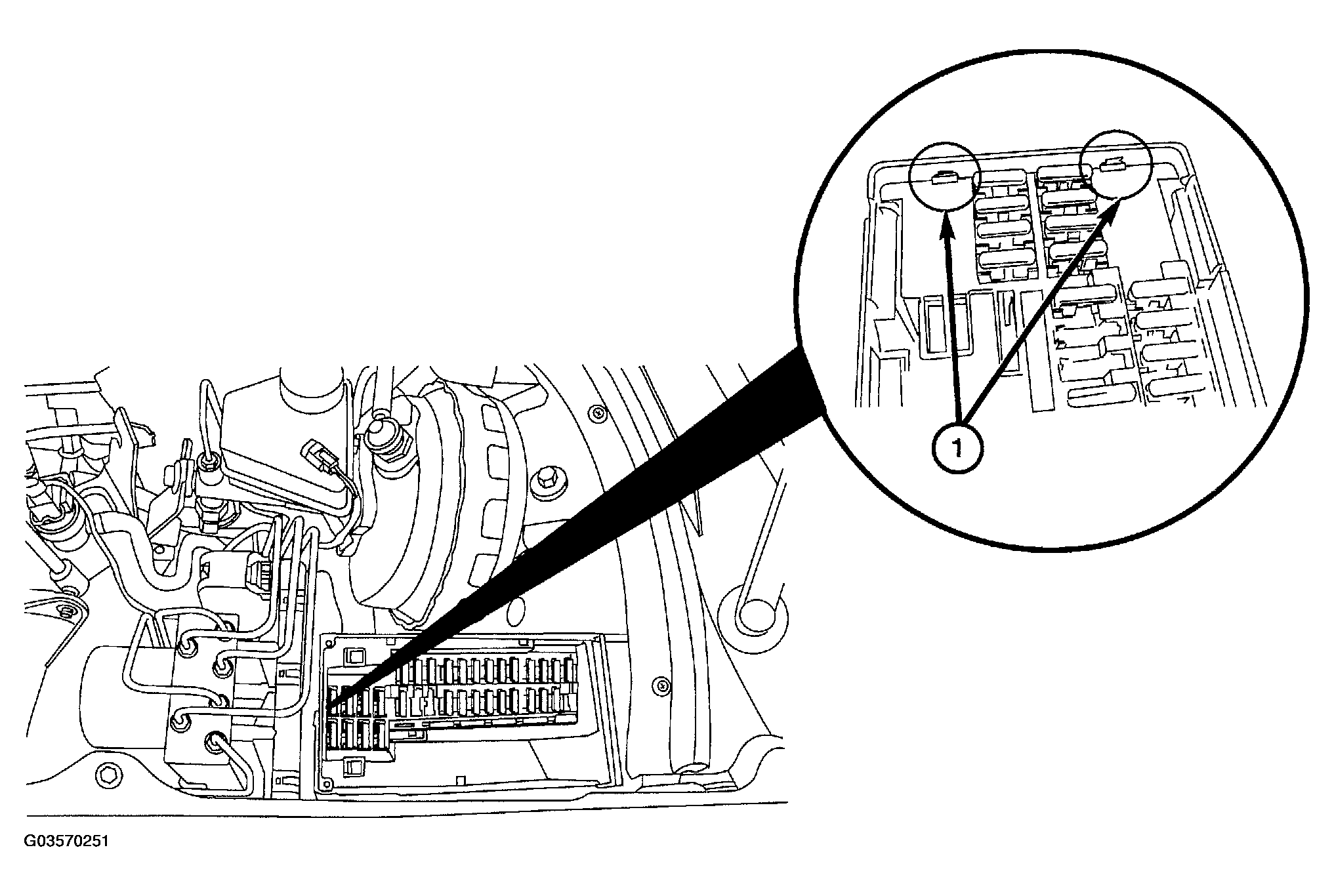

    Fig 1: Releasing Tabs
    G03570251Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull the underhood accessory fuse block out of the box and remove all of the underhood accessory fuse block harness connectors.
