Battery System: Tray: Description

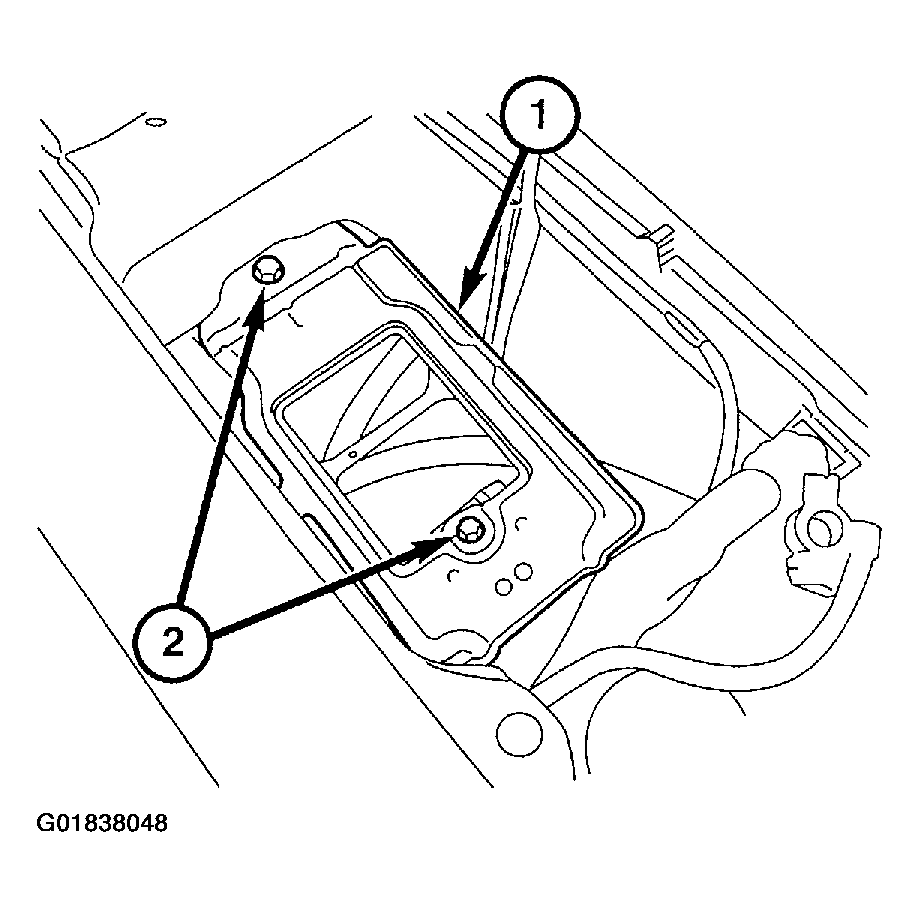

The battery is mounted in a battery tray (1) located in the right rear corner of the engine compartment. The battery tray and support unit is secured at the front with a bolt (2) on the front wheelhouse inner panel, and at the rear with a bolt (2) on a bracket from the bulkhead.
