Battery System: Tray: Removal

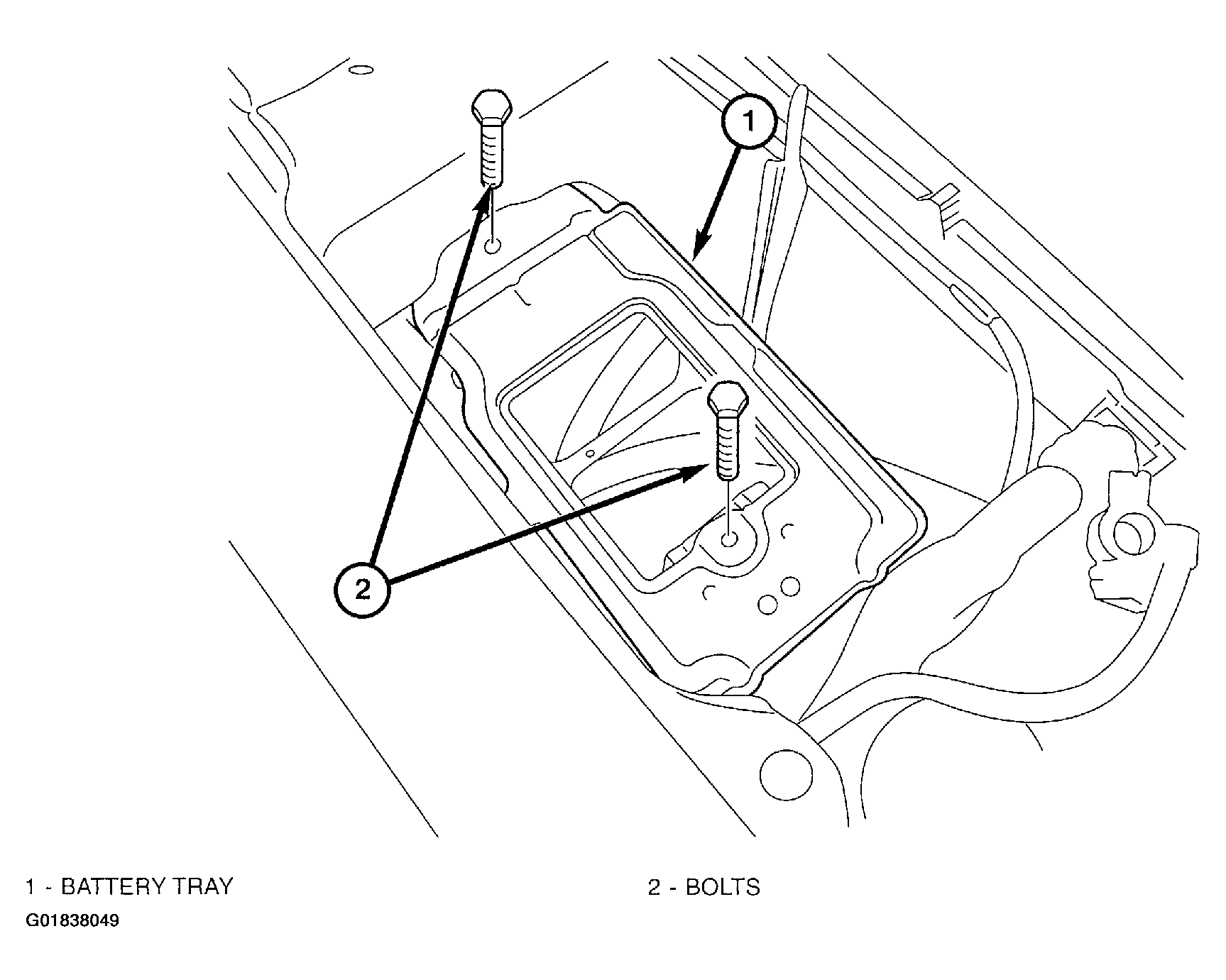

Fig 1: Removing Battery Tray And Retaining Bolts
G01838049Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the battery. Refer to REMOVAL - BATTERY  .
  2. Remove the battery tray (1) retaining bolts (2).
  3. Remove the battery tray (1).
