Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

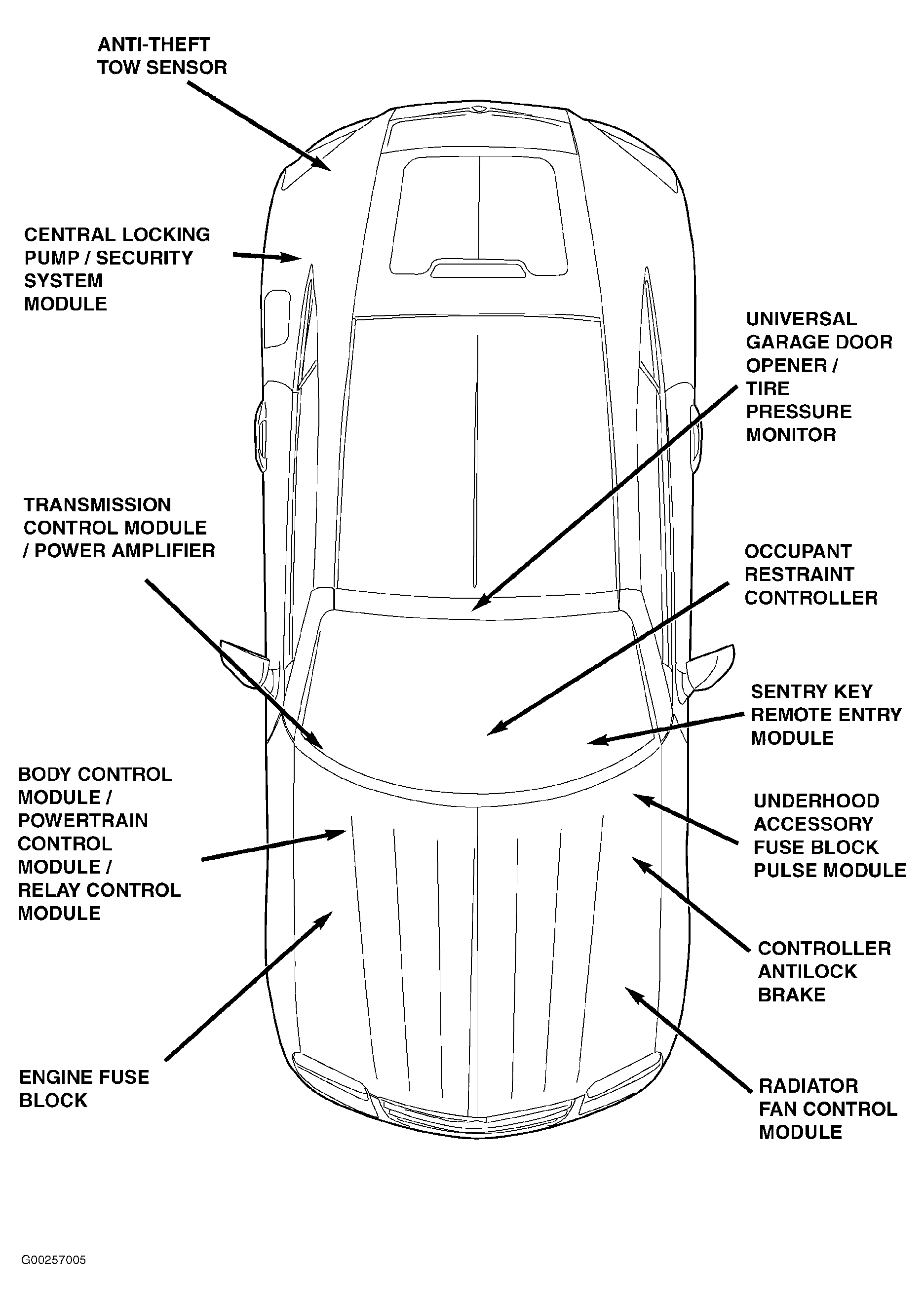

Fig 1: Vehicle Overview

Courtesy of DAIMLERCHRYSLER CORP.

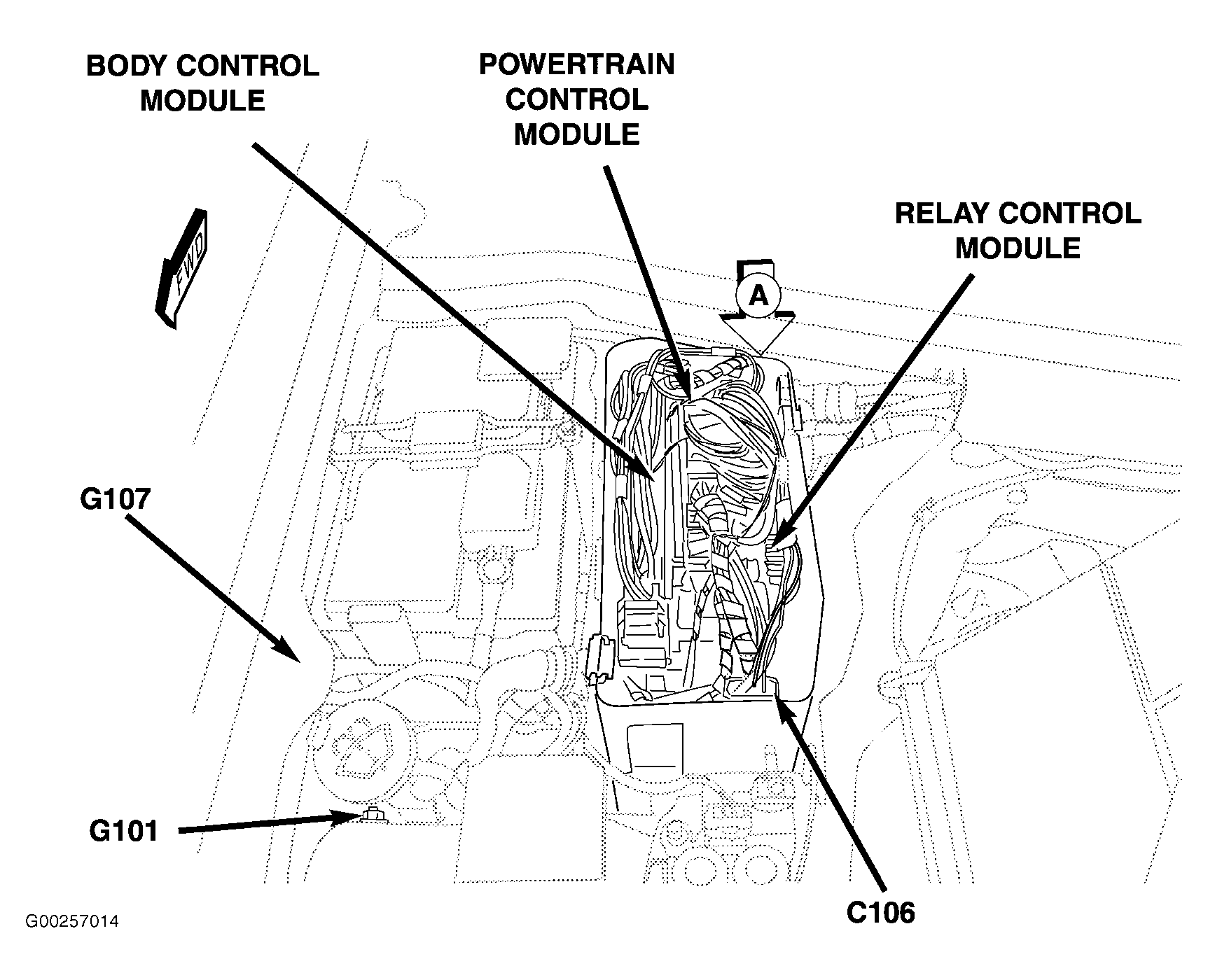

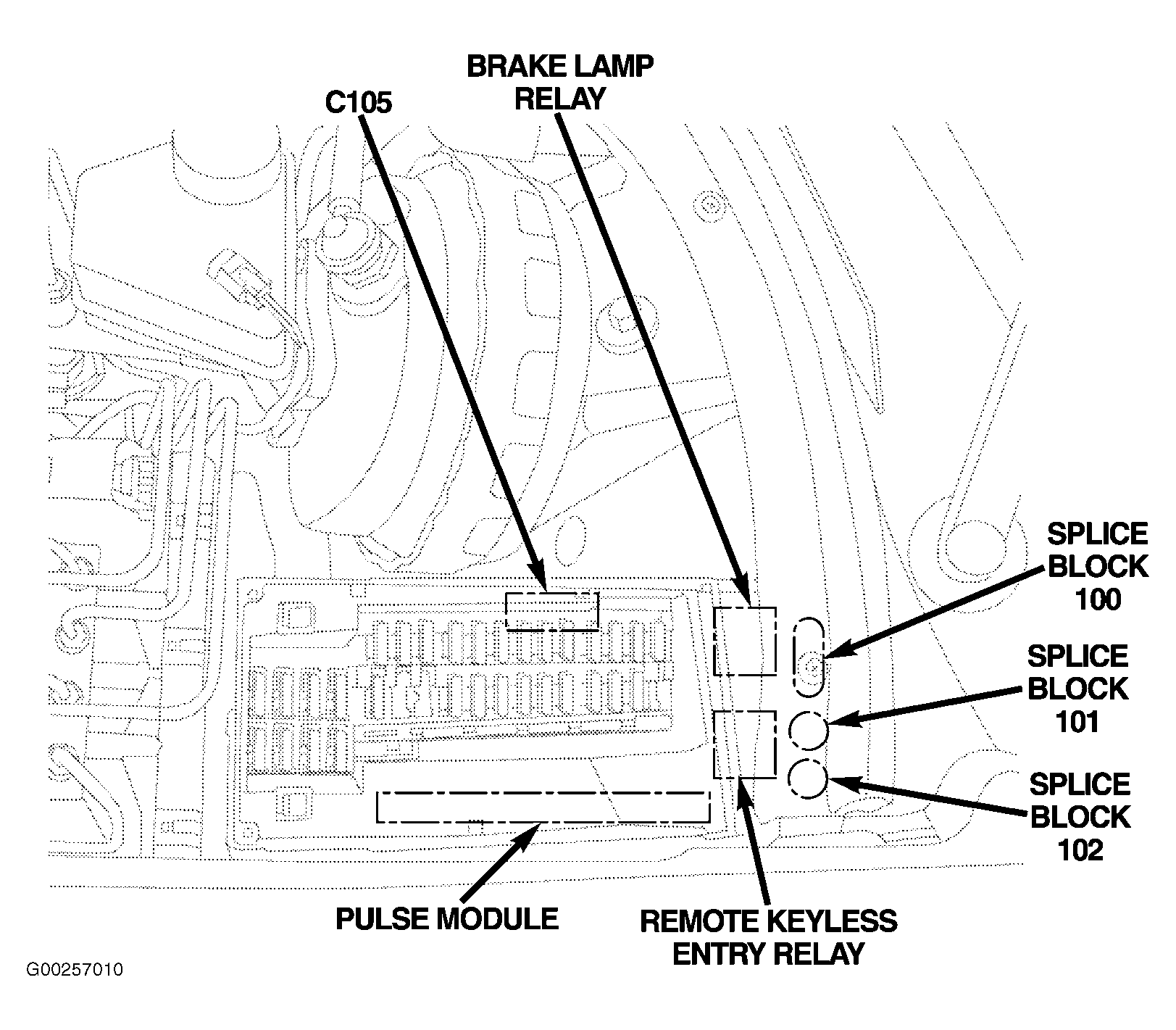

Fig 2: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

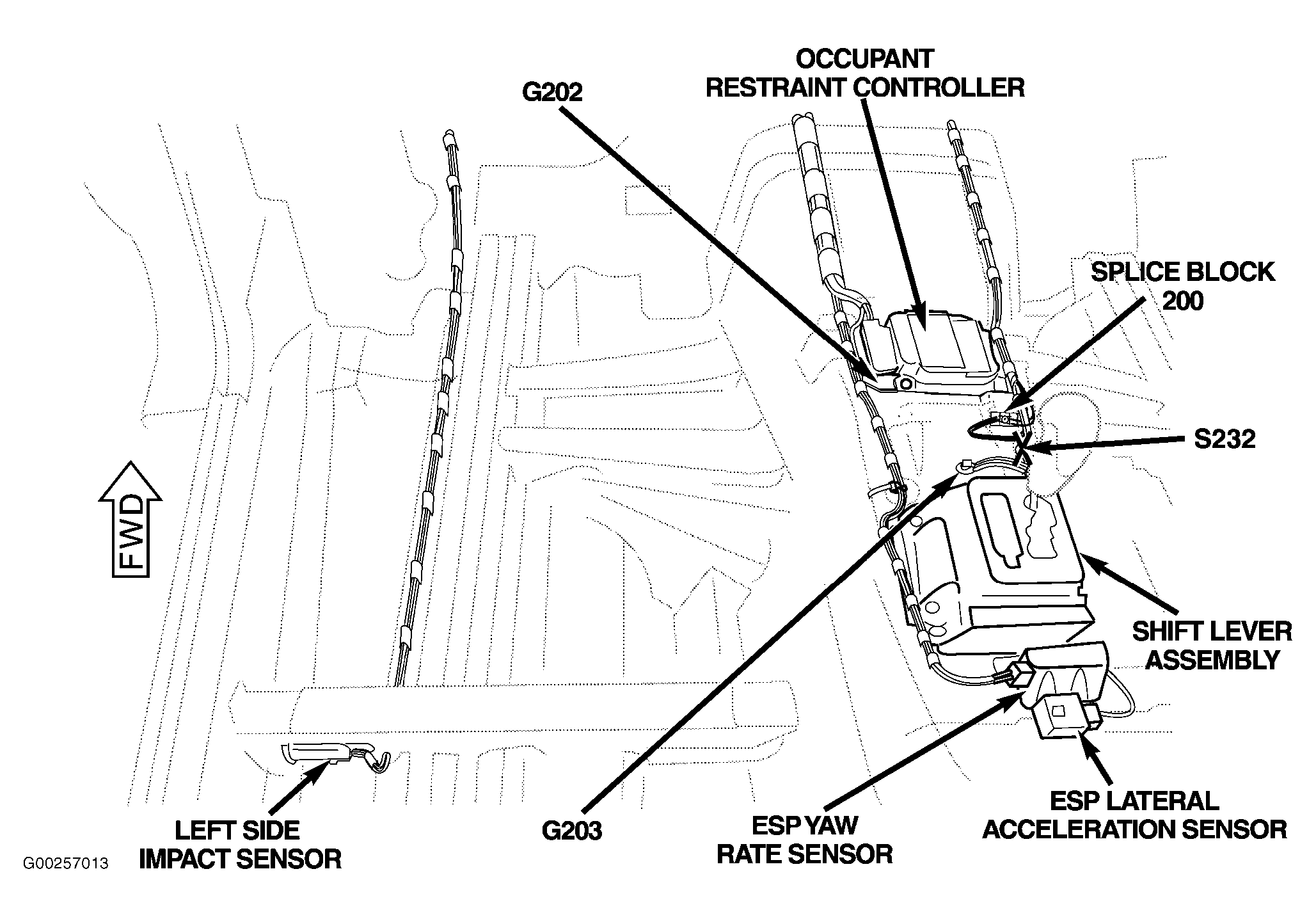

Fig 3: Right Side Of Vehicle Floor

Courtesy of DAIMLERCHRYSLER CORP.

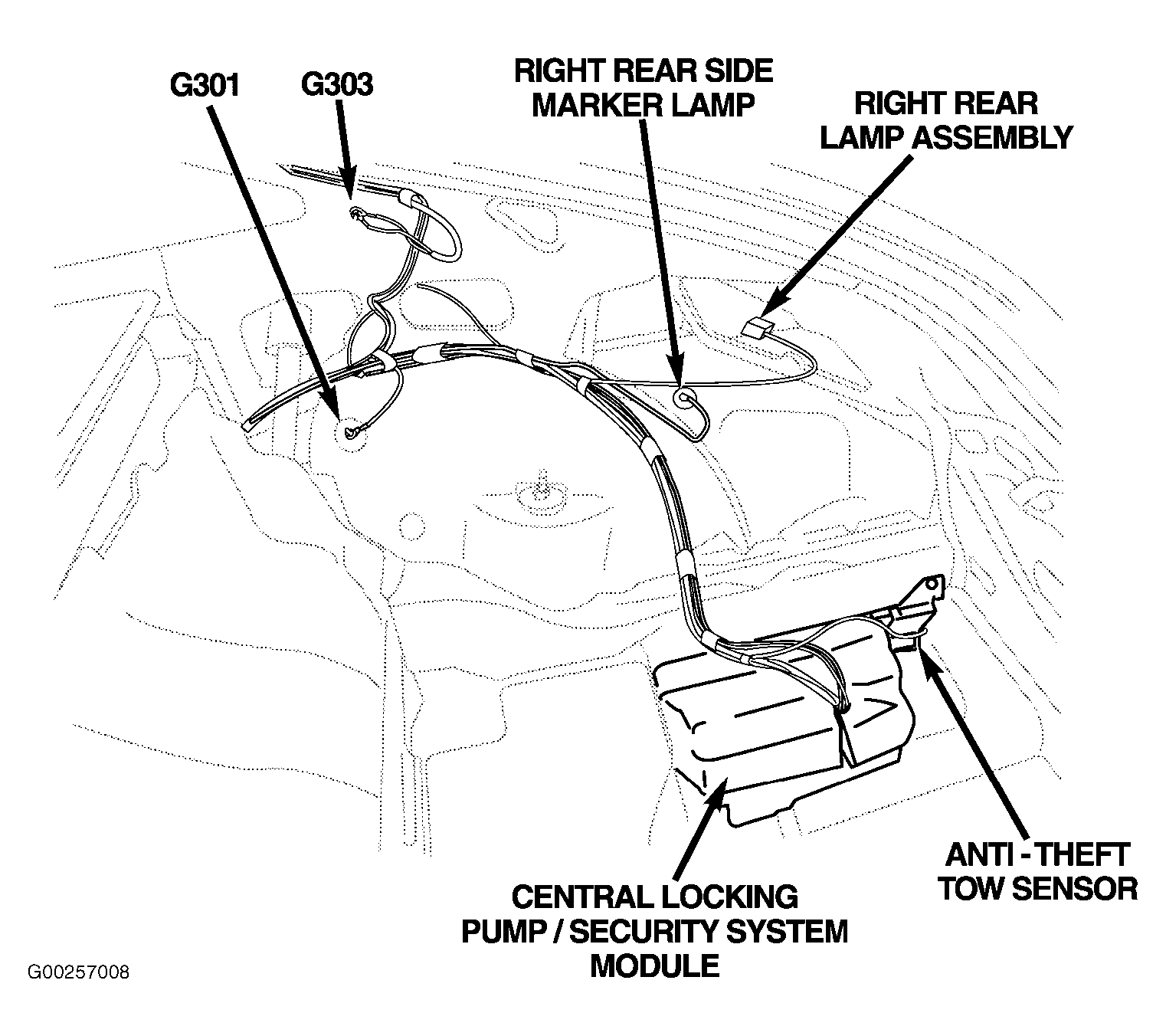

Fig 4: Right Side Of Trunk

Courtesy of DAIMLERCHRYSLER CORP.

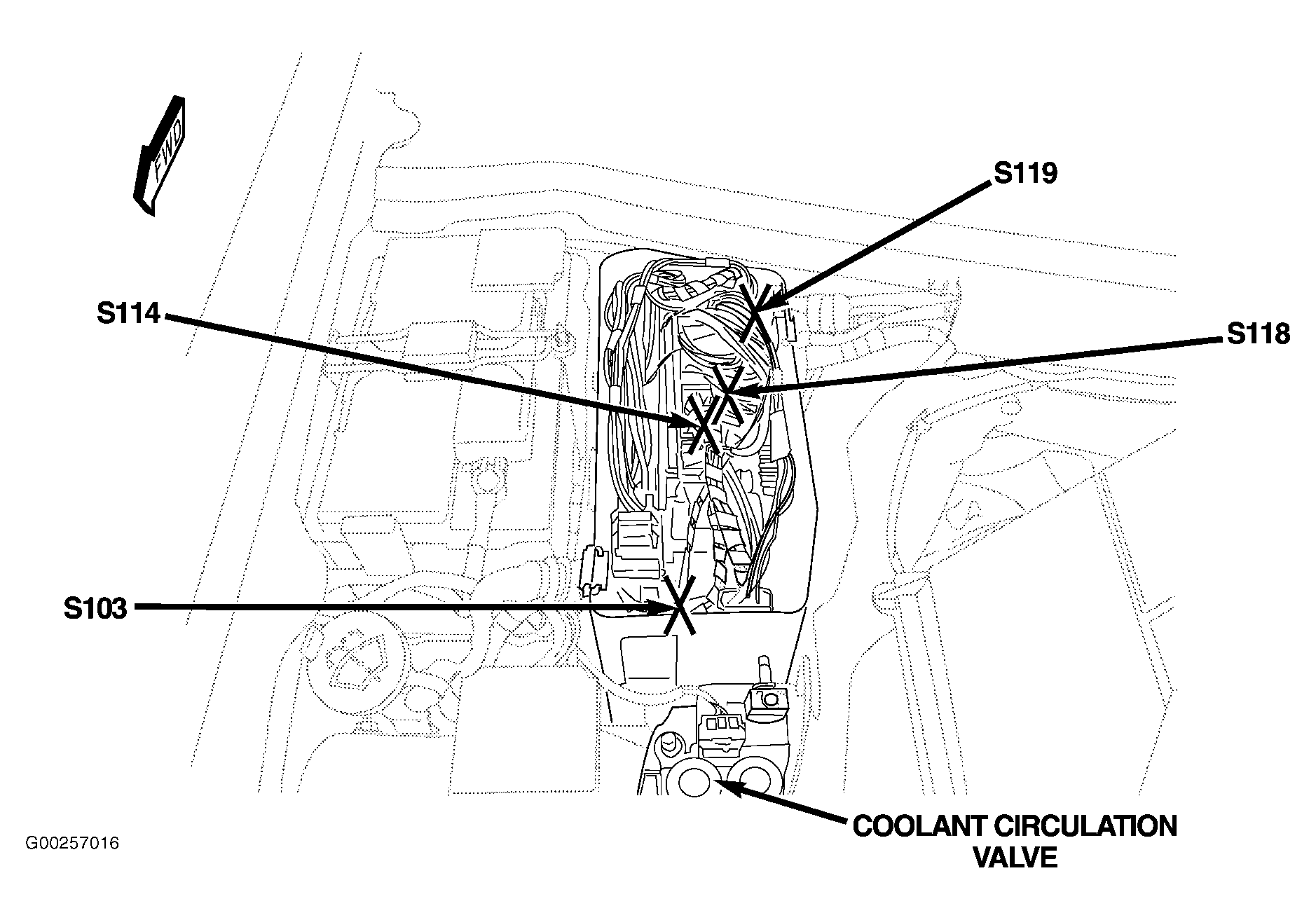

Fig 5: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

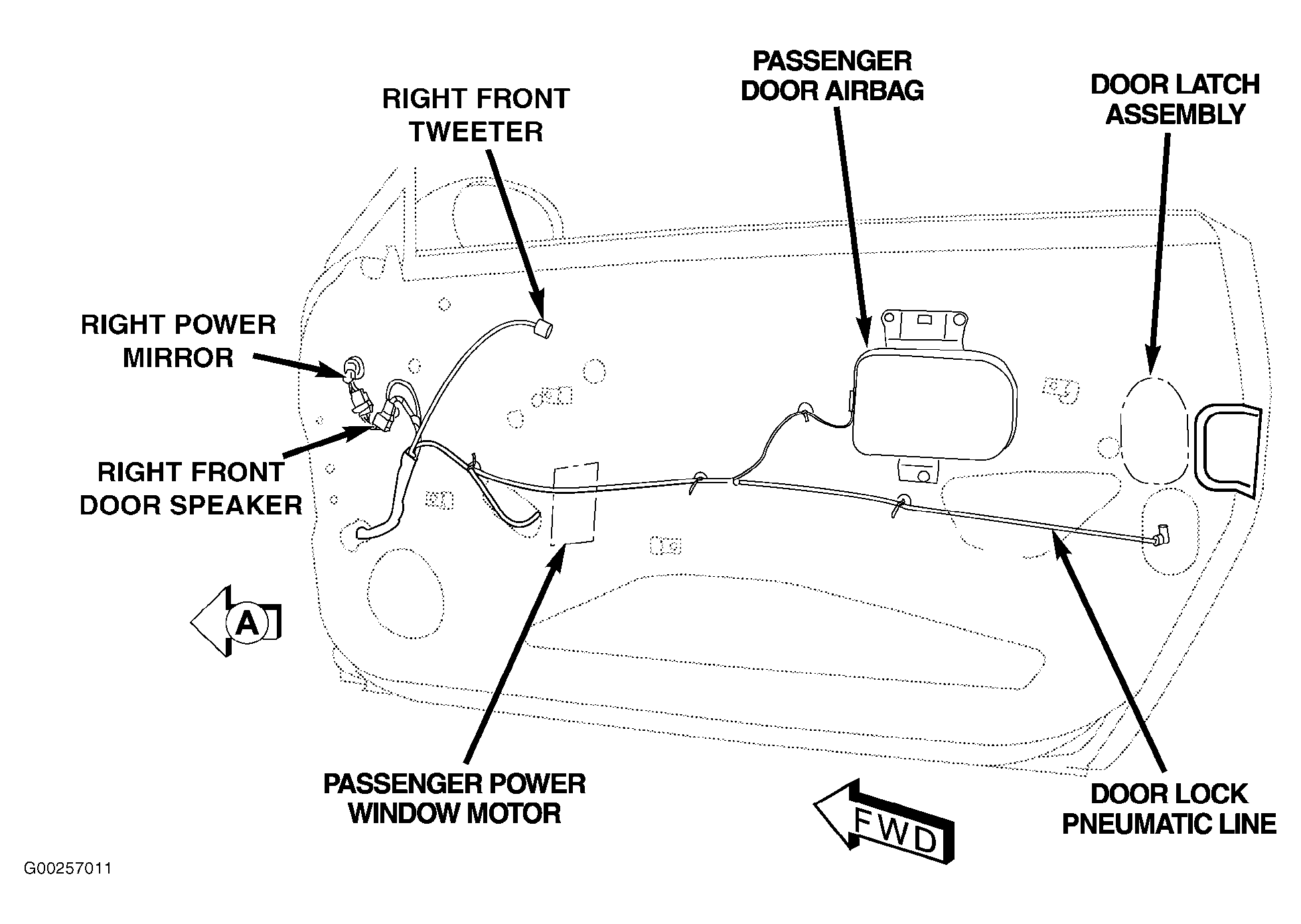

Fig 6: Passenger Door

Courtesy of DAIMLERCHRYSLER CORP.

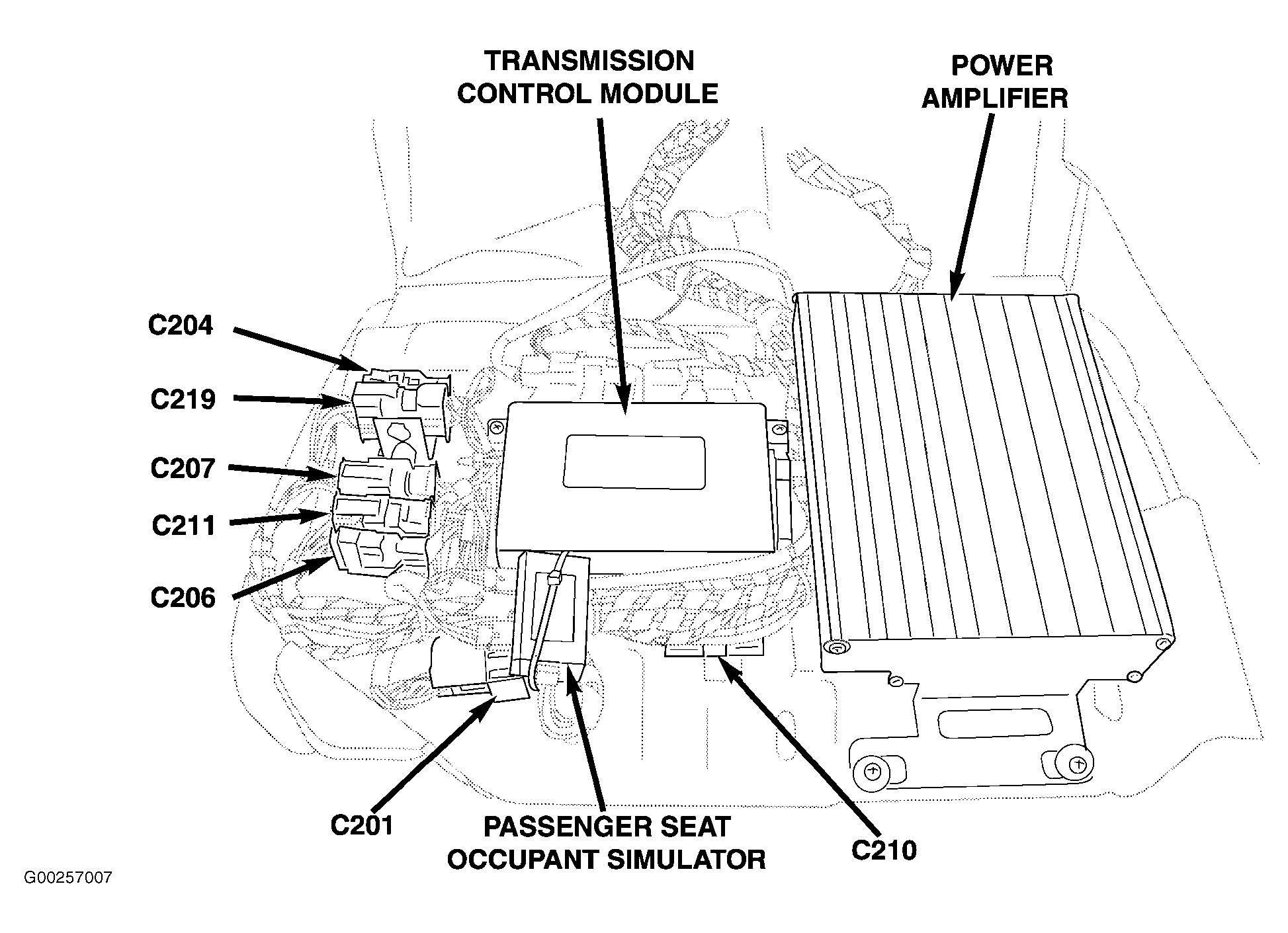

Fig 7: Right Kick Panel

Courtesy of DAIMLERCHRYSLER CORP.

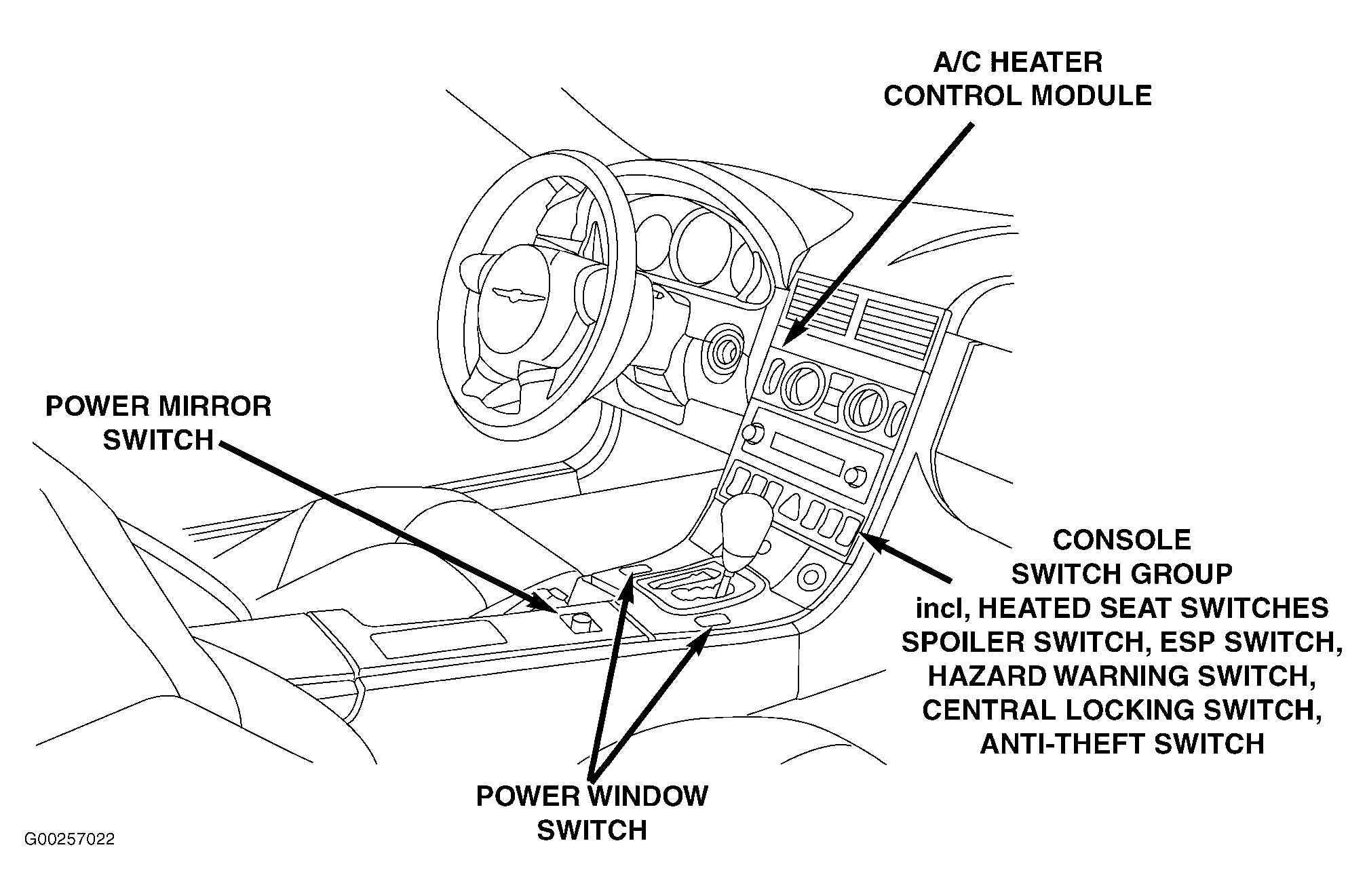

Fig 8: Center Console

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

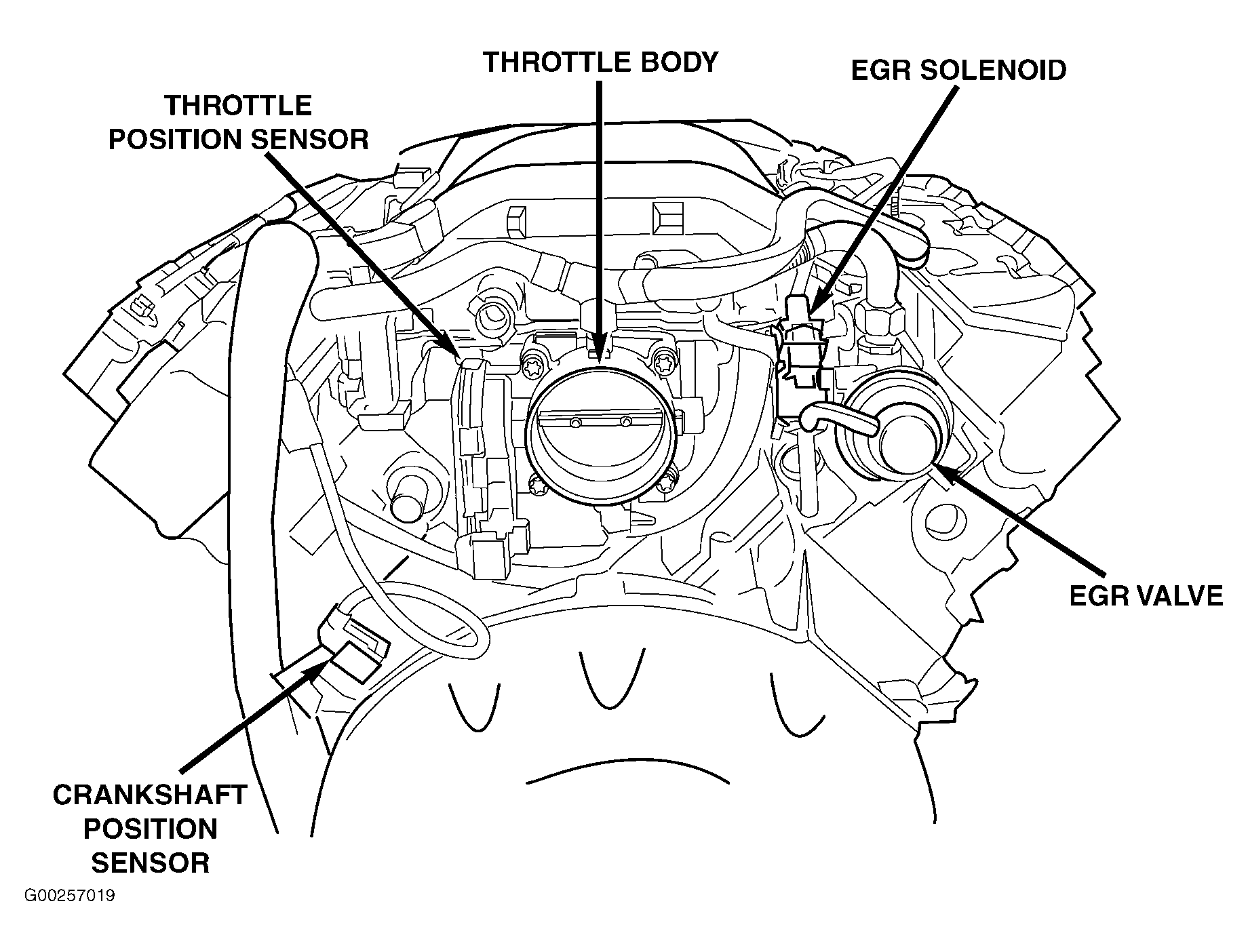

Fig 10: Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

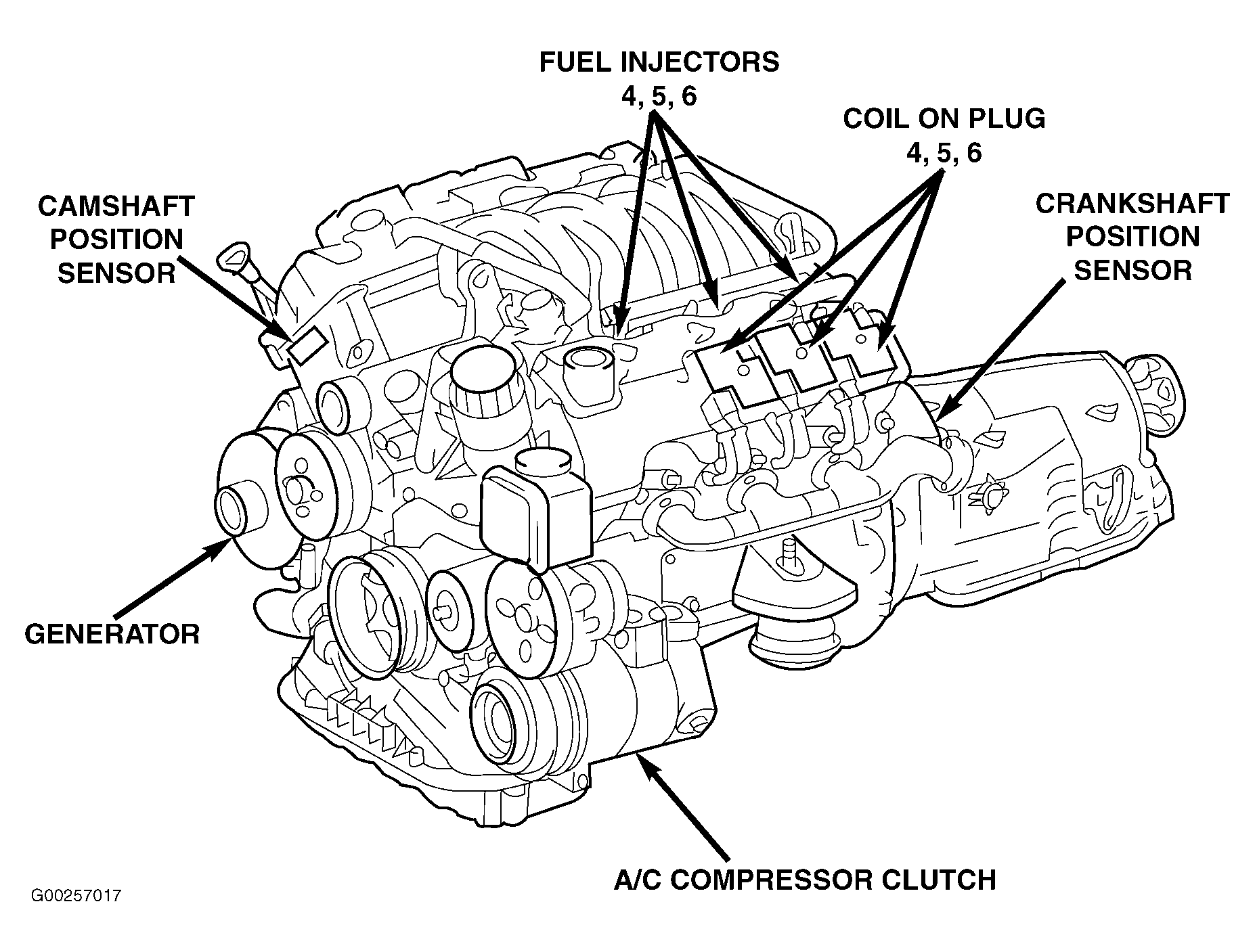

Fig 12: Left Side Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

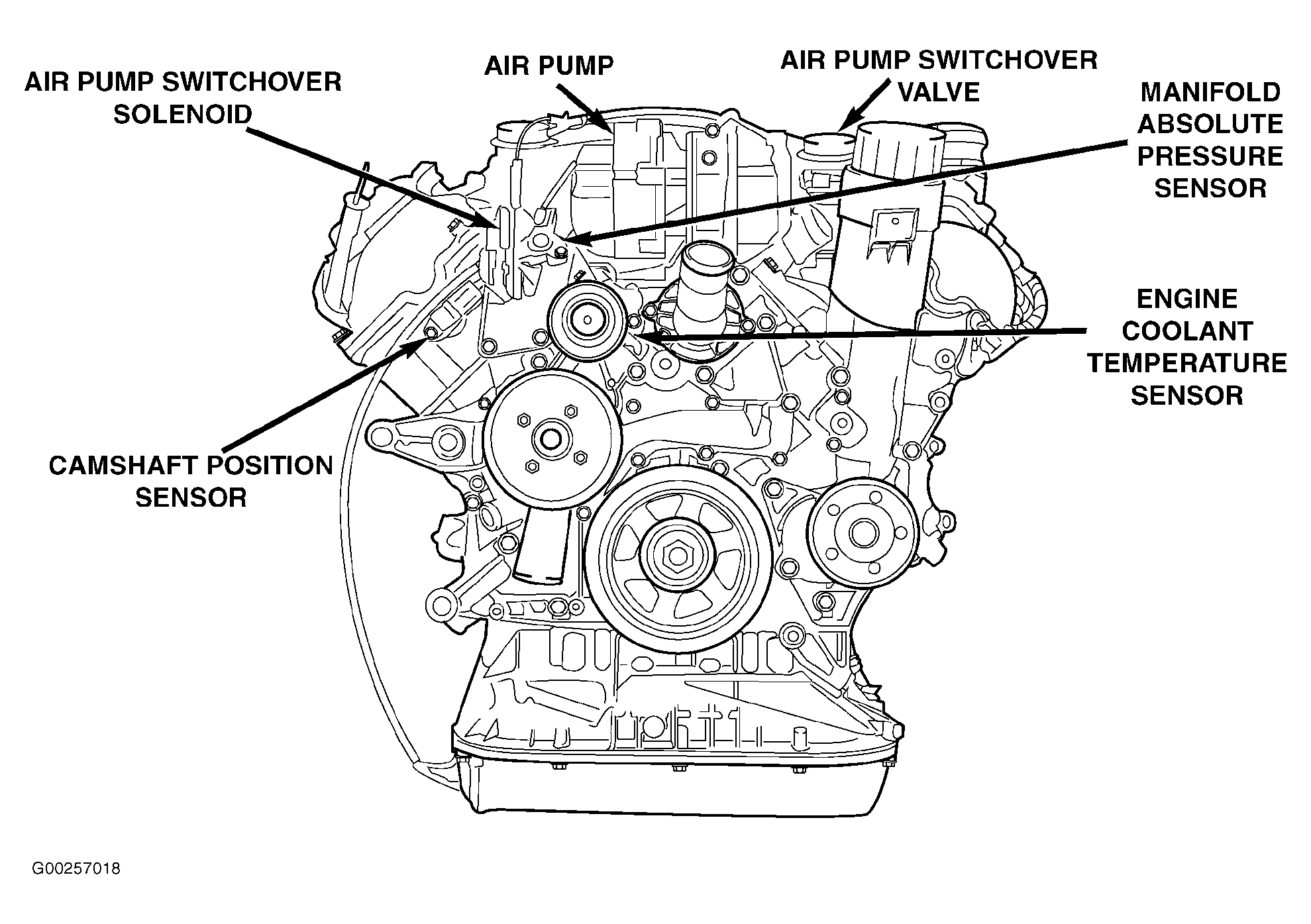

Fig 13: Front Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Rear Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

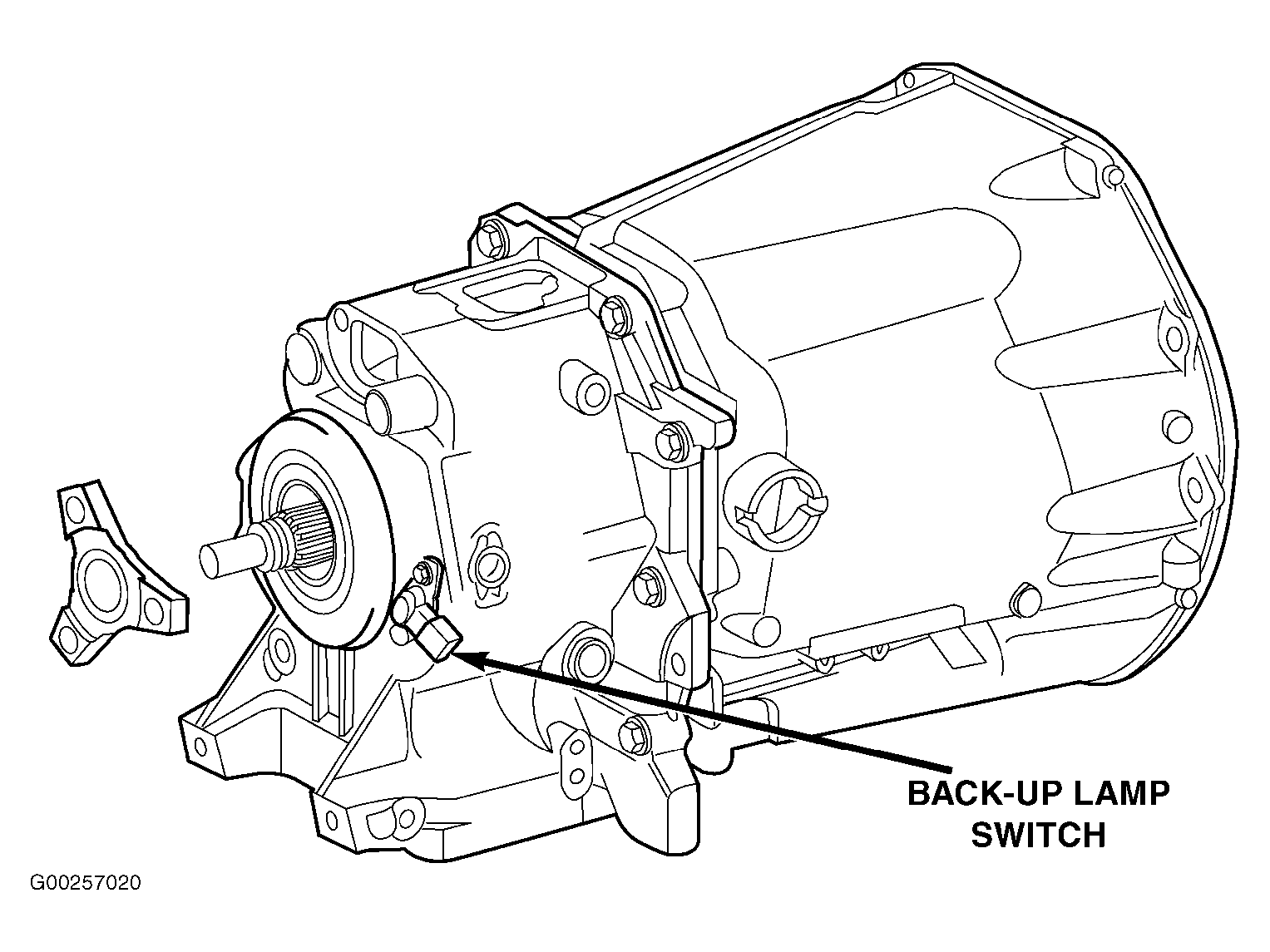

Fig 15: Right Side Of Transmission (M/T)

Courtesy of DAIMLERCHRYSLER CORP.

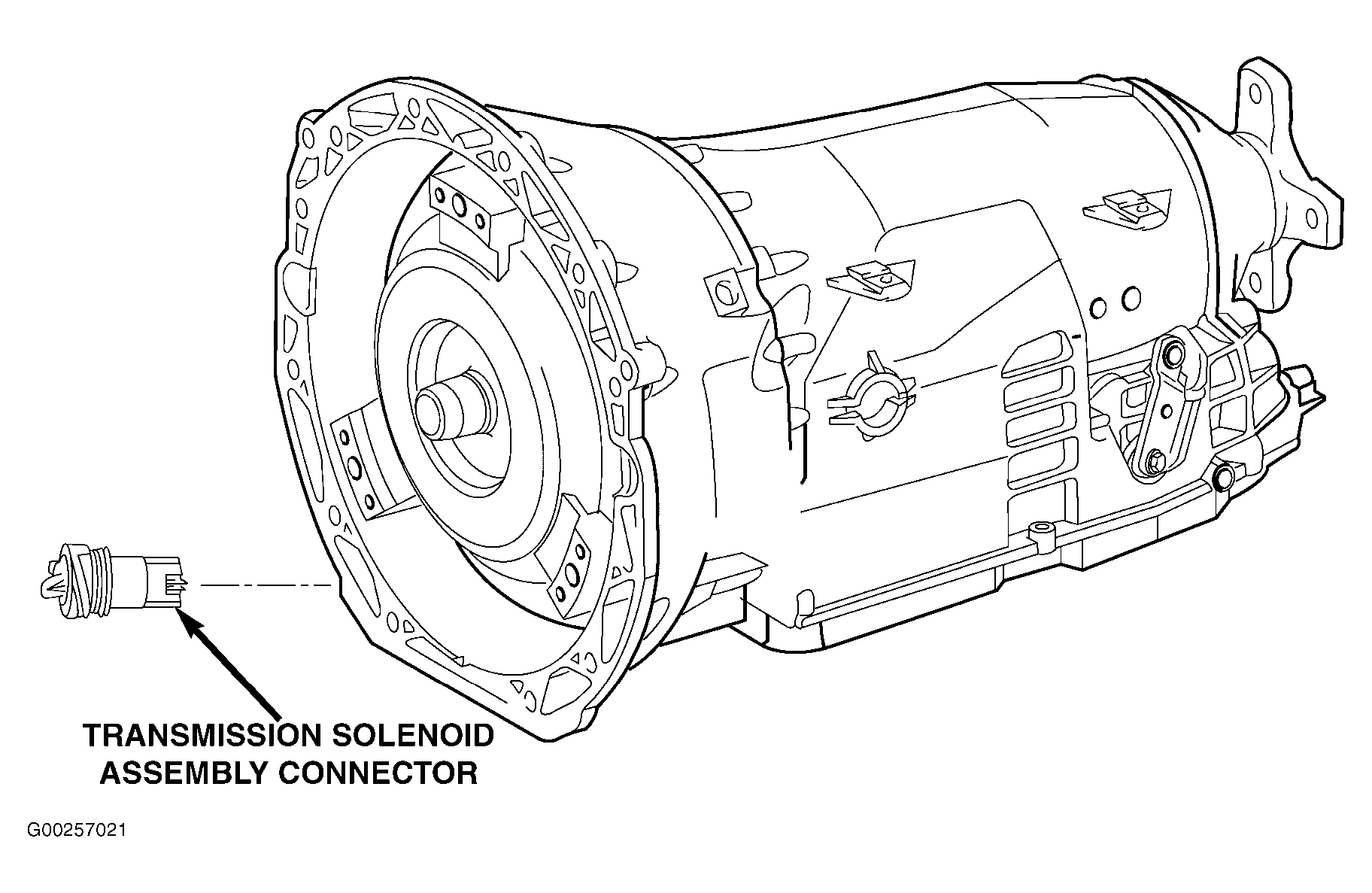

Fig 16: Left Front Of Transmission (A/T)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Dash

Courtesy of DAIMLERCHRYSLER CORP.
