Wiring Diagrams

See STARTING/CHARGING in SYSTEM WIRING DIAGRAMS article.

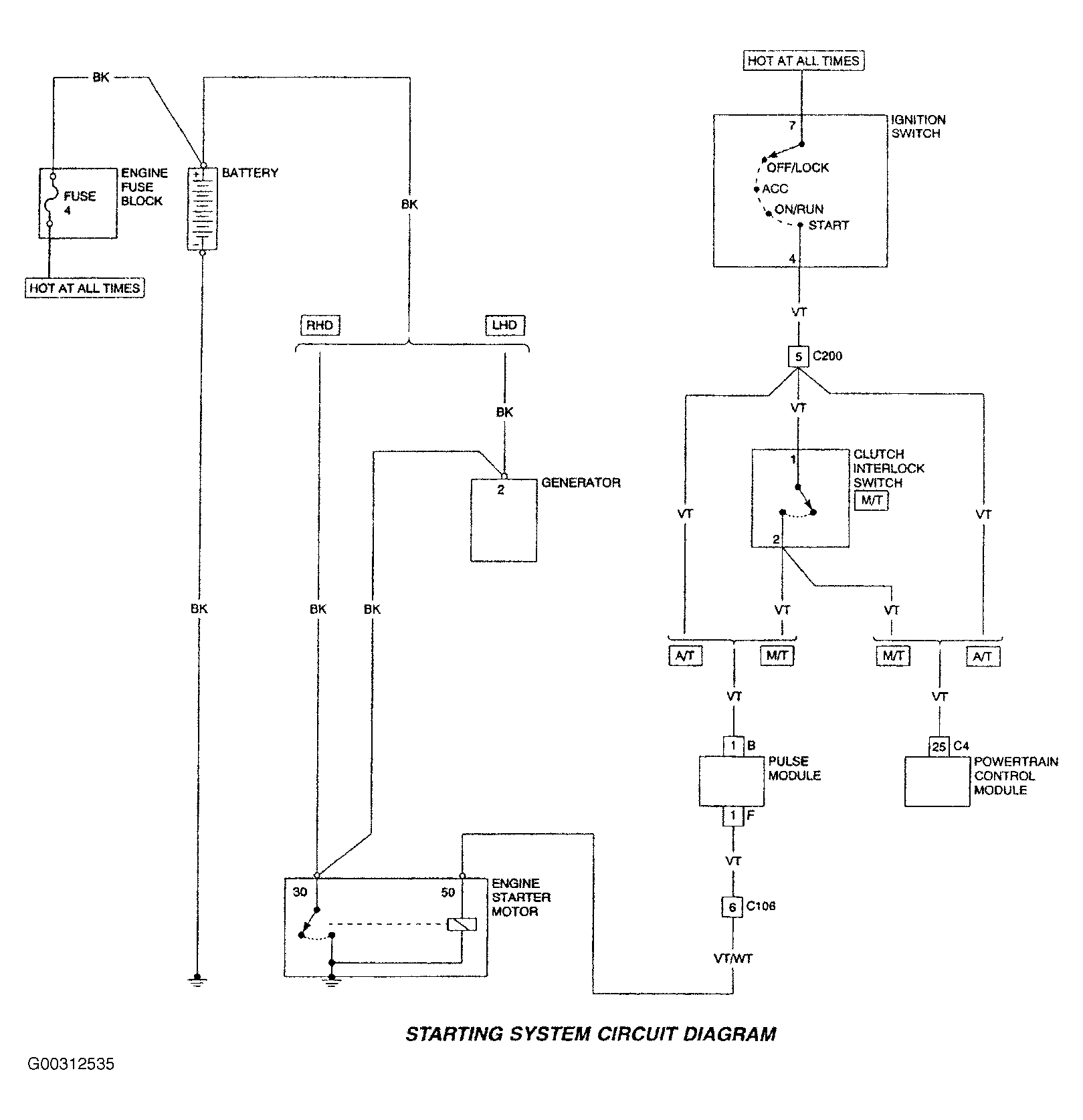

Fig 1: Starting System Circuit Diagram
G00312535Courtesy of CHRYSLER
