Fuel Delivery: Specifications: Torque

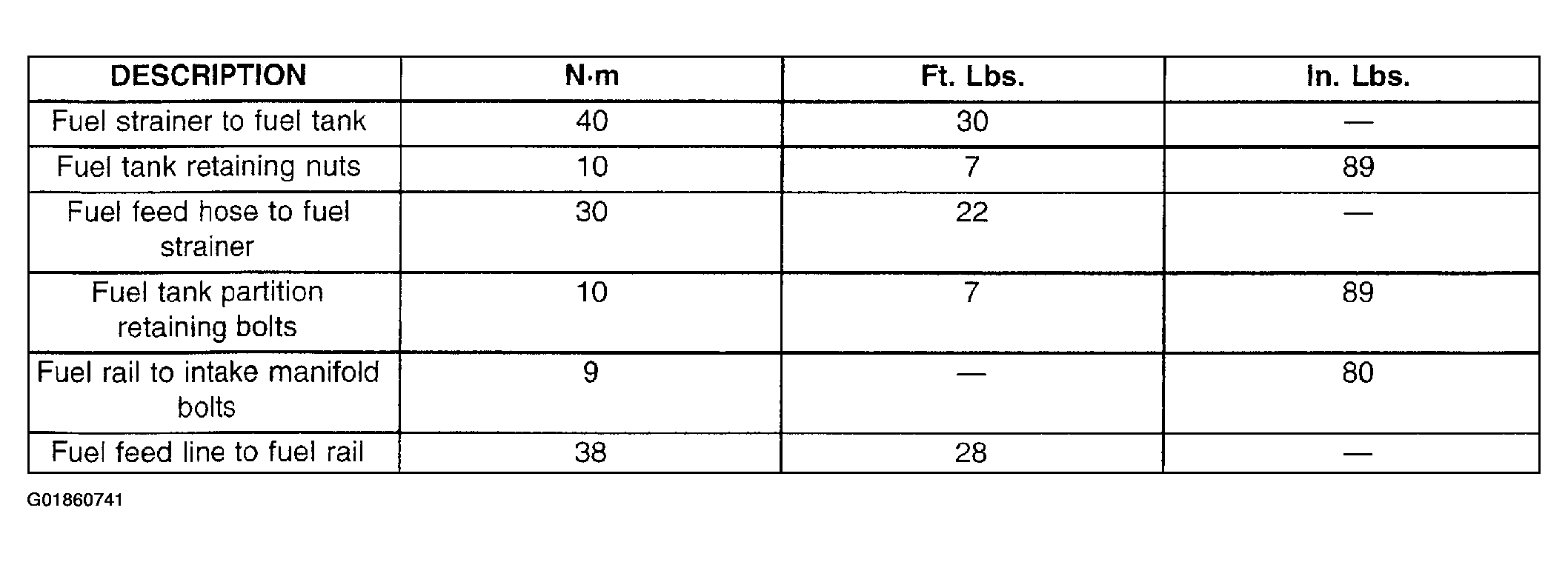

Fig 1: Fuel Delivery System Torque Specifications

G01860741

Courtesy of DAIMLERCHRYSLER CORP.
