Downstream O2 Sensor

  1. Apply anti-sieze compound to the threaded portion of the O2 sensor.
  2. Install the O2 sensor (1). Tighten to 50 N.m (37 ft. lbs.).

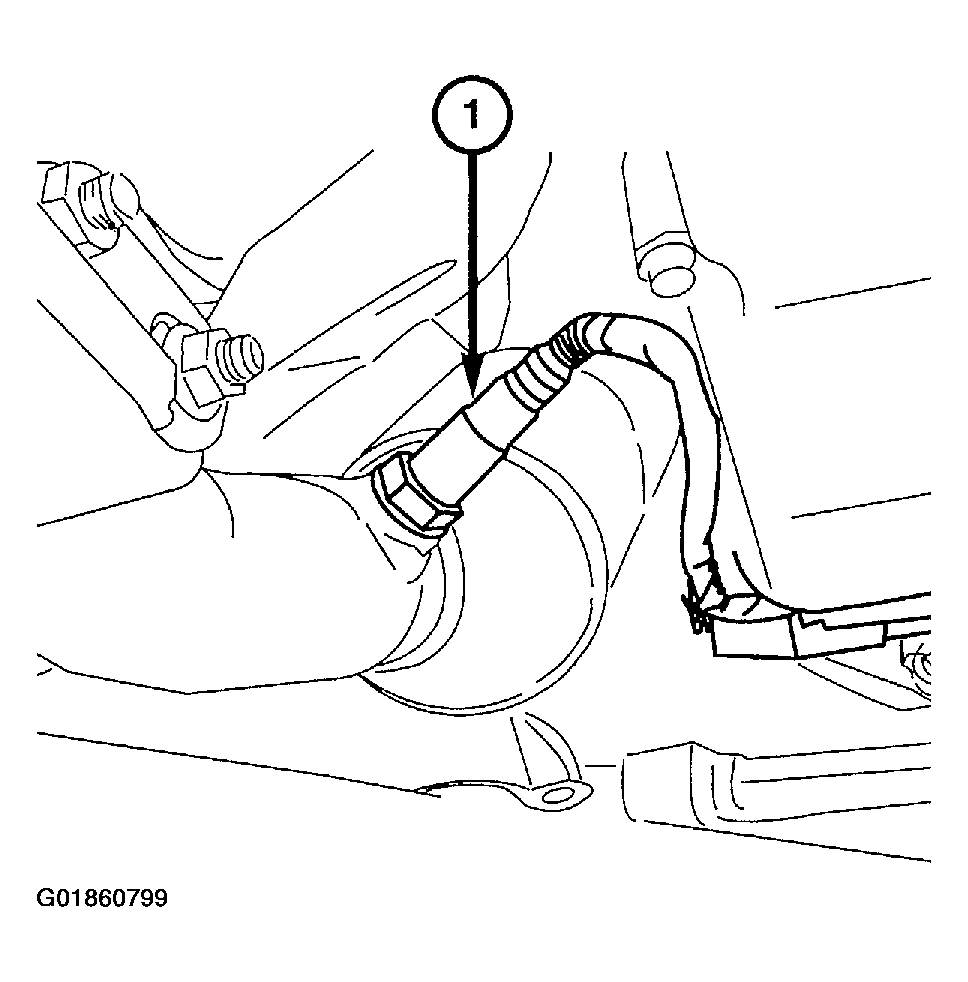

    Fig 1: Installing Downstream O2 Sensor
    G01860799Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the O2 sensor harness connector.
  4. Lower the vehicle.
  5. Connect the negative battery cable.
