Accelerator Pedal: Installation

  1. Connect the accelerator pedal harness connector.
  2. Slide the accelerator pedal into the bracket and onto the welded stud.
  3. Install the accelerator pedal lower nut (1). Tighten to 15 N.m (11 ft. lbs.).

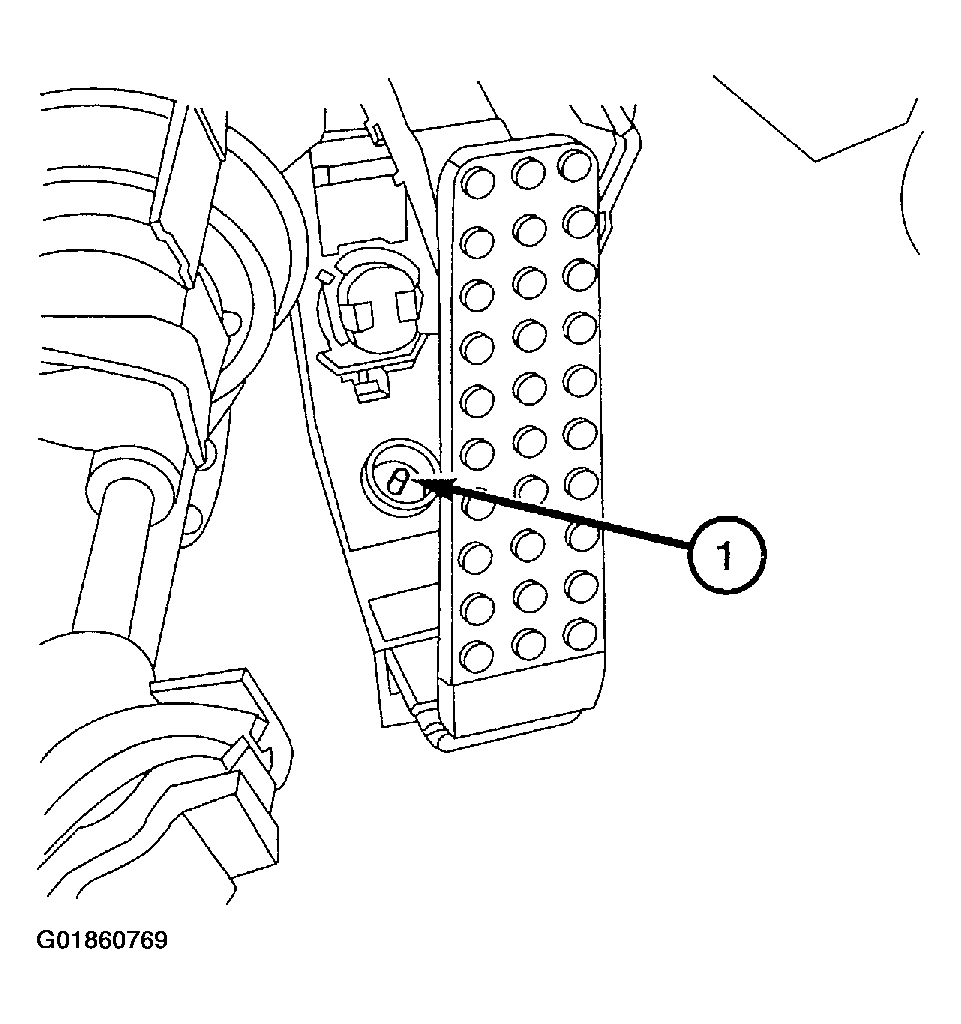

    Fig 1: Installing Accelerator Pedal Lower Nut
    G01860769Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the plastic nut cover.
  5. Install the accelerator pedal upper nut (1). Tighten to 15 N.m (11 ft. lbs.).

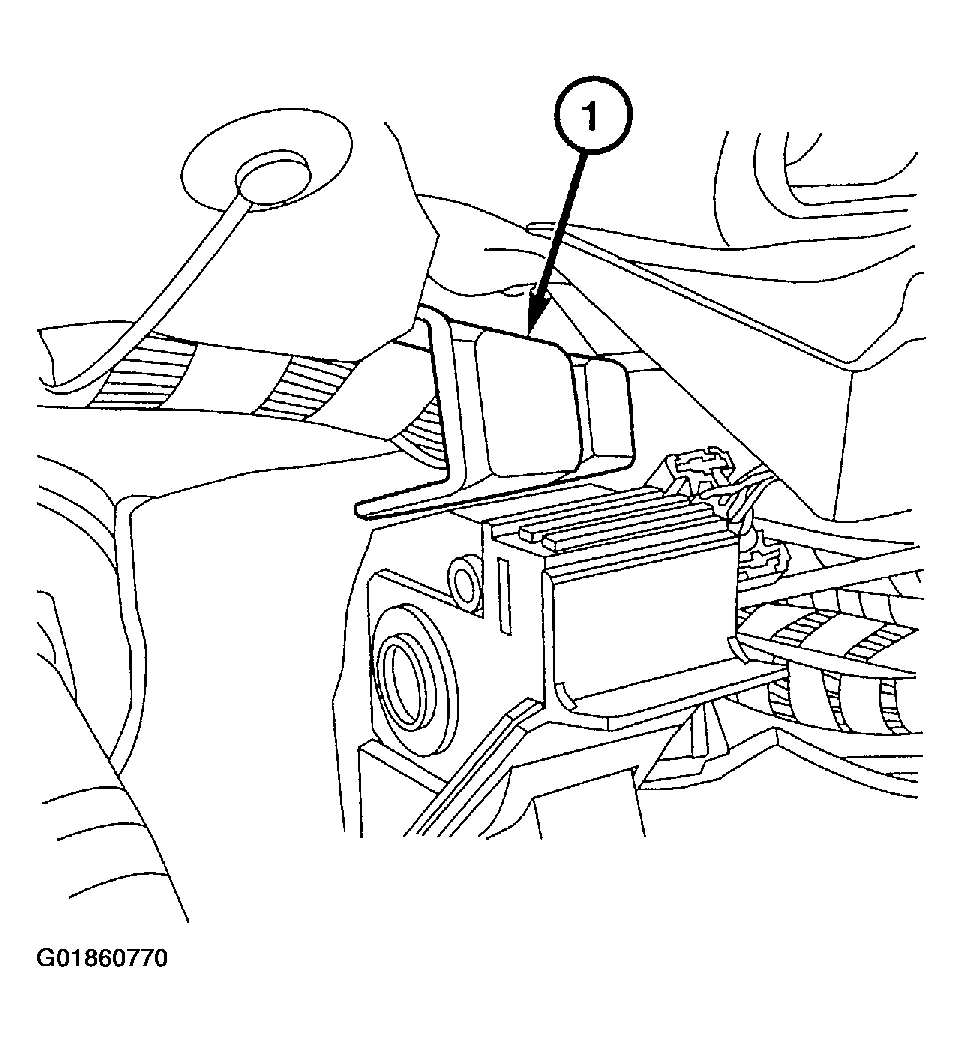

    Fig 2: Installing Accelerator Pedal Upper Nut
    G01860770Courtesy of DAIMLERCHRYSLER CORP.
  6. Connect the negative battery cable.
