Accelerator Pedal: Removal

  1. Disconnect the negative battery cable.
  2. Remove the accelerator pedal upper nut (1).

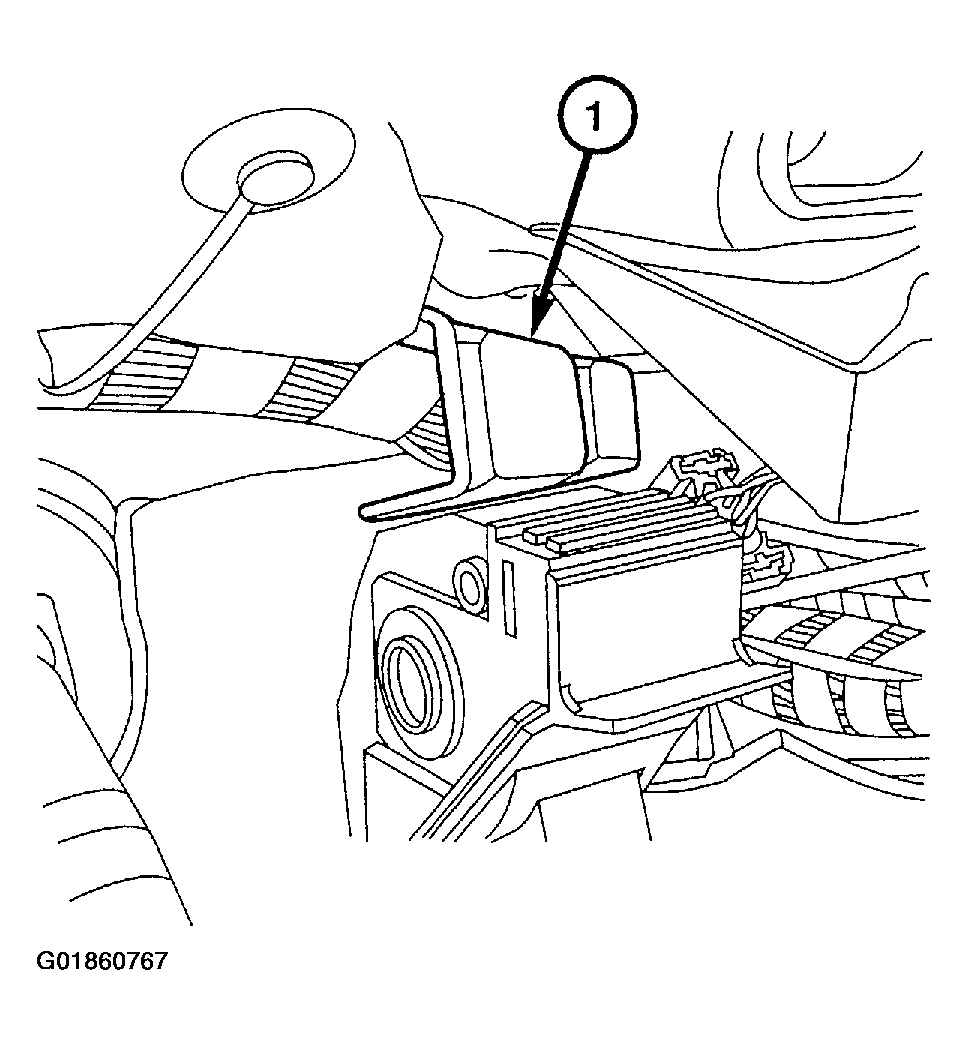

    Fig 1: Removing Accelerator Pedal Upper Nut
    G01860767Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the lower accelerator nut cover (1) and the nut.

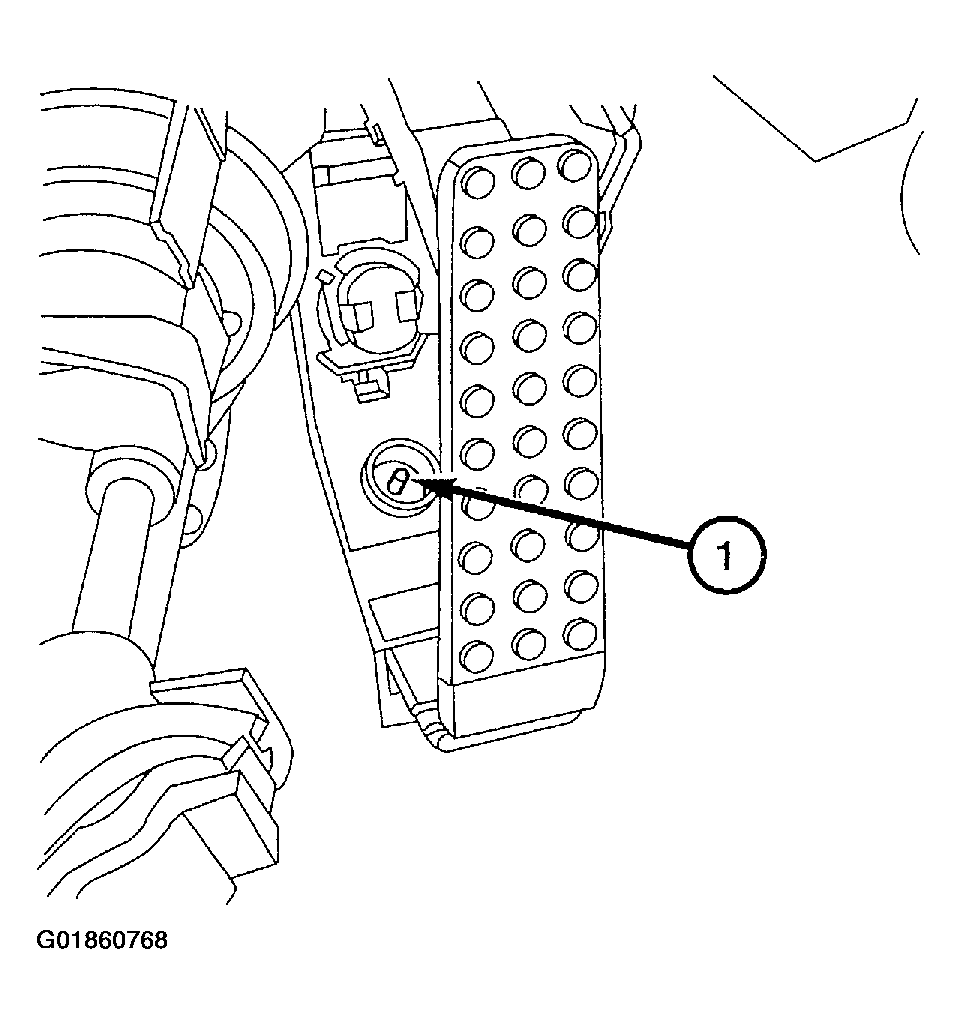

    Fig 2: Removing Lower Accelerator Nut Cover & Nut
    G01860768Courtesy of DAIMLERCHRYSLER CORP.
  4. Lift the accelerator pedal off of the welded stud and out of the bracket.
  5. Disconnect the accelerator pedal harness connector from the accelerator pedal.
