Crankshaft Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing. See 3.2L V6 article.
  3. Disconnect the crankshaft position sensor harness connector.
  4. Remove the retaining bolt and the crankshaft position sensor (1).

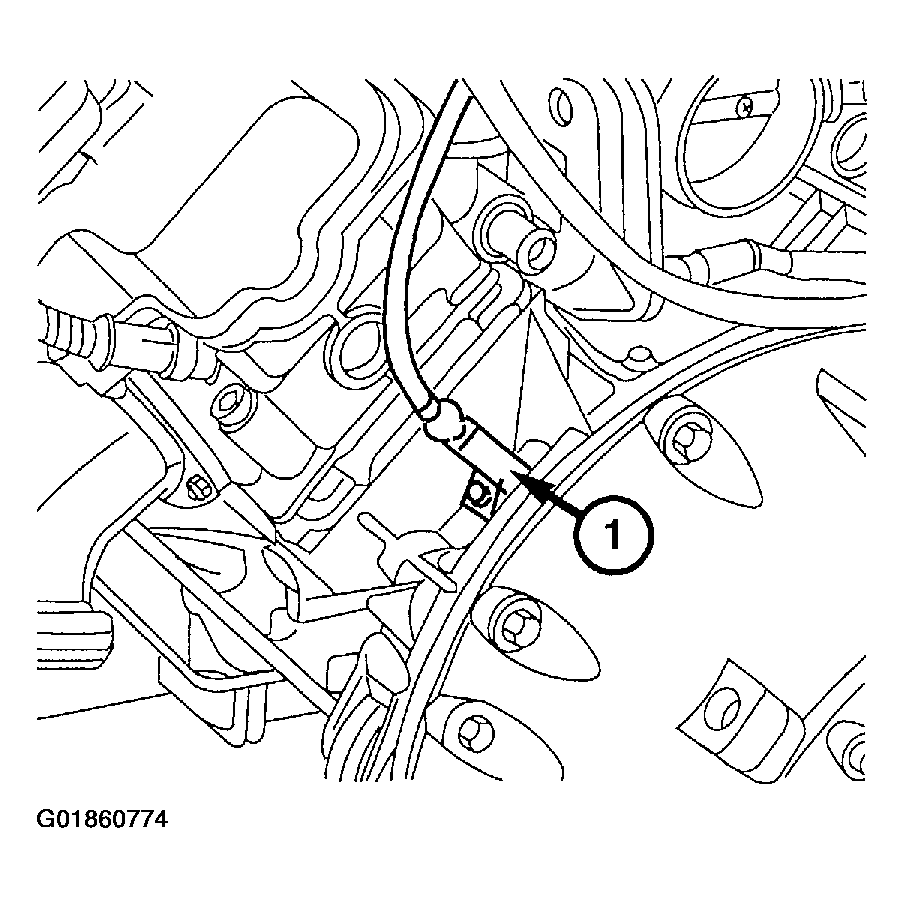

    Fig 1: Removing Crankshaft Position Sensor
    G01860774Courtesy of DAIMLERCHRYSLER CORP.
