Torque Specifications

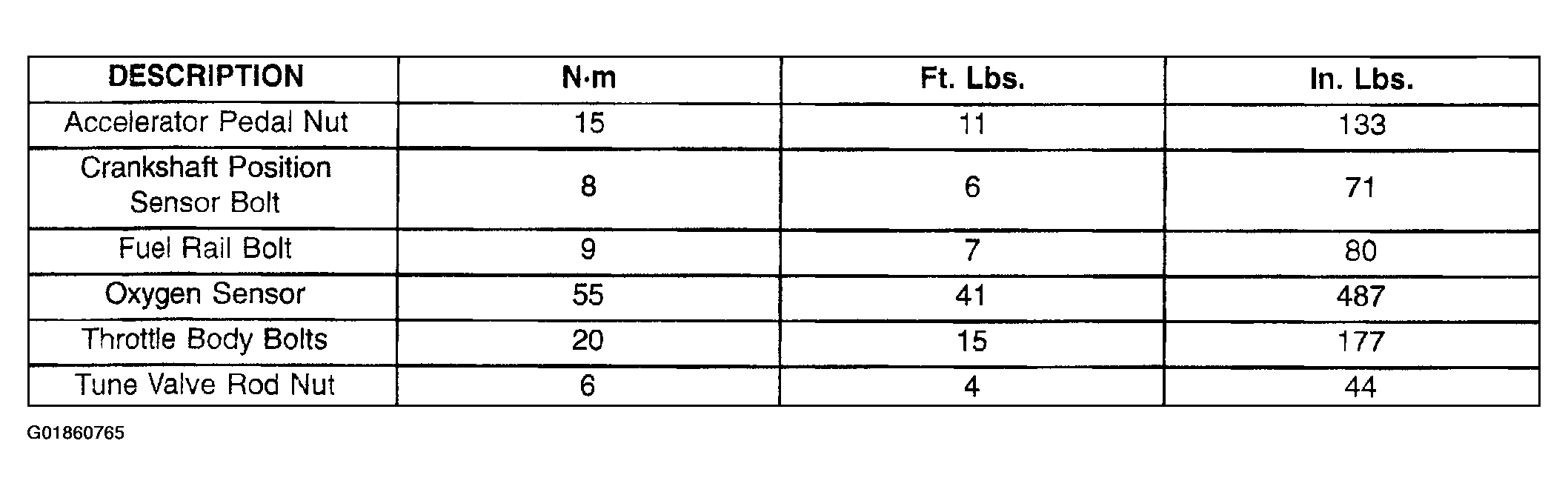

Fig 1: Fuel Injection Component Torque Specifications Table
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
