Fuel Level Sending Unit/Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Drain the fuel tank. See DRAINING FUEL TANK .
  3. Remove the cargo area interior trim panels.
  4. Remove the fuel tank partition retaining bolts and remove the fuel tank partition.
    5. NOTE: Place a shop towel around the fuel level sending unit/sensor to catch any excess fuel during disassembly.

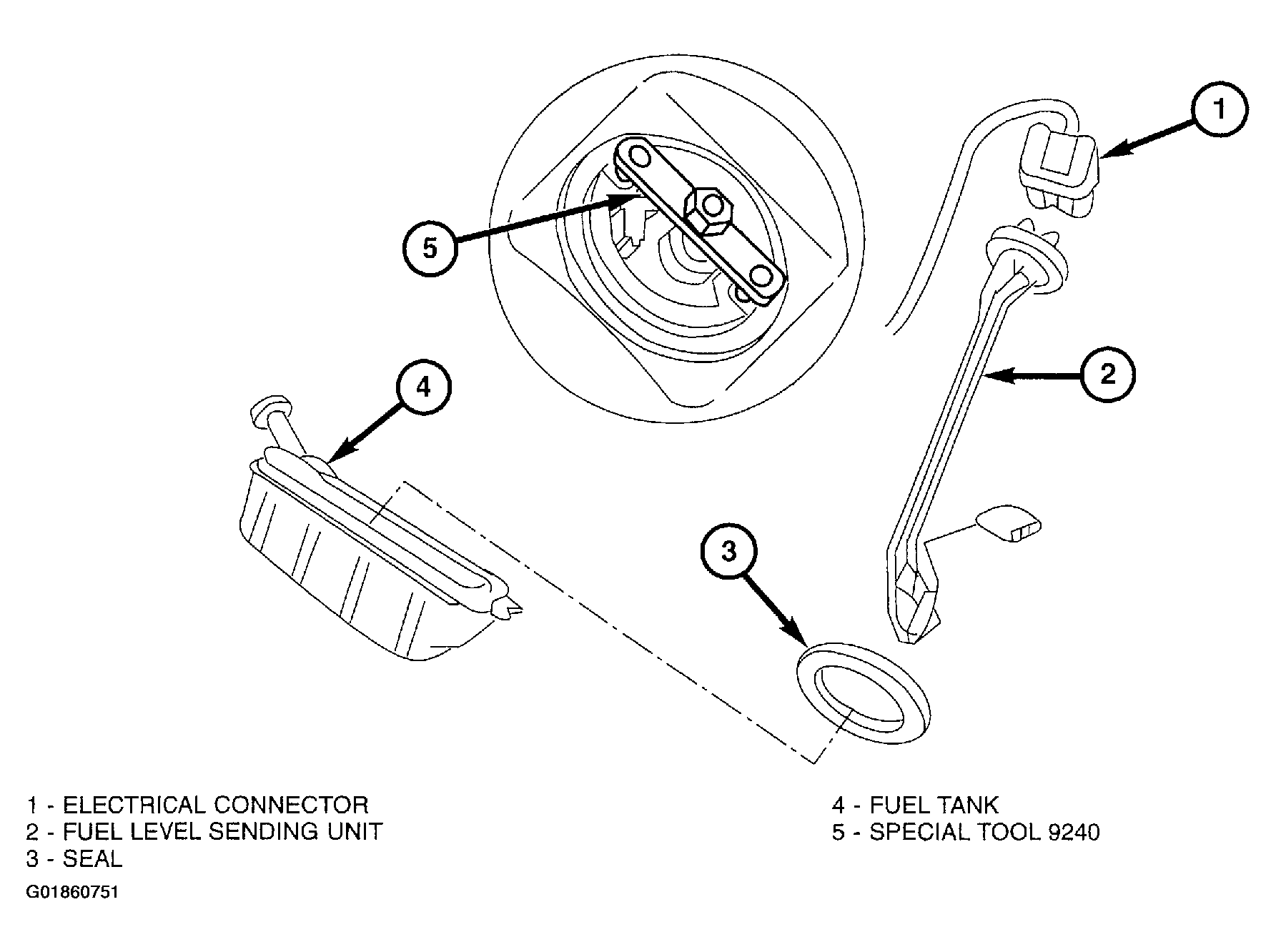

    Fig 1: Removing Fuel Level Sending Unit/Sensor
    G01860751Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the fuel level sending unit/sensor harness connector (1).
  6. Install Special Tool 9240 (5) and rotate the fuel level sending unit/sensor (2) counterclockwise.
  7. Remove the fuel level sending unit/sensor (2) from the fuel tank (4).
