Fuel Pump: Installation
- Install the fuel pump into the clamp, install the clamp retaining screw and tighten.
- Install the fuel pump harness connectors.

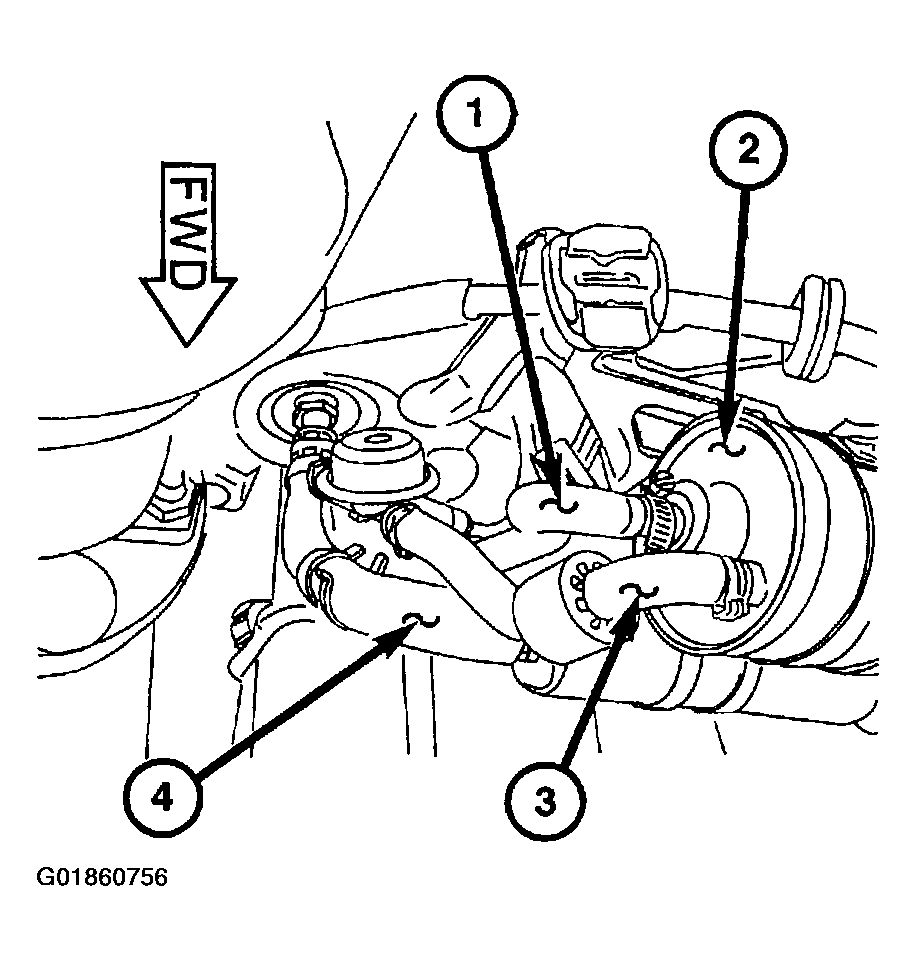

- Install both the fuel suction hose (4) and the fuel delivery hose to the fuel pump and tighten.
- Install the splash shield.
- Lower the vehicle.
- Connect the negative battery cable.
