Fuel Rail: Installation

  1. Install the fuel rail (2) with the fuel injectors (4) by moving the fuel rail (2) side to side and pushing gently inward towards the intake.

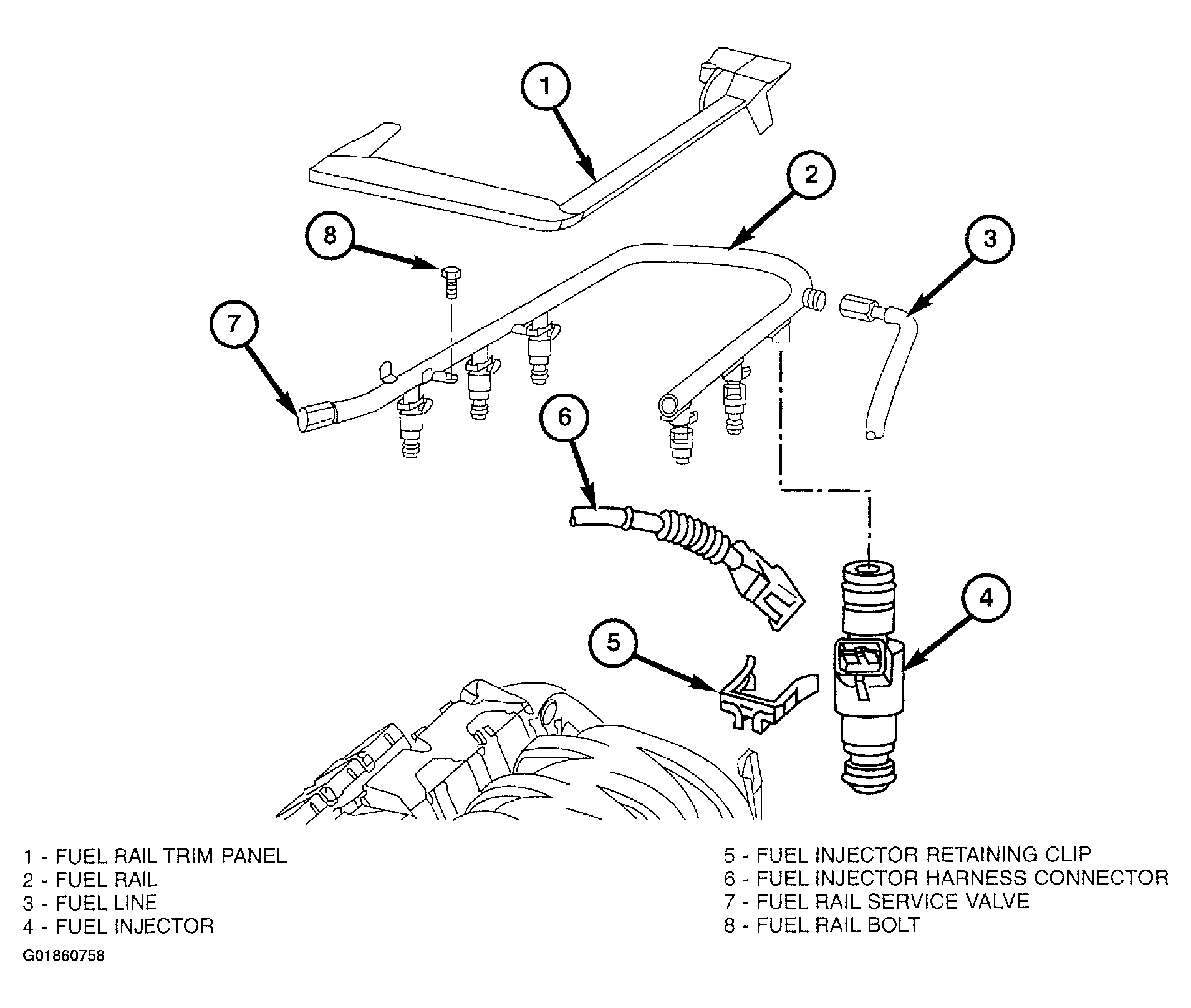

    Fig 1: Installing Fuel Rail
    G01860758Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the fuel rail bolts (8) attaching the fuel rail (2) to the intake. Tighten to 9 N.m (80 in. lbs.).
  3. Install the fuel injector harness (6) to the fuel injectors (4) then install the fuel injector harness connector retaining clips (5).
  4. Connect the fuel feed line (3) to the fuel rail and torque to 38 N.m (28 ft. lbs.).
  5. Install the fuel rail trim panel (1), then install the fuel rail trim panel screw.
  6. Install the air cleaner housing. See 3.2L V6 article.
