Manifold Air Flow (MAF) Sensor: Installation

Install the MAF onto the intake by securely pushing the MAF onto the throttle body.

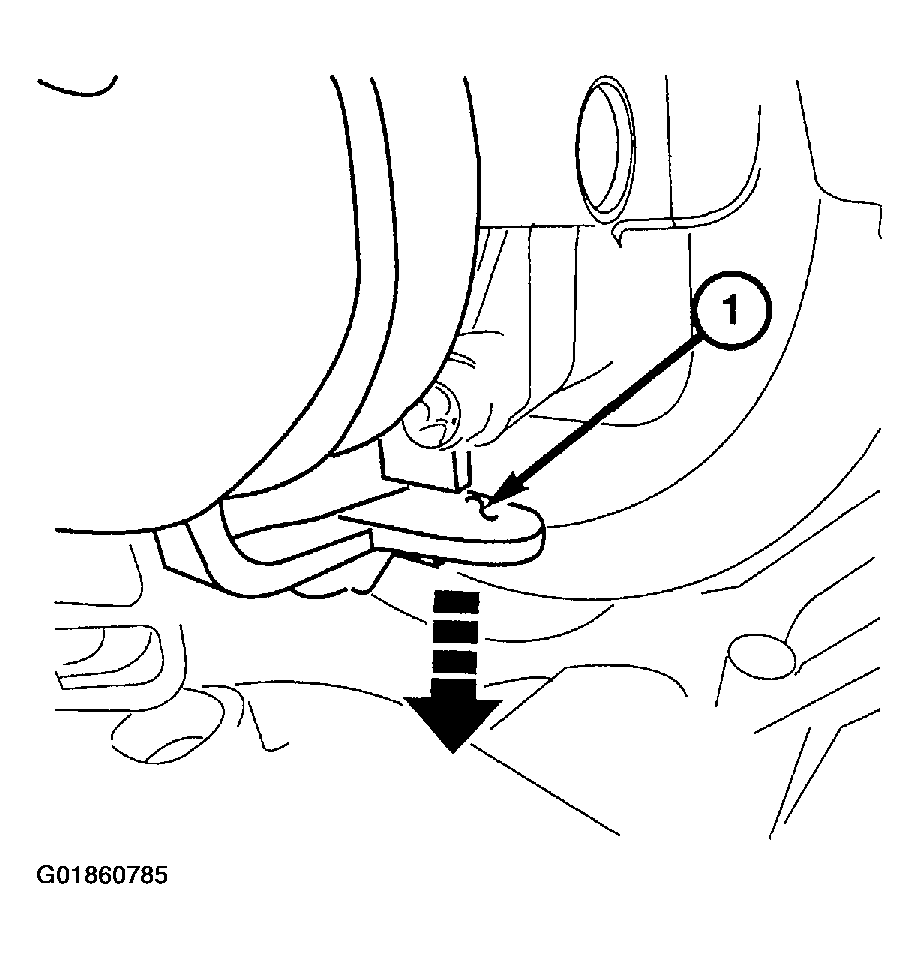

Lock the lower locking tab (1) to the intake manifold. Lock the upper locking tab to the intake manifold.

Fig 1: Installing MAF
Courtesy of DAIMLERCHRYSLER CORP.

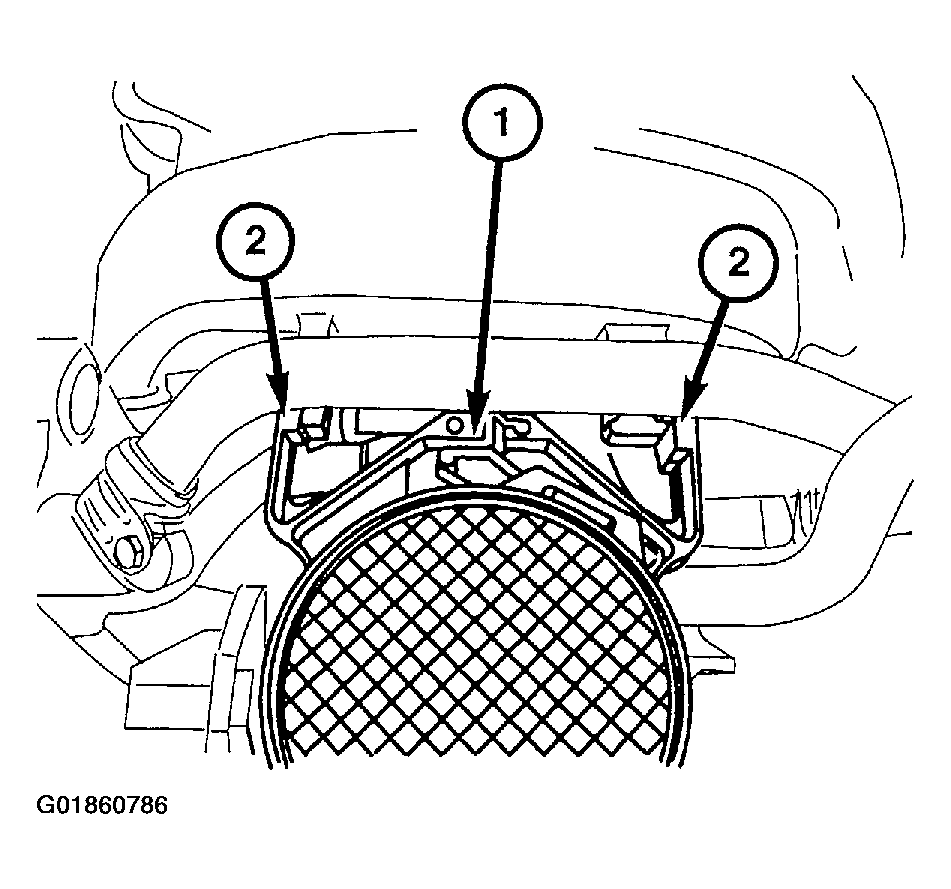

Push the MAF so the upper locking ring (1) and tabs (2) are inline with the tabs on the intake, then squeeze the locking ring (1) to lock the MAF onto the intake.

Fig 2: Locking MAF Onto Intake
Courtesy of DAIMLERCHRYSLER CORP.

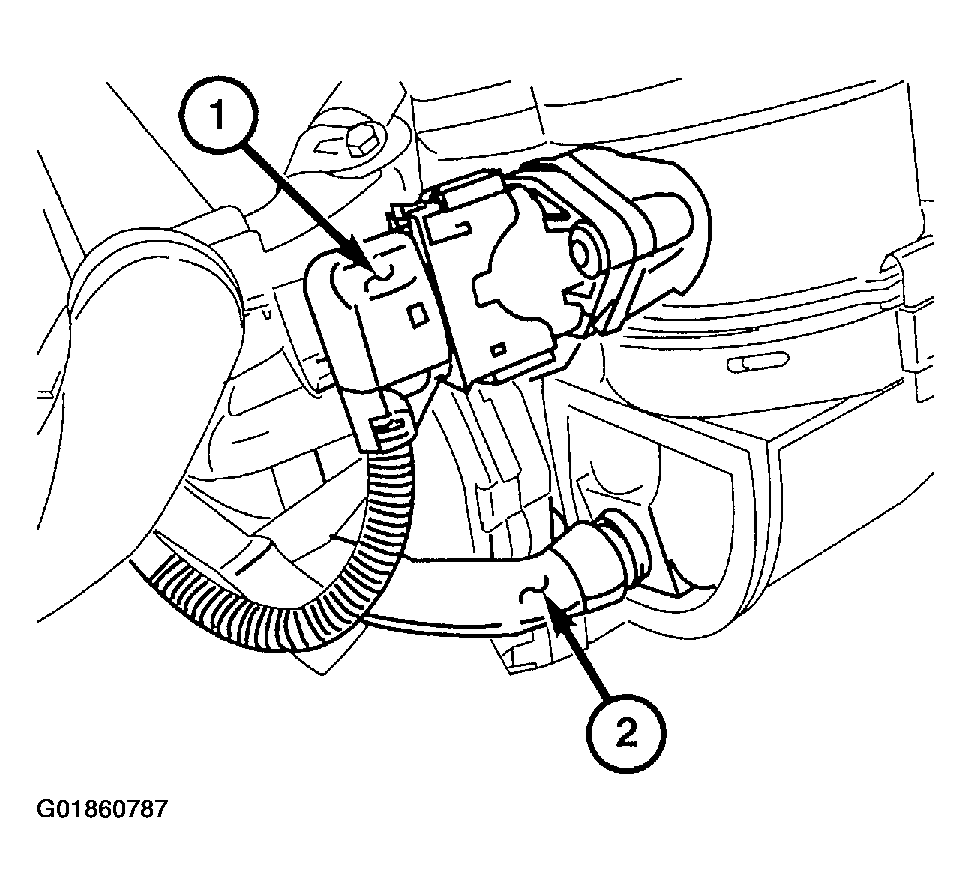

Install the vent hose (2) to the MAF sensor.
Connect the MAF/IAT harness connector (1).

Fig 3: Installing Vent Hose & Connecting MAF/IAT Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Install the air cleaner housing. See 3.2L V6 article.
Connect the negative battery cable.
