Manifold Tune Valve: Description

The manifold tune valve (2) opens a crossover passage in that it connects both sides of the intake manifold plenum. It is controlled by a vacuum solenoid (1).

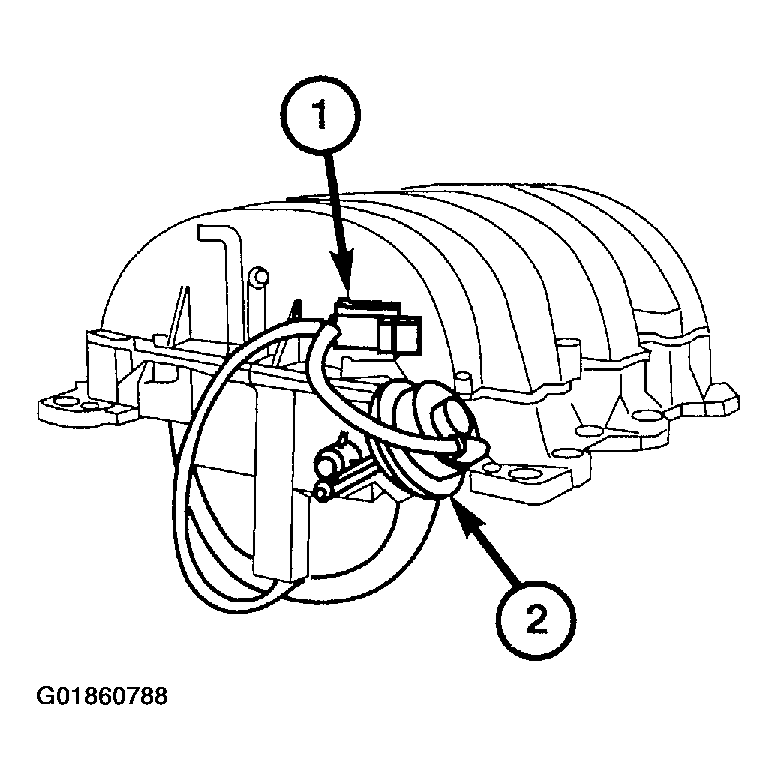

Fig 1: Locating Manifold Tune Valve

Courtesy of DAIMLERCHRYSLER CORP.
