Throttle Body: Installation

  1. Install the new O-ring (2) to the throttle body (5).
  2. Install the throttle body (5) to the intake. Tighten to 9 N.m (80 in lbs.).
  3. Connect the throttle body harness connector (3).
  4. Install the crankcase vent tube (1) to the intake.

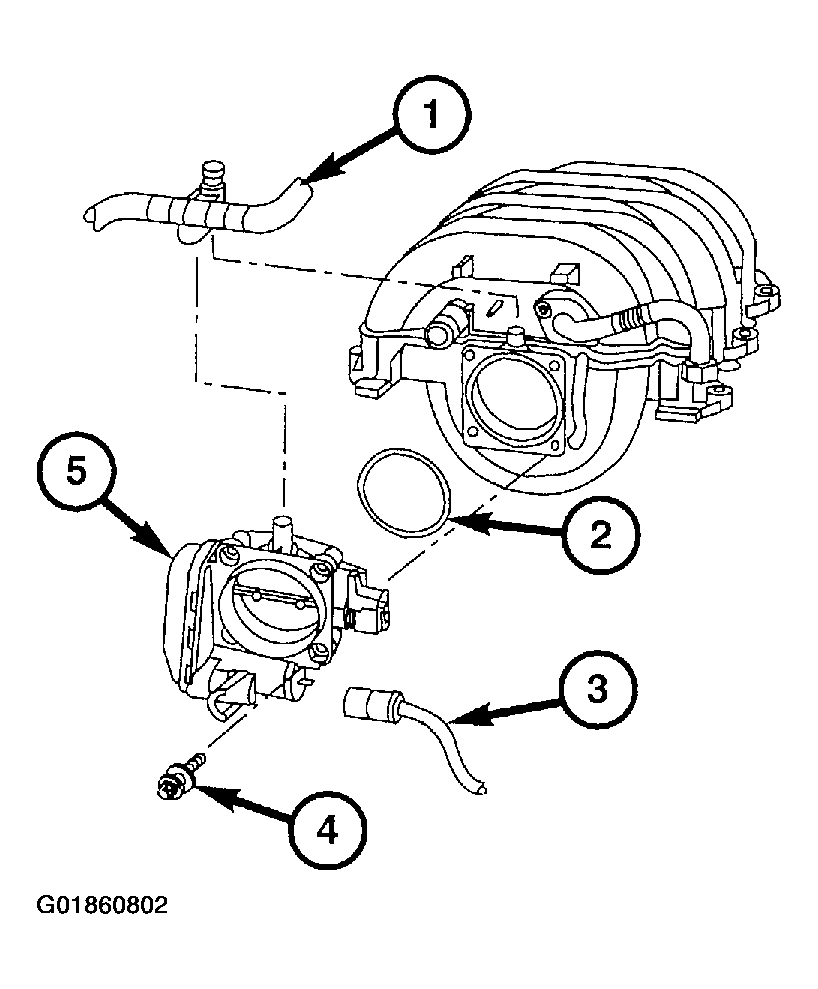

    Fig 1: Installing Throttle Body
    G01860802Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the MAF sensor. See MANIFOLD AIR FLOW (MAF) SENSOR .
  6. Install the air cleaner housing. See 3.2L V6 article.
  7. Connect the negative battery cable.
