Camshaft Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the camshaft position sensor harness connector (1).
  3. Remove the retaining bolt (2) and the camshaft position sensor.

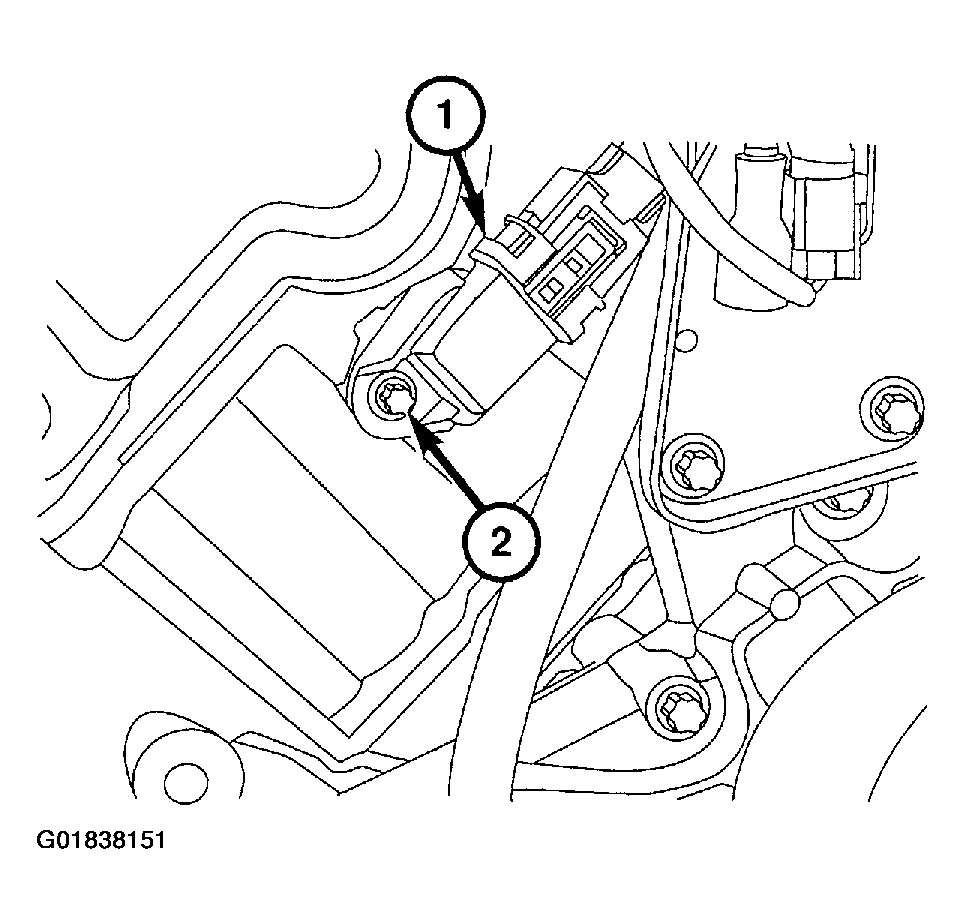

    Fig 1: Removing Camshaft Position Sensor
    G01838151Courtesy of DAIMLERCHRYSLER CORP.
