Ignition Coil: Installation

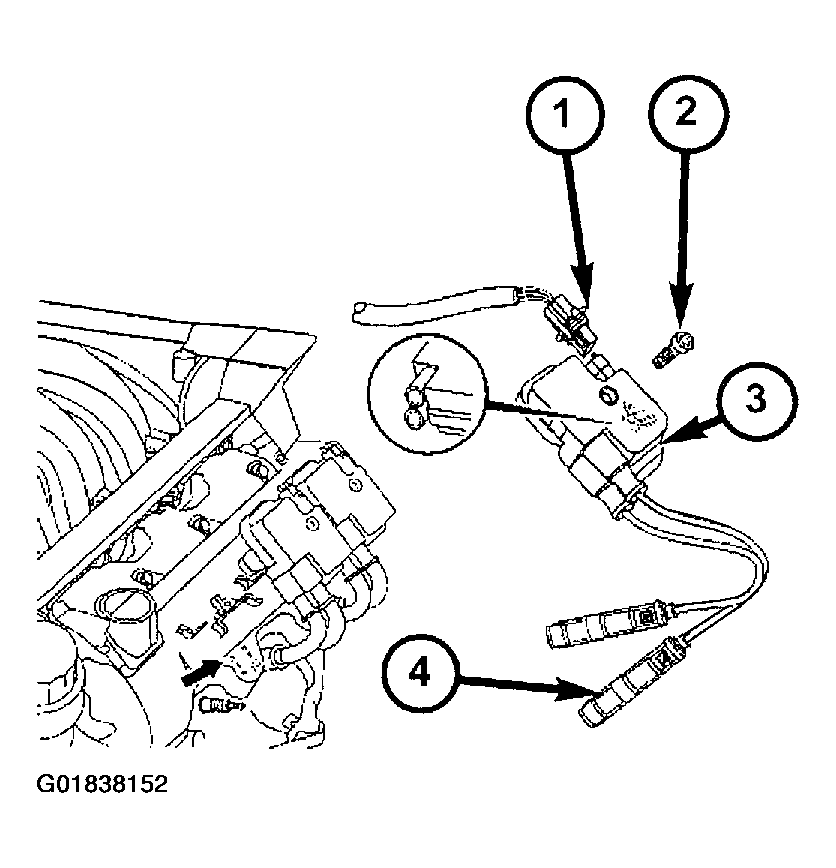

- Position the ignition coil (3) on the cylinder head cover. See Figure.
- Install and tighten the retaining bolt (2) to 8 N.m (71 in. lbs.)
- Connect the spark plug cables (4) to the spark plug.
- Connect the ignition coil wire harness connector (1).
- Install the air cleaner housing.
- Connect the negative battery cable.
NOTE:
When replacing the spark plug and coil cables, route the cables correctly and secure in the proper retainers. Failure to route the cables properly can cause the radio to reproduce ignition noise. It could also cause cross ignition of the plugs or short circuit the cables to ground.
NOTE:
When installing new cables, make sure a positive connection is made. A snap should be felt when a good connection is made between the plug cable and the spark plug.
