Crossfire Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition System - Electrical Diagnostics
>>
Schematics And Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematics And Diagrams

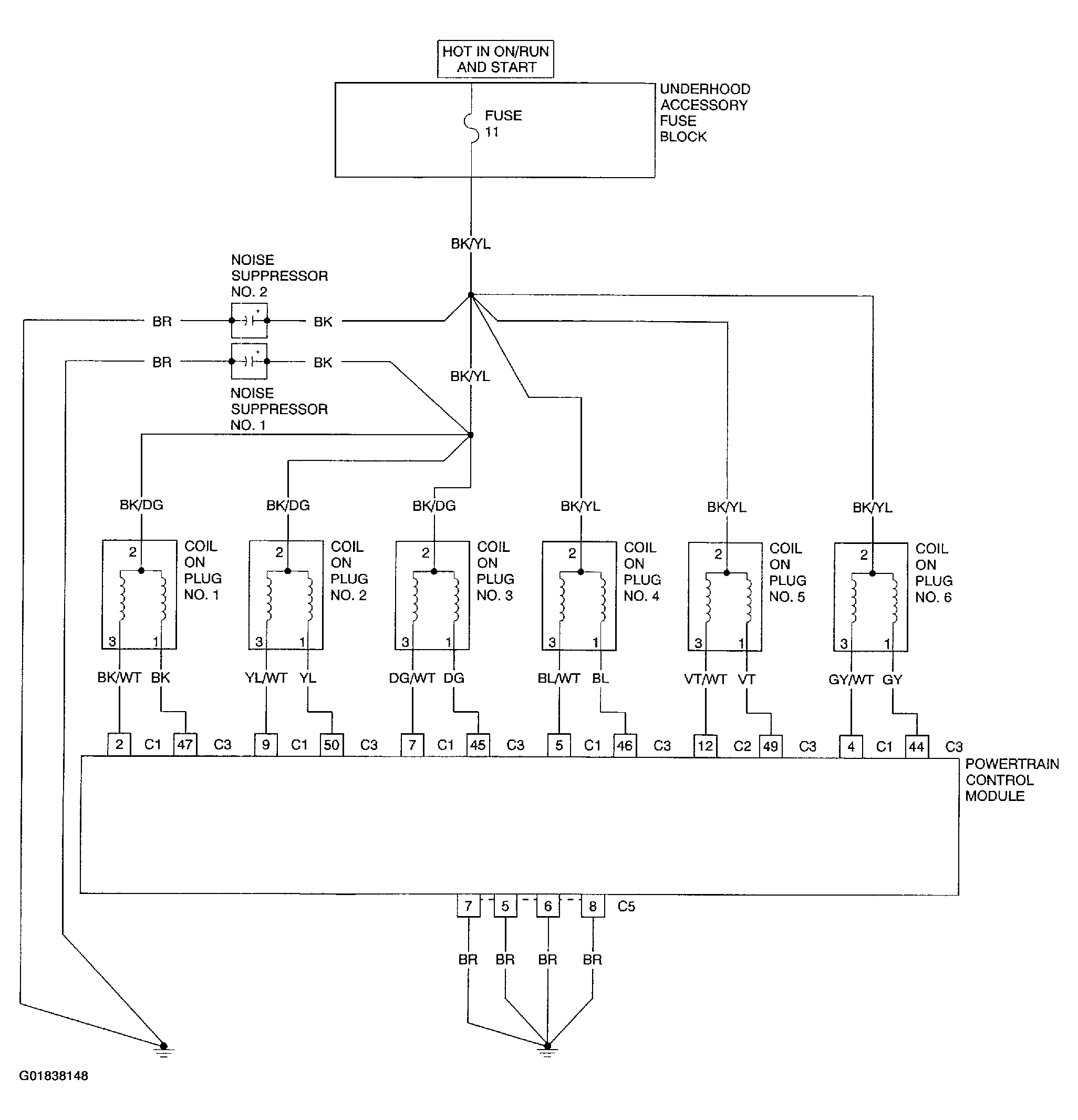

Fig 1: Identifying Ignition System Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
