Air Pump: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing.
  3. Disconnect the air pump switchover tube (1).

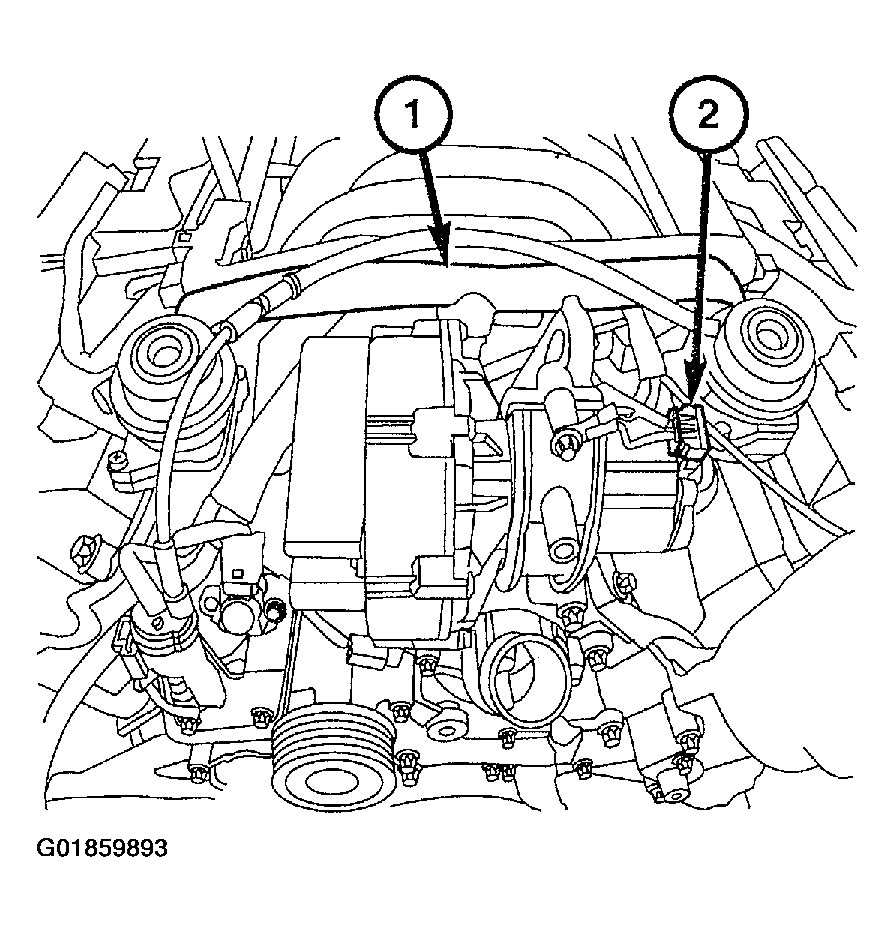

    Fig 1: Disconnecting Air Pump
    G01859893Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the air pump harness connector (2).
  5. Remove the air pump retaining bolt (2).
  6. Remove the air pump (1) from the air pump retaining bracket (3).

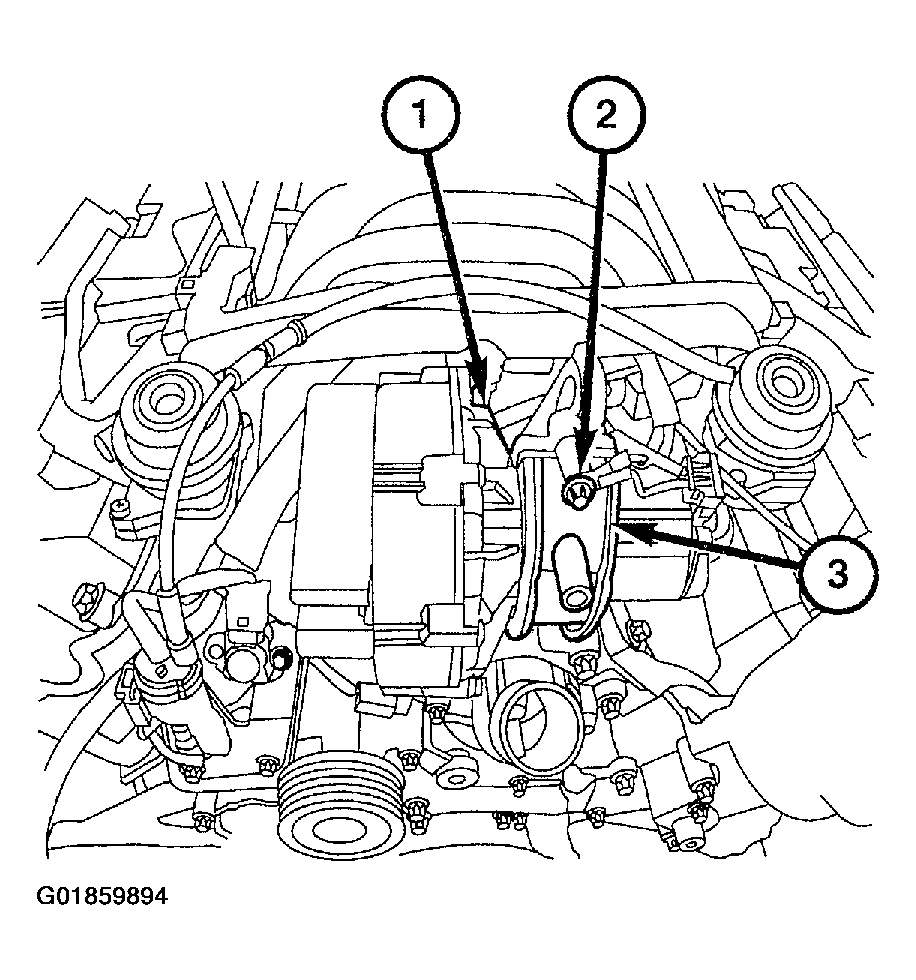

    Fig 2: Removing Air Pump
    G01859894Courtesy of DAIMLERCHRYSLER CORP.
